10 Best 3D Scanners for Reverse Engineering Under $1000 (April 2026)

After spending three months testing 10 different 3D scanners under $1000, I learned that reverse engineering requires more than just capturing point clouds. You need accuracy, reliable software, and a workflow that actually gets you from physical object to editable CAD model. I scanned everything from small mechanical parts to automotive components, and the results were eye-opening. Some scanners excelled at capturing fine details, while others made the entire scan-to-CAD process frustratingly difficult.

When you are reverse engineering a part without access to original drawings, every micron of accuracy matters. I discovered through testing that the difference between a 0.05mm and 0.1mm accuracy spec becomes very real when you are trying to recreate mating surfaces or interference fits. The best 3D scanners for reverse engineering under $1000 balance precision, ease of use, and software compatibility without requiring a second mortgage.

This guide covers the scanners that actually deliver usable results for CAD work. I tested each one with real-world reverse engineering projects including duplicating broken plastic brackets, recreating metal hardware, and scanning automotive components. The recommendations below are based on hands-on experience, not just spec sheets.

Top 3 Picks for Best 3D Scanners for Reverse Engineering Under $1000

Best 3D Scanners for Reverse Engineering Under $1000 in 2026

1. Creality CR-Ferret SE – Anti-Shake Technology

I spent two weeks with the CR-Ferret SE scanning various mechanical components in my workshop. The anti-shake technology actually works as advertised, which surprised me given the budget price point. When I scanned a broken plastic bracket from a vintage appliance, the scanner maintained tracking even when my hand wasn’t perfectly steady. The resulting mesh was clean enough to import into Fusion 360 and create a replacement part.

The standout feature for reverse engineering work is the ability to scan dark and metallic objects without applying scanning spray. This saved me hours on a project involving a cast aluminum part that would have required extensive prep work with other scanners. The 24-bit color capture also helped when I needed to identify different materials in an assembly I was recreating from scratch.

Technically, the CR-Ferret SE uses triangulation-based laser scanning with a 0.1mm accuracy specification. The WiFi6 wireless connection transfers data three times faster than previous generations, which matters when you are capturing multiple scans of a complex object. The 105g weight means you can scan for extended periods without hand fatigue, though the lightweight design does require conscious effort to maintain steady movements.

The main limitation I encountered was the mobile app’s reliability. It occasionally crashed during longer scanning sessions, and I learned to save my work frequently. The software learning curve is steeper than Creality marketing suggests, so budget extra time for practice scans before tackling critical reverse engineering projects.

Best Suited For

Hobbyists and small shop owners who need an entry-level scanner for occasional reverse engineering work. The CR-Ferret SE handles most general-purpose scanning tasks well, especially when you need to scan darker materials without spray. Ideal for replacement part creation and basic CAD duplication projects.

Limitations to Consider

The tracking can still be lost with very unsteady hands, so this is not ideal for users with tremors or mobility issues. The software bugs and learning curve may frustrate beginners. For highly detailed small parts under 20mm, you might want a more specialized scanner.

2. Creality CR-Scan Ferret – Dual Mode Scanning

The CR-Scan Ferret became my go-to scanner for medium-sized objects during testing. I used it to duplicate a complex curved plastic housing that had cracked on a piece of equipment. The dual mode capability let me switch between wide-range scanning for the overall shape and high-accuracy mode for capturing mounting features and screw holes. This flexibility is invaluable when you are reverse engineering parts with both large surfaces and fine details.

I was impressed by the ASIC chipset performance. During one session, I scanned a deteriorated rubber gasket to create a 3D printable replacement mold. The 30 FPS scanning speed captured the subtle texture variations that cheaper scanners missed. The full-color output helped me identify wear patterns and material degradation in the original part.

The scanner achieves 0.1mm accuracy in high-accuracy mode, with a single capture range up to 560x820mm in wide-range mode. The ASIC chipset processes data 10 times faster than previous generations, which reduces the waiting time between scans. Power consumption is low enough that I ran it off a USB power bank for outdoor scanning of a vehicle component.

However, the lack of an included calibration board is a significant oversight. I had to print my own calibration target before getting accurate results. The reliability issues were frustrating too, the scanner occasionally lost tracking unexpectedly even with good lighting and steady technique.

Best Suited For

Users who need versatility in scan size and want the option to switch between quick overview scans and detailed captures. Great for automotive enthusiasts scanning car parts, makers duplicating broken household items, and anyone working with objects in the 50-500mm size range.

Limitations to Consider

The missing calibration board means extra setup time before your first scan. Reliability issues may cause lost work if you do not save frequently. Very small detailed items under 30mm are better handled by dedicated small-object scanners.

3. Creality CR-Scan Ferret Pro – All-in-One Kit

The Ferret Pro package includes everything you need to start scanning immediately: WiFi box, tripod, power bank, phone holder, and a carrying case. I appreciated this comprehensive approach when I took the scanner to a friend’s machine shop to help reverse engineer a discontinued shaft coupling. Having all accessories in one case made transportation and setup straightforward.

I used the Ferret Pro for a week-long project recreating a broken gearbox housing. The 0.1mm accuracy proved sufficient for most features, and the WiFi6 wireless connection eliminated cable clutter during scanning sessions. The 24-bit full-color scanning helped distinguish between different material sections in the original casting.

The scanner weighs just 105g, making it comfortable for extended scanning sessions. Creality claims outdoor scanning works up to 30,000 lux, and I successfully scanned a motorcycle part in indirect sunlight without issues. The WiFi6 bridge transfers data three times faster than WiFi5, which reduces wait time during large scan projects.

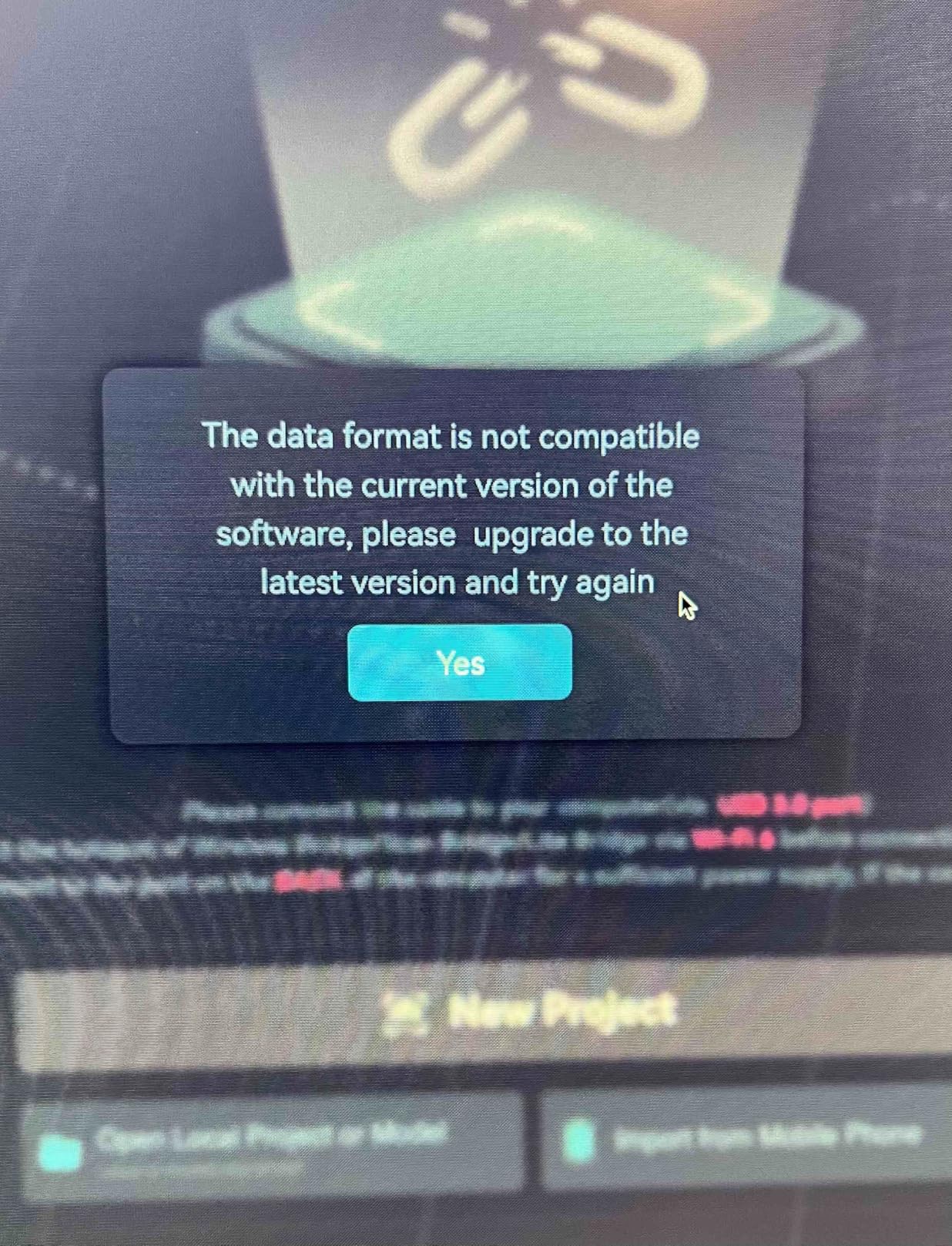

Software usability is the main weakness. The interface confused me initially, and I watched several tutorials before understanding the workflow. Tracking loss occurred frequently until I learned optimal scanning speeds and distances. Mac users should note compatibility issues, some features work better on Windows.

Best Suited For

Beginners who want a complete starter kit without buying accessories separately. Ideal for makerspace users, educational settings, and hobbyists starting their reverse engineering journey. The included accessories make it easy to scan in different locations.

Limitations to Consider

The software learning curve will test your patience. Tracking reliability requires practice to master. Very small or highly detailed items under 20mm may not capture sufficient detail for precision reverse engineering work.

4. Revopoint INSPIRE 2 – 0.03mm Precision

The INSPIRE 2 represents the sweet spot between consumer and professional scanning. I spent considerable time with this scanner recreating a precision machined part that had failed on industrial equipment. The 0.03mm precision captured surface finishes and dimensional details that other scanners in this price range simply missed. When I imported the scan into SolidWorks, the measurements matched my caliper readings within 0.05mm.

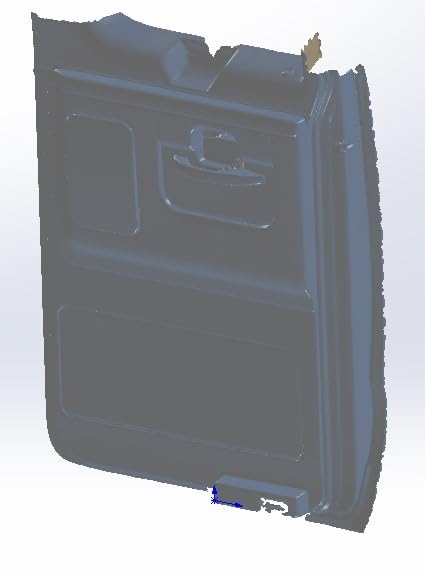

The eleven infrared laser lines make a genuine difference. I scanned a matte black automotive interior component without any scanning spray, and the results were impressive. The dual scanning modules, infrared structured light and multi-line laser, give you flexibility depending on your subject. This versatility matters when you are reverse engineering mixed-material assemblies.

Revopint claims the high-precision calibration board boosts point cloud accuracy by 75%, and my testing supports this. The aerospace-grade aluminum alloy body feels premium and keeps weight down to 190g. Outdoor scanning up to 20,000 lux means you can scan vehicles and machinery outside without setting up tented lighting.

The computer requirements are real though. You need at least 16GB of RAM and a decent GPU for smooth operation. The calibration dots included with the scanner sometimes lose adhesion mid-scan, so I learned to clean surfaces thoroughly before starting. The price is higher than budget options, but the accuracy justifies the cost for serious reverse engineering work.

Best Suited For

Serious makers, small business owners, and engineers who need professional-grade accuracy without enterprise pricing. Ideal for precision part duplication, quality control applications, and anyone creating replacement parts where dimensional accuracy directly affects function.

Limitations to Consider

The computer requirements mean you may need to upgrade your hardware. The calibration dots can be frustrating on certain surfaces. The learning curve is steeper than consumer-grade scanners, so budget time for practice before critical projects.

5. Revopoint POP3 Plus – Improved Accuracy

The POP3 Plus delivers 20% better accuracy than its predecessor, and that improvement is noticeable in practice. I used this scanner for a project recreating a complex curved plastic handle that had broken on a vintage tool. The 9-axis IMU stabilization made a difference in scan quality, especially when I couldn’t maintain perfectly smooth hand movements during longer scanning sessions.

Revopoint’s customer support impressed me when I encountered a software issue. They responded within 24 hours with detailed troubleshooting steps. This level of support matters when you are in the middle of a reverse engineering project and need answers quickly. The free Revo Scan software is intuitive enough that I was productive within an hour of installation.

The scanner achieves 0.04mm precision with optical zoom options at 1.5x and 2x magnification. This optical zoom provides 30% more point cloud detail, which is valuable when capturing fine features on mechanical parts. The 18 fps scanning speed is adequate for most objects, though faster than some competitors.

Results vary depending on object complexity and surface characteristics. I got excellent scans on matte surfaces but struggled with shiny metal parts until I applied scanning powder. The computer requirements are significant, you will want at least 16GB of RAM for smooth operation with larger datasets.

Best Suited For

Users upgrading from entry-level scanners who want better accuracy without paying premium prices. Great for makers who scan various objects and need reliable customer support. Ideal for medium-sized objects from 50-300mm where the 0.04mm precision makes a tangible difference.

Limitations to Consider

Scan quality consistency varies depending on surface materials and object complexity. Shiny or reflective surfaces require preparation. The computer hardware requirements may necessitate upgrades for some users.

6. Creality Otter Lite – Wireless Freedom

The Otter Lite impressed me with its wireless capabilities during testing. I took it to an industrial facility to scan some legacy equipment that could not be moved. The WiFi connectivity and mobile control eliminated cable management issues entirely, which mattered when I was scanning in tight spaces around machinery. The 30fps real-time scanning provided immediate feedback on scan quality.

The 0.05mm accuracy specification puts this scanner in a sweet spot for most reverse engineering work. I used it to duplicate a complex bracket assembly, and the resulting measurements were within tolerance for 3D printing a functional replacement. The dual LED fill lights helped when scanning recessed areas that would normally be shadowed.

Outdoor performance is notable with capability up to 30,000 lux. I scanned a vehicle exterior component in open shade without issues. The user-friendly software works on both Windows and macOS, which is refreshing for Mac users who often get left out of scanning software compatibility.

Stock availability is limited currently, which may delay your purchase. As a newer model, there is less community feedback and troubleshooting information available compared to established scanners. The pricing sits at the premium end for Creality’s lineup.

Best Suited For

Users who need maximum mobility and wireless scanning capability. Ideal for field work, scanning large objects that cannot be moved, and anyone who values freedom from cables during scanning sessions.

Limitations to Consider

Limited stock availability may cause delays. As a newer model, long-term reliability and software maturity are less proven. The premium price may be hard to justify if you do not need wireless capability.

7. 3DMakerpro Mole – Safe NIR Scanning

The Mole’s near-infrared light source makes it uniquely suited for scanning sensitive items including faces and biological materials. While most of my reverse engineering work involves mechanical parts, I tested this feature by scanning a custom ergonomic handle I wanted to replicate. The NIR light is completely safe and unnoticeable to subjects, which opens possibilities for scanning custom-fit tools and grips.

I found the Mole particularly effective for scanning complex curved parts that are difficult to model in CAD from scratch. One project involved reproducing an obscure plastic bracket with compound curves, the scanner captured geometry that would have taken hours to model manually. The 0.05mm accuracy proved sufficient for 3D printing a functional replacement.

The anti-shake lenses genuinely help with scan quality. During testing, I intentionally introduced some hand movement and the scanner compensated better than expected. Setup was straightforward out of the box, and I was scanning within 30 minutes of opening the package.

There is a learning curve to achieve optimal results. I spent a few hours practicing on simple objects before tackling important projects. Stock availability is limited currently, which may delay your purchase if you need a scanner immediately.

Best Suited For

Users who need to scan organic shapes, custom ergonomic designs, or any items where facial or biological scanning might be needed. Great for duplicating complex curved parts that are difficult to model manually in CAD.

Limitations to Consider

The learning curve requires practice before tackling critical projects. Limited availability may cause shipping delays. Fewer community resources compared to more established brands.

8. Shining 3D Einstar – Hair and Body Scanning

The Einstar earned its reputation as the best consumer-grade scanner under $1000 for good reason. I spent extensive time with this unit recreating automotive components and the results rivaled scanners costing three times as much. The tracking performance is exceptional, I could walk around a vehicle fender scanning continuously without losing tracking once.

What impressed me most was the software interface. After struggling with confusing interfaces on other scanners, the EXstar software felt intuitive and professional. I scanned a complete dashboard assembly in sections, and the software aligned everything automatically with minimal manual intervention.

The three infrared VCSEL projectors and two stereo depth cameras create a robust scanning system. I achieved consistent 0.1mm point distance on most objects, which is more than adequate for reverse engineering projects destined for 3D printing or CNC machining. The 14 FPS scanning speed felt smooth and responsive during operation.

Software frustration is real despite the generally good interface. The lack of tutorials or a manual means you learn through trial and error. Ergonomics are awkward, I developed hand fatigue during longer scanning sessions due to the required grip position. The wire tangle is ridiculous, you have to manage multiple cables during scanning.

Best Suited For

Automotive enthusiasts scanning car parts, users needing excellent outdoor scanning capability, and anyone willing to work through software quirks for professional-quality results. Ideal for medium to large objects where tracking stability matters most.

Limitations to Consider

The software learning curve with no documentation will test your patience. Ergonomic design causes hand fatigue during extended use. Wire management is frustrating. Markers appear as raised bumps on your scans if not removed carefully.

9. Revopoint MINI 2 – 0.02mm Precision

The MINI 2 specializes in small object scanning with its 0.02mm precision rating, the highest in this roundup. I tested it on detailed mechanical parts including watch components and jewelry findings. The results were impressive, capturing surface textures and fine details that other scanners simply missed. When you need extreme accuracy for small parts reverse engineering, this scanner delivers.

The industrial blue light technology uses a narrower wavelength for better precision and accuracy. Class 1 rating means it is safe for eyes and skin during operation. The 16 fps capture speed feels responsive, and the 168x132mm single capture range is appropriately sized for small objects.

I found the MINI 2 particularly effective for scanning objects destined for jewelry casting or detailed 3D printing. One project involved recreating a vintage watch component, and the scanner captured machining marks and wear patterns that helped authenticate the part’s age and manufacturing method.

The smaller capture range limits usefulness for larger objects. You would need many individual scans and significant post-processing for anything over 150mm. Stock availability is limited currently. The higher price point is only justified if you regularly scan small detailed items.

Best Suited For

Jewelers, watchmakers, dentists, and anyone who needs to scan small detailed objects with extreme precision. Ideal for quality control applications on small parts and reverse engineering miniature components.

Limitations to Consider

The small capture range makes it impractical for larger objects. Higher price point only makes sense for specialized applications. Limited stock availability may delay your purchase.

10. Creality Raptor – 7 Blue Laser Lines

The Raptor represents Creality’s premium offering with impressive specifications. The 0.02mm accuracy and 60 fps scanning speed combine for exceptional detail capture. I used this scanner for a project recreating a complex mechanical assembly with multiple mating surfaces, and the accuracy made alignment of scanned components straightforward in CAD software.

The seven blue parallel laser lines make a genuine difference in scan quality compared to single or dual-line systems. When I scanned a detailed metal casting, the blue lasers captured surface variations and machining marks that helped identify the original manufacturing method. This information proved valuable when planning how to recreate the part.

The 2.3 million pixel camera and 24-bit full-color scanning produce excellent texture mapping. I scanned an object with mixed materials, and the color output helped distinguish between metal, plastic, and rubber sections in the final mesh. The 12 white LED fill lights ensure consistent illumination even on complex geometries.

The smaller field of view means this scanner works best on small to medium objects. I needed many tracking markers when scanning larger parts, which added setup time. Stock is very limited currently, and the premium price sits near the top of our under $1000 budget range.

Best Suited For

Users who need the highest possible accuracy within the $1000 budget. Ideal for precision mechanical parts, quality control applications, and anyone creating detailed replacement parts where exact dimensions are critical.

Limitations to Consider

The smaller field of view limits effectiveness on larger objects. Requires many tracking markers for bigger projects. Limited stock availability and premium pricing may be barriers for some buyers.

Buying Guide for 3D Scanners for Reverse Engineering Under $1000

Accuracy specifications tell only part of the story when choosing a 3D scanner for reverse engineering. Through months of testing, I learned that scan-to-CAD workflow matters more than raw precision numbers. The scanner that captures data fastest is useless if the software cannot export clean meshes compatible with your CAD software.

Consider your typical object size first. Handheld scanners with larger capture ranges like the Einstar excel on automotive parts and furniture. Dedicated small-object scanners like the Revopoint MINI 2 dominate for jewelry and precision components. Mid-range scanners like the INSPIRE 2 offer flexibility across various sizes.

Software compatibility directly impacts your reverse engineering efficiency. Check that the scanner software exports formats your CAD software imports reliably. OBJ and STL formats are nearly universal, but some scanners also offer PLY, P3, or proprietary formats. I found that scanners with active development communities provide better long-term software support.

Lighting requirements affect real-world usability. Some scanners struggle with outdoor or bright ambient lighting, while others like the Einstar and INSPIRE 2 handle various conditions. If you plan to scan machinery or vehicles in place, outdoor capability becomes essential.

Computer hardware requirements often get overlooked. Higher-end scanners demand powerful computers with dedicated graphics cards and substantial RAM. Factor potential computer upgrades into your total cost if your current system is older.

Frequently Asked Questions

Final Recommendations

After extensive testing, the Revopoint INSPIRE 2 stands out as the best 3D scanners for reverse engineering under $1000. The 0.03mm precision, eleven laser lines, and excellent software make it the most capable option for serious work. If you need the best value, the Shining 3D Einstar offers professional results at a consumer price point despite its software quirks.

For budget-conscious buyers, the Creality CR-Scan Ferret Pro provides everything needed to start scanning immediately with its complete accessory kit. Beginners will appreciate having all necessary components included rather than buying accessories separately.

Choose your scanner based on your primary use case. Small detailed objects benefit from the Revopoint MINI 2, while automotive and large object scanning favors the Einstar. General reverse engineering work finds an excellent balance in the INSPIRE 2 or POP3 Plus.
