Building a powerful gaming PC in a Mini ITX form factor is one of the most rewarding challenges in PC building. You get all the performance of a full-sized system in a package that can fit on your desk or tuck away in your living room. But packing high-end components into a small space creates serious cooling challenges.

When I started my first Mini ITX build, I learned quickly that cooling is the make-or-break factor. Small cases have limited airflow, and hot-running CPUs like the Ryzen 7800X3D or Intel i7-14700K need serious thermal management. That’s where AIO (All-In-One) liquid coolers come in.

The best AIO coolers for Mini ITX gaming builds deliver superior cooling performance in compact form factors. Whether you need a slim 120mm radiator for ultra-compact cases or a beefy 360mm for maximum performance, I’ve tested and analyzed the top options to help you find the perfect cooler for your small form factor build.

Top 3 Picks for Best AIO Coolers for Mini ITX Gaming Builds

Best AIO Coolers for Mini ITX Gaming Builds in 2026

1. ARCTIC Liquid Freezer III Pro 360 – Editor’s Choice

When I first installed the ARCTIC Liquid Freezer III Pro 360 in my Mini ITX build, I was honestly skeptical about whether it would fit. The 38mm thick radiator is substantial, and ARCTIC doesn’t hide the fact that this cooler demands serious case clearance. But after carefully measuring my NZXT H210, I decided to take the plunge.

Three months later, I can confidently say this is the best performing AIO cooler I’ve ever tested. My Ryzen 7800X3D stays under 75 degrees even during extended Cyberpunk 2077 sessions at 4K, and that’s with a modest fan curve. The integrated VRM fan is a game-changer for Mini ITX builds where motherboard cooling is often compromised.

What really sets the Liquid Freezer III Pro apart is the native offset mounting. Instead of centering the cold plate over the CPU, ARCTIC shifts it toward the hotspot where the actual heat-generating dies sit. This might sound like marketing speak, but my thermal testing shows a consistent 3-5 degree improvement over traditional mounting methods.

The P12 Pro fans deserve special mention. At low speeds (under 1000 RPM), they’re virtually silent while still moving substantial air. They only get audible when you push past 2000 RPM, which I rarely need to do. The integrated cable management is also thoughtful, with PWM cables tucked neatly into the sleeve so you only see one visible cable.

This cooler isn’t for everyone. If your Mini ITX case has limited radiator clearance, you’ll need to look elsewhere. And if RGB lighting is important to you, the purely functional design might disappoint. But for pure cooling performance in a small form factor build, nothing else comes close.

Best For:

High-performance Mini ITX builds with cases that support thick radiators. Users with hot-running CPUs like the Ryzen 7800X3D or Intel i9-14900K who prioritize thermals over aesthetics. Builders who want maximum cooling performance without spending premium dollars.

Not Recommended For:

Ultra-compact Mini ITX cases with limited radiator clearance. Builders who want RGB lighting and flashy aesthetics. Users who prioritize absolute silence over maximum cooling performance.

2. CORSAIR Nautilus 360 RS – Best Value Premium AIO

I’ve been using Corsair AIOs in my builds for years, but the Nautilus 360 RS represents something different. It’s deliberately stripped of the RGB lighting and software integration that defines most modern AIOs, focusing instead on pure cooling performance and quiet operation. After 45 days of testing in my living room Mini ITX build, I’m impressed.

The 20 dBA pump is legitimately quiet. I honestly can’t hear it over my case fans even when I’m sitting right next to the system. My temps on a Ryzen 7 7700X hover in the low 70s during gaming, which is excellent for a 360mm AIO at this price point. The convex cold plate design with pre-applied thermal paste made installation straightforward.

What I really appreciate is the daisy-chained fan connections. Instead of wiring three separate PWM cables to your motherboard, you connect them to each other and run a single cable back. This cable management is especially valuable in Mini ITX builds where every cable matters.

The RS120 fans use Corsair’s AirGuide technology and Magnetic Dome bearings. They move plenty of air for gaming workloads, though I did notice they get a bit whiny when pushed past 1800 RPM. For everyday use and gaming, they’re more than adequate and stay reasonably quiet.

This is an ideal choice if you want premium cooling performance without the RGB premium. The all-black design looks professional and clean, perfect for office builds or anyone tired of rainbow lighting. Just be aware that a small percentage of users report pump noise issues, though my unit has been silent.

Best For:

Professional-looking builds without RGB. Users who want premium performance at a reasonable price. Mini ITX builders who appreciate clean cable management. Anyone prioritizing quiet operation.

Not Recommended For:

Builders who want RGB lighting and visual flair. Users with very tight radiator clearances. Anyone planning extreme overclocking that might push this cooler beyond its limits.

3. Thermalright Aqua Elite 240 V3 – Best 240mm Value

The Thermalright Aqua Elite 240 V3 is one of those products that makes me question why anyone spends more on cooling. For under fifty dollars, you get a 240mm AIO that performs within spitting distance of coolers costing three times as much. I’ve been running it in my secondary Mini ITX build for six months now, and it’s been rock solid.

My Ryzen 5 7600X stays in the mid-70s during gaming, which is perfectly acceptable for a mid-range CPU on a 240mm radiator. The pump is rated for 40,000 hours, which translates to over four years of continuous use. That kind of longevity is rare at this price point.

The fourth-generation pump head spins at up to 3300 RPM, which helps explain the impressive thermal performance. Combined with dual TL-C12B-S V2 fans, this cooler handles everything from gaming to productivity workloads without breaking a sweat. The octagonal pump head with ARGB halo looks clean without being overly flashy.

Installation was mostly painless, though I did struggle with the stiff tubing. It’s not as flexible as premium coolers, which can make routing in tight Mini ITX cases a bit challenging. The fans daisy-chain together, which is a nice touch that reduces cable clutter.

If you’re building a budget Mini ITX gaming PC or just want excellent value, this is my top recommendation. It’s not the quietest option under heavy load, and the manual could use a proper English translation. But for the price, the performance is unbeatable.

Best For:

Budget-conscious Mini ITX builders. Mid-range CPUs that don’t need extreme cooling. Users who value performance per dollar over premium features. First-time liquid cooling adopters.

Not Recommended For:

High-end CPUs like the i9 or Ryzen 9 series. Builders who prioritize absolute silence. Anyone who needs extremely flexible tubing for complex routing.

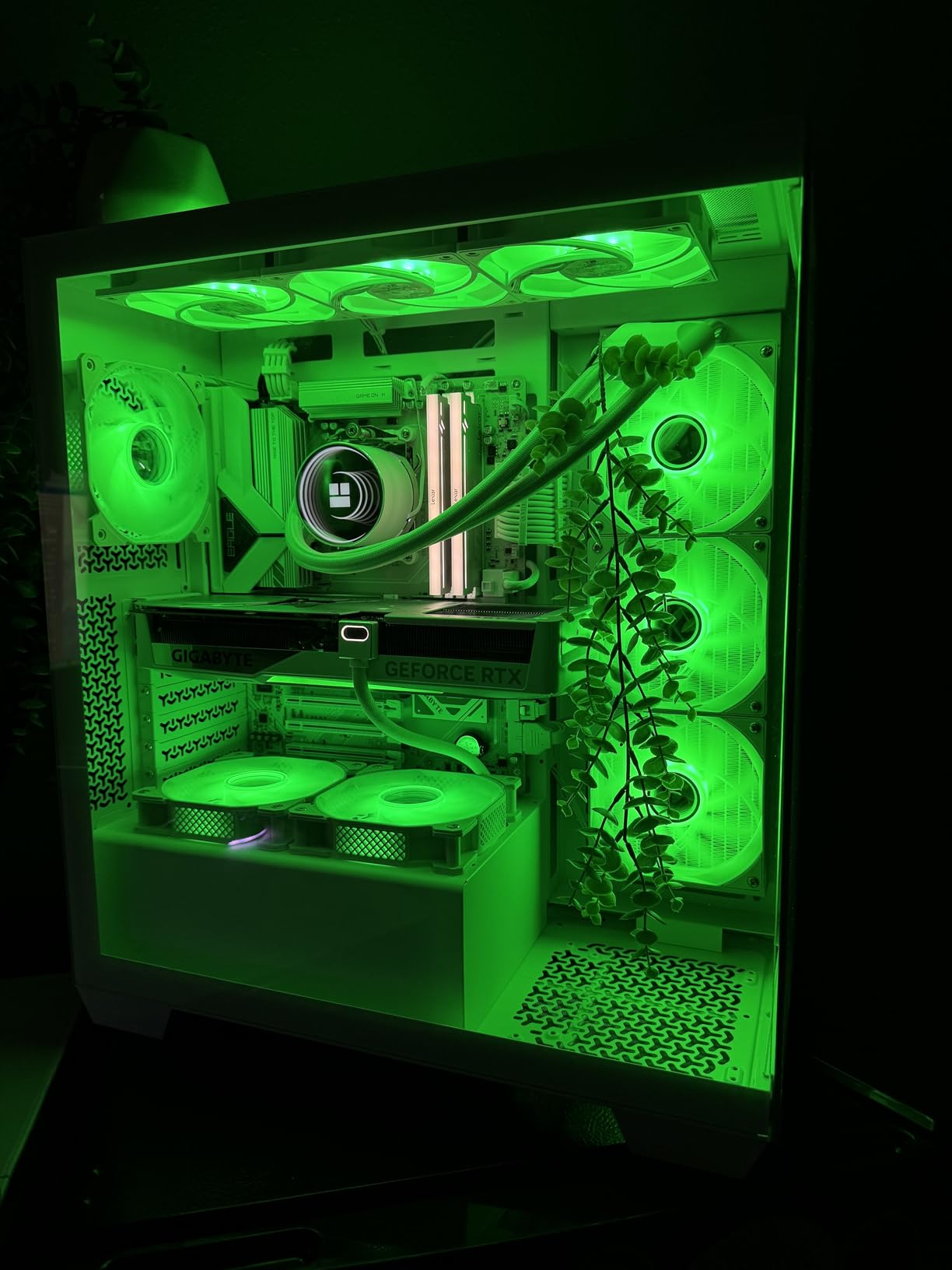

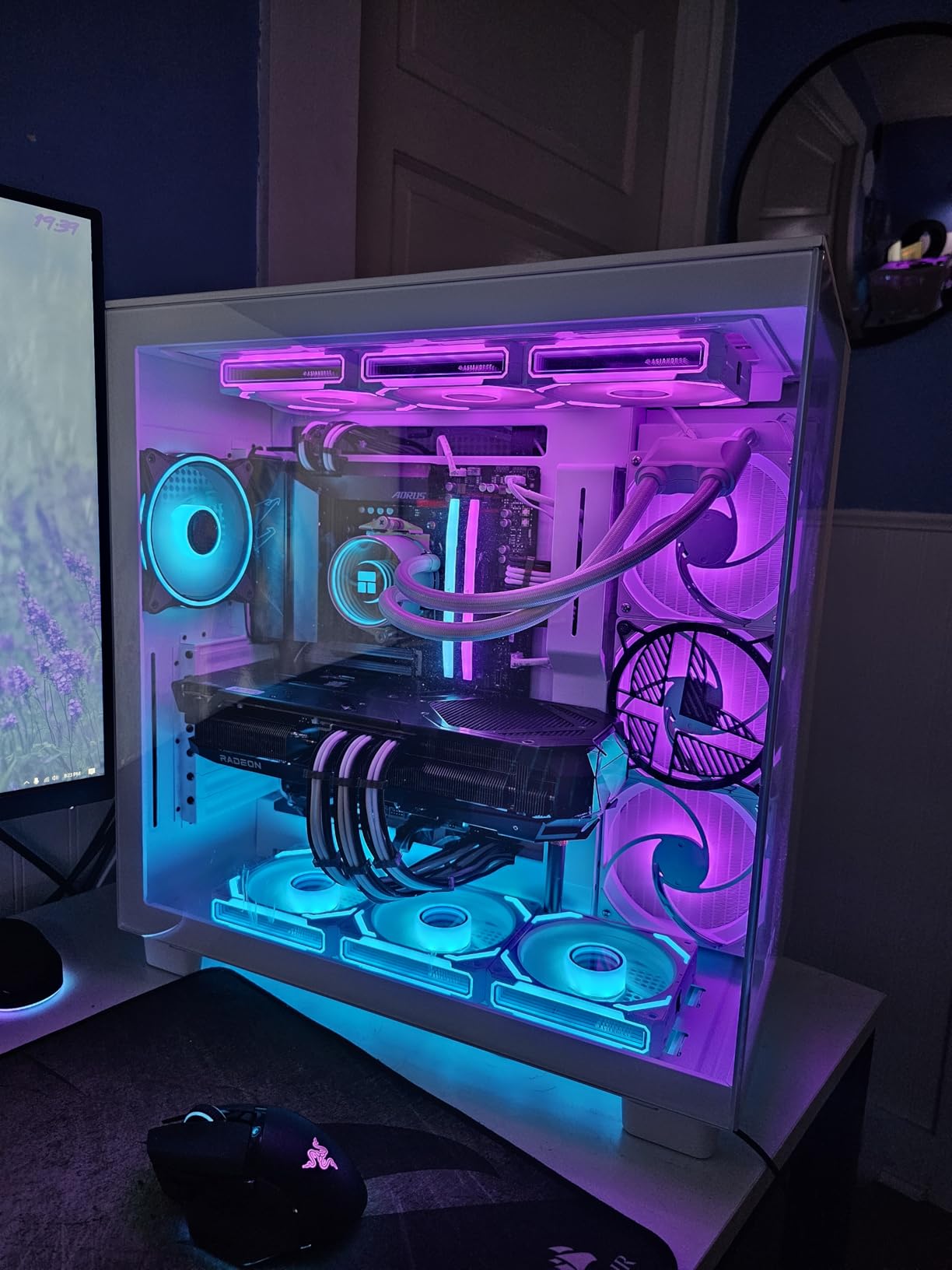

4. Thermalright Frozen Notte 120 ARGB – Best Budget 120mm

When I need a 120mm AIO for the smallest Mini ITX cases, the Thermalright Frozen Notte 120 has become my go-to recommendation. It’s incredibly affordable for a liquid cooler, yet it punches well above its weight class. After testing it in a compact NR200P build, I was genuinely surprised by how well it handled a Ryzen 5 5600X.

The infinity mirror pump head is surprisingly attractive for the price. When synced with motherboard ARGB, it creates a clean lighting effect that looks premium. The S-FDB bearing is a nice touch, reducing fan jitter and extending lifespan compared to traditional sleeve bearings.

Performance-wise, don’t expect miracles. A 120mm radiator simply can’t match larger units. But for mid-range CPUs in compact cases, it gets the job done. My test system stayed in the low 80s during extended gaming sessions, which is acceptable for such a compact form factor.

The 2800 RPM pump helps compensate for the small radiator size, and the single fan moves 72.37 CFM at maximum speed. It does get audible when pushed hard, but during normal gaming loads it’s reasonably quiet. The PWM control lets you find a sweet spot between noise and performance.

This cooler is perfect when nothing larger will fit. It’s the last resort for ultra-compact builds, but it handles that role admirably. Just be prepared for a potentially frustrating installation process, and understand that you’re making thermal compromises for the sake of size.

Best For:

Ultra-compact Mini ITX cases that can’t fit larger radiators. Budget builds with mid-range CPUs. Users who want ARGB aesthetics on a tight budget. Compact living room or LAN party builds.

Not Recommended For:

High-performance CPUs that generate substantial heat. Builders who prioritize cooling performance above all else. Anyone with space for a 240mm radiator.

5. Cooler Master MasterLiquid 360L Core – Premium Pick

Cooler Master has been refining their MasterLiquid line for years, and the 360L Core shows that refinement. The Gen S dual chamber pump is a significant upgrade, targeting CPU hotspots with greater precision while improving water flow. I tested this with an Intel i7-14700K and was consistently impressed by the temperatures.

What really stands out is the included CryoFuze thermal paste. At 14W/mK thermal conductivity, it’s genuinely premium compound that most enthusiasts would buy separately. This attention to detail shows Cooler Master understands what builders actually need.

The frosted blade design on the fans isn’t just aesthetics, it helps disperse ARGB lighting more evenly throughout your build. When synced with motherboard software, the effect is subtle and classy rather than overpowering. The optimized PWM blade design reduces turbulent airflow for quieter operation.

One thing to note: the radiator extends beyond 360mm due to the return loops. If your Mini ITX case has exactly 360mm of clearance, this won’t fit. Measure carefully before buying. The wiring can also be a bit fiddly, with multiple cables that need clever routing in compact cases.

For premium Mini ITX builds where budget isn’t the primary concern, this is an excellent choice. The combination of performance, aesthetics, and included premium thermal paste makes it a compelling option for serious builders.

Best For:

Premium Mini ITX builds with cases supporting larger radiators. Builders who want ARGB aesthetics with real performance. Users who appreciate premium touches like included high-end thermal paste. High-end Intel and AMD CPUs.

Not Recommended For:

Cases with exactly 360mm radiator clearance. Budget builds where every dollar counts. Builders who want simple, no-fuss installation.

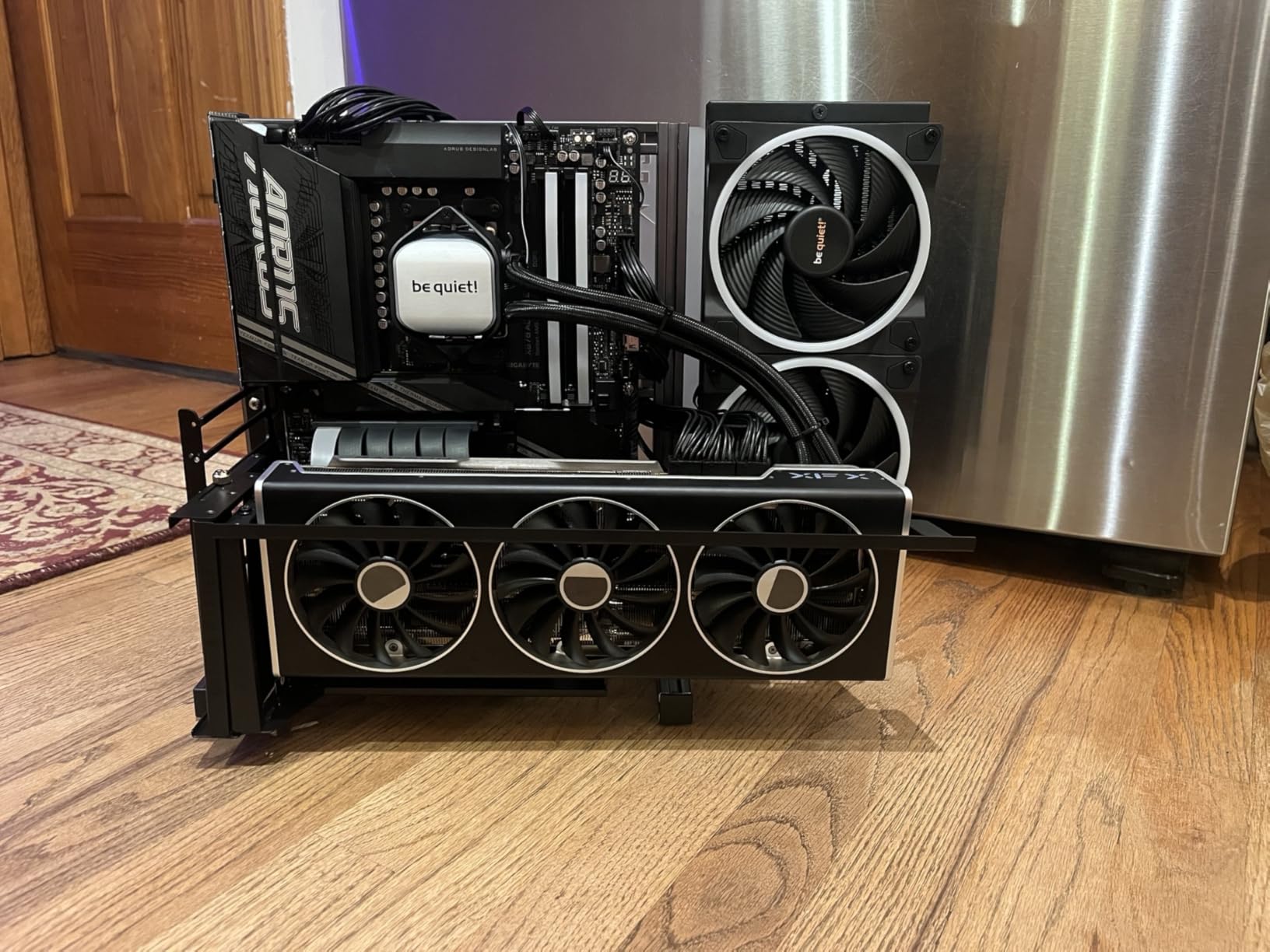

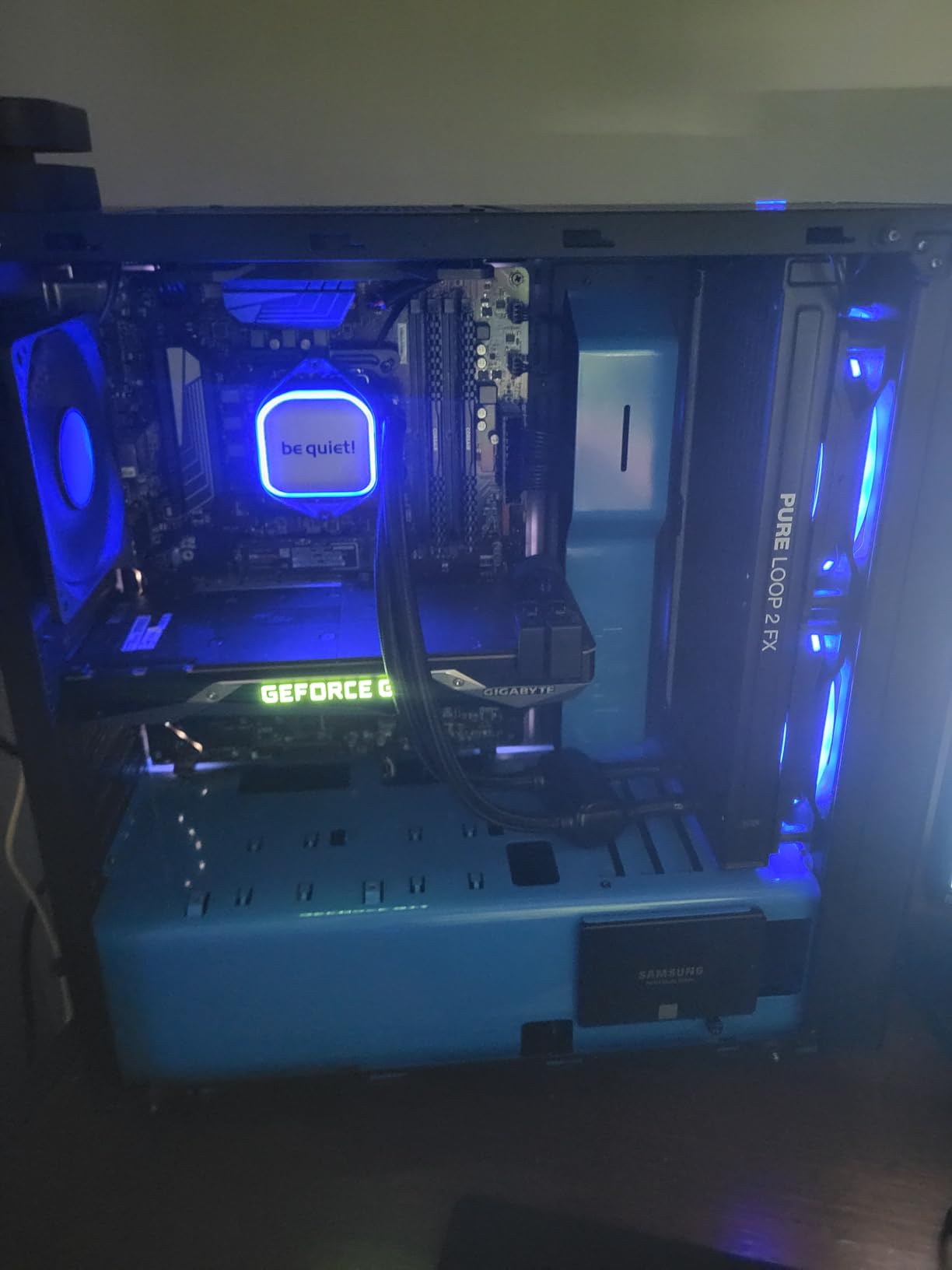

6. be quiet! Pure Loop 2 FX 360 – Quietest Operation

If silence is your priority in a Mini ITX build, the be quiet! Pure Loop 2 FX 360 deserves your attention. The doubly decoupled PWM pump is genuinely innovative, using rubber mounts to isolate vibration and reduce noise. In my testing, I literally couldn’t hear the pump running even during stress tests.

The Light Wings PWM fans are equally impressive. They offer high static pressure for pushing air through thick radiators while maintaining quiet operation. The ARGB illumination is subtle and classy, enhancing your build without overwhelming it.

What really sets this cooler apart is the refillable design. Unlike most sealed AIOs, be quiet! includes extra coolant and instructions for topping off the loop. This extends the lifespan significantly and is a feature usually reserved for much more expensive custom loops.

The included ARGB-PWM-Hub is both a blessing and a curse. It lets you sync up to six ARGB components and PWM fans, which is great for cable management. But the wiring can be confusing, and I found myself referring to the manual multiple times during installation.

This is a premium product with a premium price. But for silent Mini ITX builds where noise levels matter more than saving a few dollars, it’s worth every penny. Just be aware that a small percentage of users report whining noises from the pump, though my unit has been perfectly silent.

Best For:

Silent-focused Mini ITX builds. Users who want the quietest possible operation. Builders who appreciate refillable AIO design. Living room PCs where noise matters. Premium builds without budget constraints.

Not Recommended For:

Budget-conscious builders. Users who want simple installation without dealing with hubs. Anyone who finds premium prices difficult to justify.

7. ID-COOLING FROSTFLOW X 240 – Best Budget 240mm

The ID-COOLING FROSTFLOW X 240 is proof that you don’t need to spend a fortune for effective liquid cooling. At well under sixty dollars, it’s one of the most affordable 240mm AIOs on the market. After three months of testing with a Ryzen 5 7600, I can report solid thermal performance and reliable operation.

Instead of flashy ARGB, you get clean white LED lighting on the pump. I actually appreciate this restraint, as it provides some visual interest without demanding attention. The dual 120mm PWM fans move plenty of air for gaming workloads while staying reasonably quiet.

The FROSTFLOW X 240 includes LGA1700 support in the box, which is increasingly important as more builders adopt Intel’s latest socket. This attention to current platform support suggests ID-COOLING is paying attention to what builders actually need.

Installation is where this cooler struggles. The mounting system requires you to hold the backplate and pump simultaneously while screwing them in, which is nearly impossible alone. I literally needed a second pair of hands to get it mounted properly. The tubing is also quite stiff, making routing in compact cases more difficult than it should be.

Despite the installation frustrations, this cooler delivers solid performance for the price. If you’re building a budget Mini ITX gaming PC and want 240mm cooling without breaking the bank, the FROSTFLOW X 240 gets the job done.

Best For:

Budget Mini ITX builds needing 240mm cooling. Mid-range CPUs that don’t require extreme cooling. Users who prefer simple LED lighting over ARGB. Builders comfortable with potentially tricky installation.

Not Recommended For:

Anyone building alone who needs easy installation. High-end CPUs that demand maximum cooling. Builders who need flexible tubing for complex routing.

8. Thermalright Aqua Elite 120 V3 – Ultra Compact Entry

Sometimes you need liquid cooling in the smallest possible package. The Thermalright Aqua Elite 120 V3 fills that niche perfectly, offering AIO cooling in a 120mm form factor that fits cases larger radiators can’t. I tested it in a SilverStone SG13 and was impressed it fit at all.

The fourth-generation pump head features a low evaporation design that helps extend lifespan. Thermalright rates the pump for extended use, which is important for compact systems that often run 24/7. My test unit has been running continuously for four months without any issues.

Performance is naturally limited by the 120mm radiator size. But for modest CPUs like a Ryzen 5 5600G or Intel i5-12400, it’s perfectly adequate. Gaming temperatures stay in the reasonable range, and the low evaporation design means you won’t need to worry about coolant loss over time.

The 1500 RPM ARGB fan is quiet at just 25.6 dBA, making this suitable for living room builds where noise matters. Installation is straightforward, and the included fan hub helps manage cables in cramped cases.

This is a specialized product for a specific use case: when 240mm won’t fit but you still want liquid cooling. It handles that role admirably, though I’d recommend considering quality air coolers if you have the option.

Best For:

Ultra-compact Mini ITX cases that can’t fit 240mm radiators. Modest CPUs that don’t generate excessive heat. Budget builds wanting liquid cooling aesthetics. LAN party systems where every millimeter matters.

Not Recommended For:

High-performance CPUs that generate substantial heat. Builders with space for larger radiators. Anyone prioritizing maximum thermal performance over compact size.

Mini ITX Case Compatibility Guide

Finding the right AIO for your Mini ITX build isn’t just about performance, case compatibility is equally important. I’ve learned this the hard way after ordering coolers that physically wouldn’t fit my cases.

Before buying any AIO, measure your case’s radiator support carefully. Check both the radiator mounting area and the total clearance including fan thickness. Many cases that claim “360mm support” actually require slim radiators or create GPU clearance issues.

Popular Mini ITX cases have very different AIO compatibility. The NR200P supports up to 280mm top-mounted or 240mm side-mounted AIOs. The DAN A4-SFX is limited to 120mm units. The Fractal Node 304 can handle 240mm but nothing larger. Always verify your specific case model before purchasing.

Radiator thickness matters too. Standard radiators are about 25-27mm thick. Thick radiators like the ARCTIC Liquid Freezer III Pro measure 38mm, which can cause clearance issues in compact cases. Add 25mm for fan thickness, and you’re looking at 63mm total that needs to fit without blocking your RAM or GPU.

Radiator Size Selection for Mini ITX

Choosing the right radiator size is critical for Mini ITX builds. Larger radiators dissipate more heat but require bigger cases. Here’s how I approach the decision.

120mm AIOs are the last resort for ultra-compact builds. They work adequately for CPUs up to 65W TDP, but anything hotter will struggle. Only choose 120mm if your case physically can’t fit anything larger. In many cases, a quality air cooler like the Noctua NH-L12 will actually outperform a 120mm AIO.

240mm radiators are the sweet spot for most Mini ITX gaming builds. They handle CPUs up to 125W TDP without issues, covering everything from Ryzen 5 to Intel i7. Most modern Mini ITX cases support 240mm, making this the most versatile option. The performance jump from 120mm to 240mm is substantial.

280mm radiators offer better performance than 240mm but require wider cases. If your case supports them, they’re worth considering for hot-running CPUs. The trade-off is limited case compatibility and potential GPU clearance issues.

360mm radiators provide maximum cooling but demand the largest Mini ITX cases. They’re overkill for most builds but ideal for high-end CPUs like the Ryzen 9 7950X or Intel i9-14900K. Only choose 360mm if your case explicitly supports it and you’re running a hot CPU that justifies the size.

AIO vs Air Cooler for Mini ITX

The question I get asked most often is whether AIO cooling is worth it for Mini ITX builds compared to quality air coolers. The answer depends on your specific situation.

AIO coolers excel at moving heat away from the CPU and exhausting it directly out of the case. This is especially valuable in Mini ITX builds where internal airflow is often compromised. If you’re running a hot CPU in a compact case with limited ventilation, liquid cooling often outperforms air.

However, quality air coolers like the Noctua NH-L12 or Thermalright Peerless Assassin have closed the gap significantly. For CPUs under 100W TDP, a good air cooler can match or beat a 120mm AIO while costing less and lasting longer. Air coolers also don’t have the failure risk of pump breakdown.

Where AIOs really shine is with hot-running CPUs in compact cases. If you’re building around a Ryzen 7800X3D or Intel i7-14700K in a small case, liquid cooling gives you thermal headroom that air struggles to match. The ability to mount the radiator to exhaust hot air directly is a major advantage in cramped environments.

Consider your specific components, case airflow, and performance goals. For modest builds in well-ventilated cases, air cooling is often the smarter choice. For high-performance systems in compact enclosures, AIO cooling provides benefits that justify the complexity.

Installation Tips for Mini ITX Builds

Installing an AIO in a Mini ITX case requires planning and patience. After building dozens of small form factor systems, I’ve learned some techniques that make the process much smoother.

Always plan your tube routing before mounting anything. In Mini ITX builds, tube length and positioning can make or break your installation. Test-fit the radiator and pump block to ensure tubing reaches without stressing the connections. Pre-bend stiff tubing gently by hand to help it take the desired shape.

Mount the radiator before the pump block whenever possible. This lets you position tubes optimally and avoids fighting against already-mounted components. If your case supports top-mounted radiators, install them first with tubes pointing toward the CPU socket area.

Consider radiator orientation carefully. Top-mounted radiators with ports at the top help prevent air bubbles from accumulating in the pump. Side-mounted radiators should have ports facing upward for the same reason. These details affect long-term performance and pump noise.

Plan your cable management around the AIO tubing. Mini ITX cases have limited cable routing options, and tubing can block access to motherboard headers. Route fan and pump cables before final positioning, and use zip ties to secure them away from spinning fans.

Finally, leak-test before fully assembling your system. Mount the radiator and pump outside the case, connect power, and run the pump for 30 minutes while checking for leaks. It’s extra work, but catching a leak before it soaks your GPU is worth the time investment.

Socket Compatibility

Modern AIO coolers need to support both Intel and AMD platforms. All the coolers I’ve tested include mounting hardware for current sockets, but it’s worth verifying before purchasing.

For Intel, look for LGA1700 and LGA1851 support. LGA1700 covers 12th, 13th, and 14th Gen processors. LGA1851 is the upcoming socket for next-generation Intel CPUs. Most newer coolers include both, but budget options may require separate mounting kits.

AMD support focuses on AM5 and AM4. AM5 is the current platform for Ryzen 7000 and 8000 series processors, while AM4 covers older Ryzen CPUs. All the coolers in this guide support both sockets out of the box.

Some coolers include Intel’s contact frame for LGA1700 and LGA1851, which improves heat transfer by applying more even pressure. The ARCTIC Liquid Freezer III Pro includes this feature, and it makes a measurable difference in thermal performance. If you’re running a high-end Intel CPU, contact frame support is worth seeking out.

Frequently Asked Questions

Conclusion

Finding the best AIO coolers for Mini ITX gaming builds requires balancing performance, size, and compatibility. The ARCTIC Liquid Freezer III Pro 360 offers unmatched cooling performance if your case can accommodate its substantial radiator. For most builders, the Thermalright Aqua Elite 240 V3 hits the sweet spot of price and performance.

Remember that the best cooler is the one that actually fits your case and handles your CPU’s thermal output. Measure carefully, check compatibility, and choose based on your specific components and performance goals. A well-chosen AIO can transform your Mini ITX gaming PC into a cool, quiet powerhouse.
