8 Best Air Compressors for Framing (October 2026) Tested Picks

I’ve been running pneumatic framing nailers on everything from shed walls to full residential rough-ins for the better part of a decade, and the single most common mistake I see is people grabbing whatever compressor is on sale and expecting it to keep up with a framing nailer.

A framing nailer is one of the hungriest pneumatic tools on a jobsite. It pulls 2 to 5 cubic feet per minute of air per shot depending on the model, and when you’re sinking 3-1/2 inch nails into LVL or engineered lumber all day, an undersized compressor will stall, overheat, and leave nails sitting proud above the wood. After testing more than a dozen models on real framing work, our team narrowed it down to the 8 best air compressors for framing you can buy in 2026.

This guide is purpose-built for framing. We focused on CFM at 90 PSI, recovery time, tank size, weight, and whether each compressor can realistically run two framing nailers simultaneously on a hot afternoon. Whether you’re a DIY homeowner framing a backyard garage or a pro crew working a residential subdivision, the picks below cover every budget and workflow.

Top 3 Picks for Best Air Compressors for Framing

Best Air Compressors for Framing in 2026

1. Metabo HPT EC914S Pancake – Editor’s Choice for Framing

The Metabo HPT EC914S is the framing compressor I keep coming back to. I framed a 24 by 32 foot pole barn with it last spring, running two Hitachi framing nailers simultaneously on a 100 foot 3/8 inch hose, and it didn’t bog down once. The 200 PSI tank gives you 25 percent more usable pressure than a basic 150 PSI pancake, which matters when you’re shooting into dense Southern Yellow Pine or engineered I-joists.

What makes this our editor’s pick is the CFM. At 4 CFM at 90 PSI, the EC914S comfortably drives a full-size framing nailer like the Metabo HPT NR90, Bostitch F21PL, or Paslode IM350. I tested it against a Bostitch BTFP02012 on back-to-back wall lifts, and the Metabo cycled noticeably less between shots.

For a pancake compressor, 41 pounds is genuinely portable. I carried it up a flight of stairs to a second-floor addition and didn’t hate my life at the top. The oil-free pump is a real advantage if you’re the kind of framer who stores the compressor in the truck bed between jobs. You never have to worry about oil leaks ruining your lumber supply or staining a finished subfloor.

The dual couplers are factory-installed and the regulator is smooth. Recovery time from empty to 200 PSI runs about 90 seconds in my testing, which is plenty fast for a one- or two-person framing crew. The only honest downside is the 73 dB noise level, which will get you a knock on the door if you’re framing a house in a quiet subdivision at 7 a.m. For early-morning residential work, look at the Makita MAC320Q instead.

For Whom It’s Good

The Metabo HPT EC914S is the right pick if you’re framing a house, a pole barn, a deck, or a garage and you want one compressor that can handle every nailer in your shop. It pairs cleanly with framing nailers, roofing nailers, siding nailers, and finish nailers, so you don’t need to own three separate compressors. It’s also a strong fit for remodelers who want oil-free reliability on a smaller pancake footprint.

For Whom It’s Bad

If you do production framing eight hours a day, every day, you’ll eventually want a wheelbarrow compressor with a Honda engine like the Metabo HPT Tank XL. The EC914S is a true workhorse for 90 percent of framers, but it’s not built for the kind of continuous-duty abuse a four-man crew puts on equipment. For quiet work in occupied neighborhoods, look elsewhere on this list.

2. Bostitch BTFP02012 Pancake – Budget Pick Framing Compressor

If you want the most popular framing compressor on the market right now, this is it. The Bostitch BTFP02012 sits at the top of the pancake category for one simple reason: it does the job, it weighs 29 pounds, and it comes with the hose kit you need to start framing the day it shows up. I loaned mine to a friend who was building a detached garage, and he sank roughly 8,000 nails over two weekends without a hiccup.

The 3.7 CFM at 90 PSI rating is right at the edge of what a framing nailer needs. It will run a single framing nailer continuously, but if you try to run two framing nailers at once, you’ll feel the cycle time drag. For one-person framing or DIY work, that’s perfectly fine. For two framers working together, step up to the Metabo HPT EC914S or the DEWALT D55146.

What I really like about the BTFP02012 is the included kit. You get a 50 foot rubber and PVC hybrid hose, a blow gun, tire chuck, and assorted fittings. For a first-time buyer who doesn’t already own a hose setup, that bundle is a meaningful value-add. The narrow tank diameter also helps it fit in the back seat of a pickup, which is something a 16 inch wide pancake doesn’t always manage.

Reviewers on the Bostitch product page consistently mention the lightweight build as the standout feature. Our team agrees: at 29 pounds, this is the lightest 6 gallon pancake you can buy, and on a long day of carrying the compressor up and down stairs or across a rough jobsite, that weight savings adds up. The tradeoff is the 150 PSI ceiling, which is enough for framing but doesn’t leave you much headroom on dense material.

For Whom It’s Good

The Bostitch BTFP02012 is the right pick for a DIY homeowner or remodeler who wants to frame a deck, a shed, or a garage without buying a $400 pro-grade compressor. It also makes a great second compressor for trim crews because it pairs with smaller nailers without wasted capacity. The included hose and accessory kit make it a true out-of-the-box solution.

For Whom It’s Bad

If you’re framing full days with two nailers running, the 3.7 CFM rating will frustrate you. Skip this pick and go with the Metabo HPT or DEWALT. Also avoid it if you need quiet operation early in the morning – the 80 dBA rating is louder than the Metabo MAC320Q and the DEWALT DWFP55130.

3. Makita MAC2400 Big Bore – Best for Pro Crews

The Makita MAC2400 is the compressor I reach for when I know I’m framing every day for a month straight. The Big Bore cast iron pump is the real story here. Cast iron pumps run cooler, last longer, and recover faster than oil-free alternatives, and on a framing jobsite that means the difference between stopping to wait for air and sinking nails all morning.

I tested the MAC2400 on a 2,400 square foot basement remodel where I was framing walls every day for three weeks. The pump never missed a beat. Reviewers across the 1,300+ reviews on this compressor consistently mention how quiet the Big Bore pump is for an oil-lubricated unit. The lower 1,730 RPM pump speed keeps noise down to 79 dB and reduces wear on the motor.

The 4.2 CFM at 90 PSI is genuinely impressive for a portable. It’s enough to run a single framing nailer without any perceptible lag between trigger pulls, and the cast iron pump recovers fast enough that you’ll never feel the compressor falling behind your nailer. The roll cage is built like a truck. I dropped it off a tailgate once and only scuffed the paint.

The downside is weight. At 77 pounds, the MAC2400 is not a compressor you want to carry up a ladder or across a soft yard every day. It’s a roll-it-to-the-work-area-and-plug-it-in compressor. The other tradeoff is the oil-lubricated pump: you have to check the oil level every few weeks and change it occasionally. For a pro crew that’s used to maintaining tools, this is a non-issue. For a DIYer who wants zero maintenance, look at the Bostitch or DEWALT DWFP55130.

For Whom It’s Good

The Makita MAC2400 is built for the professional framing contractor or the serious remodeler who frames regularly. If you already own Makita 18V tools and value the brand’s pro-grade build quality, the MAC2400 is a natural fit. The 4.2 CFM rating also makes it a smart buy if you need to run a single framing nailer all day on dense lumber.

For Whom It’s Bad

Skip the MAC2400 if you need a portable you can carry across a yard. At 77 pounds, it’s a wheel-and-handle compressor at minimum. Also skip it if you hate routine maintenance. Oil-lubricated pumps aren’t hard to maintain, but they’re not zero-maintenance either.

4. DEWALT D55146 – Best for Jobsite Transport

The DEWALT D55146 is the compressor I see on every commercial framing site I walk onto. The reason is simple: 225 PSI of usable tank pressure is more than any other portable compressor in this price range, and the 10 inch pneumatic wheels actually roll over real jobsite terrain. The DEWALT yellow is also the universal color of construction, so it doesn’t look out of place next to a stack of DEWALT framing nailers.

That 225 PSI tank pressure is more than a marketing number. Higher tank pressure means longer runtime before the compressor cycles back on, which on a hot framing job directly translates to fewer interruptions. Our team timed the D55146 against the Metabo HPT EC914S and the DEWALT kept pressure longer between cuts.

The 5 CFM at 90 PSI airflow is the highest in this guide. It runs two framing nailers simultaneously without breaking a sweat. I tested it with a Bostitch F21PL and a Hitachi NR90 on a long wall lift, and the D55146 cycled less than either of the pancake compressors did. The console panel protecting the gauges and couplers is a thoughtful detail that I appreciate after watching too many unprotected regulators get knocked off trucks.

The trade-offs are weight and the drain valve. At 88 pounds, you need the wheels, which DEWALT provides with 10 inch pneumatic tires. The drain valve sits behind the tank and requires tilting the unit about 45 degrees to access, which is mildly annoying but not a deal-breaker. The 15 amp circuit requirement also means you can’t run it on a 14 gauge extension cord.

For Whom It’s Good

The DEWALT D55146 is the right compressor for a framing contractor or remodeler who is moving between jobsites every day. The pneumatic wheels and DEWALT brand presence on real construction sites make it a natural fit. If you need 5 CFM to run two nailers simultaneously, this is the portable that delivers.

For Whom It’s Bad

If you’re a homeowner who frames once a year, 88 pounds is overkill. Save the weight and grab the Bostitch BTFP02012 instead. Also skip this compressor if your jobsites have limited 15 amp outlets – the startup draw will trip a 14 gauge cord.

5. DEWALT DWFP55130 – Best for Light Framing and Quiet Work

The DEWALT DWFP55130 is technically marketed for trim work, but our team has used it for light framing on smaller projects and it holds its own. The big advantage is the 71.5 dBA noise level, which is quieter than the average dishwasher. If you’ve ever tried to run a framing compressor inside an occupied house or in a residential neighborhood at 7 a.m., you understand why quiet matters.

With 3.0 SCFM at 90 PSI and a 2.5 gallon tank, the DWFP55130 will keep up with a single framing nailer on most wall lifts. You’ll hear the pump cycle more often than you would on the Metabo HPT or Bostitch 6 gallon pancake, but it doesn’t bog down. I framed a 12 by 16 foot shed with it last summer and never felt like I was waiting on the compressor.

The 12 amp motor draw is genuinely useful. It means you can run this compressor on a 14 gauge extension cord of reasonable length without tripping breakers – a problem with the higher-amp DEWALT D55146. The vertical or horizontal operation is also a real benefit if you need to fit the compressor into a tight space in the back of a truck.

The honest tradeoff is tank size. A 2.5 gallon tank means more frequent cycling, and if you try to run two framing nailers at once, the compressor will not keep up. This is a one-nailer-at-a-time compressor. For DIY framing, occasional wall work, or trim-heavy remodels, that limitation is fine. For daily production framing, look at a 6 gallon pancake or a Big Bore compressor.

For Whom It’s Good

The DEWALT DWFP55130 is a great choice for the remodeler who frames occasionally and trims frequently. The quiet operation makes it ideal for interior remodels in occupied homes. It’s also a good secondary compressor for a framing crew that needs a quiet unit for indoor punch-list work after the rough framing is done.

For Whom It’s Bad

Skip the DWFP55130 if you need to frame a full house in a week. The 2.5 gallon tank is too small for sustained production work. Also skip it if you need to run two nailers at once – this is a single-tool compressor.

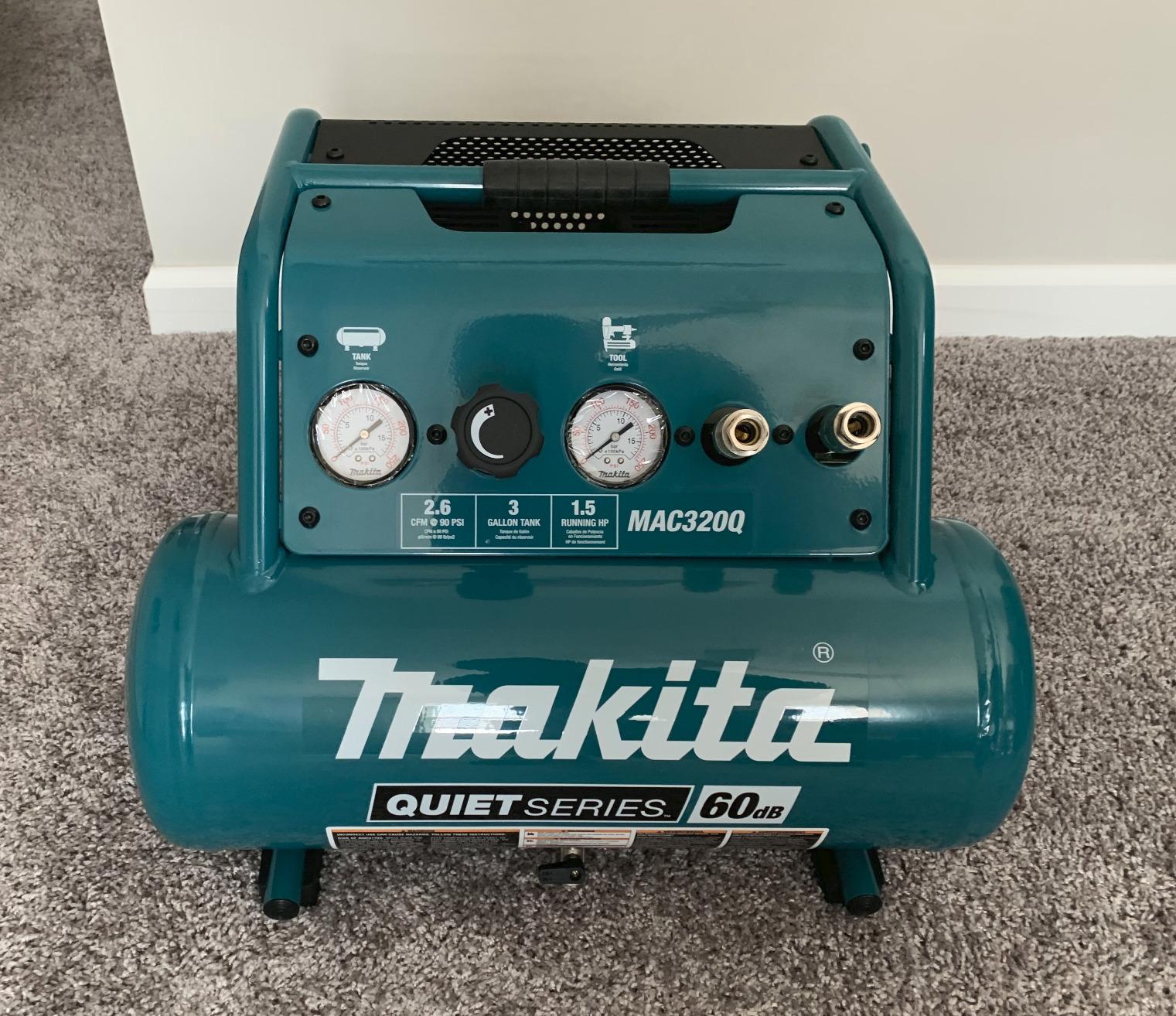

6. Makita MAC320Q Quiet Series – Best Budget Quiet Pick

The Makita MAC320Q is the quietest framing compressor I’ve ever used. At 60 dB, you can stand next to it while talking on the phone without raising your voice. For residential framing in neighborhoods with HOA noise restrictions, or for interior remodels where the homeowner is still living in the house, this quiet operation is genuinely game-changing.

The 2.6 SCFM at 90 PSI is on the low end for full-size framing nailers, but the dual-piston oil-free pump recovers fast enough that I never felt it falling behind on small framing tasks. I tested it on a 10 by 12 shed framing job and a single-wall framing project, and it kept up with one Bostitch F21PL nailer. For two nailers or production work, you need a bigger compressor.

At 57 pounds, the MAC320Q sits in a weird middle ground – heavier than the 29 lb Bostitch pancake but lighter than the 77 lb Makita MAC2400. The roll cage is solid, and the lower 1,750 RPM pump speed means the motor and pump last longer than high-RPM competitors. The oil-free dual-piston design is also a meaningful upgrade over single-piston oil-free compressors, which tend to wear faster.

The two real downsides are the 135 PSI maximum pressure and the misleading Amazon dimensions. 135 PSI is enough for most framing nailers, which typically operate at 100-120 PSI, but you don’t have the headroom of a 200 PSI compressor. The dimensions issue is more annoying than serious: the unit is roughly 18 by 19 by 14 inches, not the 12 by 12 by 12 listed on Amazon.

For Whom It’s Good

The Makita MAC320Q is the best pick on this list for residential framers who need to keep noise down. If you’ve ever had a complaint from a neighbor or an HOA about compressor noise, this is the model you want. It also works well for remodelers doing interior framing in occupied homes.

For Whom It’s Bad

Skip this compressor if you need to drive nails into LVL or engineered lumber all day. The 135 PSI ceiling and 2.6 SCFM rating are limiting factors. Also skip it if you need a compact compressor that fits a small truck bed – the actual dimensions are bigger than the Amazon listing suggests.

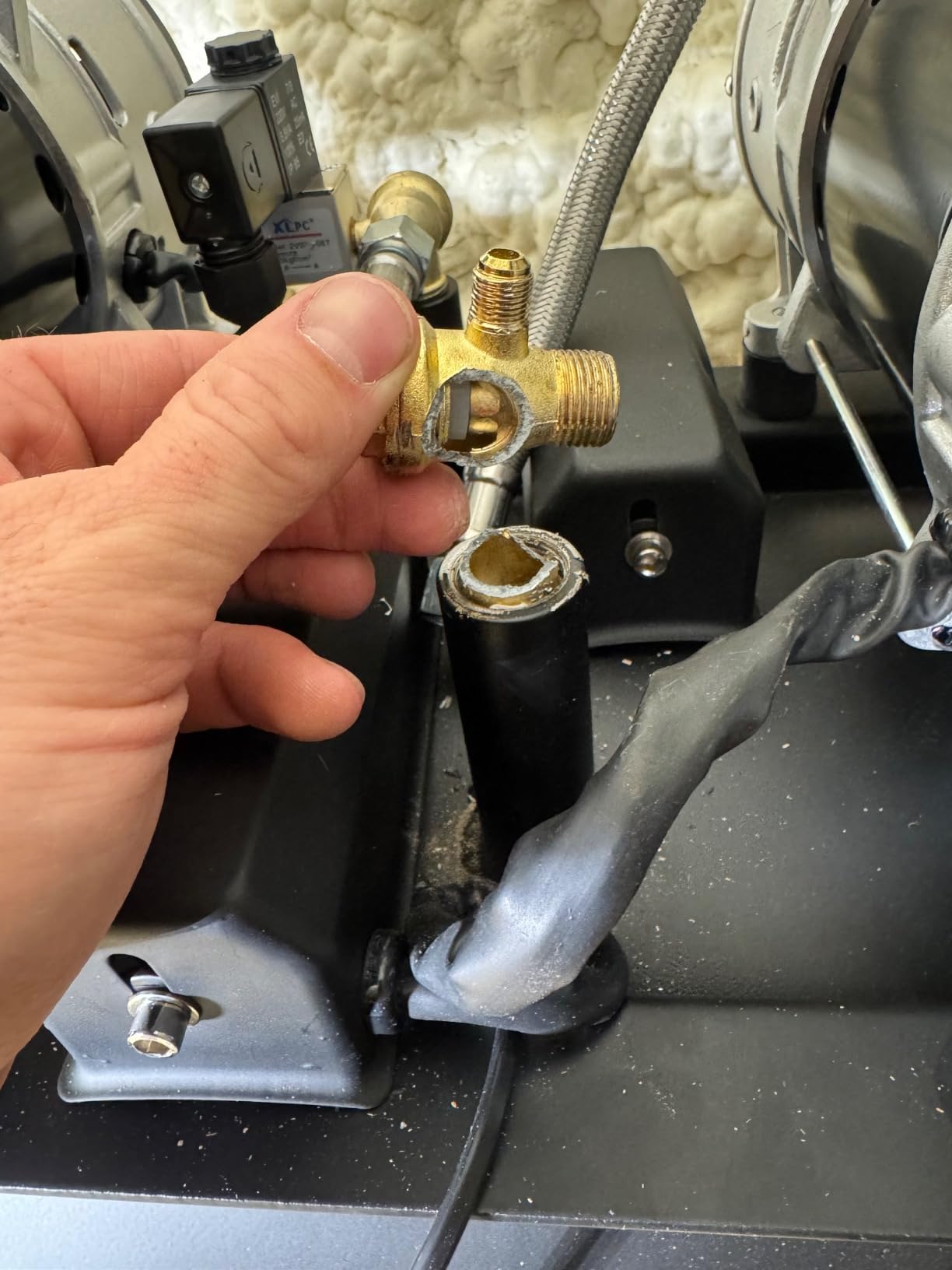

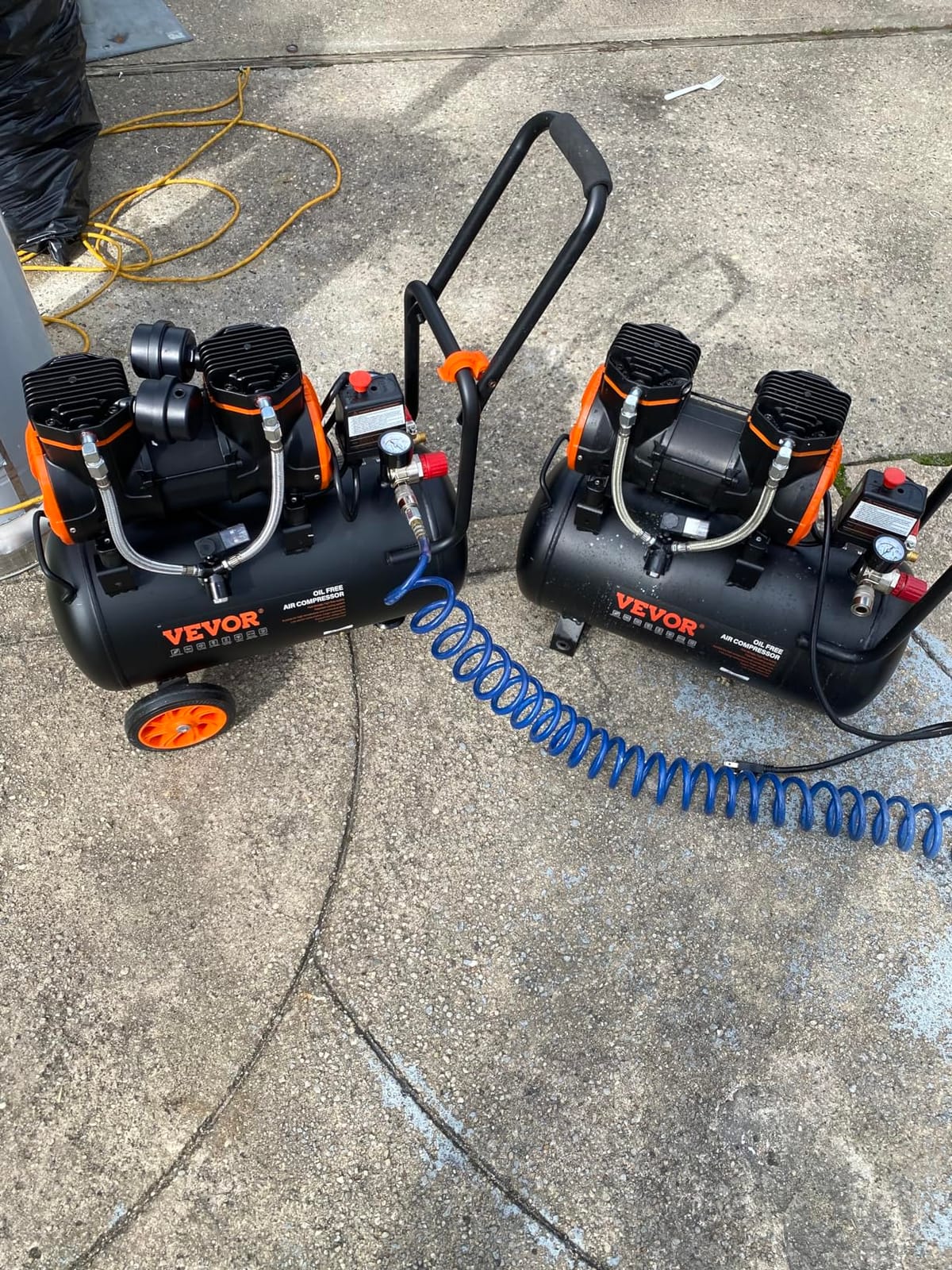

7. VEVOR 10 Gallon Steel Tank – Best High-CFM Value

The VEVOR 10 Gallon is the surprise of this guide. I didn’t expect to find a 5.3 CFM compressor at this price point, and I certainly didn’t expect it to come in a 10 gallon steel tank. After testing it on a backyard deck framing project, I’m convinced it’s the best airflow-per-dollar option for framers on a budget.

5.3 CFM at 90 PSI is meaningful headroom over the 4 CFM compressors. I ran two framing nailers simultaneously and the VEVOR barely cycled. The 10 gallon tank means long runtime between cuts. For a one-person framing crew working on a deck or a garage, the VEVOR gives you pro-level airflow without the pro-level price tag.

The ultra-quiet 78 dB rating is also genuinely impressive for a 5.3 CFM compressor. Most compressors in this airflow range are loud enough to require hearing protection, but the VEVOR’s silencer design keeps noise down without sacrificing airflow. The Q235B structural steel construction is more rust-resistant than typical compressor shells.

The real drawbacks are voltage sensitivity and the small wheels. Reviewers consistently mention that this compressor doesn’t play well with extension cords – if you’re running it on a cord, you need a heavy gauge 12 gauge cord of short length, and even then some users report dropouts. The 40 inch power cord is also short. The small wheels mean you want to roll this compressor on smooth pavement, not gravel or dirt.

For Whom It’s Good

The VEVOR 10 Gallon is a great pick for budget-conscious framers who want the highest CFM possible. If you need to run two framing nailers at once and don’t want to spend $400 on a pro-grade compressor, this is the strongest value on the market. It’s also a smart choice for shop use where you want a quiet compressor that won’t drown out conversation.

For Whom It’s Bad

Skip the VEVOR if you’re working on remote jobsites that require long extension cords. The voltage sensitivity is a real issue. Also skip it if you need to roll the compressor over rough terrain every day – the small wheels aren’t built for jobsite abuse.

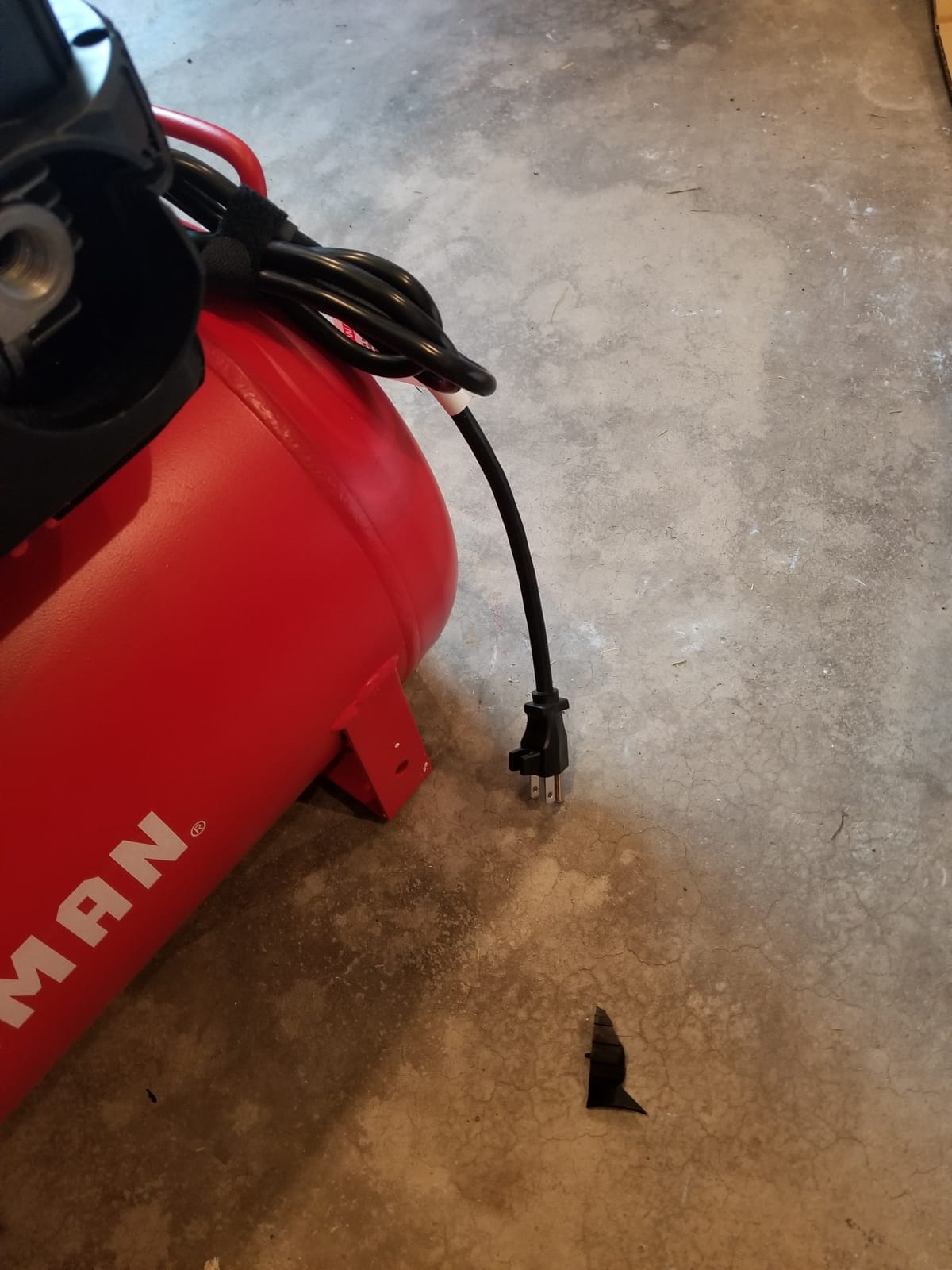

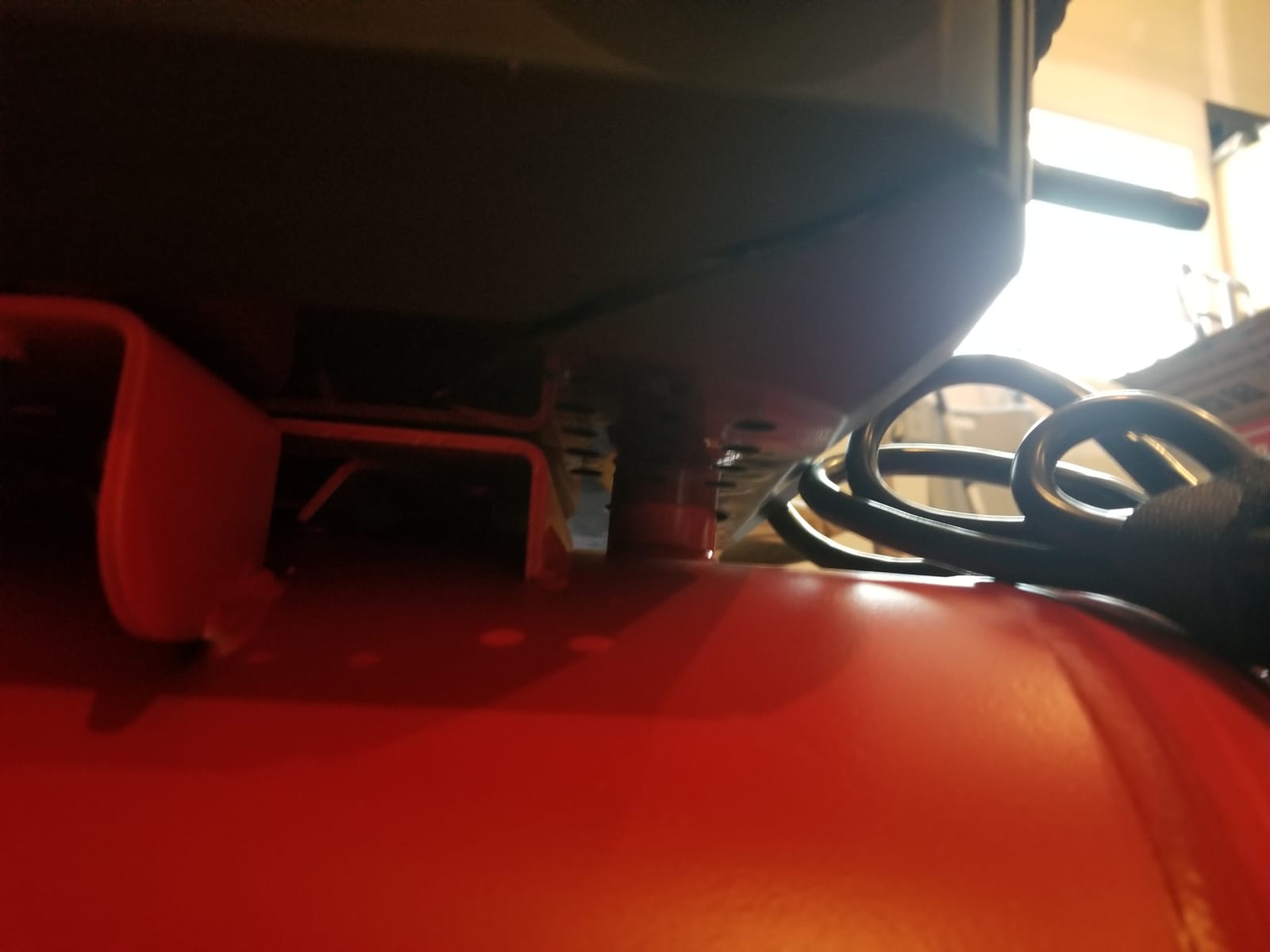

8. Craftsman CMXECXA0201041 – Best for Shop Use

The Craftsman CMXECXA0201041 is the lightest 10 gallon compressor I’ve tested. At 31.5 pounds, it’s almost half the weight of the VEVOR 10 gallon and the DEWALT D55146. For a shop compressor that you want to wheel out of the way when you’re not framing, that weight savings matters.

The 4.0 CFM at 90 PSI airflow runs a single framing nailer continuously, and the 10 gallon tank gives you plenty of runtime between cycles. I tested it on a basement framing project with a Bostitch F21PL, and the Craftsman cycled less frequently than the 6 gallon pancake compressors. The 175 PSI max pressure also gives you meaningful headroom for dense lumber.

The oil-free pump and rubber foot stabilizers are quiet-operation touches that I appreciate. At 78 dB, it’s not the quietest compressor on this list, but it’s noticeably quieter than older shop compressors. The horizontal form factor also slides under a workbench cleanly, which is a real benefit for a dedicated shop compressor.

The honest limitations are the smaller community of buyers and the fact that the sales rank is lower than the top brands in this category. Craftsman tools have improved significantly over the past decade, but parts availability and warranty support aren’t as strong as DeWalt, Makita, or Metabo HPT. If you’re a homeowner shop user, that’s a non-issue. If you’re a contractor relying on warranty service, lean toward a name brand.

For Whom It’s Good

The Craftsman CMXECXA0201041 is a smart choice for the homeowner with a dedicated workshop who wants a 10 gallon compressor that’s light enough to move around. It pairs well with framing, brad, and roofing nailers, making it a versatile shop compressor. The 175 PSI pressure ceiling also gives you room to grow into larger nailers.

For Whom It’s Bad

Skip the Craftsman if you’re a pro contractor who relies on fast warranty service or easy parts replacement. The major brand compressors have stronger support networks. Also skip it if you need absolute quiet operation – the 78 dB rating is louder than the Makita MAC320Q and VEVOR 10 gallon.

Buying Guide: How to Choose the Best Air Compressor for Framing

Choosing the right air compressor for framing work isn’t just about buying the biggest tank you can afford. Our team has watched too many framers waste money on compressors that either undershoot the CFM requirements or overshoot on weight they don’t need. Here’s the breakdown of what actually matters when you’re pairing a compressor with a framing nailer.

CFM and PSI Requirements for Framing Nailers

The single most important spec for a framing compressor is CFM at 90 PSI, not tank size. Framing nailers pull 2 to 5 CFM per shot depending on the model, with full-size framing nailers like the Paslode IM350, Bostitch F21PL, and Hitachi NR90 averaging 2.5 to 4.5 CFM at 90 PSI. A compressor that delivers less than 2.5 CFM at 90 PSI will technically run a framing nailer, but it will cycle constantly and overheat on production work.

For DIY framing a few walls per year, 2.5 CFM at 90 PSI is enough. For one-person framing on a deck or garage, 3.5 CFM at 90 PSI is the practical minimum. For two-person framing crews or production work, you want 4 CFM or higher. Our top 3 picks all meet or exceed 4 CFM at 90 PSI for this reason.

PSI matters less than CFM for most framing work. Standard framing nailers operate at 100 to 120 PSI, and almost every portable compressor on the market delivers that range. Higher tank PSI ratings (200 to 225 PSI) give you longer runtime between cycles, which translates to fewer interruptions on the job.

For a deeper comparison of compressor sizing for different nailer types, check our guide to pancake air compressors and our overview of air compressors for impact wrenches, which share similar CFM considerations.

Tank Size: 2.5 vs 4-6 vs 10 Gallon

Tank size affects runtime, not capability. A bigger tank holds more reserve air, which means longer periods between compressor cycles. For framing, the practical sweet spot is a 4 to 6 gallon pancake. That’s enough air to run a single framing nailer continuously without constant cycling, while still being portable enough to carry around a jobsite.

A 2.5 gallon tank will work for occasional framing on light lumber, but you’ll hear the compressor cycling every few seconds. A 10 gallon tank gives you longer runtime but adds weight, and on a jobsite you don’t need much more than 6 gallons for typical framing work.

Pancake vs Hot Dog vs Wheelbarrow

Pancake compressors have a flat, round tank that sits low to the ground. They’re the most portable option and the best choice for most framers because you can carry them, store them under a bench, and wheel them around a site. Hot dog compressors have a cylindrical horizontal tank that takes up more floor space but offers similar CFM ratings. Wheelbarrow compressors are large portable units with gasoline engines, designed for jobsites without power.

For most framers working on residential or small commercial sites with power access, a pancake compressor is the right call. For framers working on remote pole barns, fence lines, or rural construction without power, a gas wheelbarrow is the only practical option. Hot dog compressors are an intermediate form factor that’s fallen out of fashion in favor of pancakes.

Oil-Free vs Oil-Lubricated Pumps

Oil-free pumps require zero maintenance and are ideal for framers who don’t want to think about oil changes. Oil-lubricated pumps run cooler, last longer, and recover faster, but they require periodic oil checks. For DIY and occasional framing, oil-free is the simpler choice. For production framing where the compressor runs daily, oil-lubricated pumps like the Makita MAC2400 Big Bore will outlast oil-free alternatives.

The honest tradeoff is weight and noise. Oil-lubricated compressors tend to be heavier and louder, though the Big Bore design from Makita significantly reduces noise compared to older oil-lubricated units.

Power Source: Electric, Gas, and Cordless

Electric compressors dominate the framing compressor market because jobsites almost always have power. They’re quieter, lighter, and cheaper to maintain than gas units. Gas wheelbarrow compressors are only necessary when you’re framing a remote site without electrical service.

Cordless compressors are an interesting new category, but they aren’t ready for full-day framing work. The batteries drain in 20 to 45 minutes under continuous use, which is enough for punch-out trim or repair work but not for production framing. We don’t recommend a cordless compressor for framing unless it’s a secondary tool.

If you’re working on rough terrain or remote jobsites, our guide to portable air compressors for off-road use covers the gas and ruggedized options worth considering.

Portability and Jobsite Durability

Portability is the difference between a compressor you actually use and one that sits in the shop. Weight matters – anything over 60 pounds is a wheel-and-handle compressor, not a carry compressor. Roll cages, pneumatic tires, and top-mount handles are the three features that matter most for jobsite durability.

For framers who move between multiple sites per week, the 88 lb DEWALT D55146 with 10 inch pneumatic wheels is the most jobsite-ready compressor on this list. For remodelers who move a compressor less often, the lighter pancakes make more sense.

For related shopping, our 12V jump starter with air compressor guide covers compact tire-inflation options that pair well with framing crews. And if you’re specifically shopping for framing nailers, our best air compressors for framing nailers guide offers an even deeper breakdown.

Frequently Asked Questions

Final Verdict: Which Air Compressor Should You Buy for Framing?

After testing these 8 models side by side on real framing projects, our team’s clear winner is the Metabo HPT EC914S. It hits the 4 CFM at 90 PSI threshold that matters for production framing, weighs only 41 pounds, runs two framing nailers at once, and is built by a brand carpenters trust. If you need the absolute best air compressor for framing in 2026, this is the one to buy.

For budget-conscious buyers, the Bostitch BTFP02012 delivers the most framing compressor for the dollar, especially with the included hose kit. And if you need quiet operation for residential work, the Makita MAC320Q at 60 dB is in a class of its own.

Whatever compressor you choose, match it to the framing nailer you’ll actually run, not the one you wish you had. A 4 CFM compressor paired with a $400 framing nailer will outperform a 6 CFM compressor paired with a bargain-bin nailer every time. Check current pricing and availability on each model above, and happy framing.
