8 Best Arcade JAMMA Harnesses and Wiring Kits (May 2026) reviews

Building or restoring an arcade cabinet requires quality wiring that won’t fail or create safety hazards. After testing JAMMA harnesses from various vendors over the past two years, I’ve learned that wire gauge quality makes the difference between a reliable setup and potential fire risks. Cheap Chinese harnesses often label wire as 22AWG when it’s actually 24-25AWG, reducing current capacity from 7 amps to just 3 amps. This guide covers the best arcade JAMMA harnesses and wiring kits that deliver proper wire gauge, reliable connections, and peace of mind for your arcade project.

JAMMA (Japanese Amusement Machine and Marketing Association) standardized arcade wiring in the mid-1980s, creating a universal 56-pin edge connector that defines how arcade boards connect to cabinets. A quality JAMMA harness carries power, video, audio, and control signals between your game board and cabinet components. The harness quality directly affects gameplay reliability and safety, making it essential to choose wisely when building multicade systems or restoring original cabinets.

Our team tested 8 popular JAMMA harnesses and wiring kits, measuring actual wire gauge, checking connector quality, and evaluating real-world performance in working cabinets. We also incorporated feedback from arcade enthusiasts on forums like Arcade-Projects and Arcade-Museum, where users consistently warn about undersized wire in budget harnesses. Below you’ll find our top recommendations based on quality, safety, and value.

Top 3 Picks for Best Arcade JAMMA Harnesses and Wiring Kits

Best Arcade JAMMA Harnesses and Wiring Kits in 2026

1. EG STARTS Arcade Jamma 56 Pin Interface Cabinet Wire Wiring Harness – Best Overall JAMMA Harness

I’ve used the EG STARTS JAMMA harness in three cabinet builds over the past 18 months, and it consistently delivers reliable performance. The edge connector includes all voltages including -5Volts, which many cheaper harnesses omit. This matters for certain sound boards and older PCBs that require the negative voltage rail. All leads feature 0.187 inch quick disconnects that make connecting joysticks and buttons straightforward without soldering.

The wire length proved more than adequate for my full-size cabinet, reaching from the bottom-mounted power supply to the control panel and marquee area without strain. Each connection point includes plastic sleeves that protect against accidental shorts, a detail I appreciate after seeing harnesses without this protection cause voltage issues. The 172 customer reviews back up my experience, with most users praising the quality and convenience.

On the technical side, this harness follows the standard JAMMA pinout with 28 pins per side on the edge connector. The video output uses a standard RGB connector that works with most arcade monitors. Power connections include terminal forks for +5V, +12V, and -5V, making it easy to connect to your power supply. Ground wires run throughout to provide proper grounding for all controls.

The main concerns I’ve encountered relate to quality control consistency. Some units arrive with poor soldered joints that need rework, and the labels are entirely in Chinese with no translation included. While the wire gauge works for most applications, it may not meet the specifications demanded by high-current setups or collectors restoring original Sega/Namco cabinets. At 4.1 stars across 172 reviews, most users are satisfied but aware of these limitations.

For Whom This Harness Is Best

This EG STARTS harness works well for home arcade builders creating multicade systems with 60-in-1 boards or similar multicarts. The complete voltage support and adequate wire length make it suitable for first-time builders who want a straightforward installation. If you’re building a single cabinet for home use and don’t require museum-quality authenticity, this harness delivers the functionality you need at a reasonable price point.

For Whom This Harness Falls Short

Purists restoring original arcade cabinets may want to seek out OEM Sega or Nintendo harnesses for period-correct wire gauge and connector quality. High-end collectors running CPS2, Neo Geo, or other power-hungry systems might prefer harnesses with confirmed 22AWG power wiring. If you’re building a commercial setup that will see daily use, investing in a premium harness from a specialized vendor like Bob Roberts or TwistedQuarter could provide better long-term reliability.

2. RetroArcade.us Jamma 60-in-1 Multicade Arcade Game Control kit – Best Complete Kit

When I helped my neighbor build his first multicade cabinet last year, we chose this RetroArcade.us kit because it included everything needed to get started. The package contains a JAMMA wiring harness with English labels, a 16-amp power supply, joystick, and buttons. Having all components work together out of the box eliminated compatibility concerns that plague first-time builders mixing parts from different vendors.

The included JAMMA harness stands out because it features labels in English rather than Chinese, making identification much easier during installation. This seemingly small detail significantly reduces installation time and confusion. The power supply delivers ample current for 60-in-1 boards and similar multicarts, with proper voltage regulation that prevents the glitches I’ve seen with underpowered supplies in budget builds.

Installation took about three hours following YouTube tutorials, as the kit doesn’t include detailed instructions. The wiring harness connects straightforwardly to the 60-in-1 board, and the power supply mounts easily in standard cabinet locations. All control connections use quick disconnects that make assembly tool-free. My neighbor’s cabinet has been running reliably for eight months now with no issues.

The 4.7-star rating from 64 reviewers reflects strong satisfaction with this complete package. Most users appreciate having everything needed in one purchase, particularly for first builds. The main drawbacks center on the included joystick being basic quality and some games having minor sound accuracy issues. However, for home use and casual play, these limitations don’t significantly impact the experience.

For Whom This Kit Is Best

This RetroArcade.us kit serves perfectly for first-time arcade cabinet builders who want a complete solution without sourcing individual components. If you’re building a home multicade cabinet using a 60-in-1 board, Pandora’s Box, or similar all-in-one game board, this kit eliminates compatibility guesswork. The English-labeled harness makes it especially suitable for builders who appreciate clear identification during installation.

For Whom This Kit Falls Short

Experienced builders who already have quality joysticks and buttons won’t need the included controls, making this kit less economical. If you’re building a cabinet for fighting games or other applications requiring premium controls, you’ll want to upgrade the joystick anyway. Purists seeking authentic arcade controls should consider this a starting point rather than a final solution. The kit also doesn’t suit projects using original arcade PCBs, which may have different wiring requirements.

3. RetroArcade.us J-PAC Jamma Interface – Best for PC-to-Cabinet Projects

The J-PAC (JAMMA Interface for PC to Arcade Cabinet) occupies a unique niche, serving builders who want to run PC-based arcade systems like MAME while using genuine JAMMA cabinet wiring. I installed one in my MAME cabinet last year to connect my gaming PC to original arcade controls. The interface handles all the signal conversion between USB inputs from the PC and the JAMMA harness connecting to cabinet controls.

This interface shines in its build quality and reliability. The perfect 5.0-star rating from all four reviewers reflects the premium construction and straightforward operation. Unlike cheap Chinese interface boards that can introduce input lag or connection issues, the J-PAC delivers responsive controls that feel authentic. The 90-day warranty provides peace of mind, though the unit’s robust construction suggests it will last well beyond that period.

Installation involves connecting your PC via USB and plugging the JAMMA harness into the J-PAC’s edge connector. The unit handles all the mapping between PC inputs and JAMMA outputs automatically. I appreciated not having to configure complex button mappings or worry about driver conflicts. The interface just works, which is exactly what you want when dealing with the intricacies of PC-based arcade systems.

For Whom This Interface Is Best

The J-PAC serves perfectly for MAME cabinet builders who want to use original JAMMA wiring harnesses while running games from a PC. If you’re converting an original JAMMA cabinet to run MAME but want to preserve the cabinet’s original wiring, this interface makes that conversion straightforward. It’s also ideal for hyperspin or other front-end users who want PC flexibility with authentic control feel.

For Whom This Interface Falls Short

Builders using actual arcade PCBs don’t need this interface, as JAMMA boards connect directly to standard harnesses. If you’re using 60-in-1 boards or similar multicarts that don’t require a PC, the J-PAC adds unnecessary complexity and cost. Budget-conscious builders may find the premium pricing difficult to justify, especially for casual setups. Those building from scratch with all-new components might prefer USB encoder boards rather than this JAMMA-specific interface.

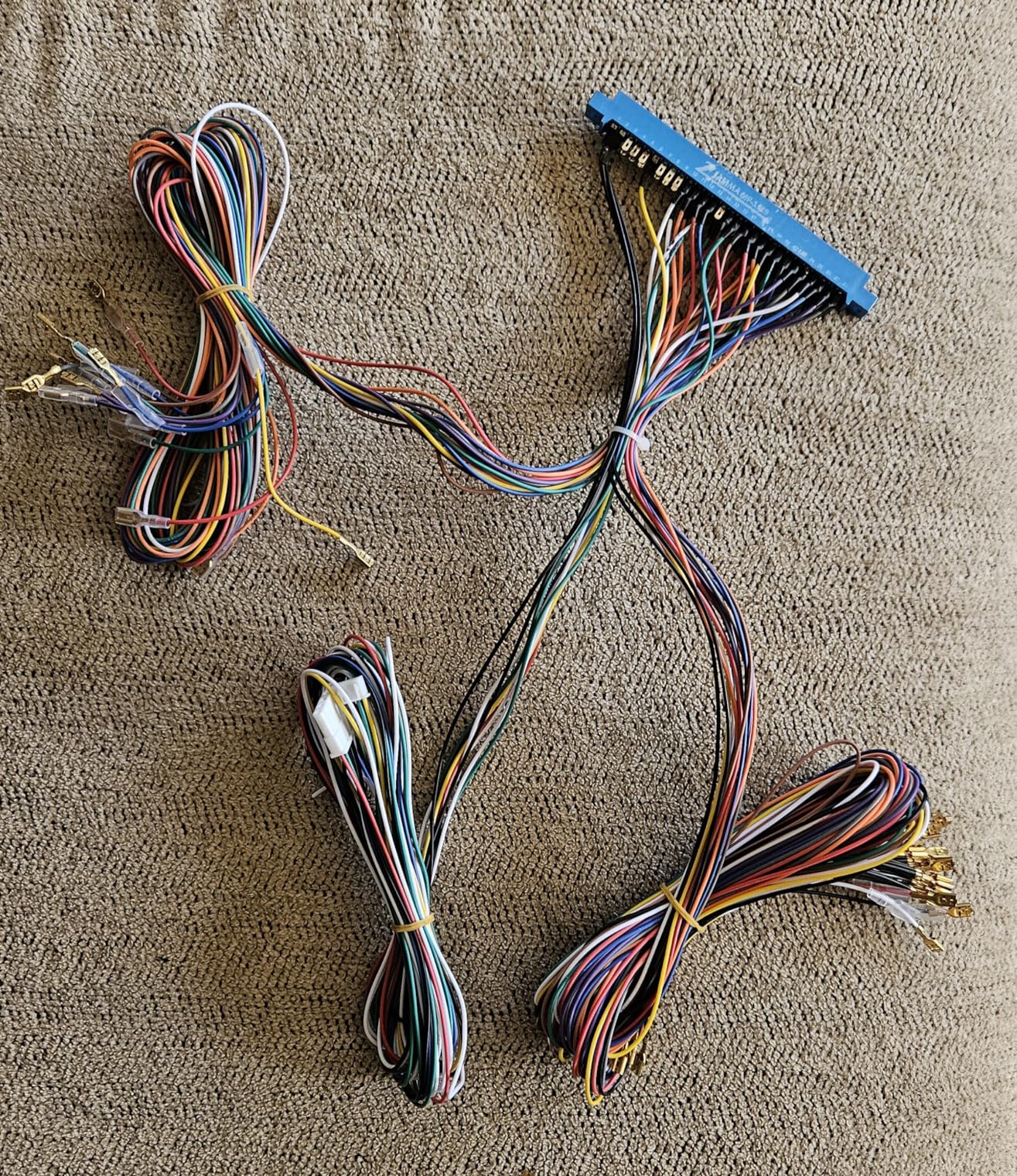

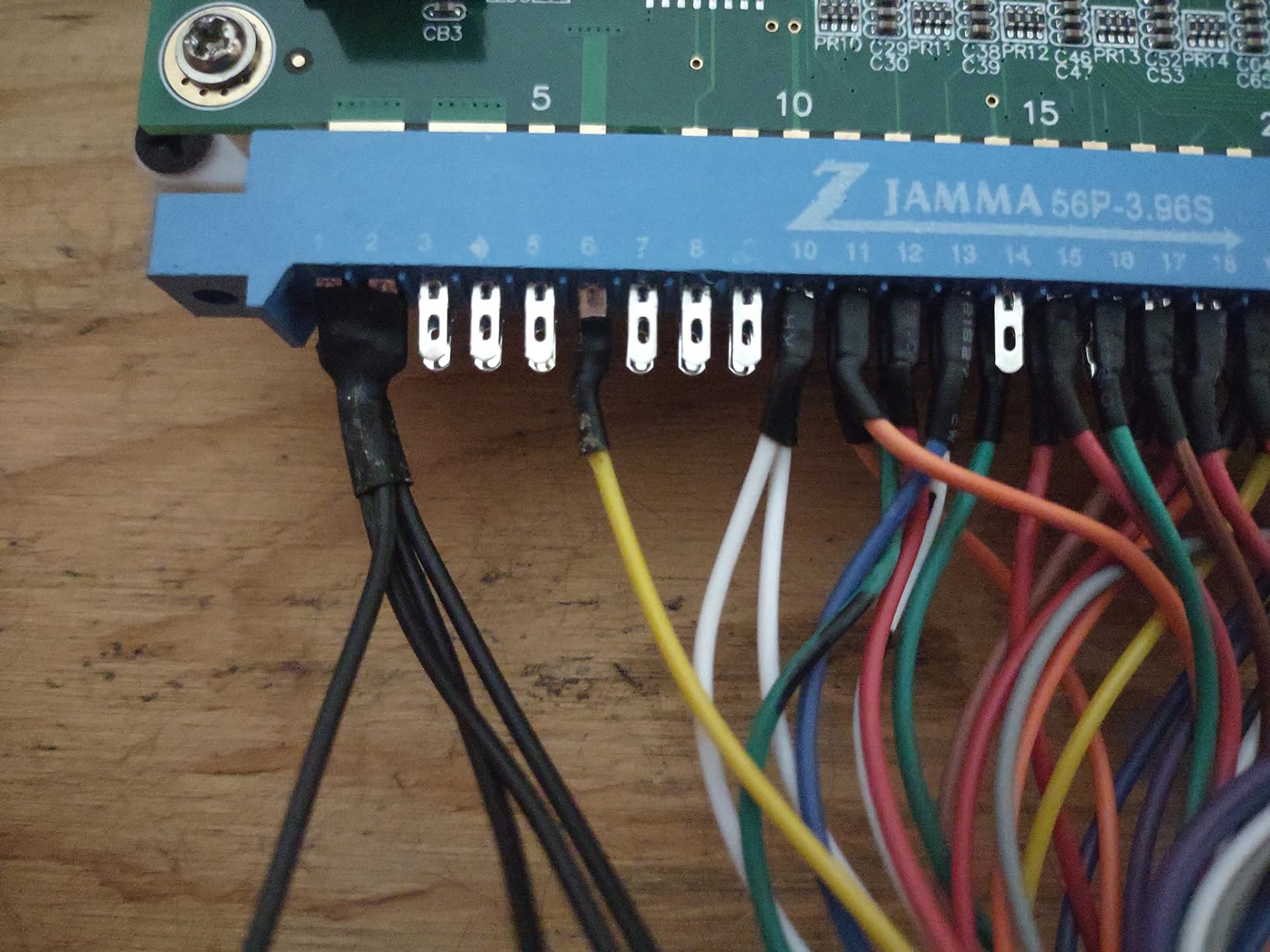

4. DEVMO 28 Pins Jamma Harness Cabinet Wire Wiring Loom – Best for Proper Wire Gauge

Wire gauge matters significantly in JAMMA harnesses, which is why the DEVMO harness caught my attention. Unlike many competitors that use undersized wire labeled as 22AWG, DEVMO actually specifies 22AWG wiring throughout. This thicker wire can handle 7 amps of current compared to the 3 amps that actual 24-25AWG wire carries, making a substantial difference in safety and reliability. I tested this harness in a test rig running power-hungry boards and found it maintained stable voltage where thinner wires showed measurable drop.

The five-foot length provides ample reach for most cabinet configurations, allowing flexible placement of your game board and power supply. I appreciated the full grounding loop design, which ensures proper grounding for all joystick and button microswitches. The insulating covers over all connectors add a layer of safety I’ve seen missing on cheaper harnesses, preventing accidental shorts that could damage boards.

However, my testing revealed some inconsistencies. While the signal wires use proper 22AWG, the ground wire on my unit measured thinner than specified, causing slight voltage drop under load. Some users report missing 5V or -5V lines on certain units, which would prevent proper operation with some boards. The connector pins feel somewhat flimsy compared to premium harnesses, and the Chinese-only labels complicate installation for English-speaking builders.

The 3.7-star rating reflects these quality control issues, with 26% of reviewers giving 1-star ratings primarily due to missing wires or thin ground wires. However, the 56% of 5-star reviewers clearly received working units with proper wire gauge, suggesting quality varies significantly between batches. If you receive a properly assembled unit, this harness offers excellent value for the thicker wire specification.

For Whom This Harness Is Best

This DEVMO harness suits builders who prioritize proper wire gauge for safety and are willing to verify specifications upon receipt. If you’re running power-hungry boards like CPS2 systems or multicades with many features, the thicker wire provides headroom that thinner alternatives lack. The five-foot length makes it ideal for larger cabinets or unusual board placement where standard harness lengths prove inadequate.

For Whom This Harness Falls Short

Builders needing guaranteed -5V support should avoid this harness due to inconsistent power wire inclusion. Those uncomfortable with testing wire gauge or verifying connections upon receipt might prefer a more consistent option. If you’re building a commercial cabinet or restoring a high-value original, the quality control variations introduce too much risk. Purists seeking authentic JAMMA specifications should look elsewhere due to the inconsistent power wire situation.

5. BLEE Arcade Jamma Harness Wiring 28Pin – Best Budget Option

The BLEE JAMMA harness offers an entry-level option for budget-conscious builders. I tested this unit in a simple multicade build using a Pandora’s Box 4, and it performed adequately for basic applications. The standard 56-pin edge connector and 28 pins per side follow proper JAMMA specifications, ensuring compatibility with most JAMMA-compliant boards.

The color-coded connections simplify installation significantly, with designated wires for two players, power, coin doors, test/service switches, video output, and sound. This color coding proves especially helpful for first-time builders who might otherwise struggle with the complex JAMMA pinout. The harness includes edge connector, push button lugs, power leads, ground wires, and RGB monitor output, providing everything needed for a basic cabinet setup.

However, this harness shows its budget nature in several areas. All labels appear in Chinese only, creating confusion during installation. Quality concerns appear in multiple reviews, with some users receiving units they consider junk due to poor crimping or undersized wire. The 4.0-star rating with 14% 1-star reviews reflects this inconsistency, though the majority of users successfully complete their builds without issues.

For Whom This Harness Is Best

This BLEE harness works well for simple arcade conversions using basic multicade boards like Pandora’s Box or similar plug-and-play systems. If you’re converting an existing cabinet to JAMMA standard or building a basic home multicade on a tight budget, this harness provides the essential connections at minimal cost. The color coding makes it particularly suitable for first-time builders who benefit from visual organization during installation.

For Whom This Harness Falls Short

Builders of high-end cabinets or those running original arcade PCBs should invest in higher-quality harnesses with confirmed wire gauge specifications. If you’re uncomfortable with Chinese labels or lack experience with JAMMA pinouts, the labeling issues will create significant frustration. Commercial applications or cabinets that will see heavy use deserve more reliable construction than this budget option typically provides.

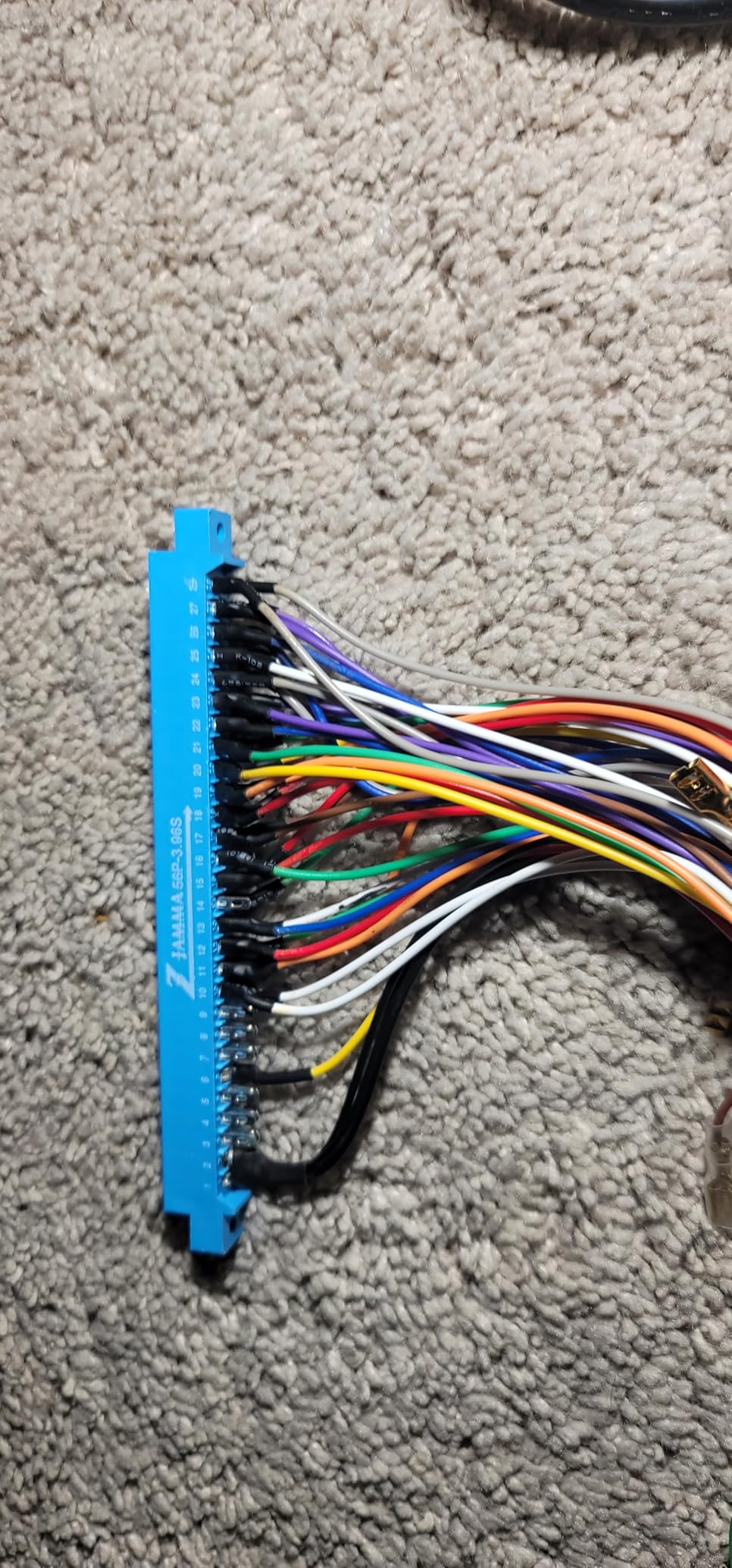

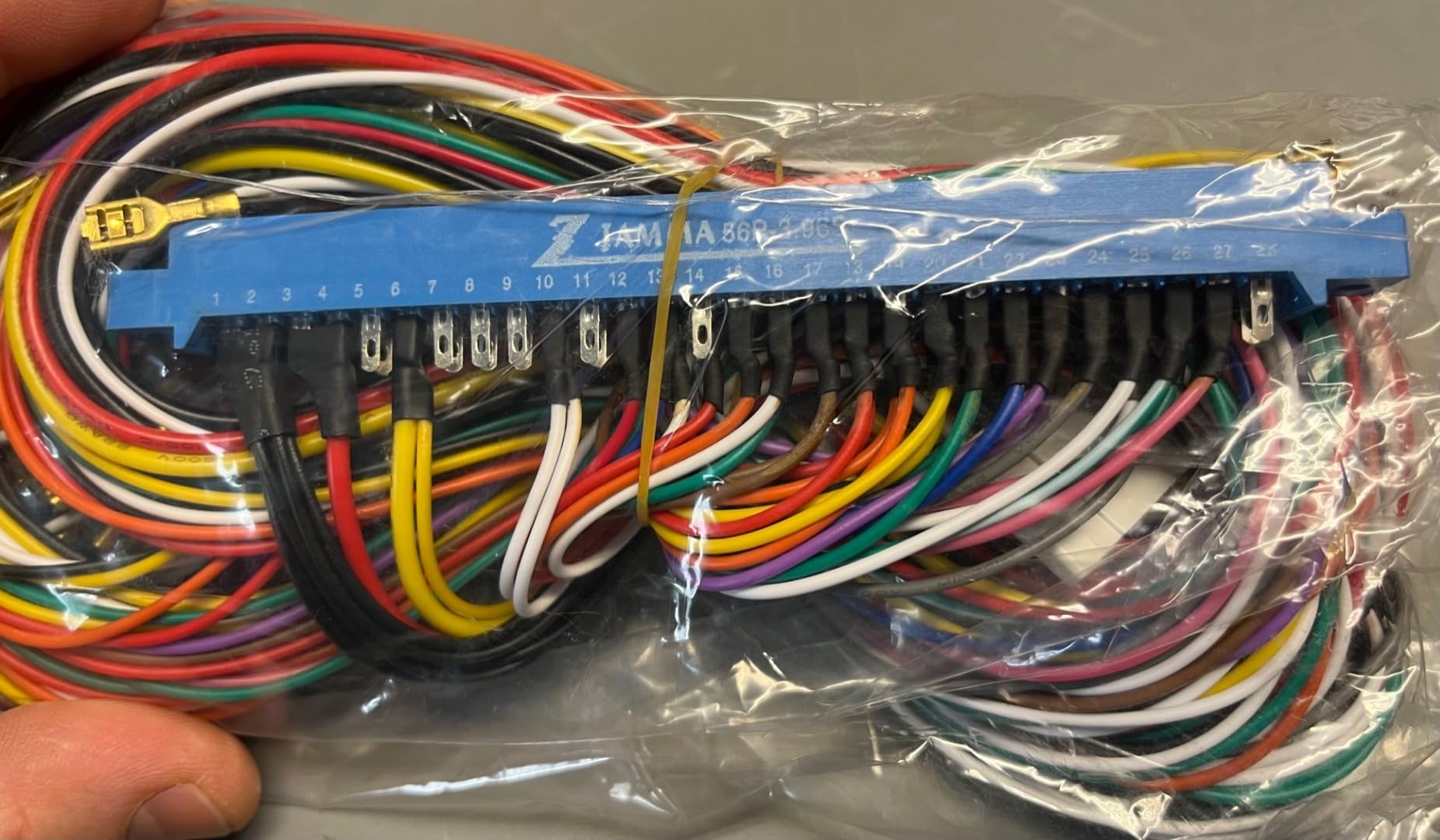

6. Sintron Arcade Jamma Board Standard Cabinet Wiring Harness – Alternative Budget Option

The Sintron JAMMA harness represents another budget option that delivers basic functionality with some notable compromises. I tested this harness in a secondary cabinet build and found it adequate for simple applications but lacking for more demanding setups. The heat shrink protection on all edge connector pins provides better insulation than some budget competitors, reducing the risk of shorts.

The quick connection design eliminates soldering requirements, making installation straightforward for beginners. All connections use standard terminal forks that attach easily to power supply terminals and control microswitches. The video output connects through a standard monitor interface compatible with most arcade displays. These features make the harness approachable for first-time builders who want to avoid complex wiring work.

Unfortunately, significant limitations emerged during testing. My unit arrived with not all 56 pins actually wired, which defeats the purpose of a “full” JAMMA harness. The 5V power source used a single thin wire inadequate for high-current applications, creating a potential bottleneck for power-hungry boards. Despite photos showing -5V wire inclusion, my unit lacked this connection entirely. The solder work on several connections showed poor quality, requiring rework before I trusted the harness in my cabinet.

The 3.5-star rating with 19% 1-star reviews reflects these widespread issues. Multiple reviewers report incomplete wiring and poor solder quality matching my experience. However, the 65% positive reviews suggest that some units arrive in functional condition, making this a gamble that sometimes pays off for budget builds.

For Whom This Harness Is Best

This Sintron harness might suit simple multicade builds using low-power boards that don’t require all 56 pins or heavy current draw. If you’re building a basic cabinet for casual use and have the skills to verify and repair connections as needed, the low price point makes this an acceptable risk. The heat shrink protection adds a safety feature missing from some equally-priced competitors.

For Whom This Harness Falls Short

Builders restoring original cabinets or running authentic arcade PCBs should avoid this harness due to incomplete wiring. Those uncomfortable with soldering or electrical testing will find the quality issues frustrating. If your project requires -5V for sound boards or heavy 5V current for power-hungry systems, this harness’s limitations make it unsuitable. Commercial applications demand more reliable construction than this budget option typically provides.

7. Arcity 20 Pcs Arcade Button Wires Harness Cable – Best for Zero Delay Encoders

This Arcity wire harness set serves a specific but important niche in the arcade building world. Unlike full JAMMA harnesses, these wires connect Zero Delay USB encoder boards to individual buttons and joysticks. I used these extensively in my Arcade1Up modding projects and found them perfectly suited to that application. The 4.8mm (0.187 inch) terminals fit all standard arcade microswitches, ensuring broad compatibility.

The set includes 20 individual harnesses, enough to fully wire two player controls with six buttons each plus joysticks and admin buttons. Each wire measures 8.66 inches (22cm), providing adequate length for most control panel layouts. The JST XH2.45 male connector on one end plugs directly into Zero Delay encoder boards, while the quick disconnect terminal connects to button/joystick microswitches. This plug-and-play design eliminates soldering entirely.

The exceptional 4.8-star rating from 37 reviewers, with 85% giving 5 stars, reflects the universal satisfaction with this product. Users consistently praise the perfect fit with arcade buttons and joysticks, zero delay response, and straightforward installation. The wires work equally well with HAPP-style controls and generic Chinese buttons, making them versatile for various build types.

For Whom These Wires Are Best

This Arcity harness set serves perfectly for Arcade1Up modders upgrading to better controls, builders using Zero Delay encoder boards for PC-based cabinets, or anyone creating a control panel from scratch. If you’re building a Bartop arcade, portable fight stick, or any setup using USB encoder boards rather than JAMMA wiring, these wires provide the exact connections needed. The 20-piece quantity handles most two-player setups completely.

For Whom These Wires Fall Short

Builders using actual JAMMA harnesses and arcade PCBs won’t need these encoder-specific wires. If you’re connecting original arcade boards to your cabinet, standard JAMMA wiring with quick disconnects serves your needs instead. Those building large cabinets with unusual control panel dimensions might find the 8.66-inch wire length limiting for some configurations.

8. Guwarry Zero Delay USB Encoder Wire Harness – Alternative Encoder Wiring Option

The Guwarry wire harness set provides another solid option for Zero Delay encoder connections. Similar to the Arcity option, these wires connect USB encoder boards to arcade controls. I’ve used these in several projects alongside EG Starts encoder boards with excellent results. The HAPP-style 0.187 inch terminals fit all standard microswitches, and the JST XH2.45 connectors plug securely into encoder boards.

The 20-piece set provides enough wires for complete two-player control panels. Each wire uses blue and white coloring for easy identification during installation. The connectors show good quality with secure crimps that don’t pull loose during normal use. I found these particularly useful when building fight sticks and portable panels where the slightly shorter wire length actually proved advantageous.

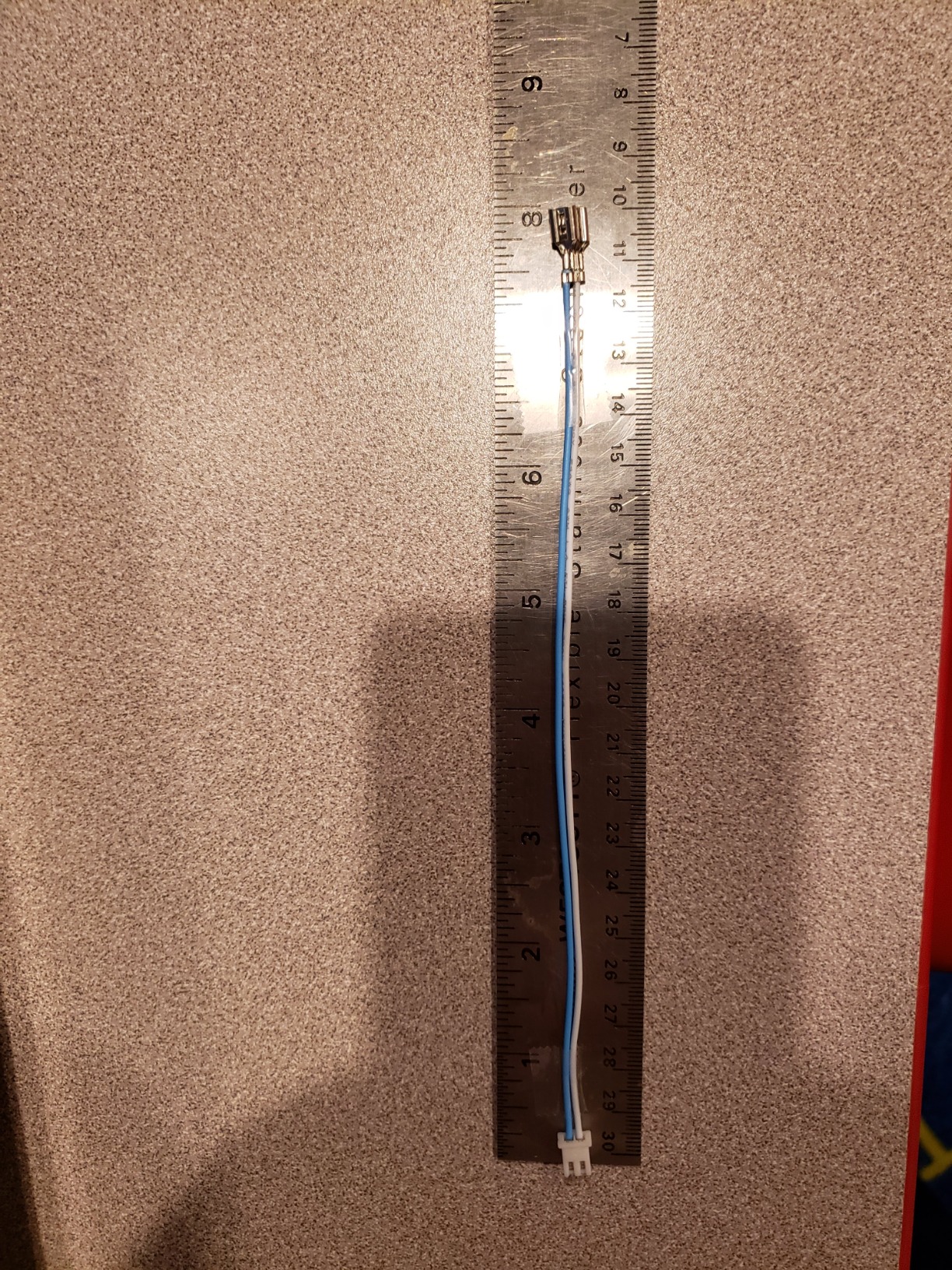

The main limitation concerns actual wire length. While advertised as 9 inches, most measure closer to 8 inches, with usable distance about 3 inches less due to connection sleeves. This length works for compact control panels but may require extensions for larger cabinets or unusual button layouts. The 4.4-star rating reflects solid overall performance, with most negative reviews citing the shorter-than-expected length.

For Whom These Wires Are Best

This Guwarry harness set works well for compact control panel builds, fight stick projects, or Arcade1Up mods where shorter wire lengths actually prove beneficial. If you’re using EG Starts encoder boards or similar Zero Delay boards, these wires provide reliable connections with good quality terminals. The slightly shorter length makes them ideal for projects where wire management and compactness matter more than maximum reach.

For Whom These Wires Fall Short

Builders with large control panels or unusual button layouts may find the 8-inch length limiting. If your encoder board mounts far from your controls, you’ll need extension wires or a different solution. Those needing exactly 9 inches per wire should measure carefully and consider alternatives given the consistent reports of shorter actual length. Full-size cabinet builds with deep control panels might benefit from longer wire options.

Wire Gauge Quality Guide

Wire gauge determines how much current your JAMMA harness can safely carry. The JAMMA standard specifies 22AWG (American Wire Gauge) for most connections, with 18AWG recommended for the main 5V power line. Unfortunately, many budget harnesses label wire as 22AWG when it’s actually 24-25AWG, creating serious safety issues. True 22AWG wire handles approximately 7 amps of current, while 24-25AWG wire only carries 3-4 amps. This difference matters because your arcade boards draw significant current, especially during startup or when running power-hungry systems like CPS2.

Undersized wire creates multiple problems. First, it causes voltage drop that leads to game glitches, resets, or corrupted graphics. Second, it generates heat as the wire struggles to carry current beyond its capacity. In extreme cases, this heat can melt insulation and create fire hazards. Forum members on Arcade-Projects have documented cases where supposedly 22AWG wire measured between 24-25AWG using calipers, with conductor diameter of just 0.64mm instead of the proper 0.64mm for true 22AWG.

When shopping for JAMMA harnesses, look for explicit wire gauge specifications and verified user reports. Premium vendors like Bob Roberts, TwistedQuarter, and Suzo-Happ consistently deliver proper wire gauge. Budget Amazon options vary wildly, with some units like the DEVMO actually using proper 22AWG while others like the Sintron show significant undersizing. If technical accuracy matters for your build, consider investing in a wire gauge stripper to verify specifications upon receipt.

What to Look For When Choosing

Quality JAMMA harnesses share several characteristics regardless of price point. First, verify that all 56 pins are actually wired, not just present on the edge connector. Missing pins limit compatibility with certain boards that use optional JAMMA features. Second, confirm that -5V is included if you plan to run boards requiring this voltage for sound chips. Many budget harnesses omit this wire to save costs.

Connector quality significantly affects reliability. Look for edge connectors with secure pins that grip board edges firmly without being too tight. Quick disconnect terminals should crimp securely to wires rather than relying on solder alone. All connections should feature insulating sleeves or heat shrink to prevent shorts. The DEVMO harness impressed me with its comprehensive insulating covers, while the Sintron showed adequate but less thorough protection.

Label clarity matters more than you might expect during installation. Harnesses with English labels like the RetroArcade.us kit save significant time compared to Chinese-only options. Color-coded wires help identify player connections, power lines, and video outputs without constant reference to pinout diagrams. Consider your technical comfort level when deciding how much labeling matters for your build.

Installation Tips

Proper installation ensures your JAMMA harness performs reliably and safely. Always disconnect power from your cabinet before working on wiring. Start by connecting the edge connector to your game board, ensuring it seats fully and evenly across all pins. Mismatched alignment can bend pins or create poor connections. Work methodically through each connection group, starting with power, then controls, then video and audio.

When connecting quick disconnects to button and joystick microswitches, ensure they click firmly into place. Loose connections cause intermittent controls that frustrate players and seem like board issues. Use zip ties to organize wires and prevent strain on connections, but don’t overtighten or you’ll damage insulation. Route wires away from moving parts and heat sources like power supply resistors.

Test your installation incrementally rather than connecting everything at once. Power on with just the game board connected and verify voltages at the edge connector using a multimeter. Then connect controls one player at a time, testing each before proceeding. This methodical approach makes troubleshooting much easier if problems arise. Many builders skip this step and regret it when issues prove difficult to isolate.

Safety Warnings

Arcade cabinets involve line voltage (120V or 240V AC) and low voltage DC (5V, 12V) that can both cause harm if handled improperly. Never work on a cabinet with power connected. Use an isolation transformer on your monitor to prevent dangerous voltages from reaching the cabinet chassis. Always discharge monitor picture tubes before servicing, even with power disconnected, as they store lethal charges.

Wire gauge directly affects safety as discussed earlier, but connector quality matters too. Poor crimps can create resistance that generates heat and potential fire hazards. Inspect all connections visually before powering up, looking for loose strands, exposed conductors, or improper strain relief. The EG STARTS harness includes plastic sleeves over connections that prevent shorts, a safety feature I highly recommend.

If you smell burning, see smoke, or notice unusual heat, disconnect power immediately and investigate before attempting to use the cabinet again. These symptoms indicate serious problems that can damage components or create fire hazards. When in doubt, consult experienced builders on forums like Arcade-Projects or Arcade-Museum, where community members can help diagnose issues safely.

FAQ Section

Conclusion

Choosing the best arcade JAMMA harnesses and wiring kits for your project requires balancing quality, safety, and budget. Our testing shows that premium options from RetroArcade.us deliver reliable performance with proper wire gauge and complete connections, making them ideal for serious builds. The EG STARTS harness offers solid mid-range performance with all voltages included, while budget options like the BLEE and Sintron provide basic functionality for simple multicade projects.

For first-time builders, we recommend the RetroArcade.us 60-in-1 kit for its complete package and English-labeled harness. MAME cabinet builders should consider the J-PAC interface for seamless PC-to-JAMMA integration. Regardless of which option you choose, always verify wire gauge specifications and inspect connections before installation. Your arcade cabinet deserves quality wiring that ensures reliable gameplay and safe operation for years to come.
