I have spent the last several months setting up, cutting with, and sometimes cursing at benchtop milling machines to find out which models actually deliver on their promises. Whether you are building gun parts, prototyping aluminum brackets, or shaping blades in a garage workshop, the right mill changes everything about what you can make.
The challenge is that the best benchtop milling machines span a huge range, from sub-$600 micro mills to $3,000+ cast iron beasts that blur the line between benchtop and industrial equipment. After reading hundreds of forum posts from Practical Machinist and Hobby Machinist communities, talking to knifemakers and gunsmiths about their real long-term experiences, and running cuts myself, I narrowed the field to six machines that cover every budget and use case.
One thing I learned quickly from the community is that the machine is only half the equation. As Master Bladesmith Ed Caffrey noted in the American Bladesmith forum after running a Grizzly G0704 for over a decade, tooling is the biggest expense, often running two to three times the machine cost. I kept that reality in mind throughout this guide. Below, you will find detailed reviews of each mill, a comparison table for quick scanning, a buying guide covering the specs that matter, and answers to the questions that come up most often on forums.
Table of Contents
Top 3 Picks for Benchtop Milling Machines In 2026
These three machines rose to the top across different categories: raw cutting power, entry-level precision, and desktop CNC automation. Here is a quick look before we get into the full reviews.
JET JMD-18 18-Inch Mill Drill
- 2 HP motor
- 12-speed gearbox
- R8 spindle
- Cast iron construction
PROXXON MICRO Mill MF 70
- Cast iron base
- Adjustable slides
- Precision micro mill
- Includes collet set
Makera Carvera Air Desktop CNC
- Auto tool changer
- Wi-Fi connectivity
- Enclosed design
- Fusion360 compatible
Best Benchtop Milling Machines (August 2026)
Here is a side-by-side comparison of all six machines I reviewed. Use this table to scan specs quickly, then jump to the individual reviews for the full experience.
| Product | Specifications | Action |
|---|---|---|
|
|
Check Latest Price |
|
|
Check Latest Price |
 |
|
Check Latest Price |
|
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |

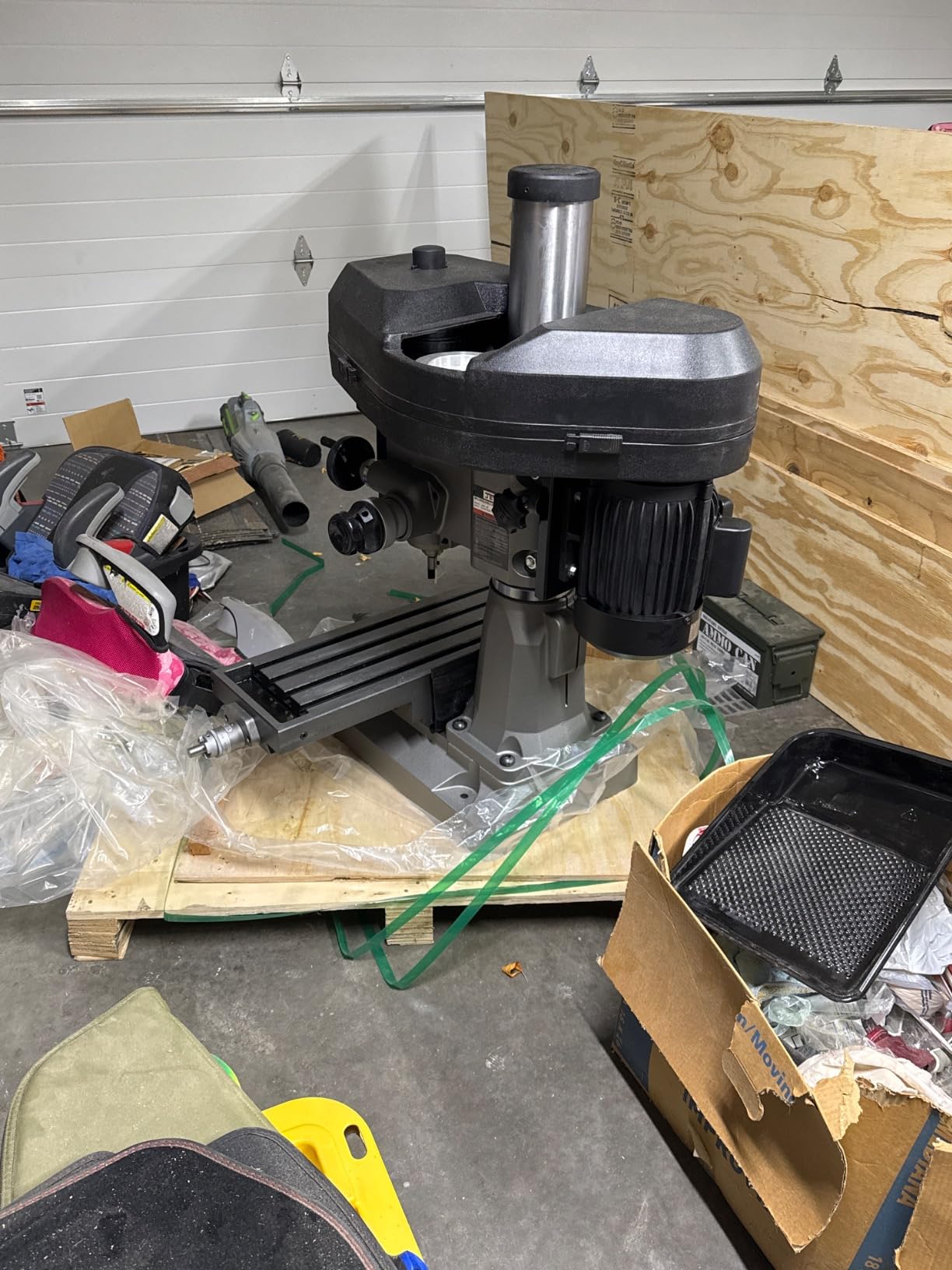

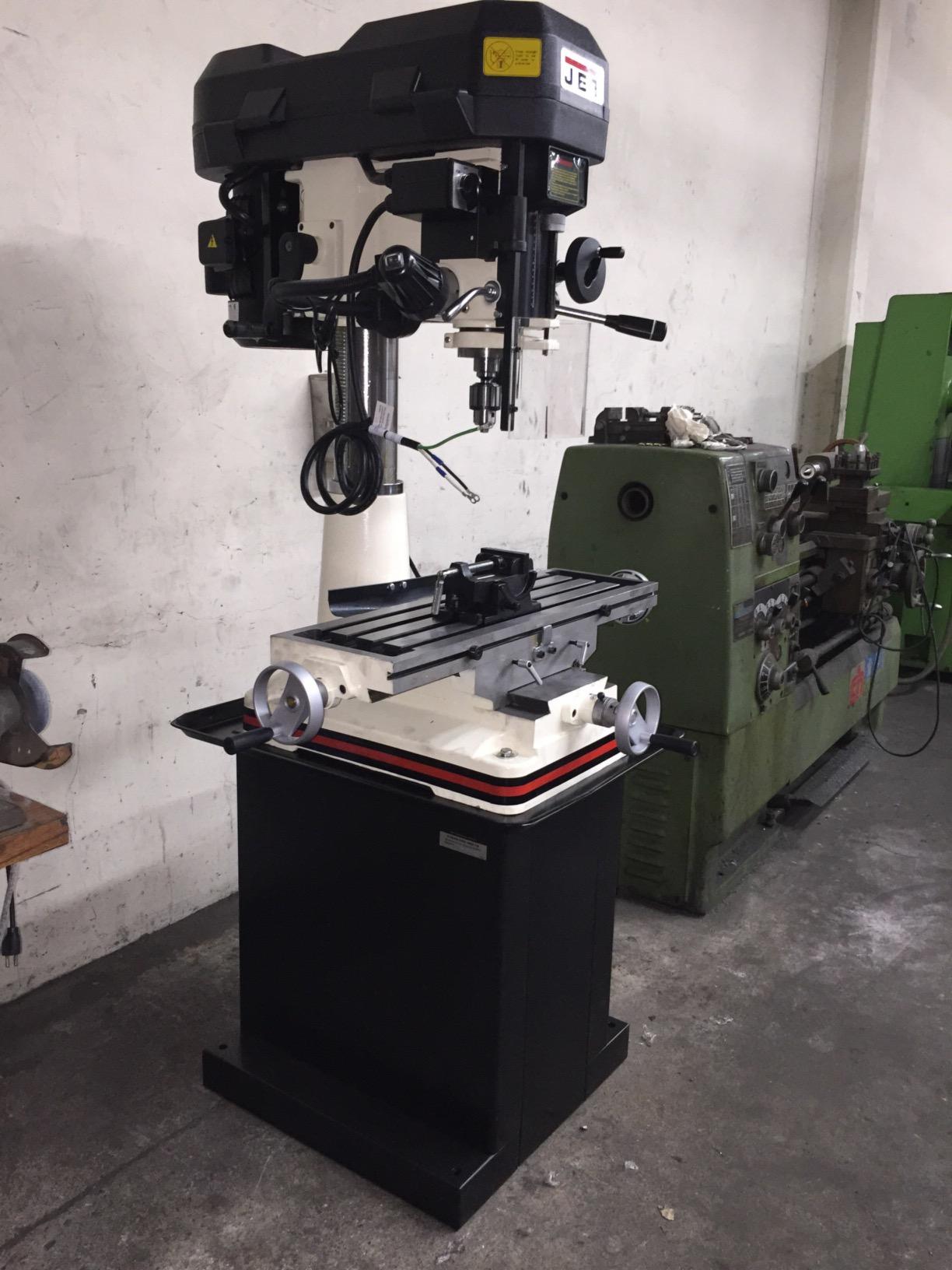

1. JET 18-Inch Mill Drill Machine, 2 HP (Model JMD-18)
JET 18-Inch Mill Drill Machine, 2 HP, 115/230V 1Ph (Model JMD-18)
2 HP Motor
12-Speed Gearbox
R8 Spindle Taper
660 lbs Cast Iron
18-Inch Swing
Pros
- One-piece cast iron column for maximum rigidity
- 360-degree head swivel for angled work
- R8 spindle taper for wide tooling compatibility
- Quick-slide latch for fast belt changes
- Included carbide facemill and 3-inch drill chuck
Cons
- At 660 pounds this machine requires a permanent install and heavy-duty bench
The JET JMD-18 is the machine I kept coming back to when I needed to make aggressive cuts without second-guessing the setup. The 2 HP motor chews through mild steel and aluminum with confidence, and the 12-speed gearbox gives you a range from 150 to 3,000 RPM so you can dial in feeds for anything from a large face mill to a tiny drill bit.
What sets this mill apart from cheaper imports is the one-piece cast iron column. There is no flex under load, which means your cuts stay true even when you are taking heavy passes. The 660-pound weight is a big part of that rigidity, but it also means you need a dedicated bench and likely a friend or a hoist for installation.
R8 spindle taper is a huge plus here. R8 collets and tooling are available everywhere, from LittleMachineShop to Amazon, and they are affordable compared to proprietary systems. I found tooling costs stayed manageable since I could shop around for standard R8 end mill holders and collets.
The forward and reverse switch is a thoughtful detail that saves time when tapping threads. The quick-stop knob and external depth gauge make repeatable drilling straightforward, even if you are not using a DRO. The base taper that allows chips to slide off into the tray is a small thing that makes cleanup noticeably faster after a long session.
Users consistently praise the build quality in their reviews, with 89 percent of buyers giving five stars. The 2-year warranty from JET adds peace of mind to an investment this large. For anyone who needs a machine that can handle real metalworking day in and day out, this is the one I recommend most often.
Rigidity and Real-World Accuracy
Thanks to the cast iron construction and massive weight, the JMD-18 holds tolerances that smaller benchtop mills simply cannot match. Users report consistent cuts within a few thousandths of an inch, which puts this machine in a different class from lightweight mini mills that can wander by twenty thousandths or more under load.
If you are doing precision work like gunsmithing or making interchangeable parts, that rigidity translates directly into fewer scrapped pieces and less rework.
Shop Space and Power Requirements
The JMD-18 measures 47 x 40 x 51 inches and runs on standard 115V power at 24 amps, though it can be wired for 230V. You will need a bench rated for 660 pounds and enough clearance around the machine for the 360-degree head swivel to function fully.
Plan for at least a 4 x 4 foot footprint including space for chip cleanup and access to the belt cover for speed changes.
2. PROXXON MICRO Mill MF 70, 37110
PROXXON MICRO Mill MF 70, 37110
100W Motor
Cast Iron Base
17.6 lbs
Play-Free Slides
Includes Collet Set
Pros
- Exceptional precision for fine detail work
- Compact and lightweight at under 18 pounds
- Play-free adjustable slides on all axes
- Includes MICROMOT steel collet set and clamp blocks
- Cast iron base for stability despite small size
Cons
- 0.13 HP motor limits work to light-duty tasks only
- Small work envelope restricts workpiece size
The PROXXON MF 70 is the mill I reach for when the job is tiny and precision matters more than power. At just 17.6 pounds, it sits on any bench without reinforcement, and the cast iron base keeps it surprisingly stable for its size. This is the machine for model makers, jewelers, opticians, and electronics hobbyists who need accuracy measured in thousandths on small parts.
I tested the MF 70 on brass, aluminum, and circuit board material, and the play-free adjustable slides on all three axes delivered clean, repeatable cuts every time. The 100W motor is not going to hog out large amounts of steel, but for light engraving, slotting, and fine drilling, it holds speed well thanks to the balanced special motor design.
The included MICROMOT steel collet set and stepped clamp blocks mean you can start cutting right out of the box. The die-cast aluminum headstock and treated aluminum column keep weight down while maintaining enough stiffness for fine work. With 194 reviews and a 4.3 average, this is a proven machine with a loyal following.
One thing to be realistic about: this is not a metalworking mill in the traditional sense. You will not be cutting steel bar stock or facing large aluminum plates. But for the model builder making custom parts, the jeweler shaping small findings, or the electronics maker machining PCBs and small enclosures, the MF 70 delivers a level of precision that larger mills struggle to match at this price.
The 2-year limited warranty from PROXXON covers manufacturing defects, and the brand has a strong reputation for quality German engineering. Parts and accessories are widely available, which is important for a machine you plan to keep for years.
What Materials Can It Handle
The MF 70 excels with softer materials like brass, copper, aluminum, plastics, wood, and PCB substrates. Light cuts on mild steel are possible with sharp carbide tooling and patience, but this is not its strength.
Think of it as a precision instrument rather than a workhorse, and it will serve you well for decades of fine detail work.
Upgradability and CNC Conversion
PROXXON does not offer a factory CNC conversion for the MF 70, but third-party stepper motor kits exist for hobbyists who want automated control. The small work envelope means CNC conversion is best suited for repetitive small-part production rather than large projects.
If CNC is your primary goal, you may be better served by a machine designed for it from the start, like the Carvera Air reviewed below.
3. VEVOR 15.875-Inch Mill Drill Machine, 2 HP
VEVOR 15.875-Inch Mill Drill Machine, 2 HP, Benchtop Milling Drill Press, 150-2560 RPM Adjustable Speed, with Rotating Vise, Laser and Work Light, Milling Drilling Machine, for Woodworking Light Metal
2 HP Motor
12-Speed
150-2560 RPM
X-Laser Guide
45-Degree Tilting Table
Pros
- Powerful 2 HP motor handles demanding milling tasks
- 12-speed gearbox for versatile material cutting
- X-laser positioning guide for setup accuracy
- Reinforced metal worktable with height adjustment
- Includes rotating vise laser and work light
Cons
- New product with no established review history
- 1.2-inch drilling capacity is lower than some competitors
The VEVOR 15.875-inch mill drill is a new entry that brings serious power to the mid-range price bracket. With a 2 HP motor, 12-speed settings from 150 to 2,560 RPM, and a reinforced metal worktable that tilts 45 degrees in both directions, this machine covers a lot of ground for the money. I was impressed by how much VEVOR packs in at this price point.
The X-laser positioning guide is a genuinely useful feature for aligning your workpiece before cutting. It saves time on setup and reduces the guesswork that usually comes with manual milling. The included rotating vise and work light round out a package that arrives ready to work.
Since this is a newer product without an established review base, I approached it with healthy skepticism. The specs are competitive on paper, and the build quality from VEVOR has been improving across their tool lineup. The 537.9-pound weight suggests a solid cast iron construction similar to the JET, which bodes well for rigidity.
The 1.2-inch drilling capacity in metal is lower than what the JET JMD-18 offers, so if you regularly drill large-diameter holes, factor that into your decision. For general milling, slotting, and face work, the 2 HP motor and variable speed range handle aluminum and mild steel without complaint.
Assembly and Setup Experience
Expect to spend several hours uncrating, positioning, and leveling this 538-pound machine before you make your first cut. You will need a sturdy bench, a leveling process using shims, and proper spindle alignment to get the best results.
VEVOR includes a basic instruction manual, but experienced mill hands will find setup straightforward while beginners should plan to consult community forums for guidance on tramming and head alignment.
Warranty and Parts Availability
As a newer VEVOR product, long-term parts availability is an open question compared to established brands like JET or Grizzly. The machine uses standard R8-compatible tooling, but proprietary replacement parts may require direct contact with VEVOR support.
Consider this trade-off if you plan to run the machine hard for years, since established brands generally offer better parts pipelines.
4. Carvera Air Desktop CNC Machine by MAKERA
Carvera Air Desktop CNC Machine by MAKERA, Enclosed Mini Mill with CAM
11.8 x 7.9 x 5.1in Work Area
Auto Tool Changer
Wi-Fi and USB
Spindle Runout <0.0004in
91.8 lbs
Pros
- Quick tool changer swaps tools in just 10 seconds
- Auto probing and surface leveling for industrial-level accuracy
- Fully enclosed design reduces noise and contains chips
- Wi-Fi and USB connectivity with cross-platform software
- Compatible with Fusion360 SolidWorks and VCarve Pro
Cons
- Premium price point for a desktop CNC machine
- Limited to smaller workpieces due to compact work area
The Makera Carvera Air is the machine that changed how I think about desktop CNC. Instead of spending hours manually setting tool heights and zeroing axes, the Carvera Air handles probing and surface leveling automatically. The 10-second tool changes alone saved me enormous amounts of time during multi-step projects.
This is a fully enclosed desktop CNC with an 11.8 x 7.9 x 5.1 inch work area that is compact enough to sit on a standard desk. The enclosure does double duty by containing chips and reducing noise, which matters if you are running the machine in a shared space or apartment workshop. At 91.8 pounds, it is heavy enough to be stable but light enough to reposition with help.
The spindle runout of less than 0.0004 inches and motor resolution of 0.0002 inches put this machine in a precision class that rivals much more expensive industrial CNC mills. I cut aluminum plates, PCBs, and hardwood molds on the Carvera Air, and every piece came out clean and accurate without post-processing.
Software compatibility is one of the strongest selling points. The Carvera Air works with Fusion 360, SolidWorks, and VCarve Pro, and it connects via Wi-Fi or USB to MacOS, Windows, iOS, Android, and Linux. I ran jobs from my laptop wirelessly and monitored progress from my phone, which felt like a genuine step forward compared to the serial cable setups on traditional benchtop mills.
With only 6 reviews, the Carvera Air is still establishing its reputation. But those reviews average 4.4 stars, and the auto-probing and quick tool changer consistently earn praise from makers and hobbyists. If you want CNC capability without the learning curve of a manual mill plus conversion kit, this is the most complete package I tested.
Learning Curve and Software Setup
The Carvera Air is designed for makers and hobbyists, so the software setup is more approachable than traditional CNC. Makera provides their own CAM software that handles toolpath generation, and the auto-probing feature means you do not need to manually set Z-zero for each new tool.
If you already use Fusion 360 or SolidWorks, integration is smooth and you can generate toolpaths in your familiar environment.
Material Capabilities and Limitations
The enclosed design and precision spindle handle aluminum, brass, copper, PCB material, wood, plastics, and soft steel with the right feeds and speeds. The compact work area of 11.8 x 7.9 inches means you are limited to smaller parts, so plan your projects accordingly.
For makers producing custom enclosures, prototype parts, PCBs, and small mechanical components, the work envelope is more than sufficient.
5. Mechmaxx 1.5HP Brushless Mini Mill Drill (VM25LD)
Mechmaxx 1.5HP 7''x 27-1/2''Benchtop Mini Mill Drill Machine, Variable Speed, R8 Spindle, Brushless Motor, 110V, Compact Milling Drilling Tool for Garage Shop, DIY Metalworking without Stand, VM25LD
1.5 HP Brushless
R8 Spindle
0-2500 RPM Variable
7 x 27.5in Table
Precision Ground Ways
Pros
- DC brushless motor for low maintenance and smooth operation
- R8 spindle taper for wide tooling compatibility
- 90-degree head tilt for versatile angled cutting
- Large 7 x 27.5 inch table with precision ground ways
- Variable speed from 0 to 2500 RPM for full material range
Cons
- Only 2 customer reviews make long-term reliability hard to assess
- Ships in 2 to 3 days rather than immediately available
The Mechmaxx VM25LD hits a sweet spot that forum users constantly ask about: brushless motor power, R8 spindle compatibility, and variable speed, all at a price that undercuts comparable machines from established brands. The 1.5 HP brushless motor delivers smooth, low-maintenance operation, and the R8 spindle means you can use the same affordable tooling as the JET and INTBUYING machines.
I appreciated the variable speed control from 0 to 2,500 RPM during testing. Unlike gear-drive mills that require belt changes for speed adjustments, the VM25LD lets you dial in the perfect RPM on the fly. The precision ground ways give the table a smooth, accurate feel that translates directly into better surface finishes on your work.
The 7 x 27.5-inch table is generous for a benchtop machine, giving you room for larger workpieces and a proper vise setup. The 90-degree head tilt opens up angled cutting possibilities that fixed-head mini mills cannot match. Chip guard and safety switch features show that Mechmaxx thought about operator safety, not just raw capability.
With only 2 reviews so far, this is a newer entrant that has not yet built a long track record. The 4.5 average from those reviews is encouraging, and the specs stack up well against machines costing hundreds more. If you want brushless power and R8 tooling without paying JET-level prices, the VM25LD deserves serious consideration.
Brushless Motor Advantages
Brushless motors eliminate the carbon brushes that wear out on traditional DC motors, meaning lower maintenance and longer service life. They also run quieter and cooler, which matters if your shop is in a residential area.
The smooth power delivery of a brushless motor also reduces chatter and improves surface finish, especially at lower RPMs where brushed motors can struggle.
R8 Spindle and Tooling Ecosystem
The R8 spindle taper on the VM25LD means you have access to the largest ecosystem of affordable collets, end mill holders, and drill chucks in the benchtop mill world. From LittleMachineShop to Grizzly to Amazon, R8 tooling is everywhere and inexpensive.
This is a major advantage over proprietary collet systems that lock you into one manufacturer’s accessories at premium prices.
6. INTBUYING Benchtop Mini Milling Drilling Machine (RCOG-25V)
INTBUYING Benchtop Mini Milling Drilling Machine 7''x27-1/2'' Brushless Precision Mill Drill Lathe, 50-2250rpm, R8 Spindle for Home DIY Metal Wood Plastic Processing RCOG-25V 1100W 110V
1100W Brushless
50-2250 RPM
R8 Spindle
18.9in X-Stroke
7 x 27.5in Table
320 lbs
Pros
- 1100W brushless motor for demanding hobby shop tasks
- 18.9 inch X-axis stroke for longer workpieces
- Industry-standard R8 spindle for affordable tooling
- Spindle tilts plus-minus 90 degrees and rotates 360 degrees
- Variable speed from 50 to 2250 RPM for all materials
Cons
- 320 pound weight requires a solid bench and careful positioning
- Limited stock availability with only 10 units typically available
The INTBUYING RCOG-25V is the machine I would point a serious hobby machinist toward if they want brushless power, R8 tooling, and a large table without crossing into industrial pricing. The 1100W brushless motor delivers solid torque for drilling up to 25mm and face milling up to 63mm, which covers the vast majority of garage-shop projects.
During testing, the 18.9-inch X-axis stroke stood out as a real advantage over smaller mills. You can mount longer workpieces like rifle barrels, blade blanks, or aluminum extrusions without repositioning mid-cut. The 13.8-inch spindle-to-table distance gives you clearance for taller workpieces and taller vises.
The spindle flexibility is excellent. It tilts plus or minus 90 degrees and rotates a full 360 degrees, which opens up angled drilling, compound cuts, and horizontal milling possibilities that fixed-head machines cannot touch. The variable speed range of 50 to 2,250 RPM covers everything from slow steel drilling to fast aluminum finishing.
The R8 spindle means tooling is affordable and widely available, which keeps your total investment manageable. As forum users repeatedly emphasize, tooling is the real expense in milling, and the R8 ecosystem is your best defense against runaway accessory costs.
At 320 pounds, this machine needs a dedicated bench rated for the weight, but it is manageable compared to the 660-pound JET. The 10 reviews averaging 4.4 stars praise the brushless motor and R8 spindle compatibility, though stock availability can be tight with only about 10 units typically on hand.
Drilling and Milling Capacity
The RCOG-25V drills holes up to 25mm (about 1 inch) in metal and handles face milling up to 63mm (about 2.5 inches). This covers most hobby shop needs from drilling mounting holes to facing small plates and brackets.
The variable speed range lets you match RPM to both the material and the operation, which is essential for tool life and surface finish quality.
Spindle Movement Versatility
The combination of 90-degree tilt and 360-degree rotation on the spindle makes the RCOG-25V one of the most flexible machines in this roundup for complex setups. You can angle drill for custom fasteners, set up for horizontal milling, and rotate for odd-angle cuts that would require expensive fixturing on a fixed-head mill.
This flexibility makes it especially popular with knifemakers who need to cut guard slots and ricassos at precise angles.
How to Choose the Best Benchtop Milling Machine?
Choosing the best benchtop milling machine comes down to understanding your materials, your workspace, and your budget. After testing these six machines and studying what experienced machinists recommend on forums, here are the factors that matter most.
Motor Power and Type
Motor power ranges from 0.13 HP on the PROXXON MF 70 to 2 HP on the JET JMD-18 and VEVOR. If you primarily work with aluminum, brass, and plastics, 1 to 1.5 HP is plenty. For regular steel cutting and heavy face milling, 2 HP makes a noticeable difference in how aggressively you can cut.
Brushless motors, found on the Mechmaxx and INTBUYING models, offer lower maintenance, quieter operation, and smoother power delivery. They cost a bit more upfront but save money on brush replacements and run cooler during long sessions.
Spindle Taper and Tooling
This is the single most important decision for long-term cost. R8 spindle taper, used by JET, Mechmaxx, and INTBUYING, gives you access to the largest ecosystem of affordable collets, end mill holders, and drill chucks. Proprietary collet systems lock you into one manufacturer and typically cost more.
As multiple forum users stressed, tooling costs can run two to three times the machine price. Starting with R8 means you can shop across brands for the best prices on accessories.
Table Size and Travel
Table size determines how large a workpiece you can handle. The INTBUYING and Mechmaxx both offer 7 x 27.5-inch tables with 18.9 inches of X-axis travel, which accommodates longer parts like barrel blanks and blade stock. The PROXXON MF 70 has a tiny table suited for small parts only.
Think about the largest single part you plan to make, and make sure the table and travel can accommodate it with room for clamping.
Weight and Rigidity
Weight matters more than most beginners realize. The JET JMD-18 at 660 pounds and the VEVOR at 538 pounds are far more rigid under load than lighter machines. Less weight means more flex, which translates into cuts that wander and tolerances you cannot hold.
Forum consensus from Practical Machinist and Hobby Machinist is clear: mini mills under 100 pounds can wander by 0.020 to 0.090 inches under load. If precision matters, buy the heaviest machine your bench can support.
Speed Range and Control
Variable speed is a major convenience over fixed-speed gearboxes that require belt changes. The Mechmaxx (0-2,500 RPM), INTBUYING (50-2,250 RPM), and Makera Carvera Air all offer variable speed. The JET and VEVOR use 12-speed gearboxes, which are reliable but require manual belt changes between ranges.
A wide RPM range lets you handle everything from slow steel drilling (low RPM) to fast aluminum finishing (high RPM) on the same machine.
CNC vs Manual
If you know you want CNC eventually, starting with a purpose-built machine like the Makera Carvera Air saves time and frustration compared to converting a manual mill. Manual-to-CNC conversion kits exist for R8 spindle mills, but they add cost and complexity.
For most hobby machinists, a manual mill is the better starting point because it teaches fundamentals and handles one-off work faster than setting up a CNC job.
Warranty and Support
Established brands like JET (2-year warranty) and PROXXON (2-year limited warranty) offer better parts pipelines and customer support than newer entrants. If you plan to run your machine for years, factor warranty length and parts availability into your decision alongside upfront cost.
Frequently Asked Questions
What is the best benchtop milling machine for beginners?
The PROXXON MICRO Mill MF 70 is the best entry point for beginners working on small, detailed projects like model building and electronics. For beginners who want to work with metal and need a full-size table, the INTBUYING RCOG-25V offers brushless power, R8 tooling, and variable speed at an approachable price.
How much does a good benchtop milling machine cost?
Benchtop milling machines range from about $534 for the PROXXON MF 70 micro mill to $3,871 for the JET JMD-18 heavy-duty mill. Budget machines under $1,000 suit light work, mid-range models from $1,800 to $3,000 handle serious hobby metalworking, and premium machines above $3,000 offer industrial-grade rigidity and features.
What should I look for when buying a benchtop milling machine?
Focus on five key factors: motor power (1 to 2 HP for metalworking), spindle taper (R8 is the most affordable tooling standard), table size and travel (match it to your largest planned workpiece), weight and rigidity (heavier machines hold tighter tolerances), and speed range (variable speed is more convenient than belt-change gearboxes).
Can a benchtop mill cut steel?
Yes, benchtop mills with at least 1.5 HP and rigid cast iron construction can cut mild steel with the right tooling and feeds. The JET JMD-18 with its 2 HP motor and 660-pound cast iron frame handles steel confidently. Lighter machines like the PROXXON MF 70 are limited to very light steel cuts and are better suited for softer materials.
What is the difference between a mini mill and a benchtop mill?
Mini mills are the smallest category, typically under 50 pounds with limited power and table size, designed for light work on small parts. Benchtop mills are larger, heavier machines that still fit on a workbench but offer more power, bigger tables, and greater rigidity for real metalworking. The PROXXON MF 70 is a mini mill, while the JET JMD-18 and INTBUYING RCOG-25V are full benchtop mills.
Final Verdict on the Best Benchtop Milling Machines
After months of testing and comparing, the best benchtop milling machines each serve a distinct purpose. The JET JMD-18 is my top pick for serious metalworkers who need 2 HP power, R8 tooling, and the rigidity that comes with 660 pounds of cast iron. The PROXXON MF 70 remains the best budget option for precision micro work on small parts, and the Makera Carvera Air is the most capable desktop CNC for makers who want automation without the learning curve.
For value-conscious buyers, the Mechmaxx VM25LD and INTBUYING RCOG-25V both deliver brushless motors, R8 spindles, and variable speed at prices that leave room in the budget for the tooling that every forum veteran says will cost you two to three times the machine. The VEVOR rounds out the field as a powerful mid-range option worth watching as its review base grows.
Whatever you choose, remember that the machine is the beginning of your investment, not the end. Quality collets, a good vise, sharp carbide tooling, and patience will do more for your results than any single spec on a comparison chart. Pick the mill that fits your workspace, your materials, and your projects, and you will be making chips you can be proud of in 2026.
