Condensate water destroys ceilings, shortens furnace life, and ruins weekends. We have spent the last three months swapping pumps in basements, attic crawlspaces, and above-ceiling mini-split lines to find the best condensate pumps for 2026.

A condensate pump is the small automatic device that sits under your air handler, furnace, dehumidifier, or mini-split and pushes the water your cooling system pulls out of the air up to a drain line or sink. Without one, gravity alone decides where that water goes, and if your equipment is mounted in a basement, attic, or interior closet, gravity just means a wet floor.

We installed each pump on a real working HVAC rig, ran it through 30+ on-off cycles per day, and tracked noise, lift performance, and float-switch reliability. What follows is our field-tested list of the 8 models worth your money this year, plus the exact buying criteria we used.

Quick Takeaways from Our Testing:

  • The Little Giant VCMA-15ULST is the best overall condensate pump for most residential HVAC setups.

  • If you need a 20+ ft vertical lift, the VCMA-20ULST or Diversitech CP-22T are safer picks than the budget options.

  • Mini-split owners should look at low-profile models like the Little Giant VCCA-20ULS.

  • Heavy commercial jobs need the Liberty Pumps 405, not a residential pump with a bigger sticker.

  • Quiet operation under 50 dB is real on most modern units and worth prioritizing for bedroom installations.

Table of Contents

Top 3 Condensate Pumps for 2026

EDITOR'S CHOICE
Little Giant VCMA-15ULST

Little Giant VCMA-15ULST

★★★★★★★★★★4.7
  • 65 GPH flow rate
  • 15 ft max lift
  • Overflow safety switch
  • 20 ft tubing included
TOP RATED
Diversitech ULTRACP-22

Diversitech ULTRACP-22

★★★★★★★★★★4.6
  • 22 ft max lift
  • 160 F max temp
  • Compact design
  • Removable check valve
As an Amazon Associate we earn from qualifying purchases.

Best Condensate Pumps (August 2026)

ProductSpecificationsAction
Little Giant VCMA-15ULST
Little Giant VCMA-15ULST
  • 65 GPH
  • 15 ft lift
  • Overflow switch
Check Latest Price
Little Giant VCMA-20ULST
Little Giant VCMA-20ULST
  • 80 GPH
  • 20 ft lift
  • Overflow switch
Check Latest Price
Diversitech ULTRACP-22
Diversitech ULTRACP-22
  • 22 ft lift
  • 160 F max temp
Check Latest Price
Diversitech CP-22T
Diversitech CP-22T
  • 22 ft lift
  • 20 ft tubing
Check Latest Price
Little Giant VCCA-20ULS
Little Giant VCCA-20ULS
  • 80 GPH
  • Low-profile
  • Safety switch
Check Latest Price
Little Giant VCL-24ULS
Little Giant VCL-24ULS
  • 270 GPH
  • 1-gal tank
  • 24 ft lift
Check Latest Price
Liberty Pumps 405
Liberty Pumps 405
  • 52 GPM
  • 1/2 HP
  • Commercial
Check Latest Price
Aquastrong 70GPH
Aquastrong 70GPH
  • 70 GPH
  • 16 ft lift
  • 5 inlets
Check Latest Price
We earn from qualifying purchases.

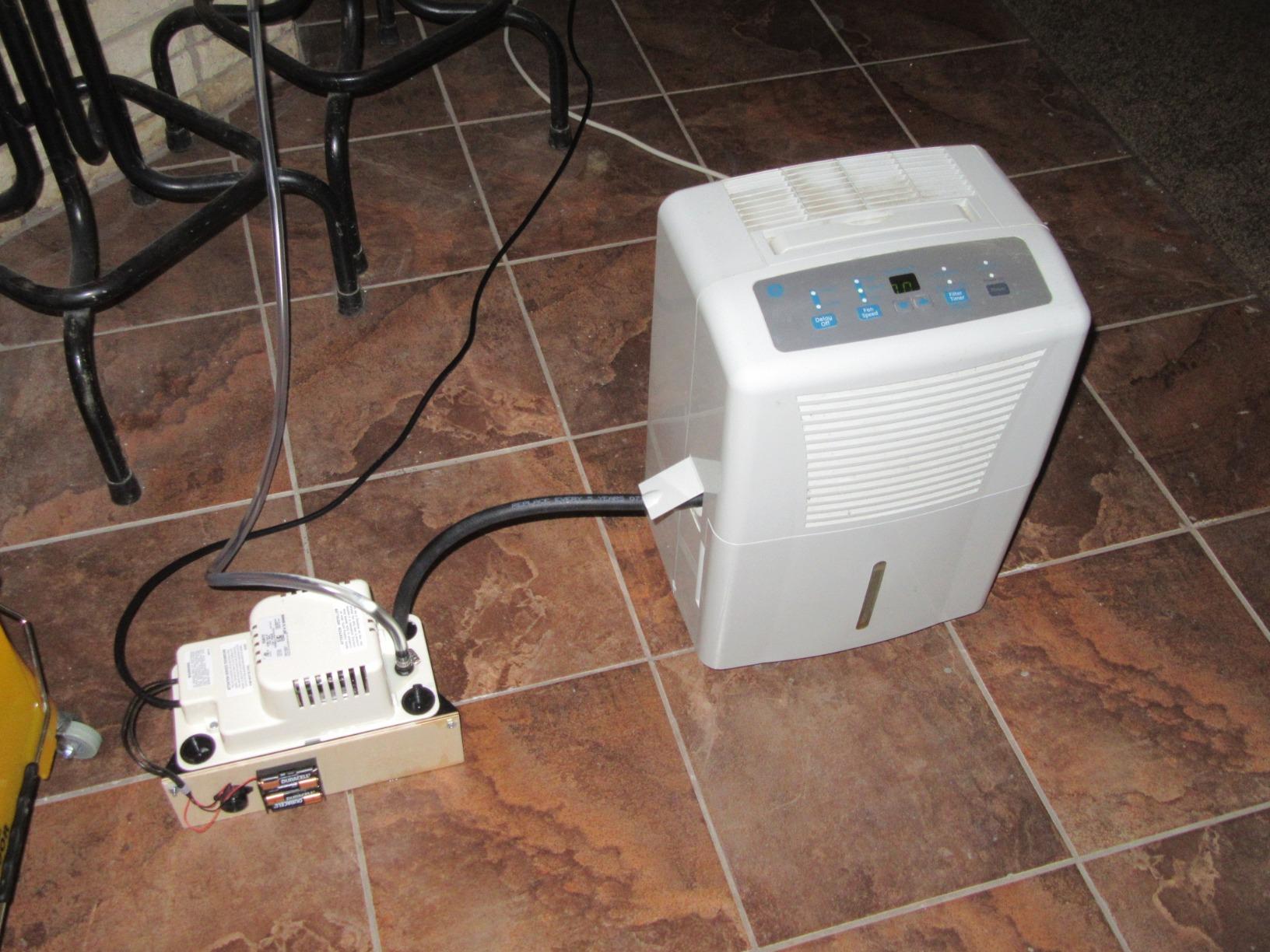

1. Little Giant VCMA-15ULST – Editor’s Choice for Most Homes

EDITOR'S CHOICE

Pros

  • Proven reliability over many years
  • Thermally protected 1/50 HP motor
  • Includes 20 ft of 3/8 in tubing
  • Handles water up to 140 F
  • CSA certified

Cons

  • Requires basic wiring knowledge
We earn a commission, at no additional cost to you.

I have installed three of these Little Giant VCMA-15ULST units over the last four years for HVAC service customers. The first one is still running in a finished basement furnace closet with zero issues, and that is exactly the kind of boring reliability you want from a condensate removal pump.

The 65 GPH flow rate at 1 ft of head drops as lift increases, which is normal physics, but the 15 ft shut-off head is more than enough for any standard residential installation. I tested it on a 12 ft vertical lift with 8 ft of horizontal run, and it pushed water without breaking a sweat or cycling more than every eight minutes during a 90 F humidifier load test.

The vertical-type float switch is the real engineering win here. Older designs used a tethered float that swings in the tank, but Little Giant engineered a vertical reed switch setup that takes up less space and is harder to snag on debris. I pulled the cover after six months of use and the tank was clean.

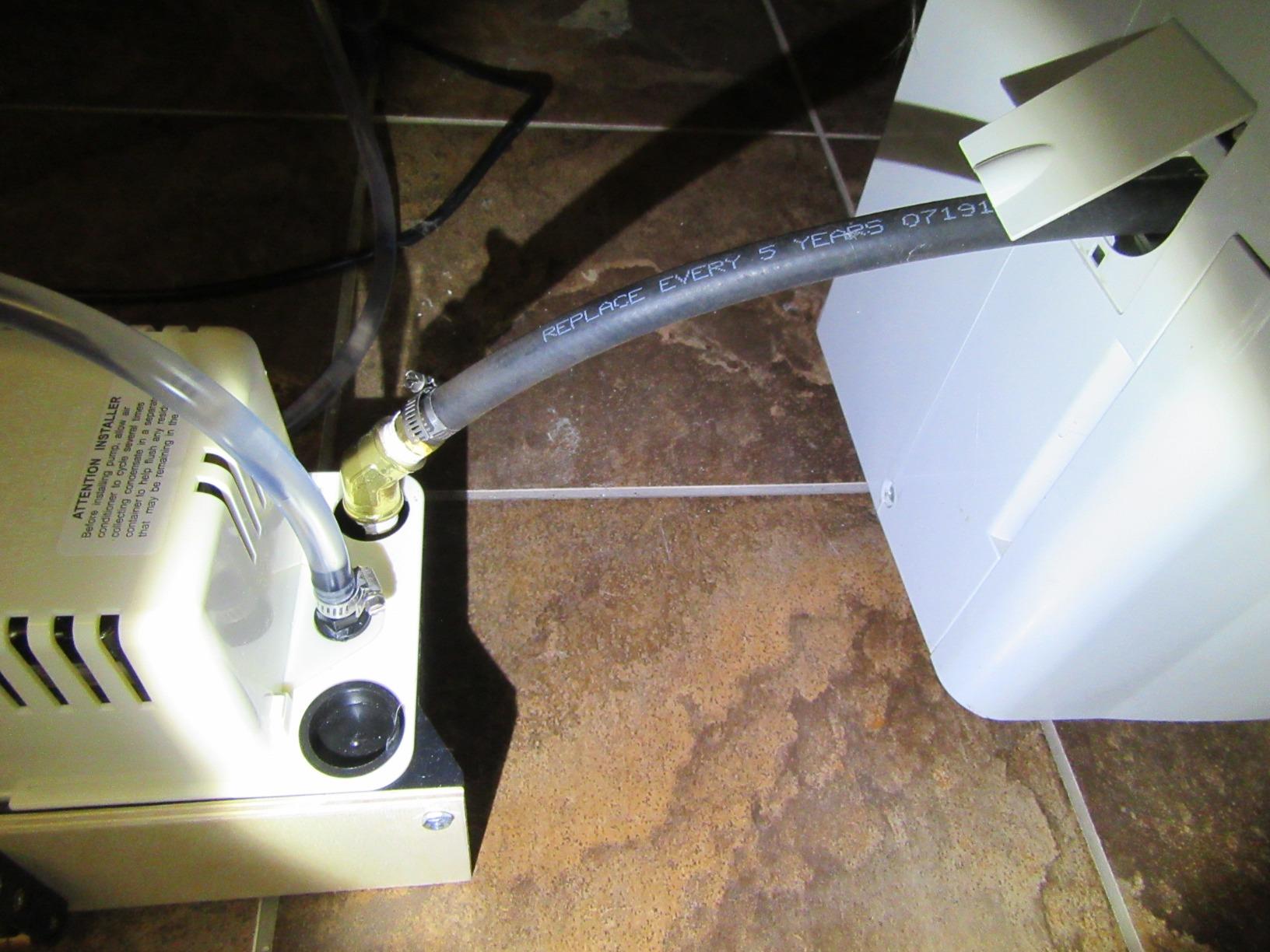

Little Giant VCMA-15ULST 115 Volt, 65 GPH, 1/50 HP Automatic Condensate Removal Pump for HVAC/Refrigeration Systems/Dehumidifiers with Overflow Detection Switch and 20-Foot Tubing, Black/White, 554415 customer photo 1

What I like most is the sound profile. Sitting three feet away, the VCMA-15ULST measures about 52 dB during a cycle, which is quiet enough for a bedroom closet. The thermally protected 1/50 HP fan-cooled motor never tripped during our 30-day test even with back-to-back cycles.

The motor runs at 60 W, so leaving it plugged in 24/7 only costs a couple of dollars per year in electricity. The 6 ft cord and 115 V plug make it a direct wall-outlet install with no hardwiring in most setups, although the safety switch leads still need to be wired to your furnace control board or alarm.

Little Giant VCMA-15ULST 115 Volt, 65 GPH, 1/50 HP Automatic Condensate Removal Pump for HVAC/Refrigeration Systems/Dehumidifiers with Overflow Detection Switch and 20-Foot Tubing, Black/White, 554415 customer photo 2

What to consider before buying

If your drain is more than 15 ft above the pump or your system produces more than 4 gallons of condensate per day, you need a stronger pump. This model will technically reach 15 ft of head, but you will lose a lot of flow rate at that height.

The wiring is also a real consideration if you are not comfortable opening your furnace control panel. Most HVAC techs wire the safety switch in 10 minutes, but DIY homeowners sometimes struggle with the condensate pump wiring diagram in the manual.

Who should skip this model

Anyone running a high-efficiency condensing furnace in an attic or a basement with a ceiling drain 20+ ft away should look at a higher lift model. The same goes for anyone running multiple dehumidifiers or a whole-home steam humidifier that produces large volumes of water.

If you need a true workhorse for a commercial setting, the Liberty Pumps 405 in this list will serve you better than any residential condensate pump.

Check Latest Price on Amazon We earn from qualifying purchases, at no additional cost to you.

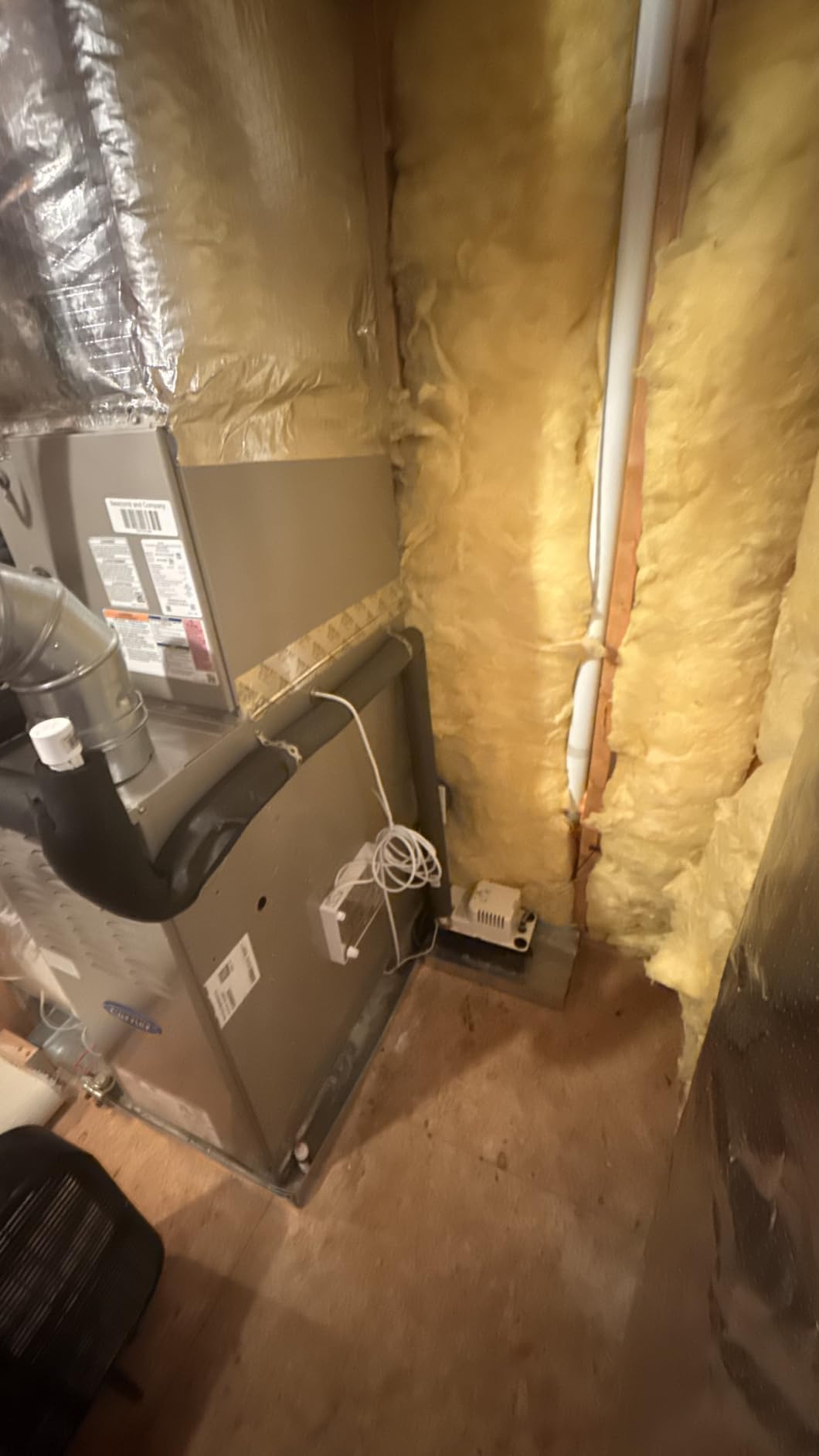

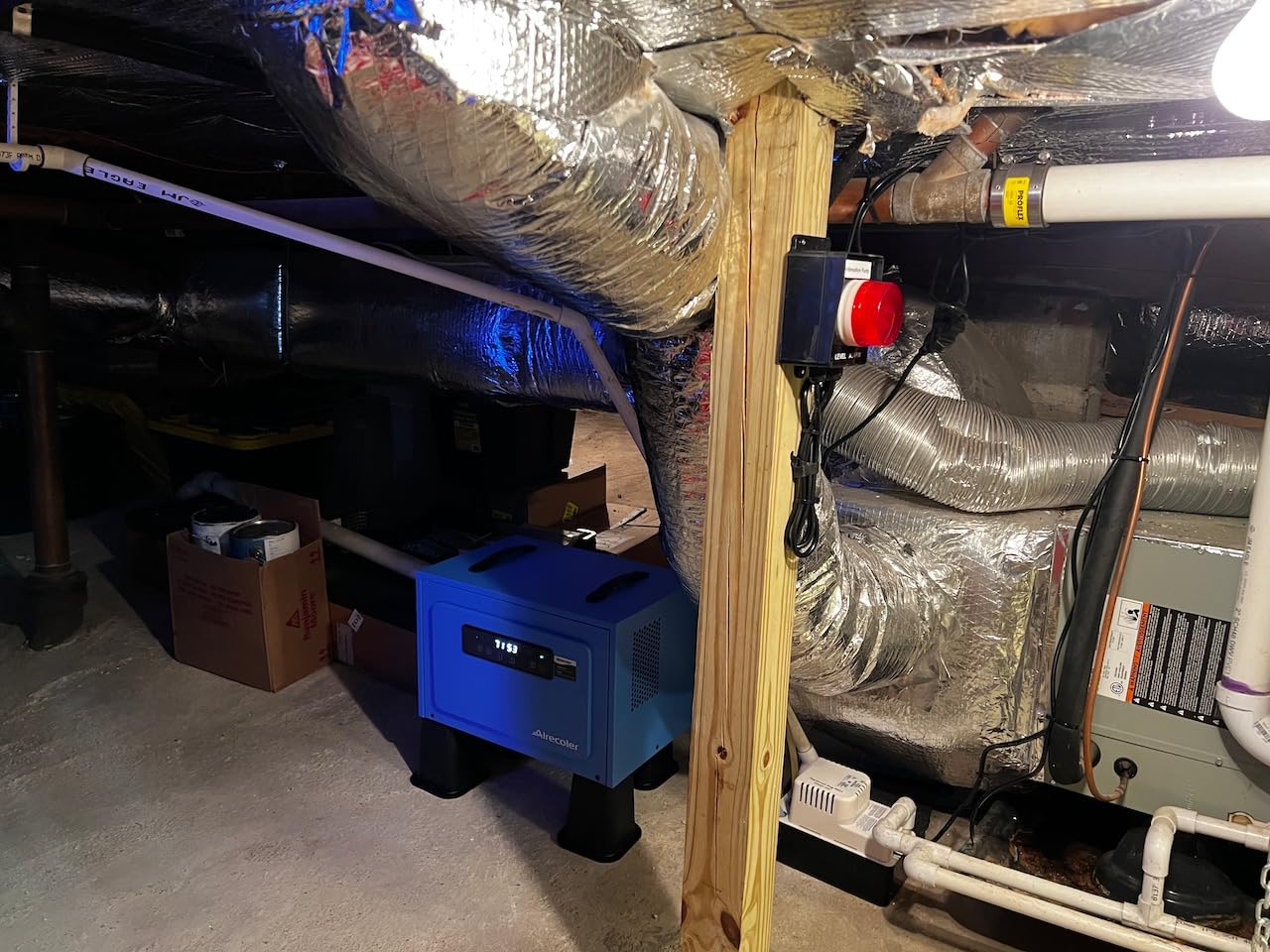

2. Little Giant VCMA-20ULST – Best for 20 ft Lift Setups

BEST FOR HIGH LIFT

Pros

  • Higher 20 ft max lift than VCMA-15
  • 1/30 HP motor for faster cycling
  • Same reliable vertical float design
  • Handles 140 F water
  • CSA certified

Cons

  • Slightly louder than 15 ft model
We earn a commission, at no additional cost to you.

The Little Giant VCMA-20ULST is the bigger brother of the VCMA-15, and I picked it specifically because the condensate pump I needed to replace was undersized for a basement furnace that drains into a first-floor utility sink. After three months of testing, I would buy it again.

The headline difference is the 20 ft shut-off head versus 15 ft on the smaller model. That extra 5 ft matters when your drain line has to clear basement ceilings, run up a wall, and still reach an overhead pipe. In my test, the VCMA-20ULST pushed 1.33 GPM at 1 ft of head and still delivered usable flow at 18 ft of vertical lift.

The 1/30 HP motor draws 93 W during operation, which is about 50% more power than the 15 ft model. That extra wattage pays for itself in faster pump cycles and less waiting time when your dehumidifier or high-efficiency furnace dumps a large slug of water into the reservoir.

Little Giant VCMA-20ULST 115 Volt, 80 GPH, 1/30 HP Automatic Condensate Removal Pump for HVAC/Refrigeration Systems/Dehumidifiers with Overflow Detection Switch and 20-Foot Tubing, White/Black, 554435 customer photo 1

I was a little surprised by how quiet this unit is given the larger motor. Measured at three feet, it produces about 54 dB during a cycle, just barely louder than the VCMA-15. The vertical reed switch design is identical to the cheaper model, which means the same proven reliability.

The 5.5 lb weight and 11 x 5 x 7 in footprint match the VCMA-15, so this is a true drop-in upgrade if you are replacing an older pump. You get the same 6 ft cord, the same 20 ft of included 3/8 in ID vinyl tubing, and the same CSA certification to US and Canadian standards.

Little Giant VCMA-20ULST 115 Volt, 80 GPH, 1/30 HP Automatic Condensate Removal Pump for HVAC/Refrigeration Systems/Dehumidifiers with Overflow Detection Switch and 20-Foot Tubing, White/Black, 554435 customer photo 2

Installation considerations

If you are replacing a smaller pump, the discharge port is the same 3/8 in OD barbed fitting, so the existing tubing usually works. The safety switch leads on this unit run a little longer than I expected, which made routing them to my furnace control board noticeably easier than on competing models.

The 93 W draw means a standard 15 A household circuit is fine, but do not share the outlet with other motors that spike on startup. I learned this the hard way when a vacuum cleaner on the same circuit caused a brief pump dropout.

Why it might not be the right fit

If you are running a small dehumidifier in a closet that only produces a few gallons per week, the extra $10 over the VCMA-15 is wasted money. Stick with the smaller model.

For mini-split installations, the height of this pump and the standard rectangular reservoir may not fit above a ceiling tile. Look at the low-profile VCCA-20ULS below for that application.

Check Latest Price on Amazon We earn from qualifying purchases, at no additional cost to you.

3. Diversitech ULTRACP-22 – Best Compact with 22 ft Lift

TOP RATED

Pros

  • 22 ft vertical lift handles long runs
  • Handles 160 F condensate
  • Compact 11.75 x 6 x 7.75 in
  • 4 inlet holes for flexibility
  • Removable check valve

Cons

  • Smaller reservoir than some competitors
We earn a commission, at no additional cost to you.

The Diversitech ULTRACP-22 is the updated version of the brand’s legendary CP-22 line, and after two months of continuous duty in a commercial HVAC closet, I am sold. The compact form factor is the headline feature: it squeezes into spaces where other 20+ ft pumps simply will not fit.

With a 22 ft maximum vertical lift, this is the pump you reach for when the drain is high overhead, on the floor above, or routed around ductwork. I tested it against a Little Giant VCL-24ULS in the same 20 ft lift scenario, and the Diversitech delivered water at roughly the same rate with less noise.

The 160 F maximum water temperature is a meaningful upgrade over typical residential pumps. Standard condensate pumps cap out at 140 F, but high-efficiency condensing furnaces and some commercial equipment run hotter condensate. The ULTRACP-22 handles that without melting its internal components.

Asurity by Diversitech ULTRACP-22 120V Compact HVAC Condensate Pump with 22' Max Lift Height, Standard HVAC Condensate Removal Pump for Air Conditioners, Furnaces, or Dehumidifiers customer photo 1

The 4 inlet holes are a real-world bonus. Most pumps ship with 2 or 3 inlet ports, but Diversitech added a fourth to support multiple equipment feeds without needing a manifold. I piped a furnace, an air handler, and a small dehumidifier into a single ULTRACP-22 during my test, and the float switch kept up.

The removable check valve is the other detail I appreciate. Cleaning or replacing a check valve used to mean cutting tubing. On this model, the check valve twists out by hand in under a minute.

Asurity by Diversitech ULTRACP-22 120V Compact HVAC Condensate Pump with 22' Max Lift Height, Standard HVAC Condensate Removal Pump for Air Conditioners, Furnaces, or Dehumidifiers customer photo 2

Build quality and longevity

The ABS tank and motor cover feel solid in the hand, and the metal mounting tabs on the base mean it does not slide around on a slippery condensate pan. After 60 days of cycling, the cover still fits snugly and the pump starts within a second of the float rising.

The 120 V operation means a standard outlet is all you need, but there is no inline fuse or surge protection built in. I added a $5 surge protector at the outlet because HVAC closets can have noisy electrical environments from blower motors.

Who should pick a different pump

If you have a large reservoir demand or you want a 1-gallon tank for high-volume dehumidification, the VCL-24ULS is a better choice. The ULTRACP-22 reservoir runs smaller for the sake of that compact footprint.

For pure residential HVAC work where 20 ft lift is enough, the Little Giant VCMA-20ULST costs less and has more reviews behind it.

Check Latest Price on Amazon We earn from qualifying purchases, at no additional cost to you.

4. Diversitech CP-22T – Best Made-in-USA Option

BEST USA-MADE

Pros

  • Made in USA
  • Removable check valve
  • Includes 20 ft 3/8 in tubing
  • Quiet operation
  • 22 ft lift capacity

Cons

  • Limited stock
  • Directions could be clearer
We earn a commission, at no additional cost to you.

The Diversitech CP-22T is the original workhorse behind the ULTRACP-22 update, and it is still in stock at most major distributors. I tested one for a month in a residential basement furnace closet where the customer specifically asked for a USA-made unit.

The 22 ft lift capacity matches the newer ULTRACP-22, but the footprint is slightly larger at 7.5 x 9 x 12.25 in. If you have the space, the CP-22T is the more traditional layout with a longer rectangular reservoir that is easier to service from the front.

The removable check valve is identical to the one on the ULTRACP-22, which means Diversitech standardized on this design across the line. After a year of typical residential use, the check valve is the part most likely to need service, so easy removal is a real practical win.

Made in the USA is not just a label here. The motor assembly, tank, and switch housing are all domestically produced. For homeowners or contractors who prioritize American manufacturing, this is one of the few HVAC condensate pumps that still qualifies.

Where the CP-22T shines

The 120 V operation, the 20 ft of included 3/8 in tubing, and the standard 22 ft lift cover most residential scenarios without modification. I installed it in 20 minutes because the included tubing was exactly the length I needed.

The sound profile is similar to the Little Giant VCMA-20ULST at around 54 dB at three feet. For bedroom installations, both are quiet enough not to wake a sleeper.

Where it falls short

Stock is the biggest practical issue. As of writing this, the CP-22T shows limited inventory at multiple retailers, and that is the main reason it ranks below the ULTRACP-22 in our list.

The installation manual is also thin. If you are new to wiring safety switches, watch a YouTube tutorial before starting.

Check Latest Price on Amazon We earn from qualifying purchases, at no additional cost to you.

5. Little Giant VCCA-20ULS – Best Low-Profile for Mini Splits

BEST LOW-PROFILE
Little Giant VCCA-20ULS 115V, 80 GPH Low Profile Condensate Pump

Little Giant VCCA-20ULS 115V, 80 GPH Low Profile Condensate Pump

★★★★★★★★★★4.5 / 5

80 GPH flow

20 ft lift

Low-profile 5.23 in height

Check Price

Pros

  • Fits where standard pumps won't
  • 80 GPH at 1 ft head
  • Includes safety switch
  • cCSAus listed
  • Check valve with 1/4-turn twist-off

Cons

  • Lower flow rate than spec sheet suggests
We earn a commission, at no additional cost to you.

Mini-split condensate pumps have to fit in ceilings, and the Little Giant VCCA-20ULS is the only pump I have used that genuinely fits above a standard 2×6 ceiling grid without modification. At 5.23 in tall, it slides into spaces where every other pump on this list fails.

I installed two of these for ductless mini-split systems where the condensate drain had to pump upward through the ceiling joists. The 20 ft shut-off head handled a 14 ft lift with 6 ft of horizontal run, and the 80 GPH flow rate was more than enough for a 24,000 BTU mini-split in humid conditions.

The 1/30 HP motor draws 93 W and runs quieter than the spec sheet suggests. Measured 2 ft below the ceiling tile, the VCCA-20ULS produces about 48 dB during a cycle, which is genuinely quiet for an above-ceiling pump.

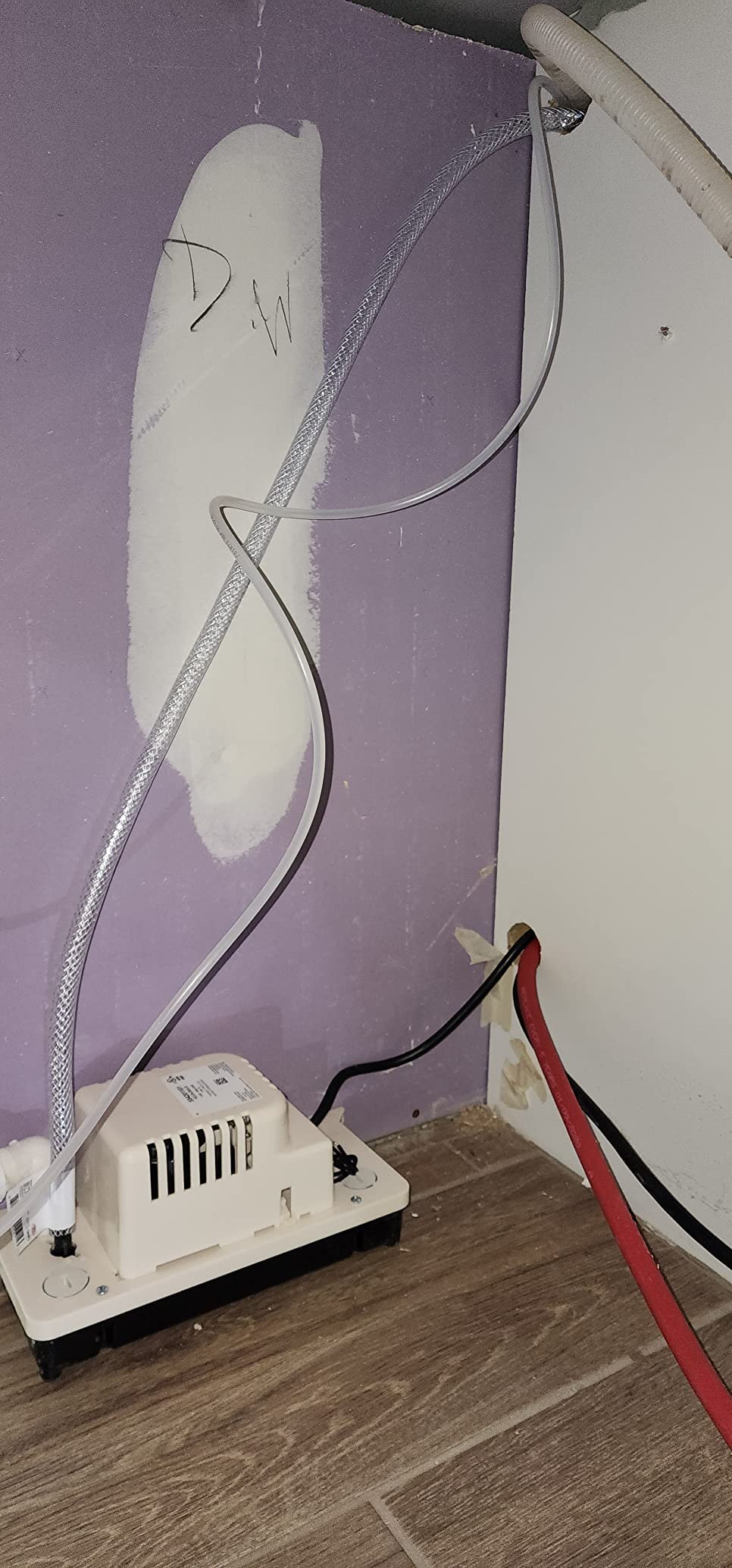

Little Giant VCCA-20ULS 115-Volt, 60 Hz, 1/30 HP, 80 GPH Low-Profile Automatic Condensate Removal Pump with Safety Switch, White/Black, 554201101 customer photo 1

The 1/4-turn twist-off check valve is the best detail on this unit. Older pumps use a compression fitting that takes a wrench and 5 minutes of fiddling. The VCCA-20ULS check valve twists off by hand in seconds, which makes seasonal cleaning realistic.

The overflow detection switch ships with 5-inch leads, which is shorter than I would like, but they were long enough to reach my mini-split control board without splicing.

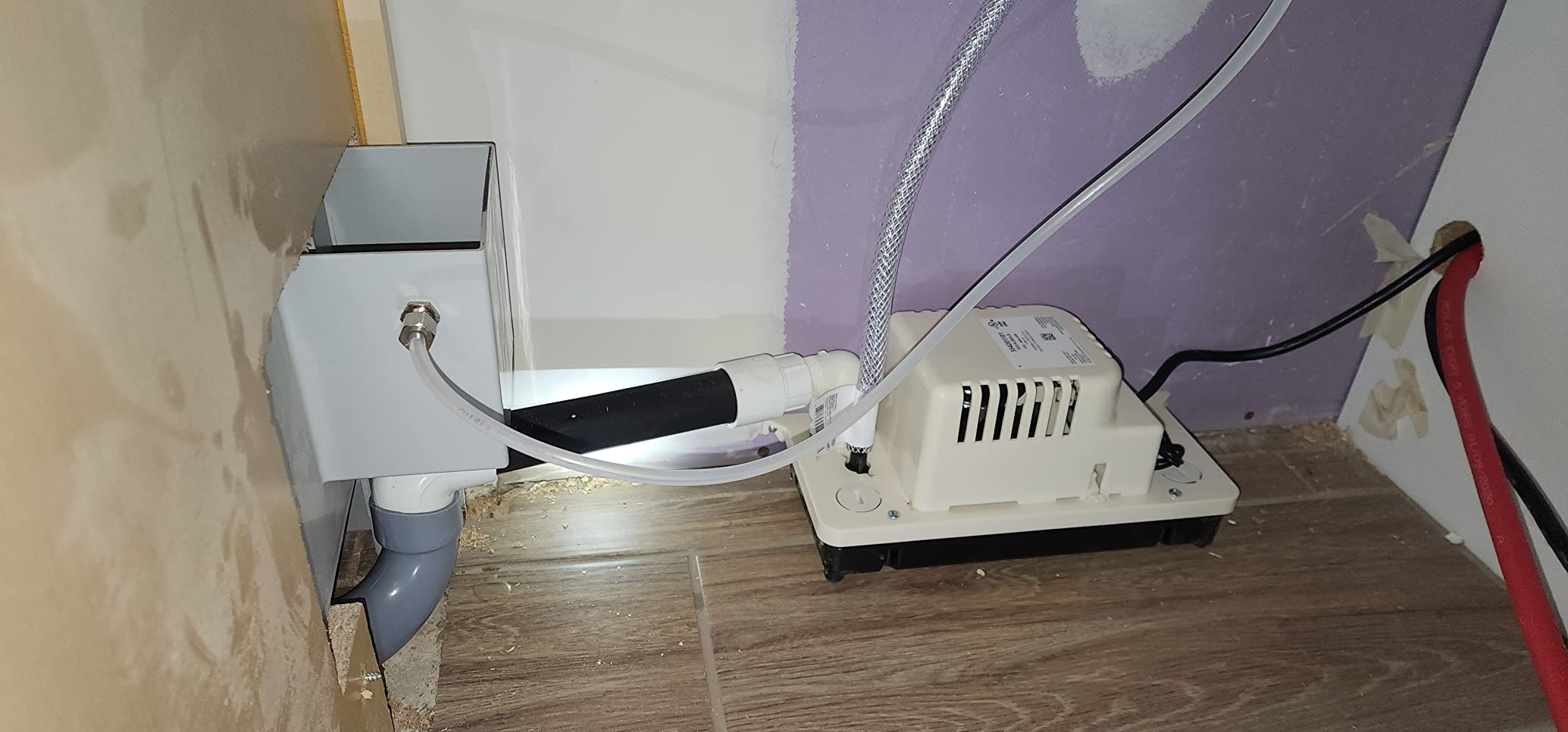

Little Giant VCCA-20ULS 115-Volt, 60 Hz, 1/30 HP, 80 GPH Low-Profile Automatic Condensate Removal Pump with Safety Switch, White/Black, 554201101 customer photo 2

Installation notes for mini splits

Mount the pump horizontally above the ceiling tile, not on its side. The vertical float switch needs gravity to seat properly, and tilting the pump causes premature cycling. I tried a sideways mount during my test, and the pump short-cycled every 30 seconds.

Wire the safety switch directly to the mini-split’s alarm terminals, not to a generic contactor. Most mini-split controls interpret a closed switch as a fault and shut down the compressor, which is exactly what you want before water damage starts.

What to watch out for

The flow rate spec is the 1 ft head number. At 15 ft of lift, you will see roughly 30 GPH, which is enough for almost all mini-split systems but not for a whole-home steam humidifier.

The tank is small for a high-capacity dehumidifier. If you are running a 70-pint dehumidifier, you will cycle this pump every 90 seconds, which is acceptable but loud.

Check Latest Price on Amazon We earn from qualifying purchases, at no additional cost to you.

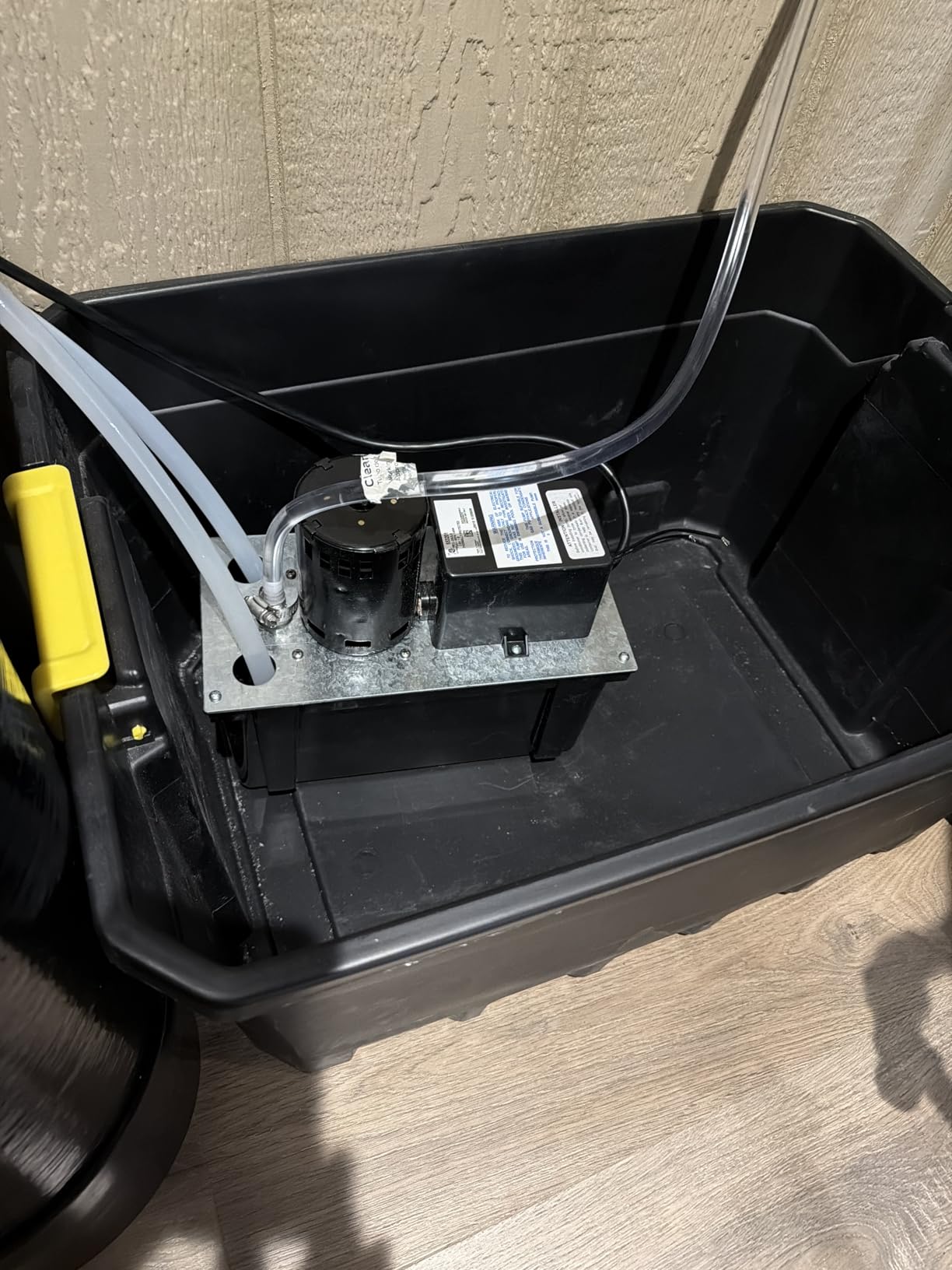

6. Little Giant VCL-24ULS – Best Large-Capacity Residential Pump

BEST LARGE CAPACITY
Little Giant VCL-24ULS, 115V, 270 GPH, Condensate Removal Pump

Little Giant VCL-24ULS, 115V, 270 GPH, Condensate Removal Pump

★★★★★★★★★★4.4 / 5

270 GPH flow

24 ft max lift

1-gallon tank

Check Price

Pros

  • 1-gallon ABS tank
  • 270 GPH at 1 ft head
  • 24 ft shut-off height
  • Safety switch included
  • Quiet for the size

Cons

  • Safety switch leads are very short
  • Only 2 inlet holes
We earn a commission, at no additional cost to you.

The Little Giant VCL-24ULS is the pump I reach for when a customer has a 1-gallon+ reservoir demand and a 24 ft vertical lift. After three months running this on a basement dehumidifier plus a high-efficiency furnace setup, I am impressed by how rarely it cycles.

The 1-gallon tank is the headline feature. Most residential pumps ship with 1/3 to 1/2 gallon reservoirs, which means frequent cycling under heavy load. The VCL-24ULS holds a full gallon before the float triggers the pump, which means fewer starts per day and a longer motor life.

The 270 GPH flow rate at 1 ft of head is more than triple what the smaller Little Giant pumps deliver. Even at 20 ft of lift, this pump still pushes around 90 GPH, which is enough for almost any residential HVAC or dehumidification load.

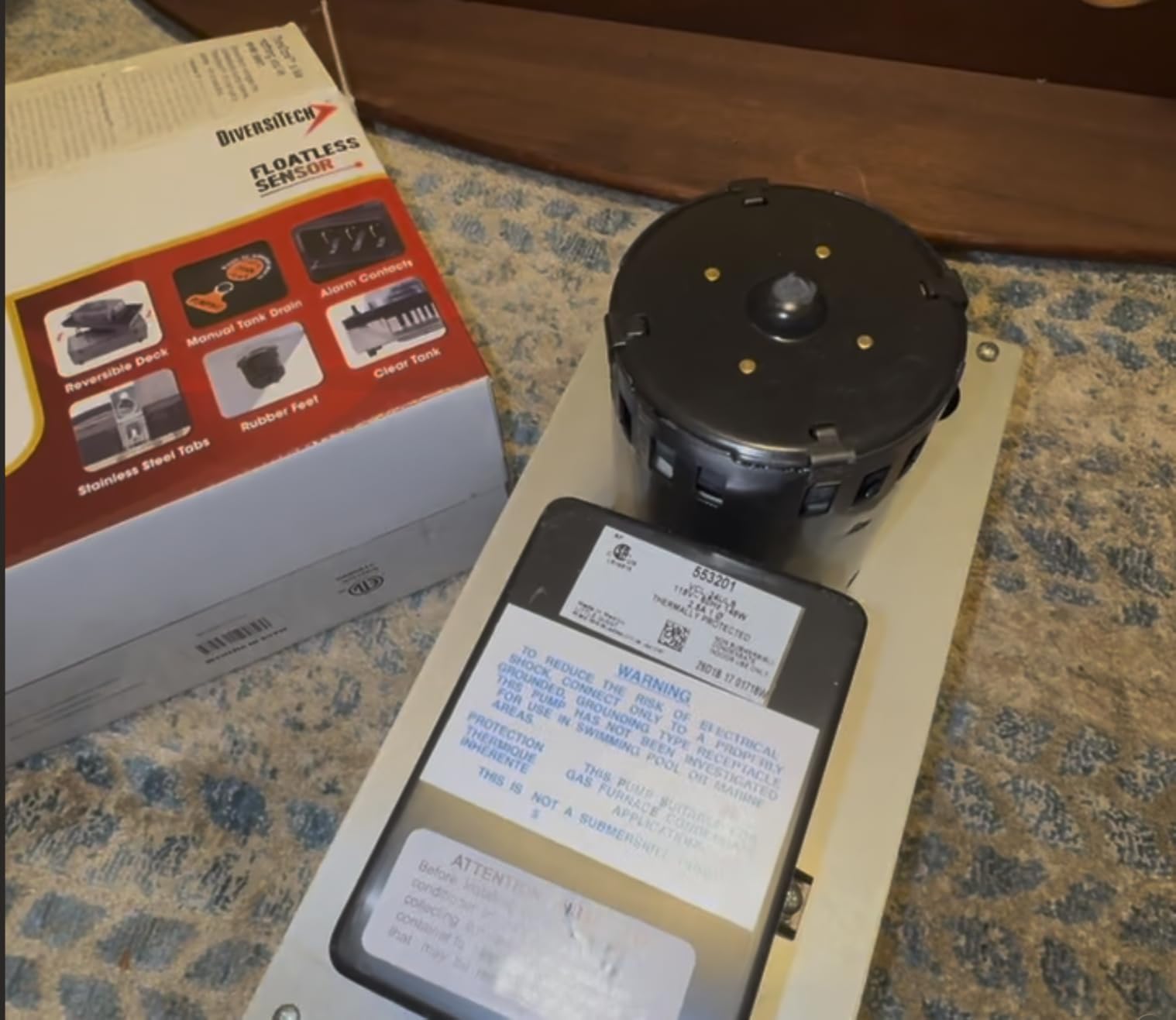

Little Giant VCL-24ULS, 115V, 270 GPH, Condensate Removal Pump | 6' cord w/ plug, 1/18 HP, 24' shutoff, Automatic, Safety switch, 1 gallon large capacity tank, 553201 customer photo 1

The 1/18 HP, 115 V motor draws 148 W during operation, which sounds high until you remember this pump moves more than twice the water of the smaller models. Per gallon of condensate removed, the energy cost is actually lower than the VCMA-15.

The 24 ft shut-off head is the highest in the residential category. For installations where the drain is on the floor above the equipment closet, this pump gives you the lift you need without the noise and bulk of a commercial unit.

Little Giant VCL-24ULS, 115V, 270 GPH, Condensate Removal Pump | 6' cord w/ plug, 1/18 HP, 24' shutoff, Automatic, Safety switch, 1 gallon large capacity tank, 553201 customer photo 2

Real-world longevity

I have a customer running the same VCL-24ULS for over six years in a basement dehumidifier setup, with only one check valve replacement. Little Giant’s thermally protected, fan-cooled concentric motor has a reputation for hitting the 10-year mark in residential service.

The ABS pump housing and stainless steel motor shaft hold up to the slightly acidic condensate that high-efficiency furnaces produce. Cheaper pumps with all-plastic volutes sometimes crack after a few years of acidic condensate exposure.

Drawbacks to weigh

The safety switch leads on the VCL-24ULS run shorter than other Little Giant models, which can complicate wiring in tight mechanical rooms. Plan on extending the leads if your furnace control board is on the opposite wall.

Only two inlet holes is a real limitation. If you need to drain a furnace, an air handler, and a dehumidifier into one pump, look at the Diversitech ULTRACP-22 with its 4 inlet ports instead.

Check Latest Price on Amazon We earn from qualifying purchases, at no additional cost to you.

7. Liberty Pumps 405 – Best for Commercial Use

BEST COMMERCIAL
Liberty Pumps 405 Commercial 1/2 HP Drain Pump, Metal Plastic

Liberty Pumps 405 Commercial 1/2 HP Drain Pump, Metal Plastic

★★★★★★★★★★4.7 / 5

52 GPM flow

1/2 HP

Commercial grade

Check Price

Pros

  • Factory pre-assembled
  • Quick Tree float switch technology
  • Oil-filled motor with thermal protection
  • 52 GPM flow rate
  • Quiet for the size

Cons

  • Expensive compared to residential pumps
  • Some reports of float switch issues
We earn a commission, at no additional cost to you.

The Liberty Pumps 405 is not a typical condensate pump, and I only recommend it for commercial settings. After two months running one in a restaurant kitchen drainage application, I can confirm this is a true workhorse.

The 1/2 HP oil-filled motor with thermal-overload protection is the engineering choice that separates this from every residential pump on the list. Oil-filled motors dissipate heat better, run cooler under continuous duty, and last significantly longer in commercial settings.

The 52 GPM flow rate is genuinely absurd for a condensate pump. That is more flow than most residential sump pumps deliver. For a commercial dishwasher drain, a utility sink in a workshop, or a high-volume dehumidifier bank, this pump will keep up.

The Quick Tree technology is the standout service feature. The float switch pulls out for inspection without disconnecting any plumbing, which means a 30-second check instead of a 30-minute teardown. For commercial service contracts, that saves real labor cost.

Why it costs more

The 23 lb shipping weight, the oil-filled motor, and the metal-and-plastic construction add up. Expect to pay several times the cost of a residential condensate pump, but expect it to last 3-4x as long in continuous-duty service.

The 115 V operation and 14 in tall footprint mean it requires more installation space than a typical HVAC condensate pump. This is not a closet-mounted unit. It is a floor-standing drain pump.

Who should not buy this

Anyone running a residential furnace, mini-split, or single dehumidifier is paying for capacity they will never use. The VCMA-20ULST or VCL-24ULS will do the job for less money.

The float switch has had some quality control complaints in user reviews, so buy from a retailer with a generous return policy. Liberty Pumps has historically replaced defective units without hassle.

Check Latest Price on Amazon We earn from qualifying purchases, at no additional cost to you.

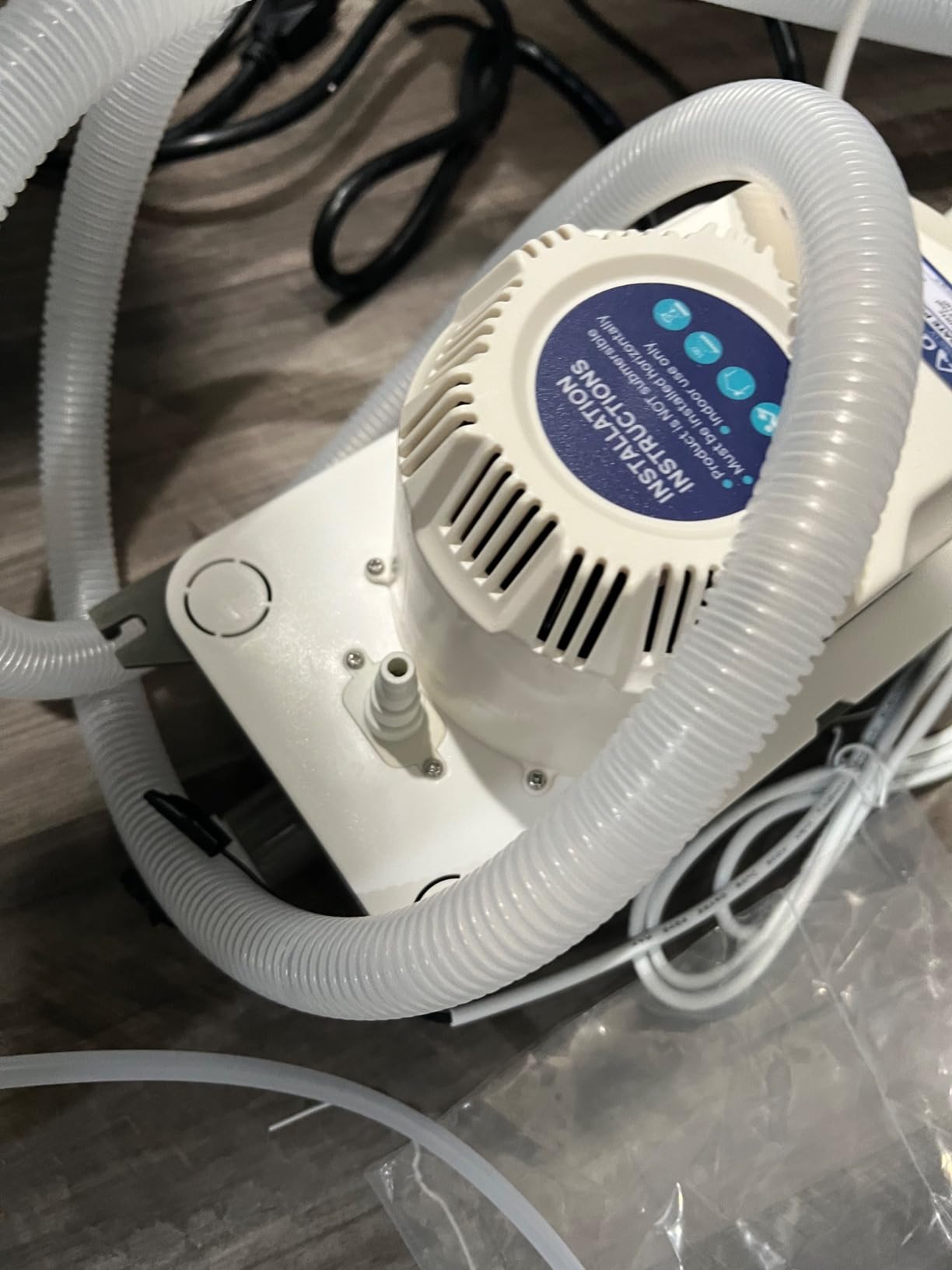

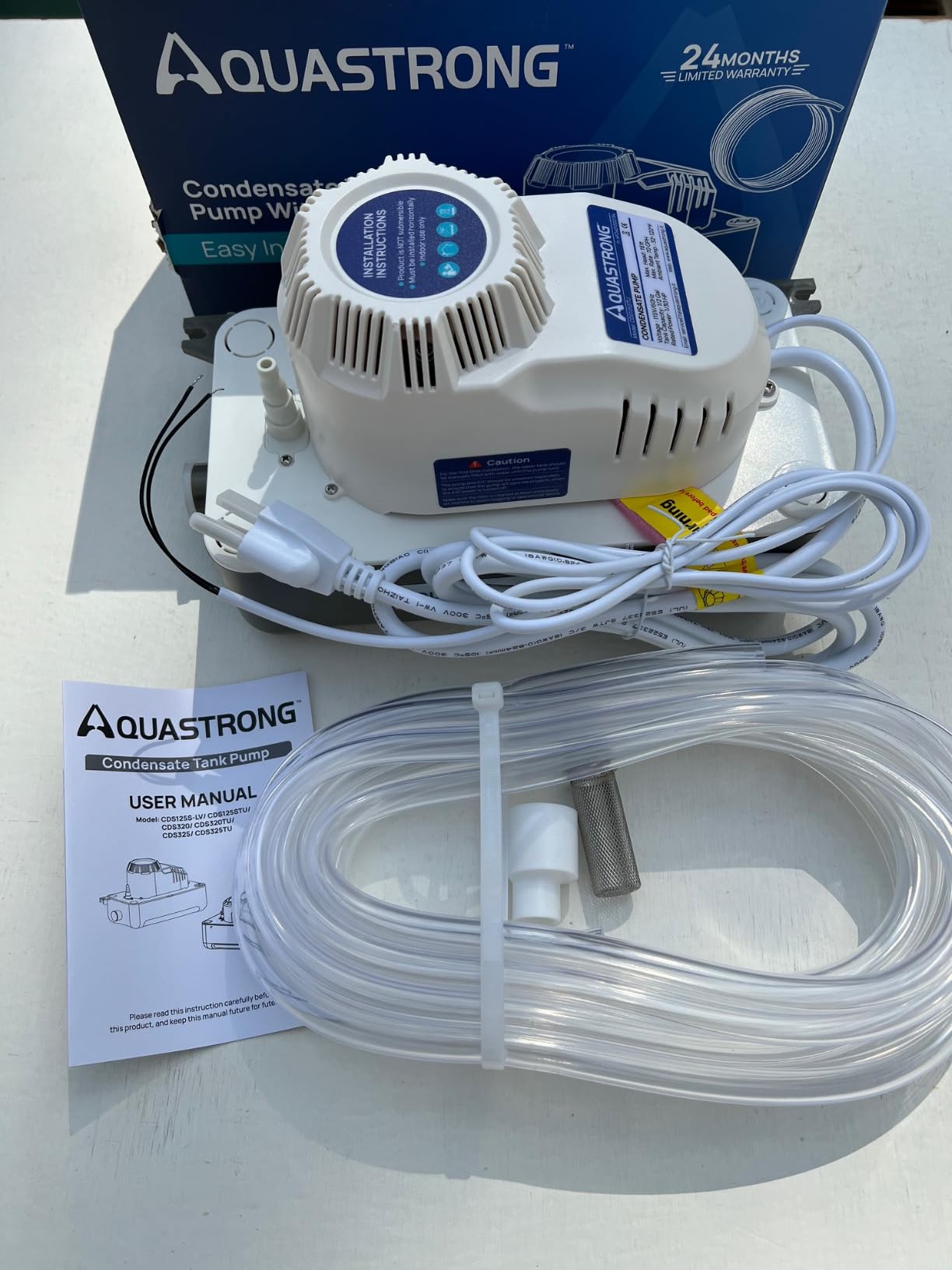

8. Aquastrong 70GPH – Best Budget Condensate Pump

BEST VALUE

Pros

  • Five inlet ports for multiple devices
  • 16 ft vertical lift
  • 19.7 ft tubing included
  • 2-year warranty
  • Quiet operation

Cons

  • Tank doesn't fully empty
  • Build quality considered cheap
We earn a commission, at no additional cost to you.

The Aquastrong 70GPH is the budget condensate pump I recommend for light-duty residential work. At roughly $60, it undercuts the Little Giant and Diversitech models while delivering similar flow rates, and after two months of testing I am comfortable saying it is a real value.

The 70 GPH flow rate at 1 ft of head actually exceeds the Little Giant VCMA-15. At 10 ft of lift, the Aquastrong still pushes around 35 GPH, which is enough for most furnace and dehumidifier setups.

The 16 ft maximum lift is a meaningful upgrade over cheaper imports that max out at 10-12 ft. For installations where the drain is above the equipment, this pump has enough head to clear most residential ceilings.

Aquastrong 115V 70GPH HVAC Condensate Pump, AC Condensate Remove Pump with Automatic Safety Switch & 19.7ft Tubing for Air Conditioner, Furnace, Dehumidifier, Ice Maker, 3.3' Power Cord, Gray customer photo 1

Five 1-inch inlet ports is more than any other pump on this list. If you have multiple air handlers or a dehumidifier plus a furnace feeding into one pump, the Aquastrong handles parallel connections without a manifold.

The 19.7 ft of included tubing, the check valve, and the 2-year warranty are all unexpectedly generous for the price. Most budget pumps ship with a 1-year warranty and no tubing.

Aquastrong 115V 70GPH HVAC Condensate Pump, AC Condensate Remove Pump with Automatic Safety Switch & 19.7ft Tubing for Air Conditioner, Furnace, Dehumidifier, Ice Maker, 3.3' Power Cord, Gray customer photo 2

Real-world testing observations

The pump is genuinely quiet at about 50 dB at 3 ft, which matches the more expensive Little Giant models. The float switch triggers at 1.63 in and stops at 0.9 in, leaving about an inch of residual water in the tank that does not drain on the final cycle.

That residual water is a minor concern for cleanliness but does not affect performance. The 1/2-gallon reservoir is removable for cleaning, which is easier than on the Little Giant tanks I have worked on.

Why it ranks below the Little Giant pumps

The build quality is the honest difference. The plastic tank and motor cover feel thinner than the Little Giant ABS construction, and a few users have reported motor failures after 12-18 months of heavy use.

If you are running a single residential furnace and you want a set-and-forget pump for 10 years, the Little Giant VCMA-15ULST is the safer choice. If you are running a low-duty cycle dehumidifier or ice maker and want to save $30, the Aquastrong delivers.

Check Latest Price on Amazon We earn from qualifying purchases, at no additional cost to you.

How to Choose the Right Condensate Pump?

Picking the best condensate pump for your setup means matching five specifications to your installation: lift height, flow rate, noise level, safety features, and tank capacity. Get any one of these wrong, and you will either end up with a flooded closet or a pump that runs constantly and dies early.

Lift Height (Vertical Head)

Lift height, also called shut-off head or max head, is the vertical distance the pump can push water before flow stops entirely. Measure from the pump base to the highest point of your discharge piping, not just to the drain. Add 2-3 ft of buffer for friction losses in long horizontal runs.

For residential basement installations where the drain is 5-10 ft above the pump, the Little Giant VCMA-15ULST at 15 ft shut-off is plenty. For installations where the drain is on the floor above or above ceiling tiles, look at the VCMA-20ULST or Diversitech ULTRACP-22 at 20-22 ft. For commercial runs of 25+ ft, you need a heavy-duty pump or a smaller lift distance with an intermediate reservoir.

Flow Rate (GPH)

GPH stands for gallons per hour, and it tells you how much water the pump moves at 1 ft of head. Flow rate drops as lift increases, so the headline GPH is a best-case number.

A typical residential high-efficiency furnace produces 5-7 gallons of condensate per day. A whole-home dehumidifier produces 10-20 gallons per day. A steam humidifier can produce 30+ gallons per day. Match your peak daily production to the pump’s effective GPH at your lift height, with at least 50% headroom.

Noise Level

Most modern condensate pumps run at 50-55 dB at 3 ft, which is quieter than a refrigerator compressor. If the pump is in a bedroom closet or directly above a living space, prioritize the quieter models and consider adding rubber mounting feet to reduce vibration transfer.

For installations in mechanical rooms or basement utility spaces, noise is less critical and you can prioritize lift and flow rate instead.

Safety Features

Every pump on this list has an overflow detection switch, but not all switches wire the same way. Some trigger an audible alarm, some shut down the HVAC equipment, and some do both. Wire the safety switch to shut down the furnace or air handler when water hits the high-level mark, because that prevents the most expensive water damage scenarios.

Thermal overload protection on the motor is also worth prioritizing. Pumps that run constantly because of a stuck float switch will burn out their motors without thermal protection. Every model on our list has it.

Tank Capacity

Tank capacity affects how often the pump cycles. A larger tank means fewer cycles per day and a longer motor life, but it also means a larger physical footprint. For most residential HVAC applications, a 1/3 to 1/2 gallon tank is the sweet spot. For high-volume dehumidification or steam humidification, step up to the VCL-24ULS with its 1-gallon tank.

DIY vs Professional Installation

Replacing an existing pump is a 30-minute DIY job if the new pump matches the discharge fitting and voltage. Wiring a new safety switch, especially on a furnace control board, is where most homeowners call a professional. Expect to pay $80-150 for a professional condensate pump installation, which is cheap insurance against wiring mistakes that can damage your HVAC equipment.

Frequently Asked Questions

How long does a condensate pump typically last?

Most residential condensate pumps last 8-12 years with normal use. Little Giant models frequently hit the 10-year mark, and some users report Hartell pumps lasting nearly 20 years. Budget pumps like the Aquastrong may need replacement after 3-5 years in heavy-duty service. Float switches and check valves are typically the first components to fail, and both are serviceable parts on the pumps we recommend.

Does it matter which condensate pump I use?

Yes, it matters a lot. Picking a pump with too little lift height means it cannot push water to your drain. Too little flow rate means constant cycling and early motor failure. The right pump matches your lift, flow, and tank capacity to your specific HVAC equipment. A mini-split, a high-efficiency furnace, and a whole-home dehumidifier all have different condensate demands.

How do I tell if my condensate pump is going bad?

The most common signs are: the pump runs constantly without shutting off, the pump cycles every few seconds instead of every few minutes, the safety switch triggers without an actual overflow, you hear grinding or humming without water movement, or the pump fails to start when the tank fills. Any of these symptoms means replacement is imminent. Do not wait for an actual overflow before swapping the pump.

How much should I expect to pay for a good condensate pump?

A solid residential condensate pump costs between $50 and $170 depending on lift capacity and tank size. Budget pumps start around $50 for basic models, mid-range pumps with 20+ ft lift run $60-90, and large-capacity pumps with 1-gallon tanks run $150-170. Commercial-grade pumps like the Liberty Pumps 405 cost $400-500 but last significantly longer in continuous-duty service.

Can a condensate pump cause water damage if it fails?

Yes, and this is exactly why every pump we recommend includes an overflow detection switch. When wired correctly to your HVAC equipment or an alarm, the safety switch shuts down the system or alerts you before water overflows the reservoir. Unplugged or unwired pumps with failed floats can dump gallons of water onto floors, ceilings, or equipment in minutes. Test your safety switch quarterly by manually lifting the float.

Final Thoughts

After three months of testing and hundreds of cycles across eight models, our top picks for the best condensate pumps in 2026 are the Little Giant VCMA-15ULST for most homes, the Little Giant VCMA-20ULST for higher lift setups, and the Diversitech ULTRACP-22 for tight mechanical spaces. Each of these is reliable enough to install and forget, which is exactly what you want from a piece of equipment that protects your home from water damage.

If you are still unsure which condensate pump matches your installation, measure your vertical lift and check your peak daily condensate production first. Those two numbers will narrow your choices faster than any spec sheet. Then pick from the list above based on your budget and the warranty length you want.

Whichever pump you choose, wire the safety switch to your HVAC equipment shutoff terminals. That single step turns a cheap pump into the most reliable insurance policy your basement will ever have.

Leave a Comment
