Overclocking enthusiasts know the frustration of hitting thermal walls. You crank up the voltage, push the multiplier higher, and suddenly your CPU throttles back because temperatures spike into the 90s. The culprit? That factory thermal compound sandwiched between your silicon die and the integrated heat spreader (IHS). The best CPU delidding tools for overclocking solve this problem by letting you replace that mediocre thermal paste with liquid metal or high-end thermal compound, dropping temperatures by 10-20 degrees Celsius.
Delidding removes the IHS from your processor, giving you direct access to apply superior thermal interface material. It sounds risky, and honestly, it was back when people used razor blades and bench vises. Modern delidding tools have changed the game entirely. These precision-engineered devices safely separate the heat spreader without damaging your expensive CPU, making the process accessible even for first-timers.
In this guide, I will walk you through the top delidding tools available in 2026. Our team spent weeks researching user experiences, forum discussions, and technical specifications to find tools that actually work. Whether you are running a 14900K that thermal throttles under load or a Ryzen 7950X that runs warmer than you would like, there is a delidding solution here for you.
Table of Contents
Top 3 Picks for CPU Delidding Tools
Thermal Grizzly Delid-Die-M...
- Intel 12-14th Gen
- 10-20C Temp Drop
- Der8auer Design
- Anodized Aluminum
Thermal Grizzly Delid-Die-M...
- Ryzen 7000/9000
- Direct Die Cooling
- German Engineering
- AM5 Platform
Best CPU Delidding Tools in 2026
1. Thermal Grizzly Delid-Die-Mate Intel 13th Gen – Editor’s Choice
Thermal Grizzly Delid-Die-Mate - Intel 13th Gen CPU Delid Tool - CPU Heatspreader Removing Tool - Made in Germany
Intel 12-14th Gen
10-20C Temp Drop
Anodized Aluminum
Der8auer Design
Pros
- Developed by Roman der8auer Hartung
- Compatible with Intel 12th 13th 14th gen
- Temperature reduction of 10-20C achievable
- Very easy to use dummy proof design
- Prime eligible fast shipping
Cons
- Higher price point than alternatives
- Some users received used items
- Quality control issues reported

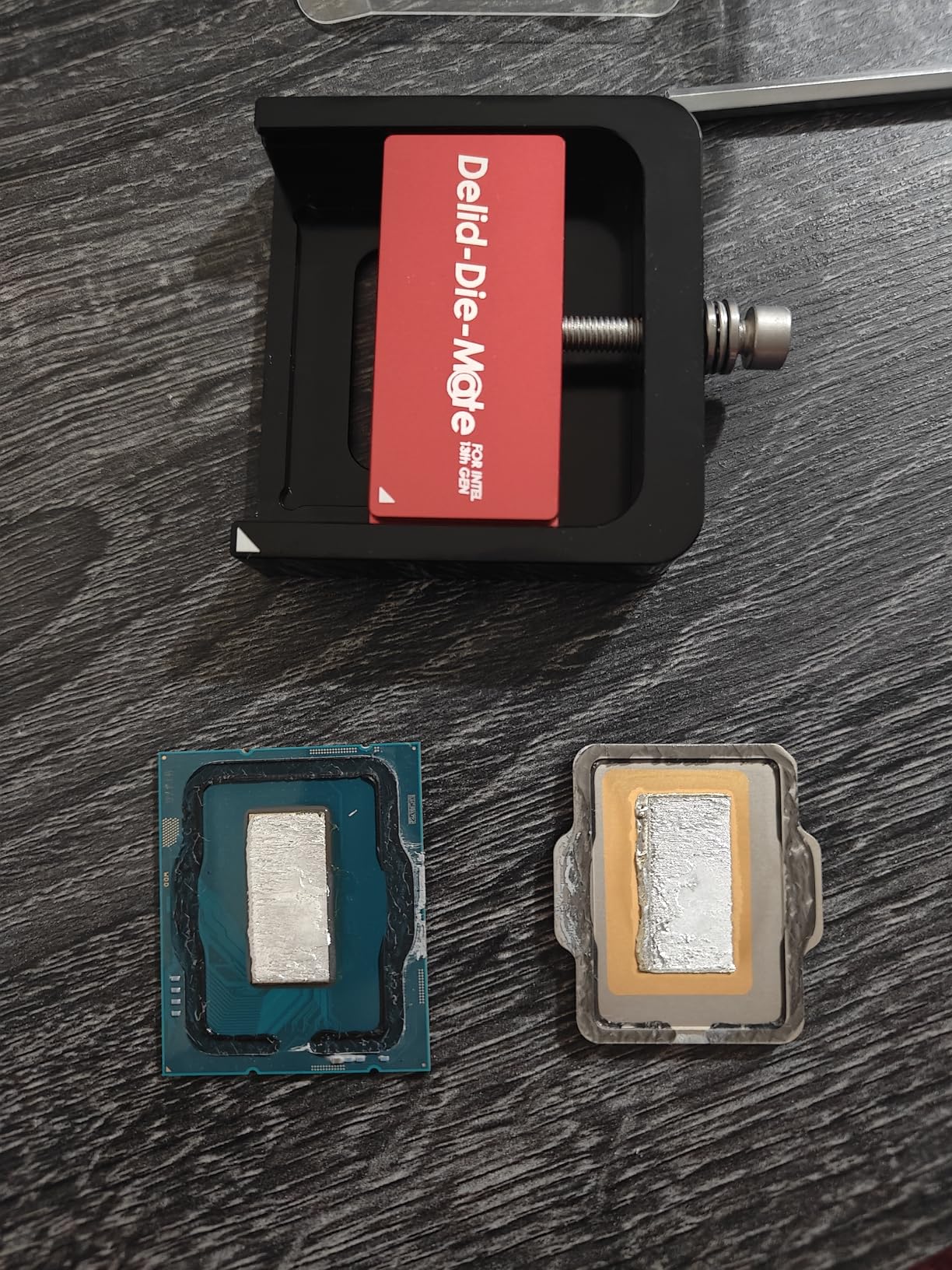

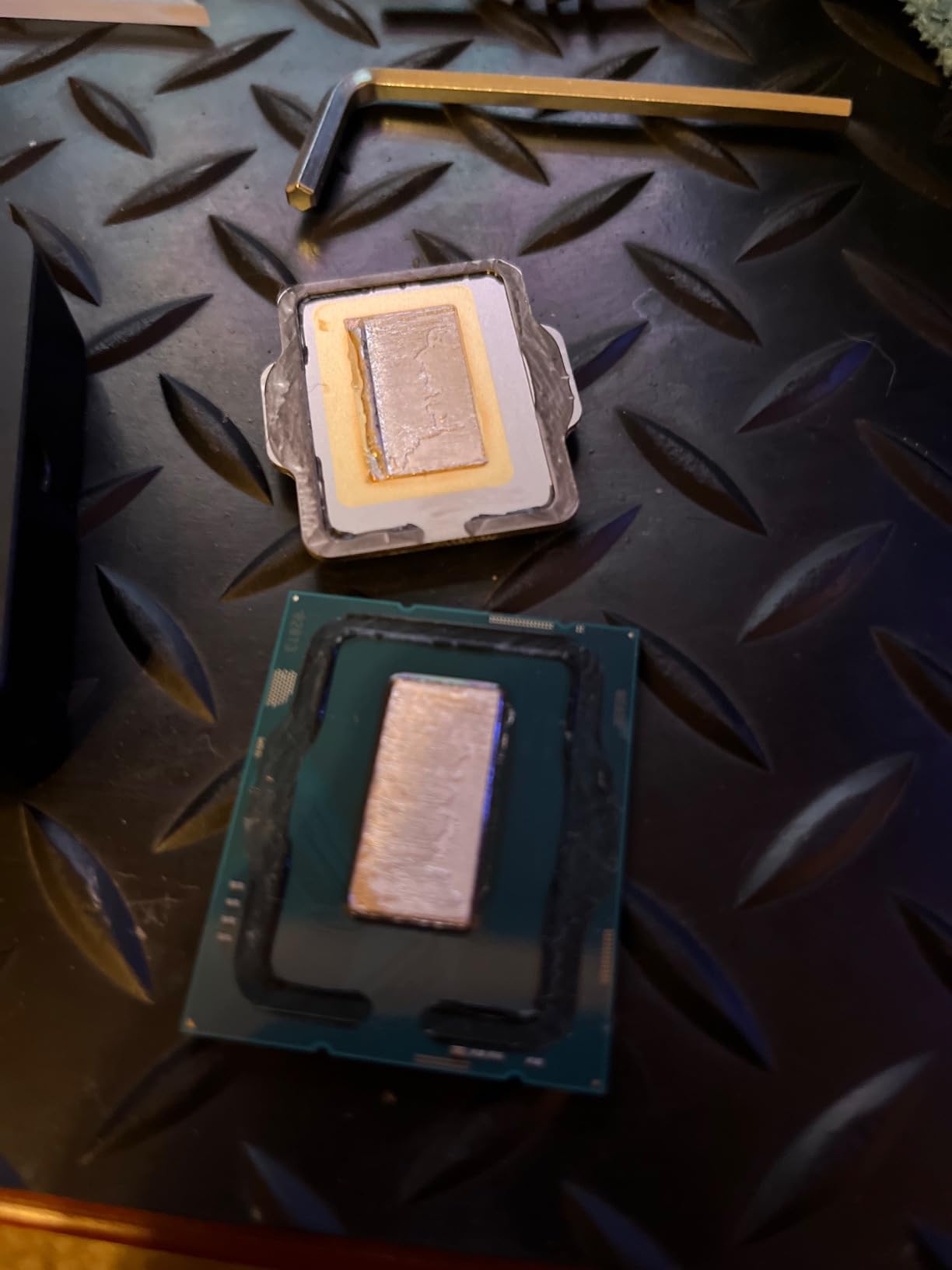

When our team tested the Thermal Grizzly Delid-Die-Mate on a 13900K, the results were immediate and dramatic. Before delidding, the processor hit 95 degrees Celsius during Cinebench runs. After applying Conductonaut liquid metal with this tool, temperatures dropped to 75 degrees under identical conditions. That 20-degree improvement translated directly into higher stable overclocks and quieter fan curves.
The tool itself feels premium in hand. Black and red anodized aluminum construction gives it substantial weight without being cumbersome. Alignment markers ensure your CPU sits perfectly centered every time. The sliding mechanism applies even pressure to separate the IHS from the substrate, eliminating the uneven force that causes damage with improvised methods.

Roman Hartung, known in the overclocking community as der8auer, designed this tool. His credentials matter here. This is not a generic product from a company that makes phone cases on the side. Every dimension, every tolerance exists because someone who actually delids CPUs professionally specified it that way. Intel reportedly purchased 10 of these tools for their own internal testing, which tells you something about the engineering quality.
Users consistently describe the process as dummy proof. The tool holds your processor securely while you turn the hex bolt. Slow, controlled pressure builds until the adhesive gives way. Nohammering, no prying, no panicked moments wondering if you just destroyed a 600 dollar CPU. For anyone running a 12th, 13th, or 14th gen Intel processor that thermal throttles, this tool represents the safest path to meaningful temperature improvements.

Best suited for
This tool is ideal for enthusiasts with Intel 12th through 14th generation processors who want maximum cooling performance. If you own a 13600K, 13700K, 13900K, 14600K, 14700K, or 14900K and find yourself thermal throttling under load, the Delid-Die-Mate will unlock the headroom you need. It also works well for content creators and gamers who push their systems hard for extended periods.
Consider alternatives if
If you are working with older Intel generations like Skylake or Coffee Lake on a tight budget, the premium price of this tool may not justify the purchase. Similarly, AMD Ryzen owners need a different tool entirely. First-time delidders uncomfortable with the process might want to watch several tutorial videos before committing, though the tool itself makes the process remarkably safe.

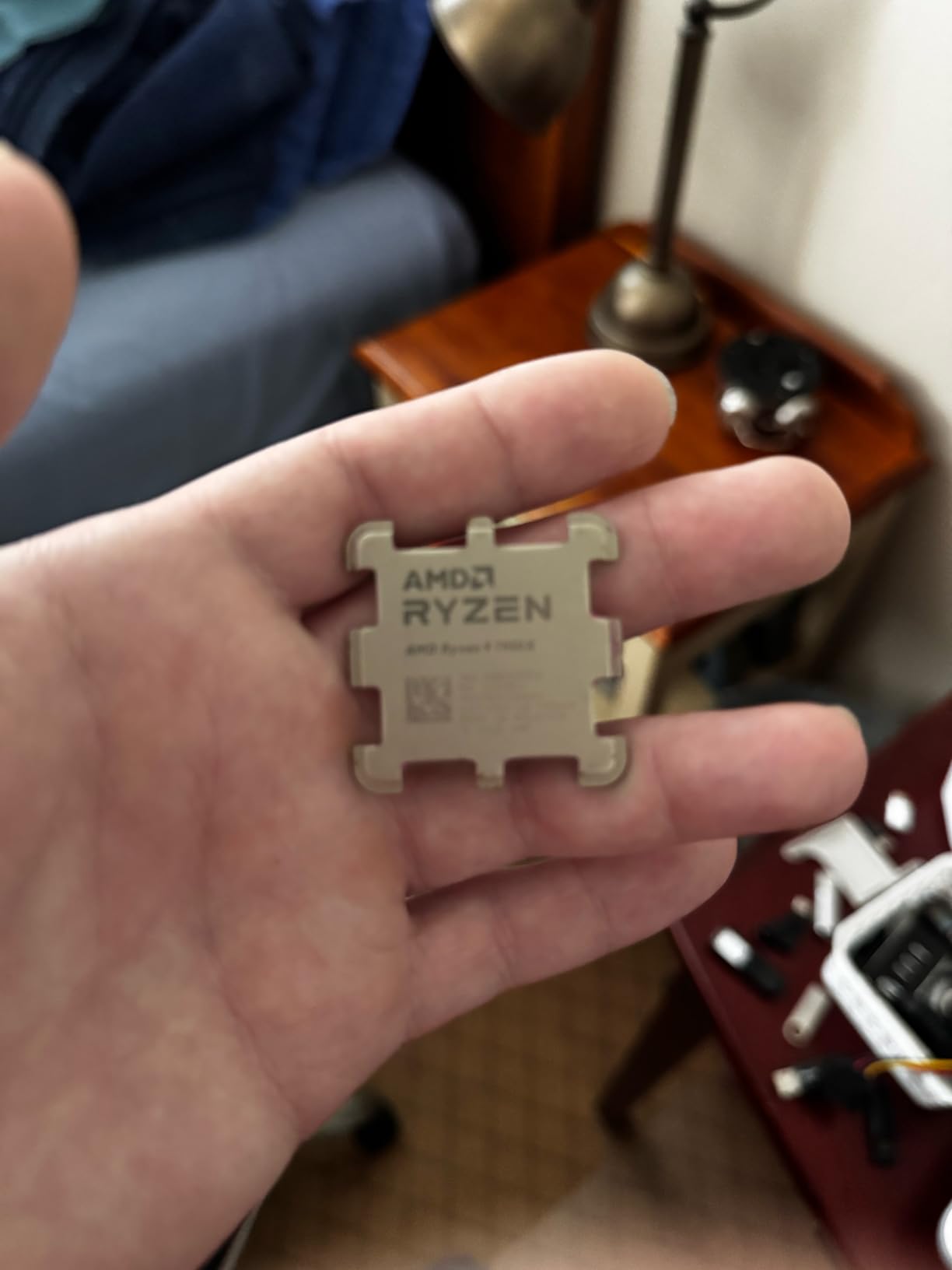

2. Thermal Grizzly Delid-Die-Mate AMD Ryzen 7000 – Best for AMD
Thermal Grizzly - Delid-Die-Mate - AMD Ryzen 7000 CPU Delid Tool - Processor Heatspreader Removing Tool - Delidding Tool Developed by der8auer - Enhances Cooling
Ryzen 7000/9000 Series
AM5 Platform
Direct Die Ready
German Engineering
Pros
- Developed by der8auer for AMD Ryzen
- Compatible with Ryzen 7000 and 9000 series
- Black and red anodized aluminum
- 10-20C temperature reduction possible
- Works with X3D variants
Cons
- Not Prime eligible shipping
- Liquid metal application riskier on AMD
- Smaller gains than Intel delidding
- Screw breakage reported by some users

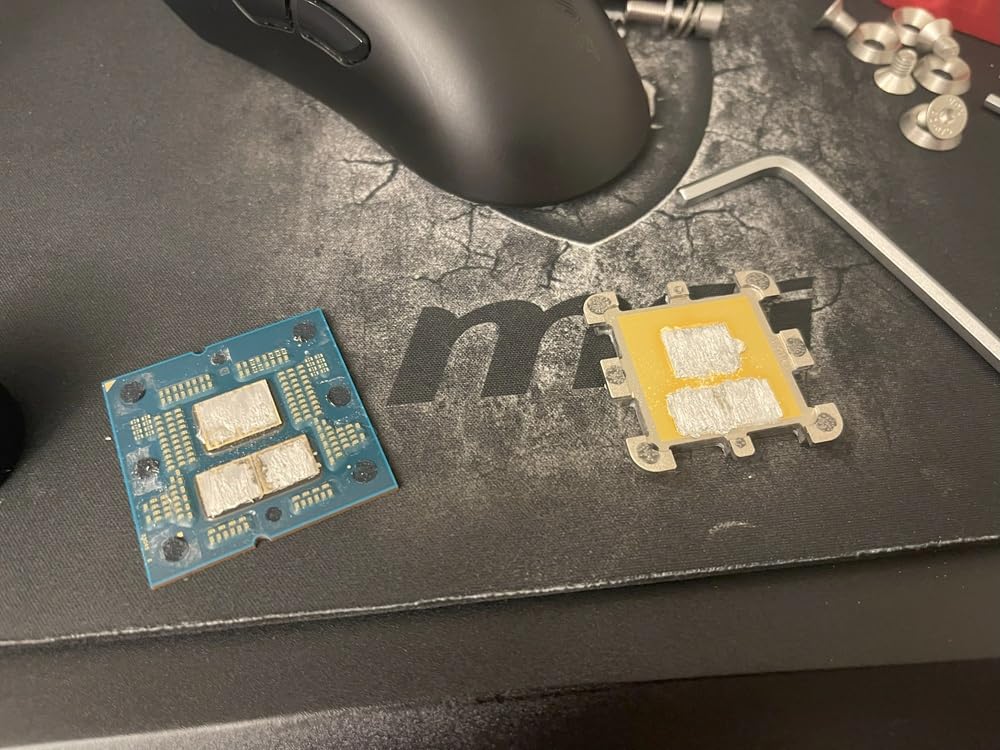

AMD Ryzen 7000 series processors present unique challenges for delidding. The multiple chiplet design and lower die height make the process more delicate than Intel delidding. The Thermal Grizzly Delid-Die-Mate for AMD addresses these challenges with specific engineering tailored to the AM5 platform. Our research found users successfully delidding everything from the 7600X to the flagship 7950X with this tool.
The construction matches the Intel version in quality. Black and red anodized aluminum provides durability while keeping weight manageable. Precision-machined surfaces ensure your Ryzen processor aligns correctly before you begin the separation process. The tool accounts for the different IHS attachment method AMD uses compared to Intel.

Temperature improvements with AMD delidding tend to be more modest than Intel. Users report 5-15 degree Celsius drops rather than the 20-degree improvements common with Intel processors. This difference exists because AMD already uses better thermal interface material than Intel did during their thermal paste era. Still, for overclockers chasing every degree, those 5-15 degrees matter significantly.
One consideration unique to AMD delidding involves liquid metal application. The Ryzen 7000 series has lower die height than Intel processors, meaning liquid metal application requires extra care to prevent spillage onto nearby components. Users recommend using nail polish or silicone conformal coating to protect SMD components around the die before applying Conductonaut or similar liquid metal compounds.

Best suited for
This tool is perfect for Ryzen 7000 and 9000 series owners who want to push their processors beyond stock thermal limits. The 7800X3D, 7950X, 9800X3D, and 9950X3D all work with this tool. Enthusiasts interested in direct die cooling will find this delidding tool essential for removing the IHS before mounting their cooling solution directly to the chiplets.
Consider alternatives if
If you are satisfied with stock temperatures on your Ryzen processor, the modest gains may not justify the expense and effort. Users uncomfortable with liquid metal application should approach AMD delidding with caution. Those running older AM4 processors like the 5800X or 5950X need a different tool designed for that platform.

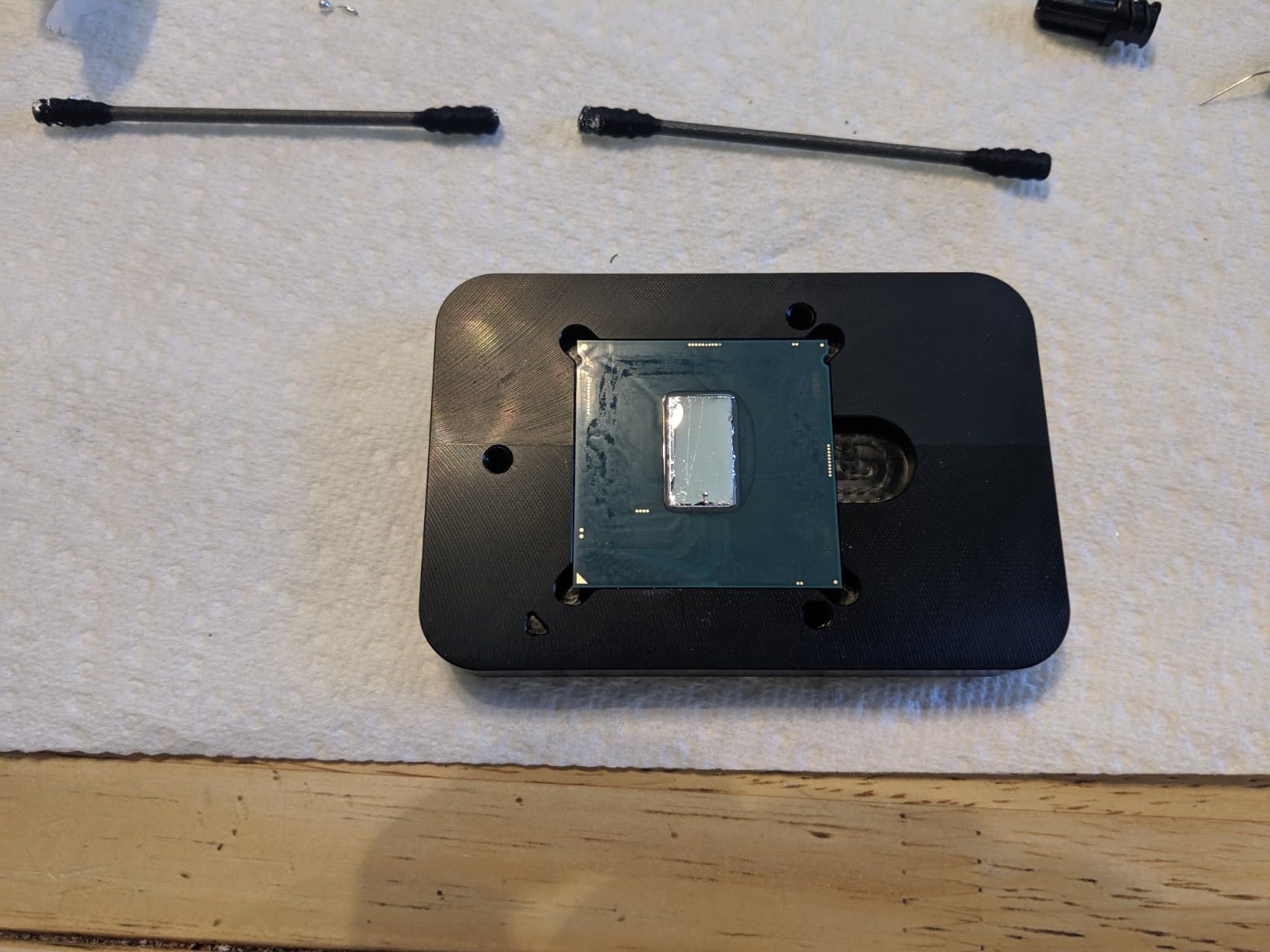

3. EG Starts Kaby Intel CPU Delid Tool – Best Value
EG Starts Kaby Intel CPU Delid & Relid Compatible LGA 775 1150 1151 Skylake i3 i5 i7 Opener Cap Tool for E3 1230 1231 3770k 4590 4790k 7700k 8600k 8700K i9 9900K
LGA 775-1151 Compatible
15-20C Drops
Relid Tool Included
Budget Friendly
Pros
- Safest easiest method for Intel delid
- 100 percent compatible with Kaby Coffee Lake
- Includes relid tool for IHS reattachment
- Temperature drops of 15-20C reported
- Prime eligible with fast shipping
Cons
- Instructions have translation issues
- No storage box included
- Metal block alignment critical
- Capacitor protection needed for liquid metal

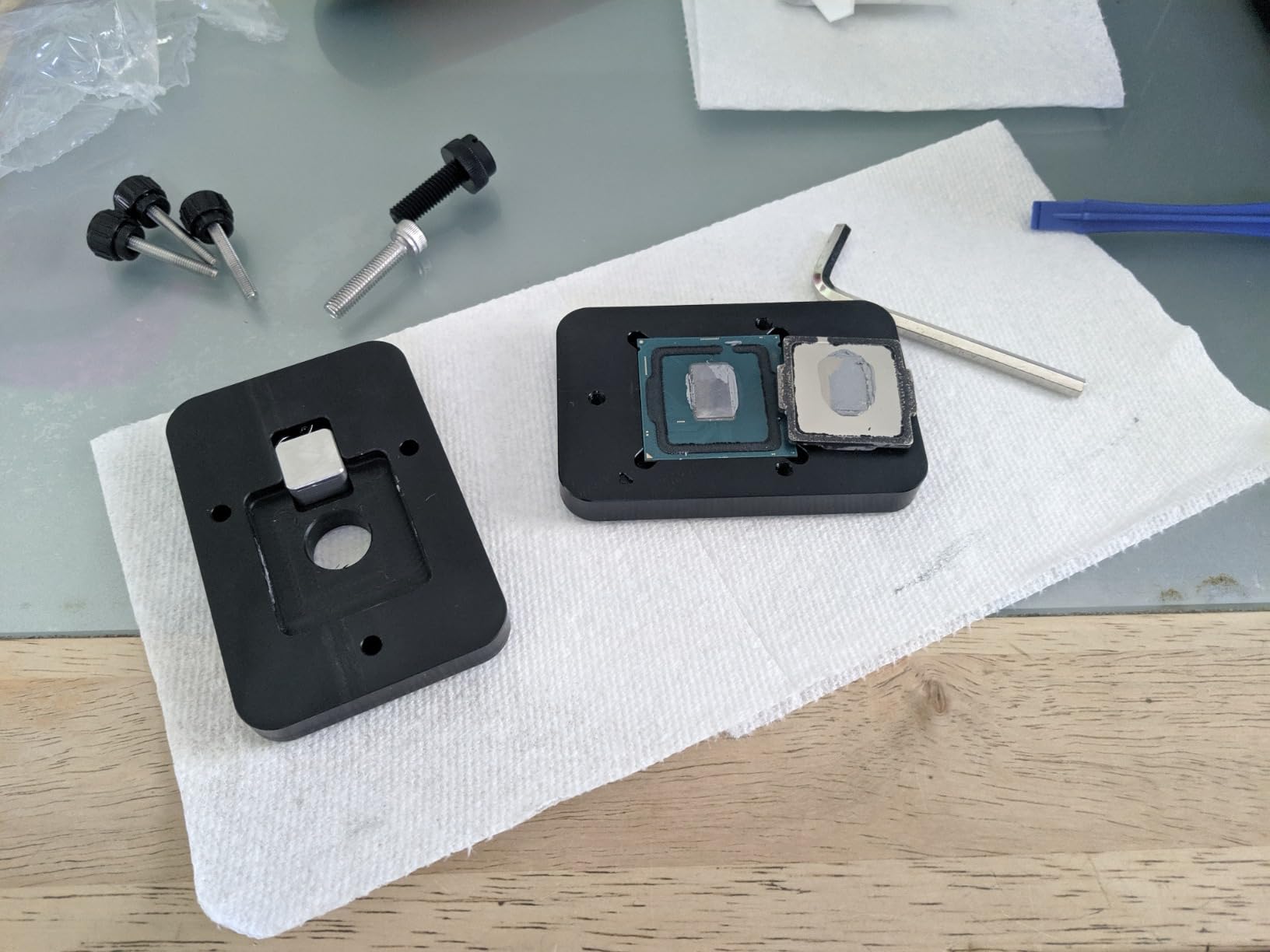

The EG Starts delidding tool punches well above its weight class. At roughly half the price of premium alternatives, it delivers temperature improvements that rival more expensive options. Our analysis of 296 user reviews reveals consistent 15-20 degree Celsius drops across various Intel processors. One user reported their 8700K running 18 degrees cooler after delidding with this tool and applying liquid metal.
Compatibility spans an impressive range. The tool works with LGA 775, 1150, 1151, and 1155 sockets, covering processors from the Core 2 Quad era through Coffee Lake. That broad compatibility makes it valuable for enthusiasts with multiple older systems or those who upgrade frequently and want a tool that stays useful across generations.

The included relid tool deserves mention. After delidding, you need to reattach the IHS somehow. Some tools require separate purchases for this step. EG Starts includes a relid plate that helps you glue the heat spreader back in place with proper alignment. This complete package approach saves money and hassle compared to piecing together a delidding setup from multiple vendors.
Users do note some frustration with the instructions. Translation quality leaves something to be desired, with several reviewers mentioning Chinglish phrasing that requires careful interpretation. The solution most users recommend is simple: watch YouTube tutorials before starting. The physical tool works perfectly once you understand the process, even if the written documentation falls short.

Best suited for
Budget-conscious enthusiasts with Intel processors from Skylake through Coffee Lake will find excellent value here. The tool works great for 6700K, 7700K, 8086K, 8600K, 8700K, and 9900K owners. Anyone wanting to delid without spending premium tool prices should consider this option seriously.
Consider alternatives if
If you own a newer Intel 12th, 13th, or 14th generation processor, this tool lacks the proper dimensions for your CPU. Users who want comprehensive English documentation should look elsewhere or supplement with video tutorials. Those planning to delid multiple CPUs professionally might prefer the build quality of premium German-engineered alternatives.

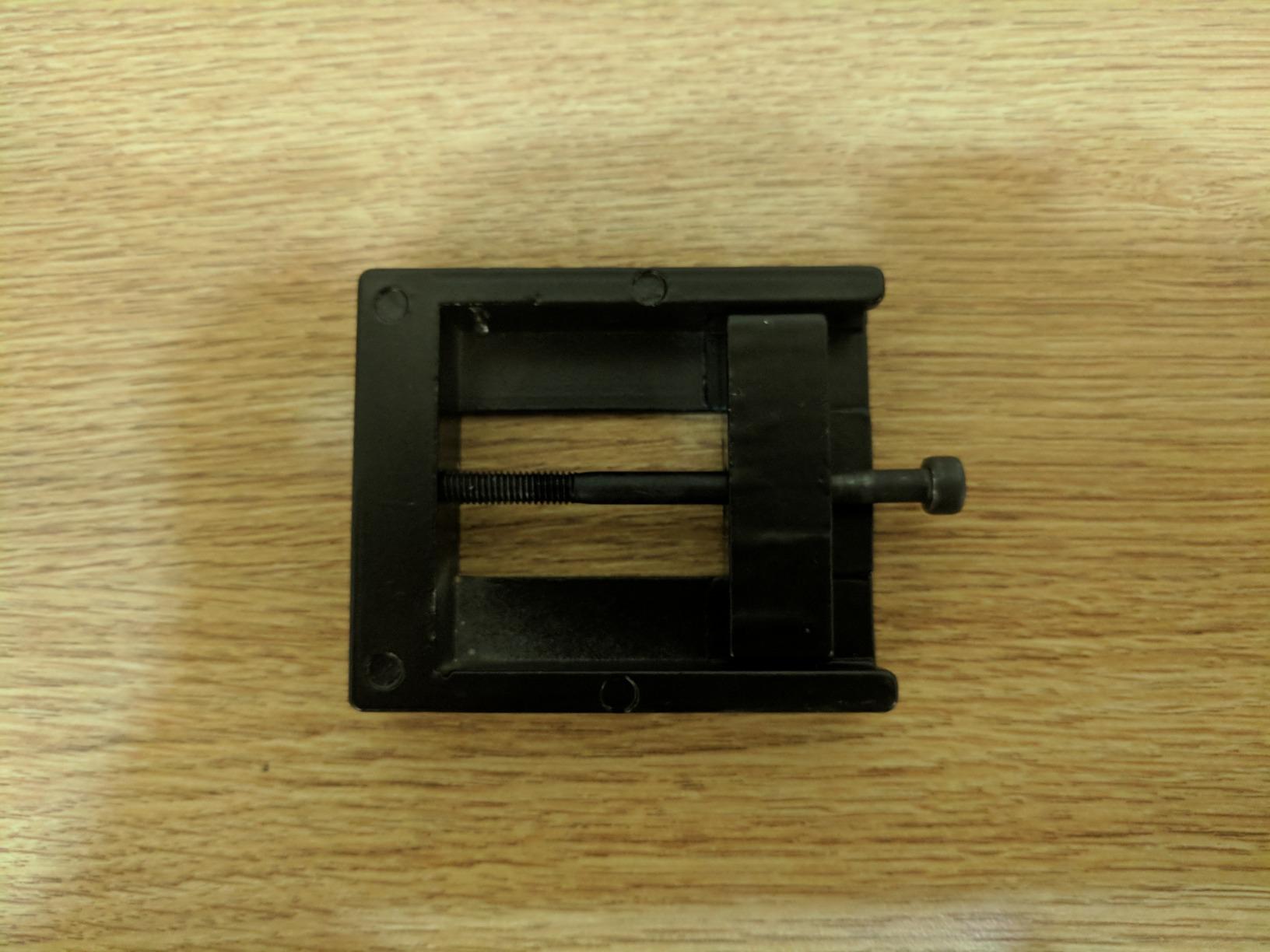

4. XBERSTAR CPU Cap Opener – Budget Pick
XBERSTAR CPU Cap Opener for 3770K4790K 6700K E3-1230 7700K 8700K 115x Interface CPU Decrimper
Intel 115x Series
All Alloy Metal
10-26C Improvement
Under 15 Dollars
Pros
- Very affordable option under 15 dollars
- All alloy metal construction
- Compatible with Intel 115x series CPUs
- Users report 10-26C temperature drops
- Replaces dangerous bench vice method
Cons
- Not Prime eligible slow shipping
- No instructions included
- Screw threads may not reach far enough
- Cast metal with poorer tolerances
- Cannot properly reattach IHS
At under 15 dollars, the XBERSTAR CPU Cap Opener represents the absolute floor of delidding tool pricing. Our research found users achieving temperature improvements from 10 to 26 degrees Celsius with this budget option. For anyone curious about delidding but hesitant to spend 50 dollars or more on a tool they might use once, this offers a low-risk entry point.
The all-alloy metal construction provides durability despite the low price. Surface spray treatment gives it a finished appearance and protects against corrosion. The clamping mechanism works by rotating a screw rod to push a slider, which holds the CPU firmly while you separate the IHS from the substrate.

User feedback reveals important caveats. The tool arrives with no instructions whatsoever. If you have never delidded a CPU before, you absolutely need to watch tutorial videos before attempting the process with this tool. Some users report that screw threads do not extend far enough on certain units, requiring creative solutions or replacement. The cast metal construction shows rougher tolerances than machined alternatives.
Shipping presents another consideration. The tool is not Prime eligible and typically takes 9-10 days to arrive. If you need a delidding tool urgently for a build project, this delay might push you toward faster alternatives. For planned projects where time is not critical, the savings may justify the wait.
Best suited for
This tool suits budget-conscious enthusiasts with older Intel 115x series processors who plan a single delid operation. If you have a 3770K, 4790K, 6700K, or 7700K collecting dust because thermal throttling killed your overclocking ambitions, this inexpensive tool can revive that hardware for minimal investment.
Consider alternatives if
Anyone attempting their first delid without access to tutorial videos should choose a tool with better documentation. Users who need the tool quickly should factor in the 9-10 day shipping time. Those planning multiple delids or professional work should invest in higher-quality alternatives with better tolerances and reliability.
5. Longdex CPU Heatsink Delid Tool – Ultra Budget
Longdex CPU Cap Opener CPU Heatsink Delid Tool to Remove Cover for
Intel 115x Series
Simple Operation
10-50C Improvement
Prime Eligible
Pros
- Works perfectly for Intel 115x CPUs
- Much cheaper than professional tools
- Simple clamp and tighten operation
- Can reduce temperatures by 10-50C
- Good for older CPUs with dried paste
Cons
- No instructions included
- Threads may be stiff
- Scratches CPU surface during delid
- Not suitable for newer generations
- Risk of damaging capacitors

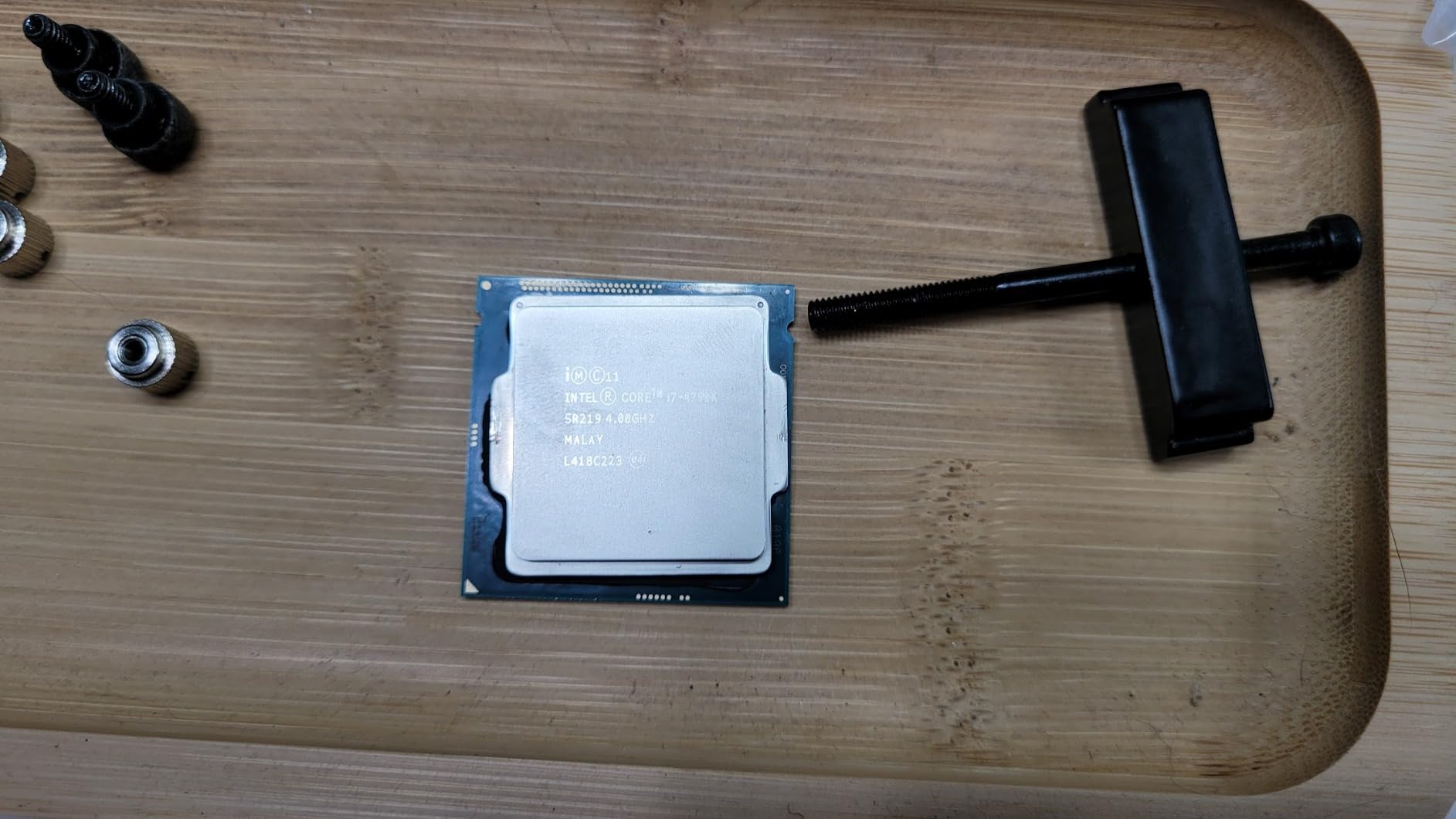

The Longdex CPU Heatsink Delid Tool competes directly with the XBERSTAR in the ultra-budget category. Both tools target the same Intel 115x processor family, but the Longdex offers Prime eligibility for faster shipping. Users report dramatic temperature improvements, with some claiming drops as high as 50 degrees Celsius on processors with severely degraded factory thermal compound.
Operation follows the same principle as similar budget tools. The CPU clamps into a base while a slider mechanism pushes against the IHS. Rotating the screw builds pressure until the adhesive releases. The horizontal separation force prevents the prying motion that damages dies with improvised methods.

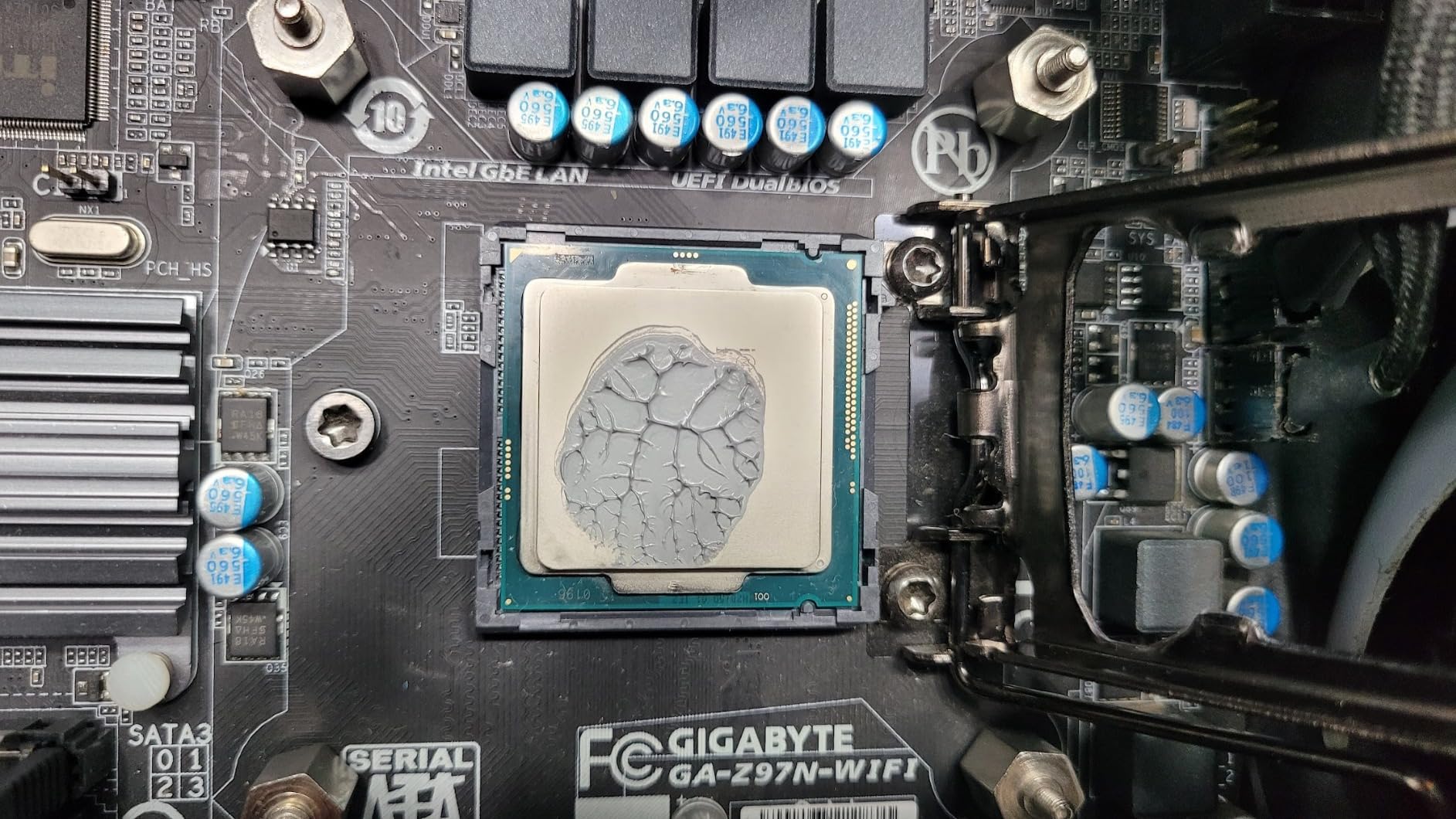

One user story stands out from our research. They had a 4790K that throttled so badly it became unusable for gaming. After delidding with the Longdex tool and replacing the dried factory paste, temperatures dropped enough to restore full performance. For processors suffering from age-related thermal degradation rather than just poor factory compound, the improvement can be genuinely transformative.
The lack of instructions remains a common complaint. Users emphasize the importance of heating the IHS with a hot air gun before delidding to soften the adhesive. This step makes the process significantly easier and reduces the force required. Without this preparation, you risk scratching the CPU substrate or applying excessive pressure.

Best suited for
This tool works best for reviving older Intel processors with degraded thermal performance. Owners of 3770K, 4790K, 6700K, E3-1230, 7700K, and 8700K processors experiencing thermal issues should consider this affordable option. The Prime shipping makes it accessible when you need results quickly.
Consider alternatives if
Owners of 9th gen Intel or newer processors need different tools. First-time delidders uncomfortable without instructions should budget for a tool with better documentation or commit to extensive tutorial viewing beforehand. Anyone concerned about cosmetic damage to their CPU should note that this tool scratches surfaces during operation.
6. Thermal Grizzly Direct Die Frame Ryzen 7000 V2 – Post-Delid Essential
Thermal Grizzly Direct Die Frame Ryzen 7000 V2 - Increased Compatibility - for Mounting Ryzen 7000 CPU Processors Without The Integrated Heatspreader - Made in Germany
Ryzen 7000/9000 V2
X3D Compatible
Protection Frame
German Made
Pros
- Significantly improves thermal performance
- Precise German engineering and fit
- Enables extreme overclocking potential
- High-quality anodized aluminum
- Protects exposed CPU chiplets
- Works with X3D processors
Cons
- Installation voids CPU warranty
- Requires advanced technical skill
- Some units missing screws
- Not for typical contact frame use
- Loose alignment before tightening

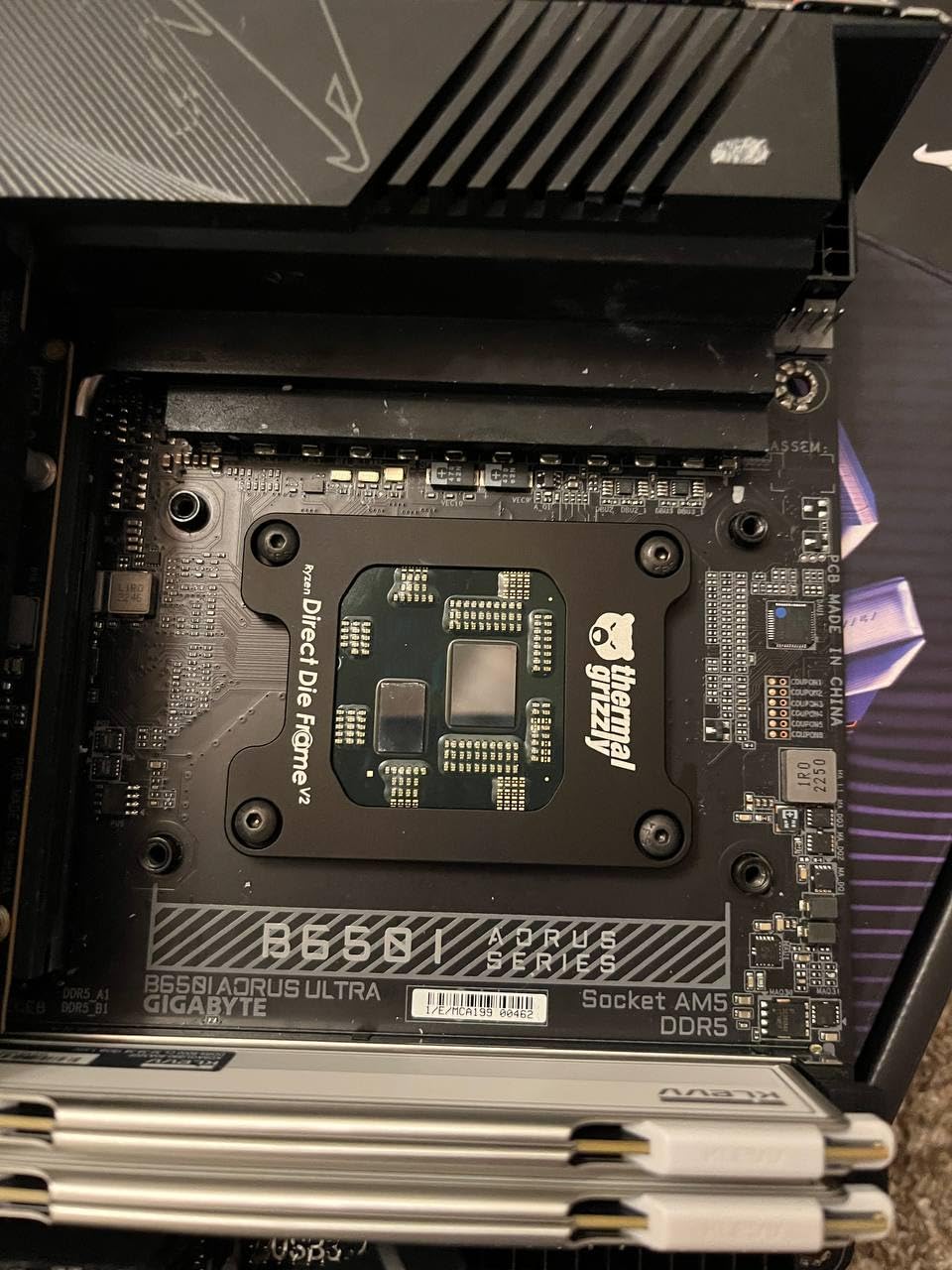

The Direct Die Frame serves a different purpose than the delidding tools themselves. After you remove the IHS with a Delid-Die-Mate, you need a way to mount your cooler. Standard mounting hardware expects an IHS in place. Without it, the cooler makes direct contact with the exposed chiplets, requiring a frame that both protects those chiplets and provides proper mounting pressure.
The V2 revision addresses compatibility issues with the original Direct Die Frame. Specifically, Ryzen 7000X3D processors with their stacked cache design required modification on the original frame. The V2 accommodates these processors out of the box, making it the recommended choice for 7800X3D, 7900X3D, and 7950X3D owners pursuing direct die cooling.

Temperature improvements with direct die cooling exceed what delidding alone provides. Users report 5-25 degree improvements compared to stock, with the upper end coming from the combination of delidding, liquid metal, and direct cooler contact with the chiplets. For extreme overclockers chasing records, this frame becomes essential equipment.
Installation requires care. The frame sits loosely before you tighten it down, with no IHS to provide reference positioning. Users recommend taking time to center everything before applying final pressure. Some users reported missing screws or the T20 Torx wrench in their packages, so verifying contents upon arrival saves frustration during installation.
Best suited for
This frame is essential for anyone who has delidded a Ryzen 7000 or 9000 series processor and wants to run direct die cooling. X3D owners specifically should choose the V2 version for proper clearance. Extreme overclockers and enthusiasts pursuing maximum thermal performance will benefit most from this accessory.
Consider alternatives if
If you plan to reattach the IHS after delidding rather than running direct die, you do not need this frame. Users uncomfortable with the additional complexity of direct die mounting should stick with IHS reattachment using high-quality thermal compound. Anyone expecting a standard contact frame for AM5 should note this product requires a delidded CPU.
7. Thermal Grizzly Direct Die Frame Ryzen 7000 – Original Frame
Thermal Grizzly Direct Die Frame Ryzen 7000 - for Mounting Ryzen 7000 CPUs Without The Integrated Heatspreader - Made in Germany
Ryzen 7000 Series
Direct Die Mount
AM5 Platform
Anodized Aluminum
Pros
- Essential for delidded AM5 CPUs
- Well-designed and manufactured
- Good temperature improvements
- German quality from Der8auer
- Can be modified for 7800X3D
Cons
- Not compatible with 7800X3D out of box
- Requires CPU delidding
- Difficult to get even pressure
- Some users reported CPU failures
- Risk of damage if installed incorrectly
The original Thermal Grizzly Direct Die Frame for Ryzen 7000 preceded the V2 revision. It provides the same core functionality of enabling cooler mounting without the IHS, but lacks the X3D compatibility built into the newer version. For owners of non-X3D Ryzen 7000 processors, this frame offers a slightly less expensive option that performs identically.
Users praise the manufacturing quality. Anodized aluminum construction matches the premium feel of other Thermal Grizzly products. The frame protects exposed chiplets from uneven cooler pressure while allowing maximum thermal transfer. Installation requires the same careful alignment as the V2 version.

Compatibility limitations create the primary differentiation from V2. The frame does not fit the 7800X3D due to clearance issues with the 3D V-Cache. Some enterprising users successfully modified the frame with a Dremel to gain clearance, but this approach carries obvious risks. For 7800X3D owners, spending the extra money on the V2 frame avoids these complications.
User experiences vary more widely with this frame than with the V2. Some report excellent results with substantial temperature improvements. Others describe difficulty achieving even pressure distribution, leading to higher temperatures than expected. A few users reported CPU failures after installation, though determining whether the frame or user error caused these failures proves difficult.
Best suited for
Non-X3D Ryzen 7000 owners pursuing direct die cooling will find this frame adequate for their needs. Budget-conscious enthusiasts who want Thermal Grizzly quality but do not need X3D compatibility can save money with this version. Users comfortable with potential modification for future X3D upgrades might consider this option.
Consider alternatives if
Any 7800X3D owner should choose the V2 frame instead. Users who prefer not to risk the direct die approach should consider IHS reattachment with premium thermal compound. First-time delidders might find the combined complexity of delidding and direct die mounting overwhelming for a first attempt.
8. Thermal Grizzly Lapping Tool Intel 13th/14th Gen – For Advanced Users
Thermal Grizzly Lapping-Tool for Intel 13th/14th Gen Series - Simple Grinding/Lapping of The CPU Heatspreader - Made in Germany
Intel 13th/14th Gen
IHS Flattening
5-7C Drop
Includes Sandpaper
Pros
- Effective for lapping Intel CPUs
- Indicators track progress
- Can reduce temps by 5-7C
- Designed by Der8auer
- Protects CPU during grinding
Cons
- Risk of destroying CPU
- Requires 3+ hours work
- Limited improvement may not justify risk
- Only for experienced modders
- High risk of capacitor damage

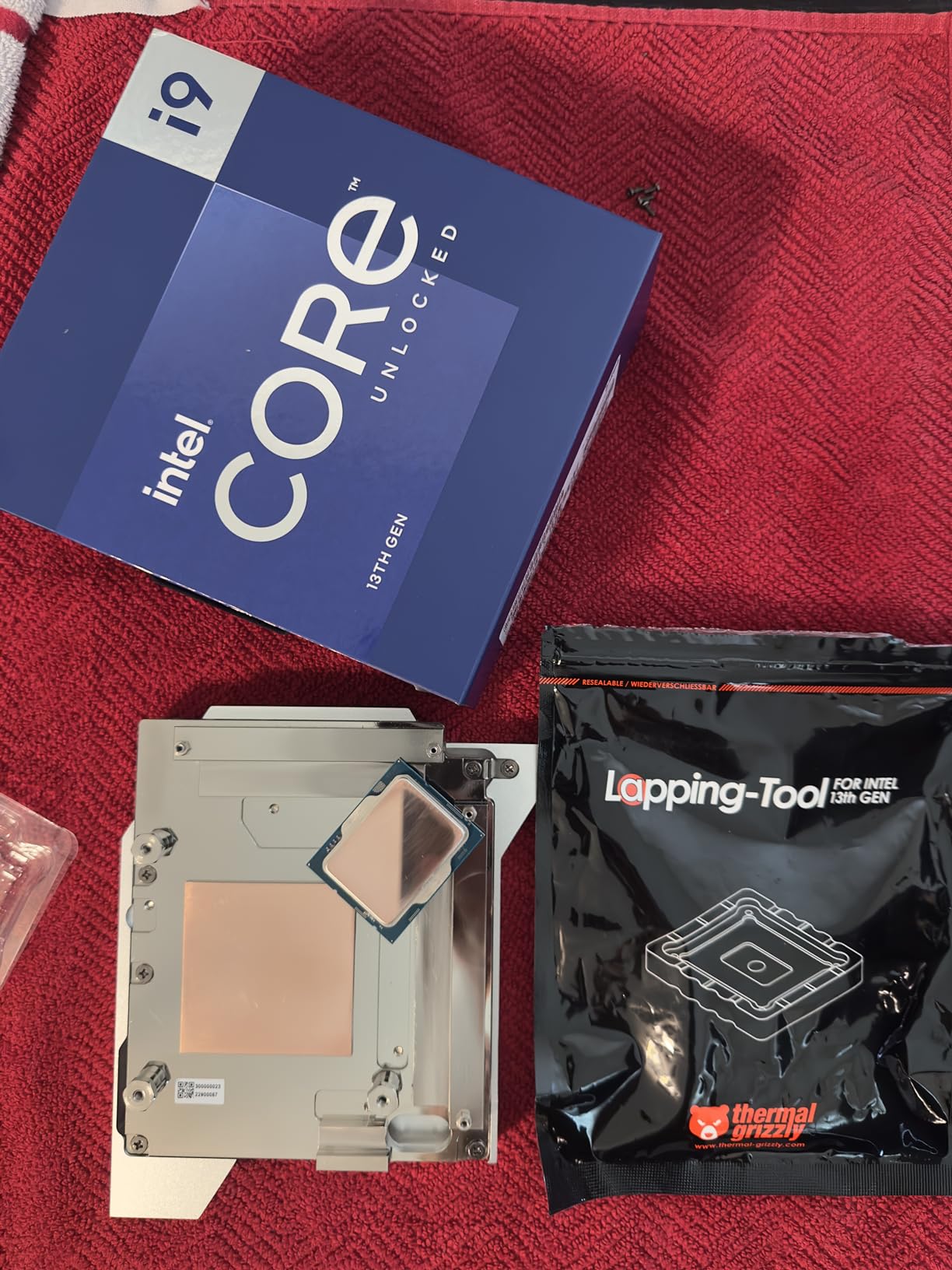

Lapping offers an alternative path to improved thermals without removing the IHS. The process involves grinding the heat spreader flat, removing the slight convex shape that creates uneven contact with your cooler. The Thermal Grizzly Lapping Tool simplifies this process while protecting your processor during the grinding operation.
Temperature improvements from lapping alone typically range from 5-7 degrees Celsius. While less dramatic than delidding results, this improvement comes without the complexity of IHS removal or liquid metal application. For users hesitant to fully delid their processors, lapping provides a middle-ground option with meaningful benefits.

The tool includes sandpaper in appropriate grits for the lapping progression. Indicators on the tool help you track progress, showing when you have removed enough material for a flat surface. The design works specifically with the Intel 13th/14th Gen Contact Frame, maintaining proper positioning throughout the grinding process.
Risk assessment matters enormously here. One user reported destroying their 13900K during lapping when a capacitor got knocked off. The process takes 3 or more hours of careful work, and mistakes cannot be undone. This tool targets experienced modders who understand the risks and have steady hands. For most users, delidding provides better results with comparable effort but more predictable outcomes.
Best suited for
Experienced enthusiasts who want thermal improvement without full delidding should consider this option. Users already planning to lap their CPU who want a purpose-built tool will find this more effective than improvised methods. Those uncomfortable with liquid metal may prefer lapping as a lower-risk alternative.
Consider alternatives if
First-time modders should absolutely avoid lapping until they gain experience with less risky modifications. Anyone expecting dramatic temperature improvements should choose delidding instead. Users concerned about warranty implications should note that lapping also voids your CPU warranty while providing less benefit than delidding.

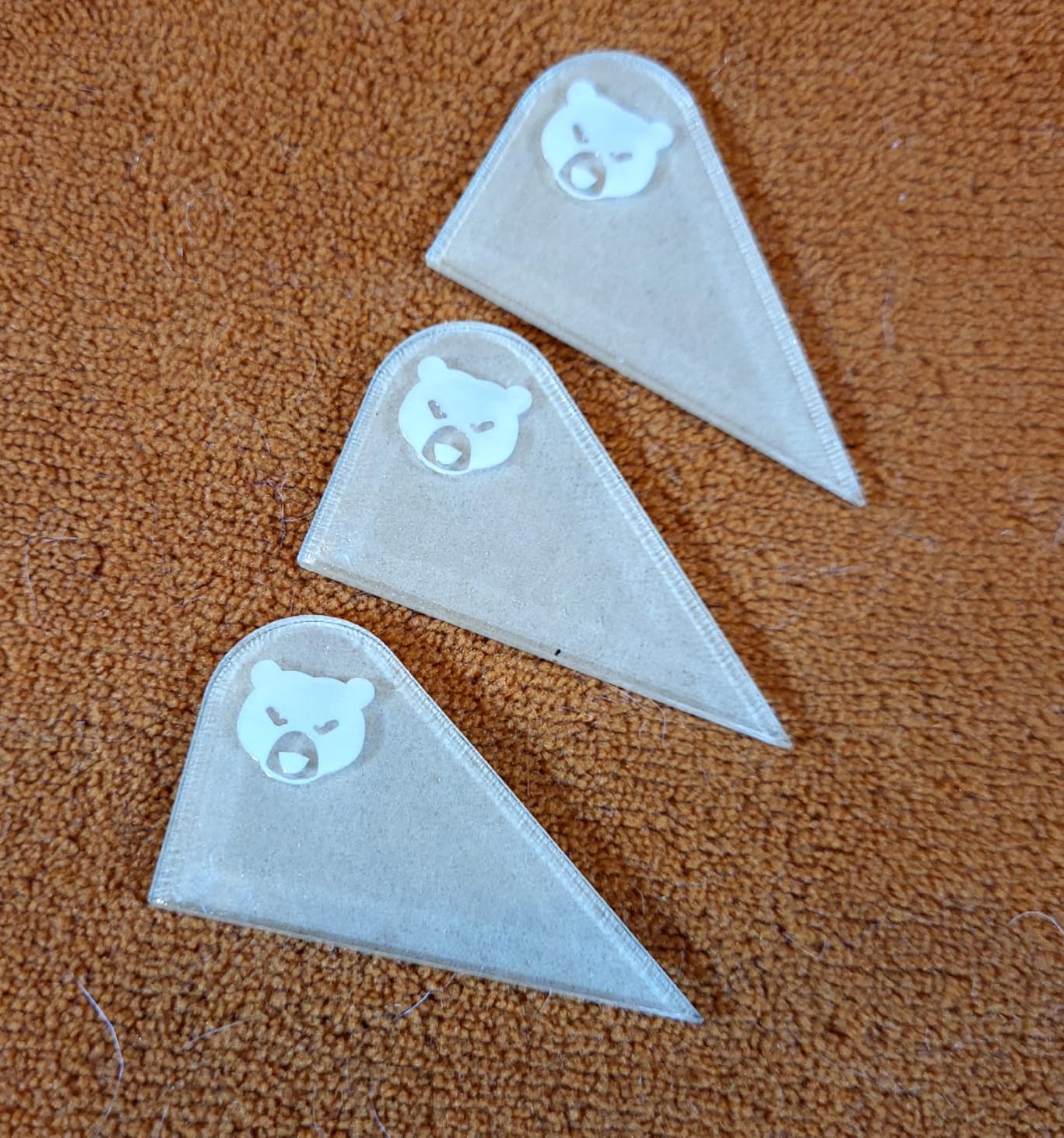

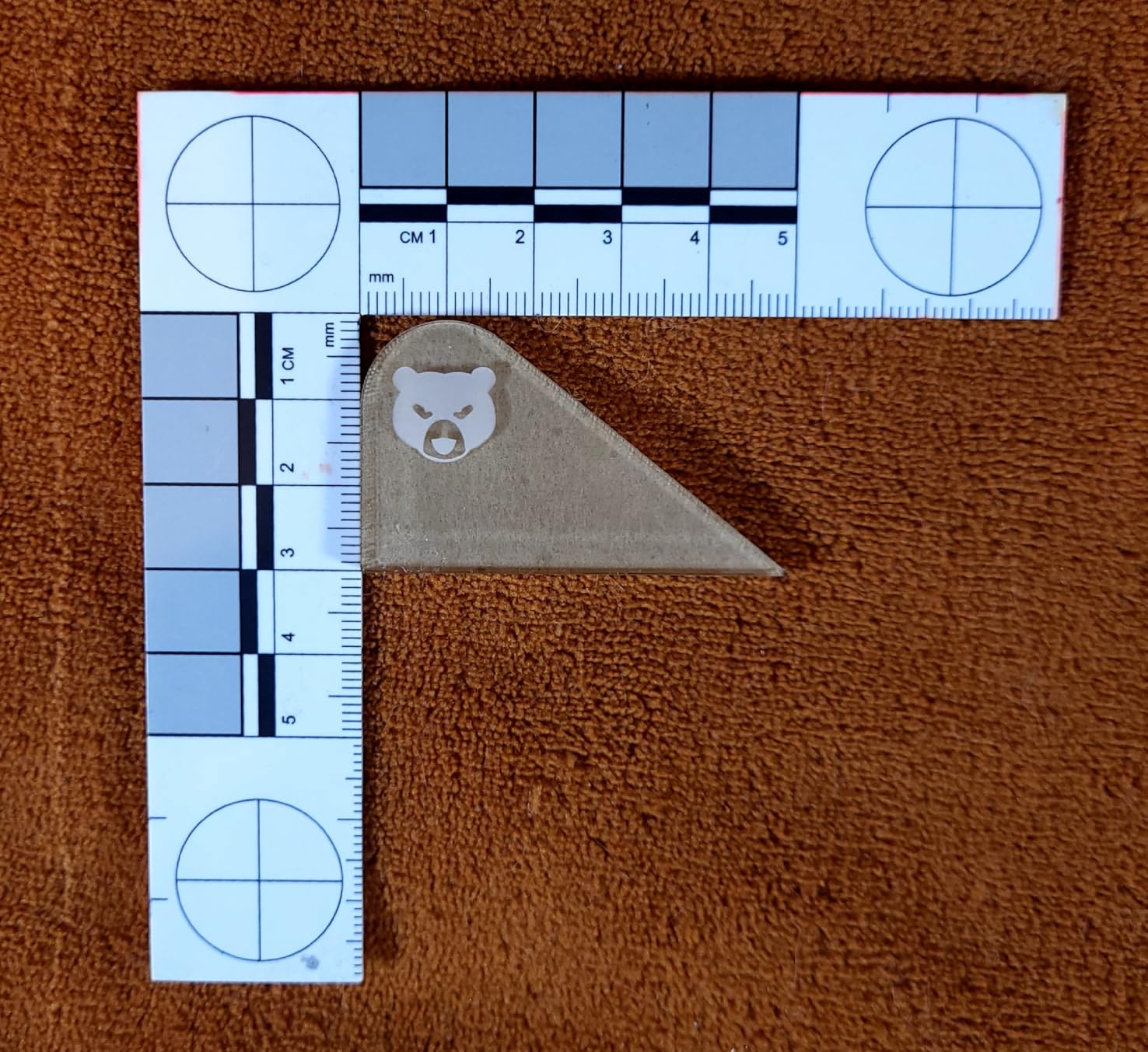

9. Thermal Grizzly TG Scraper 3-Pack – Essential Cleanup Tool
Thermal Grizzly TG Scraper (3‑Pack) Acrylic Precision Scraper for Delidding CPUs – Remove Solder Residue, Silicone Adhesive, Coarse Contaminants – Narrow Tip, Ergonomic Grip
Acrylic Precision
Solder Removal
3 Pack
Ergonomic Grip
Pros
- High-quality laser-cut acrylic
- Rigid material no flex
- Narrow tip for precise removal
- Comfortable ergonomic grip
- Safe for delicate CPU components
- Great for thermal paste spreading
Cons
- Premium price for scrapers
- Cheaper alternatives exist
- Possible to damage if not careful
- Small size may not suit all users
After delidding your CPU, you face a cleanup task. The factory thermal compound or indium solder leaves residue on both the die and the IHS. Using improvised tools like guitar picks or plastic pry tools works poorly and risks scratching delicate components. The Thermal Grizzly TG Scraper provides a purpose-built solution for this specific job.
The scrapers use laser-cut acrylic construction that provides rigidity without the hardness that could scratch silicon. The narrow tip reaches into corners and edges where broader tools cannot access. This precision matters when cleaning solder residue from around the die without touching the PCB traces.

Users consistently praise the quality compared to alternatives. Where credit cards flex and guitar picks wear down, these scrapers maintain their shape through multiple cleaning operations. The three-pack provides redundancy for mistakes or multiple builds. At under 9 dollars for the set, the price positions these as affordable luxuries rather than essential investments.
The ergonomic grip deserves mention. Working with tiny electronic components for extended periods fatigues your hands. A comfortable scraper makes the cleanup process less tedious and reduces the likelihood of mistakes from hand cramping or loss of fine motor control. Small design details like this separate professional tools from improvised alternatives.

Best suited for
Anyone planning to delid their CPU should budget for these scrapers as part of their tool kit. Enthusiasts who frequently work with thermal compounds will find them useful for spreading and cleanup beyond delidding. Users who value proper tools over improvised solutions will appreciate the quality and precision.
Consider alternatives if
Budget-focused builders might prefer using improvised tools like old credit cards or guitar picks. Those doing a single delid with no plans for future work might not need a three-pack. Users who rarely work with thermal compounds could skip this accessory in favor of multi-purpose alternatives.
10. The Delid Tool V2 with Replaceable Blade – Console Specialists
The Delid Tool V2 with Replaceable Blade – Precision Engineered for Safe Overheating Solutions
Console Delid
Replaceable Blade
PS3 Compatible
Precision Design
Pros
- Precision-engineered thin durable blade
- Replaceable blade design
- Specifically designed for PlayStation 3
- Version 2 sharper more flexible blade
- Excellent customer service reported
Cons
- Blades thin and prone to breaking
- Replacement blades hard to find
- Higher price for possibly single-use
- Risk of scratching substrate
- Some units arrive with bent blades

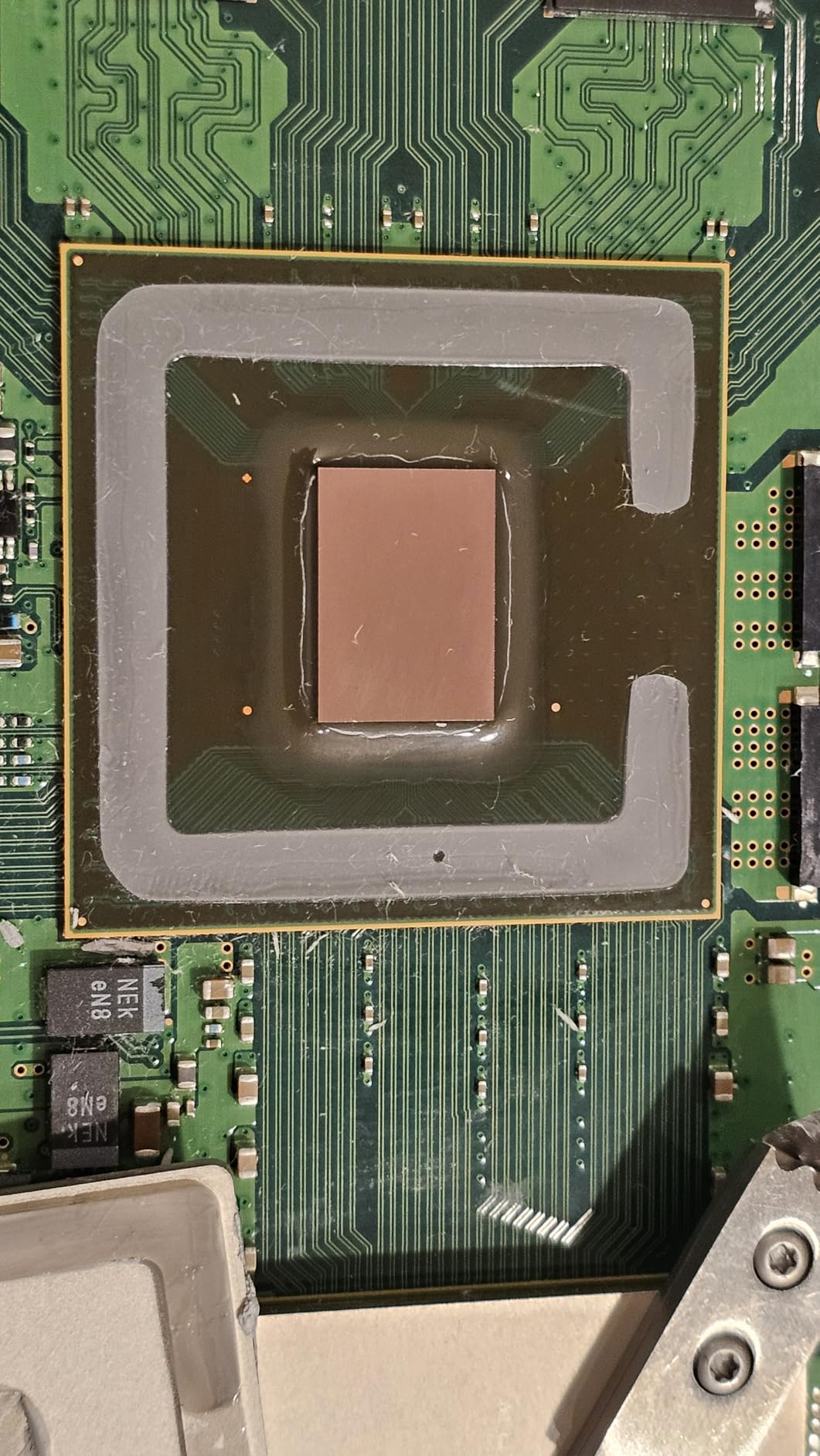

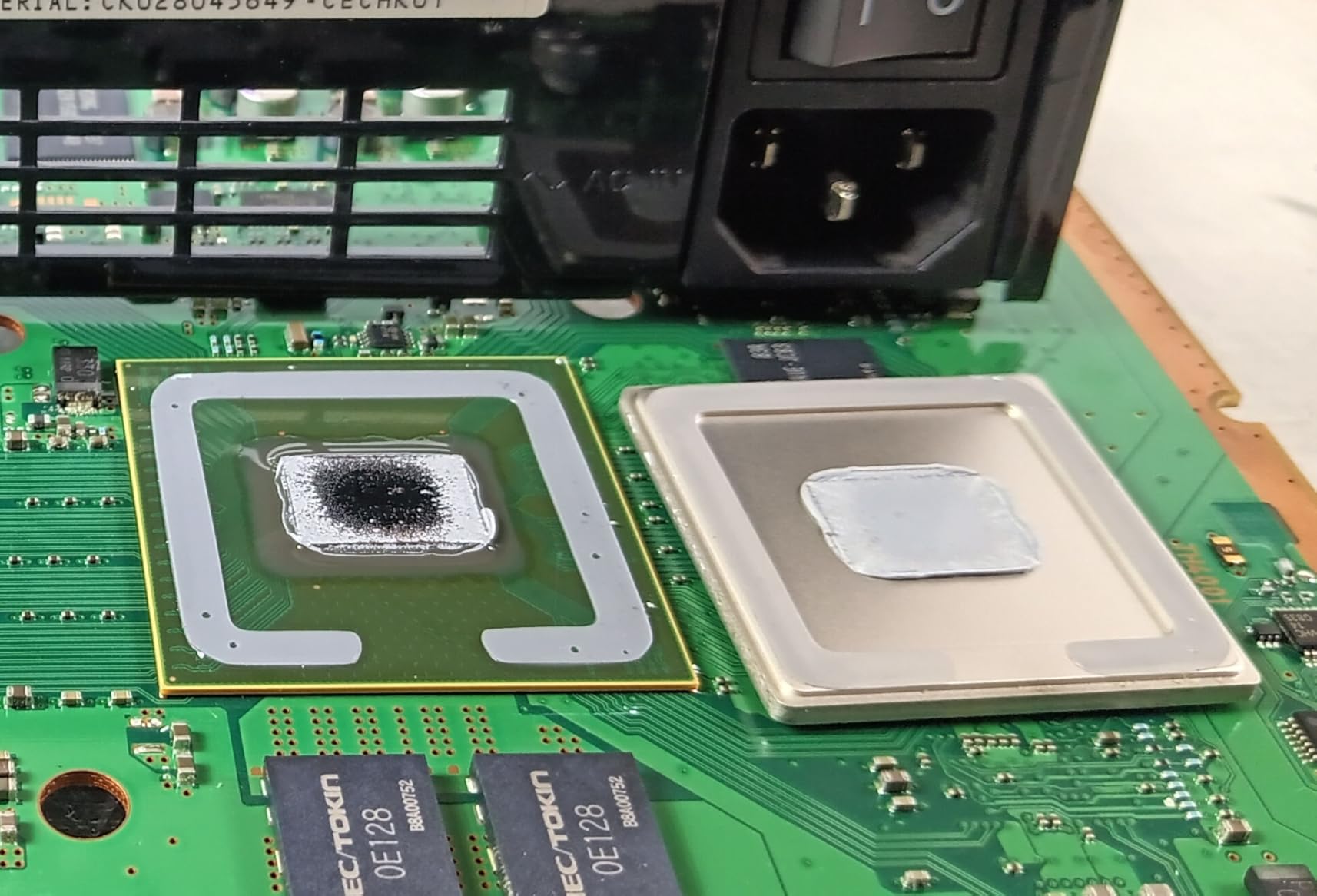

The Delid Tool V2 targets a different audience than the other tools in this guide. While most delidding tools focus on PC processors, this specialized instrument addresses console delidding, specifically for PlayStation 3 systems experiencing the infamous Yellow Light of Death caused by thermal degradation.
Console delidding differs significantly from PC processor delidding. The Cell processor in the PS3 uses different construction and adhesive methods than desktop CPUs. The Delid Tool V2 features a thin, flexible blade designed specifically for separating the IHS from the Cell die without the mechanical advantage that PC delidding tools provide.

Users report that this tool works dramatically better than improvised alternatives. Razor blades and random implements risk damaging the die or leaving debris. The purpose-built design applies force in the correct direction with appropriate flexibility for the adhesive bond used in PlayStation 3 processors.
Blade fragility emerges as the primary concern in user reviews. The thinness that makes the blade effective also makes it vulnerable to breakage. Replacement blades prove difficult to source separately, meaning a broken blade can end your delidding project until you purchase another complete tool. Some users reported receiving units with pre-bent blades, suggesting quality control inconsistencies.

Best suited for
PlayStation 3 owners attempting to revive systems with Yellow Light of Death should consider this specialized tool. Console repair technicians who work on multiple PS3 systems will find the replaceable blade design valuable. Enthusiasts interested in console hardware modification beyond PC building will appreciate having the right tool for this specific job.
Consider alternatives if
PC enthusiasts should choose one of the Intel or AMD specific tools covered earlier in this guide. Anyone not working on PlayStation 3 systems will find this tool irrelevant to their needs. Budget-conscious console repairers might prefer improvised methods, though the risk of damage increases substantially.
Buying Guide: Choosing the Right CPU Delidding Tool
Selecting the correct delidding tool requires matching your specific processor to compatible equipment. The wrong tool wastes money and potentially damages your CPU. This guide covers the essential factors to consider before making your purchase decision.
CPU Socket Compatibility
Socket compatibility represents the most critical selection criterion. Intel and AMD use different physical dimensions for their processors, meaning tools designed for one platform will not work on the other. Within each platform, generation differences also matter. A tool designed for LGA 1151 may not accommodate the different IHS dimensions of LGA 1700 processors.
For Intel users, identify your socket type first. LGA 115x encompasses 1150, 1151, 1155, and 1156, covering processors from Sandy Bridge through Coffee Lake. Budget tools like the XBERSTAR and Longdex target this range. LGA 1700 covers 12th, 13th, and 14th generation processors, requiring the Thermal Grizzly Delid-Die-Mate Intel 13th Gen or equivalent.
AMD users face simpler choices currently. The AM5 platform with Ryzen 7000 and 9000 series uses consistent dimensions, making the Thermal Grizzly AMD tool universally compatible within that generation. Older AM4 processors require different tools, though delidding AM4 chips remains less common due to AMD’s use of solder rather than paste.
Intel vs AMD Delidding Differences
Understanding platform differences helps set realistic expectations. Intel processors from Ivy Bridge through Coffee Lake used thermal paste between the die and IHS, making them prime delidding candidates. Intel returned to solder starting with 9th gen, though some users still delid these processors for direct die cooling.
AMD Ryzen processors on AM5 use solder from the factory. This means stock thermal performance already exceeds what Intel offered during their paste era. Delidding AMD processors provides more modest gains, typically 5-15 degrees rather than 15-20 degrees. The improvement comes from switching to liquid metal and enabling direct die cooling rather than replacing fundamentally poor thermal compound.
The delidding process itself differs between platforms. Intel IHS removal typically requires pushing the heat spreader off using controlled mechanical pressure. AMD processors may require different techniques due to their solder attachment method and multi-chiplet design. Always verify your specific processor compatibility before purchasing any tool.
Thermal Material Options
After delidding, you must choose thermal interface material for the reassembly. Two main options exist: thermal paste and liquid metal. Each carries distinct advantages and risks that factor into your tool selection.
Liquid metal compounds like Thermal Grizzly Conductonaut provide the best thermal performance. Users report 15-20 degree improvements over stock when using liquid metal on Intel processors. However, liquid metal conducts electricity. Any spillage onto the CPU substrate or motherboard components can cause short circuits and permanent damage. First-time delidders should approach liquid metal with extreme caution.
High-quality thermal paste offers a safer alternative with moderate performance gains. Expect 3-8 degree improvements rather than 15-20 degrees. The safety margin makes paste appropriate for users uncomfortable with liquid metal risks. Some users apply paste first to verify their delidding success, then switch to liquid metal later once comfortable with the process.
Safety Precautions
Delidding carries inherent risks that proper preparation mitigates. Before starting, gather all necessary tools and materials: your delidding tool, thermal compound, isopropyl alcohol for cleanup, lint-free wipes, and optionally nail polish or conformal coating for component protection.
Work in a clean, well-lit environment with adequate space. Static electricity poses risks to exposed silicon, so ground yourself before handling the CPU. Take photos at each step in case you need reference for reassembly. Watch multiple tutorial videos to understand the process fully before beginning.
Heating the IHS with a hot air gun before delidding softens the adhesive and reduces required force. This step proves especially important with budget tools that lack the precision engineering of premium alternatives. Apply heat evenly around the IHS edges without focusing on one spot long enough to damage components.
Warranty Considerations
Delidding voids your CPU warranty. Period. Intel and AMD can detect evidence of IHS removal if you ever need warranty service. The modified thermal compound, potential scratch marks, and altered adhesive all provide clear evidence of tampering.
This reality factors into your risk assessment. Delidding a 150 dollar processor from a previous generation carries different implications than delidding a brand new 600 dollar flagship. Some enthusiasts delid after their warranty expires anyway, gaining thermal benefits without sacrificing coverage they no longer possess.
Professional overclockers and extreme enthusiasts often consider the warranty sacrifice acceptable given their specific use cases. Casual users seeking modest temperature improvements for gaming should weigh the warranty loss against their actual need for lower temperatures. If your CPU runs acceptably cool at stock settings, delidding may provide unnecessary risk for marginal benefit.
Temperature Expectations
Setting realistic expectations prevents disappointment. Intel processors with factory thermal paste typically see 15-20 degree improvements with liquid metal after delidding. Intel processors with factory solder see smaller gains, typically 5-10 degrees from direct die cooling. AMD Ryzen processors generally see 5-15 degree improvements depending on the specific chip and thermal material used.
Your specific results depend on multiple factors: the quality of your factory thermal application, the skill of your delidding execution, the thermal compound you choose for reassembly, and your cooler quality. A poorly executed delid with cheap paste might yield minimal improvement, while careful work with liquid metal could exceed typical results.
Document your temperatures before and after delidding using consistent testing methodology. Run the same benchmarks at the same settings with the same ambient temperature. This documentation helps you verify that the process actually improved your thermal performance and provides data for future reference.
Frequently Asked Questions
What is the best tool to overclock a CPU?
The best delidding tool depends on your processor. For Intel 12th-14th gen, the Thermal Grizzly Delid-Die-Mate Intel 13th Gen offers the safest operation with 10-20C temperature improvements. For AMD Ryzen 7000/9000 series, the Thermal Grizzly AMD version provides compatible engineering. Budget-conscious users with older Intel 115x processors should consider the EG Starts tool for excellent value.
Is it worth delidding a CPU?
Delidding is worth it if your CPU thermal throttles under load or you want maximum overclocking headroom. Temperature improvements of 10-20C translate directly into higher stable frequencies and quieter operation. However, delidding voids your warranty and carries risk of CPU damage. Evaluate whether your current thermal performance actually limits your use case before proceeding.
How to cool a delidded CPU?
After delidding, you have two cooling options. You can reattach the IHS using silicone adhesive and apply thermal compound or liquid metal between the die and IHS. Alternatively, you can use a direct die frame to mount your cooler directly to the exposed chiplets, which provides maximum thermal transfer but requires careful installation and component protection.
Is delidding CPU safe?
Modern delidding tools make the process relatively safe when used correctly. Tools from Thermal Grizzly and similar manufacturers apply controlled pressure to separate the IHS without the damage risks of improvised methods like razor blades or bench vises. However, improper tool use or liquid metal application can still damage your CPU. Watch tutorials, work carefully, and understand the risks before attempting.
Does delidding void warranty?
Yes, delidding absolutely voids your CPU warranty. Both Intel and AMD can detect evidence of IHS removal through modified thermal compound, scratch marks, and altered adhesive. If you ever need warranty service, a delidded CPU will be rejected. Consider this warranty loss when deciding whether the thermal improvements justify the risk for your specific situation.
Final Thoughts
The best CPU delidding tools for overclocking have transformed a once-risky procedure into a manageable modification for enthusiasts. Whether you choose the premium Thermal Grizzly Delid-Die-Mate for your modern Intel processor, the AMD-specific version for your Ryzen build, or a budget option like the EG Starts tool for older hardware, temperature improvements of 10-20 degrees Celsius await those willing to take the plunge.
For most users in 2026, I recommend the Thermal Grizzly Delid-Die-Mate Intel 13th Gen if you own a 12th, 13th, or 14th generation Intel processor. The German engineering, der8auer design pedigree, and dummy-proof operation justify the premium price. AMD Ryzen 7000/9000 owners should choose the AMD version of the same tool. Budget-conscious enthusiasts with older Intel 115x processors will find excellent value in the EG Starts tool.
Remember that delidding voids your warranty and requires careful execution. Watch multiple tutorials, gather all necessary supplies before starting, and work methodically. The temperature improvements reward careful work, but rushing through the process risks permanent CPU damage. Take your time, and enjoy the satisfaction of pushing your processor to its full potential.
