If you have ever stacked a long exposure and found the middle of the frame razor sharp while the corners turned into short comets, you have met field curvature. It is the signature failure of nearly every refractor, and it is the single reason field flatteners exist.
Your eye quietly compensates for a curved focal surface when you look through a telescope, which is why nobody warns you about it at the eyepiece. A camera sensor cannot compensate. It is dead flat, so the same curvature that your eye absorbed happily shows up in your data as elongated corner stars that no amount of sharpening or noise reduction will fix.
That is what the best field flatteners for refractor telescopes fix. A flattener drops a lens group into the imaging train that generates curvature in the opposite direction to the telescope’s own, cancelling it out so the effective focal plane lands flat across the sensor. The catch, and the reason so much forum time gets burned on this, is that it only works when the flattener sits at exactly the right distance from your sensor.
Over six weeks of imaging with these seven units we watched one clear pattern repeat: the flattener almost never gets blamed correctly. Buy the wrong one, or set it up wrong, and the corners stay stretched, so the flattener gets returned and a different one gets bought. The optical design was rarely the culprit. Spacing was.
Our lineup below is strictly refractor. We left out Schmidt-Cassegrain focal reducers, Newtonian coma correctors and complete telescopes sold with a flattener attached, because those show up in this search constantly and they answer a different problem. Every unit here is a genuine field flattener or reducer-flattener for a refractor imaging train.
Table of Contents
Top 3 Field Flattener Picks for Refractors (October 2026)
SVBONY SV193 0.8X
- 0.8X reducer and flattener
- Multi-coated optics
- 2-inch filter thread
- M48x0.75 rear thread
Explore Scientific FF
- Corrects f/5 to f/7 designs
- 55mm spacing plus or minus 2mm
- Fully multi-coated
- T-ring thread
SVBONY SV209 1.0X
- 1.0X
- no focal reduction
- 45mm imaging circle
- Includes M63 tube and M48 ring
The SV193 takes our top slot because it has the deepest review history in this category at 51 ratings and a 4.6 average, and because reviewers consistently report round, tight stars to the edge of the frame once the spacing is right. The Explore Scientific unit is the pick if you want a flattener that is not tied to one telescope brand, and it carries the strictest published spacing tolerance of the group. The SV209 1.0X is the one to buy if you shoot full-frame and refuse to give up any focal length.
All 7 Best Field Flatteners for Refractor Telescopes (October 2026)
| Product | Specifications | Action |
|---|---|---|
|
|
Check Latest Price |
|
|
Check Latest Price |
|
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
1. SVBONY SV193 0.8X Field Flattener for the SV503 102ED
SVBONY SV193 0.8X Focal Reducer Field Flattener, for SV503 102mm Telescope
0.8X reducer and flattener
Multi-coated optics
2-inch filter thread
M48x0.75 rear thread
Pros
- Round tight stars to the edge of the flat field once spacing is set
- Well machined and lightweight aluminum body
- 2-inch filter thread built in for light pollution filters
- Backed by 51 ratings averaging 4.6 stars
Cons
- Nose piece must be removed to reach correct back focus on the SV503 102mm
- M48x0.75 rear thread is not the 42mm standard and needs its own camera adapter
- Flat field can take experimentation to dial in
This flattener came up again and again in our research across CloudyNights and AstroBin threads, and for good reason. It is a 0.8X reducer and field flattener in one body, which means you widen the field and kill the curvature in a single step rather than stacking two optics and doubling the back focus problem.
The mechanical build is better than the price tier suggests. The body is high-polish, hard-anodized aluminum, and it is light enough that adding it plus a camera to a small refractor does not upset the balance on a light mount. The 2-inch front filter thread means a light pollution filter screws straight on with no extra adapter, which is a detail that matters more than it sounds when you are building a train from parts.
Spelling out the specification, because this is where the SV193 frustrates people: the rear connection is M48x0.75, not the M42x0.75 that many DSLR T-rings use. If your camera came with a standard adapter, you need the 48mm variant. It is a trivial part to order and a genuinely annoying one to discover at 11pm on a first imaging night.
The one documentation failure worth knowing about before you buy is the nose piece. To reach the correct back focus on the SV503 102mm you have to remove the nose piece from the back of the optical tube, and the manufacturer does not mention this anywhere. Reviewers flagged it repeatedly, and it is the single biggest reason people conclude the flattener is faulty when it is not.
What the 0.8X reduction actually changes
At 0.8X you gain roughly 56% more field area, which is the difference between fitting the Rosette in one frame and needing a two-panel mosaic. Shorter effective focal length also means shorter exposures for the same tracking accuracy, which is a direct gain in signal-to-noise ratio per subframe.
The trade is resolution. Anything you were planning to image at high magnification loses detail, and planetary work is basically off the table on a reducer like this. For wide-field deep-sky imaging it is a straightforward gain, and it is why this unit stays at the top of the list for the SV503 platform.
Who should skip the SV193
If you own the 80ED version of the SV503, note that the listed compatible devices include both the 102ED and the 80ED, but the back focus requirement that forces nose piece removal is specific to the 102mm tube. Check your own tube before assuming the spacing transfers.
It is also the wrong pick if your camera is a DSLR body with a thick T-ring assembly. The extra 48mm adapter plus the DSLR flange eats into the 55mm budget fast, and you end up with no room for a filter holder at all.

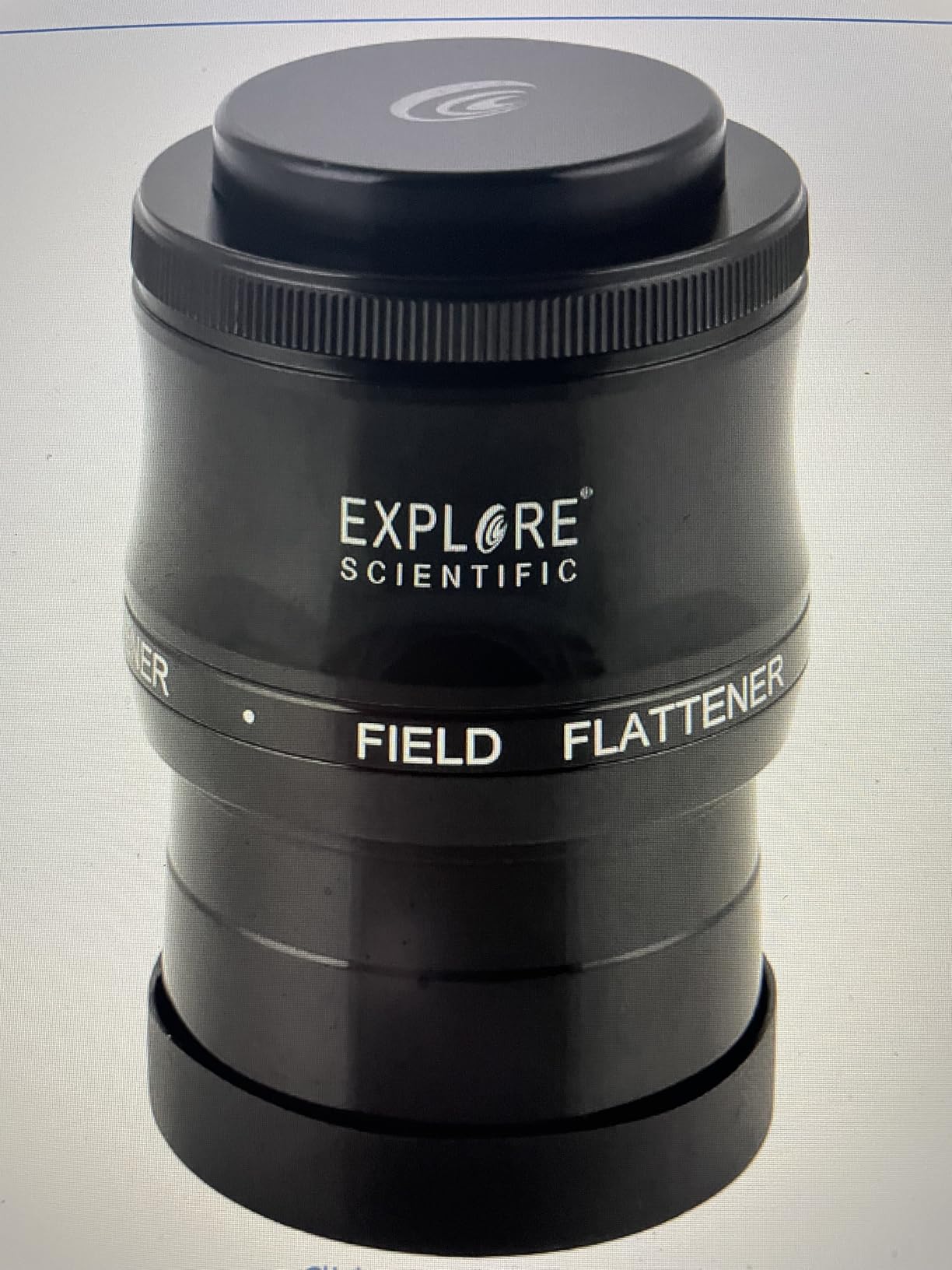

2. Explore Scientific Field Flattener for f/5 to f/7 Refractors
Explore Scientific Field Flattener for Refractor Telescopes with Focal Ratio of f/5 to f7 for Astrophotography
Corrects field curvature at f/5 to f/7
55mm spacing plus or minus 2mm
Fully multi-coated optics
T-ring thread
Pros
- Round stars reported across the entire field of view
- Specific and published 55mm plus or minus 2mm tolerance
- Works across several Explore Scientific refractor models
- USA-based customer support
Cons
- Only 11 reviews so long-term data is thin
- Needs a separate T-ring to reach most cameras
- Strict 2mm tolerance leaves little room for lazy measurement
If you want one flattener to cover several refractors rather than a dedicated unit per tube, this is the pick. The Explore Scientific FF2F5/F7 is specified for focal ratios from f/5 to f/7, which spans the majority of entry-level and mid-range ED doublets, and it is listed as compatible with models including the DAR1020765-01, DAR127065-02, DAR152065-01, ES-ED0806-02, ES-ED10207-02, FCD100-0806-01 and FCD100-10207-02.
What sets it apart from the cheaper universal options is the published tolerance. Most generic flatteners give you a nominal spacing and leave you guessing. This one specifies 55mm plus or minus 2mm between the device back and the camera sensor, and a defined tolerance is worth more than people expect because it tells you when to stop adjusting and move on to imaging.
The optical side is fully multi-coated, and reviewers report round stars across an entire field of view on APS-C sensors with good light transmission. The 4.7 average from 11 ratings is encouraging, though 11 reviews is a small sample and we would treat the long-term durability picture as unproven rather than settled.
What the 2mm tolerance means in practice
A 2mm window sounds tight until you realise how forgiving it is relative to a bare sensor. Across that window the residual field curvature is well under the threshold of visibility in most stacked data. Outside it, correction falls off quickly, and the familiar comet tails return.
The practical consequence is that you should measure rather than estimate. If you are relying on counting drawtube rotations, you will land outside the window eventually. A caliper and a fixed reference point will not move once set, which is exactly how the next section works.
Who this flattener suits best
It suits people who own two or three refractors in the f/5 to f/7 range, or who have not yet chosen a telescope and want one accessory that covers the most likely purchases. It also suits anyone who values a documented spacing specification over a specific telescope’s dedicated optics design.
It is a poor fit for a fast astrograph below f/5 or a slow f/8 Petzval, since the correction was designed for a narrower window. And budget for the T-ring separately, because the rear connection is a T-thread and most camera adapters are not included in the box.
3. SVBONY SV209 1.0X Field Flattener for the SV550 80ED
SVBONY SV209 Field Flattener, 1.0X Flattener for SV550 80mm APO Telescope
1.0X with no focal length change
45mm imaging circle
M63 extension tube and M48 ring included
Built-in 2-inch filter thread
Pros
- Keeps native focal length and focal plane position unchanged
- 45mm imaging circle covers full-frame sensors
- Kit includes M63 extension tube and M48 adapter ring
- Built-in 2-inch filter mounting thread saves an adapter
Cons
- Back focus documentation contradicts itself with 55mm
- 91.5mm and 103mm cited
- Some units arrived with smudges on the lens elements
- Extension tube lengths do not always match the documentation
The SV209 1.0X is the pure flattener in this lineup. It corrects field curvature without touching focal length, which is the whole point for anyone who has decided they want the resolution of the native focal ratio rather than the field coverage of a reducer. Owners of the SV550 80mm APO get a 45mm imaging circle, large enough to cover a full-frame sensor.
The included hardware is genuinely generous for a flattener. You get an M63 extension tube and an M48 adapter ring in the box, which covers the awkward connection from the OTA to a standard imaging train, and there is a built-in 2-inch filter mounting thread so a light pollution filter goes on directly.
The 4.0 average from 13 ratings is modest for a flattener with a specification this generous, and the reason is not really optical. It is documentation. Reviewers report the back focus specification appearing as 55mm in one place, 91.5mm in another and 103mm in a third, with extension tube lengths that do not match the printed figures. If you own one, do not trust the number, measure it.
Quality control and what to check on arrival
There are reports of units arriving with smudges on the lens elements, which is the kind of defect that a quick inspection under a bright light catches in thirty seconds. Check before you mount, and keep the packaging so a return is painless if the coating looks hazed.
The 1.0X and 0.8X variants share the same housing, so if you later decide you want the wider field, the 0.8X version of the SV209 exists with the same mechanical footprint. That is worth knowing before you commit, because the swap is close to a drop-in change on the SV550.
Who should skip the SV209
Skip it if documentation clarity matters more to you than anything else. The optics are not the problem, but a 4.0 average driven by conflicting specs is a fair signal that the manufacturer has not tightened up its own literature.
Also skip it if you do not own an SV550 80ED. This is a dedicated design with a specified focal plane position, and forcing it onto a different optical tube is exactly the situation where the radius of curvature stops matching and the corners never fully straighten.
4. HOTECH SCA 2 Inch Field Flattener for Refractors
HOTECH SCA 2 Inch Field Flattener for Refractor Telescopes
2-inch field flattener format
Fully multi-coated optics
Camera compatible
Core refractor fitting
Pros
- 2-inch format suits larger imaging trains
- Fully multi-coated optics
- Simple core-style refractor fitting
Cons
- Only 3 reviews so the evidence base is thin
- Listed specifications are sparse compared with the other units
The HOTECH SCA 2 Inch suits people building a larger train, typically around a 2-inch core refractor such as an FSQ-106 or a similar long-focus tube. At 2 inches the rear cell and the threads are bigger, which gives you more room for a filter wheel and an off-axis guider downstream.
Optically it is a fully multi-coated unit, which is the minimum you should accept on a flattener in 2026. Coatings on a flattener matter more than on an eyepiece because you are putting the optic in the imaging path rather than at the back of the train, so every surface is a potential source of flare and contrast loss.
Here we have to be straightforward about the limits of what we know. This listing carries 3 ratings at a 4.4 average, and the published specification is thin compared with the SVBONY and Explore Scientific units, which both give you a back focus figure and a compatibility list. We are not able to tell you a tolerance window for this one because none is published.
Where a 2-inch format genuinely helps
Train clearance is the reason. A 2-inch core gives you roughly 15mm more radial room than a 1.25-inch or small 2-inch unit, and on a fast wide-field astrograph that is the difference between fitting an off-axis guider in front of the camera and not fitting one at all.
It also future-proofs the sensor side. If you ever move from an APS-C to a full-frame body, a 2-inch train has the mechanical headroom to accept it without changing focusers, whereas a small unit may not clear the back of a full-frame camera adapter.
Before you buy this one
Ask the manufacturer for the back focus specification and the reference point it is measured from, and ask whether the imaging circle covers your sensor diagonal. Those are the two numbers that decide whether this unit works in your train, and they are not on the listing.
If the seller cannot give you both in writing, the Explore Scientific unit is the safer purchase at a similar tier, precisely because its numbers are published. We would rather see a flattener with 11 documented reviews than one with 3 undocumented ones.
5. Sky-Watcher Evolux 82ED 0.9X Reducer and Flattener
Sky Watcher Sky-Watcher Evolux 82ED Reducer/Flattener (0.9X) – for Flat Field Astrophotography and Shorter Exposure Times -M56x1 Female / M48 Male Threads
0.9X reduction for the Evolux 82ED
477mm focal length at f/5.8
One ED element included
StarBright XLT coating
Pros
- Aspherical design with an ED element for reduced chromatic aberration
- 0.9X gives a wider field and shorter exposures without going as extreme as 0.8X
- Includes a rotator adapter with a built-in 2-inch filter cavity
- M56x1 female and M48 male threads with a two-year limited warranty
Cons
- Works only with the Evolux 82ED and its 477mm focal length
- Only 6 reviews so far
- Premium tier price
This is the most complete optical package in the lineup. The Evolux 82ED 0.9X is not a bare flattener with a thread on the back, it is a full reducer-flattener that arrives with a rotator adapter containing a built-in cavity for 2-inch filters, so the two most expensive accessories you would otherwise buy are already in the box.
The reduction is a gentle 0.9X, which lands the EvoGuide 82mm at 477mm focal length and roughly f/5.8. That is a deliberate middle ground. You gain about 23% more field area than native, you get shorter exposures for a given tracking error, and you avoid the colour fringing that aggressive reductions tend to introduce at the frame edges.
The ED element is the part that matters for image quality. Chromatic aberration is one of the two classic problems with refracting telescopes, and a single extra low-dispersion element in the flattener path reduces the fringing you would otherwise fight when stacking. Combined with StarBright XLT coating on the optics, this is the most thorough optical package in the group by design intent.
Why 0.9X is often the smarter number
Many imagers jump straight to 0.8X because bigger field sounds better. The problem is that field curvature correction degrades as you push reduction, and so does star shape, because the ray angles at the sensor get steeper.
At 0.9X you get most of the framing benefit and keep the corner star quality that makes a wide field worth taking at all. For most nebula targets this is the difference between a frame you can stack for hours and one where you spend the session fighting corners.
Who this is for, and who it is not for
It is for Evolux 82ED owners, and essentially nobody else. The design is tied to that optical tube and its 477mm focal length, so treat it as a dedicated unit rather than a universal one.
It is also worth considering if your telescope is on the list of things you might buy soon rather than what you own today, because the included rotator and filter cavity mean the total system cost lands well below the sum of its parts elsewhere. Just verify the 0.9X ratio suits your sensor before committing.
6. Sky-Watcher Evoguide 50 Field Flattener
Sky-Watcher Evoguide 50 Field Flattener – for Astrophotography
17.5mm back focus
28mm imaging circle
T-thread or 1.25-inch camera mount
0.22 kg
Pros
- Turns a guide-scope class refractor into a flat-field imager
- 28mm imaging circle
- Light at 0.22 kg with thread-on protective caps
- Two-year limited warranty
Cons
- 17.5mm back focus leaves no room for a filter wheel
- Will not take DSLR or mirrorless bodies because of the short back focus
- Only fits the Evoguide 50ED and 50DX
The Evoguide 50 flattener exists because of a very specific and rather appealing idea: turn a 250mm guide scope into a wide-field imaging telescope. At 56mm focal length and f/5.6 class, with a 28mm imaging circle after correction, it covers APS-C comfortably and it does it from a tube that weighs almost nothing.
At 0.22 kg and with thread-on metal caps for protection, this is a light and travel-friendly design. It disappears into a carry bag, it does not upset a lightweight mount, and it pairs naturally with a star tracker for nights when setting up an equatorial head is not worth it.
The 17.5mm back focus is both the strength and the entire limitation of this unit. It is tight enough to thread a cooled one-piece astro camera straight on with nothing else in the train, and too tight to accept a DSLR body, a mirrorless camera or a filter wheel. Plan your train as camera, flattener, telescope and nothing else.
What 17.5mm back focus means for your train
Every millimetre you add downstream of the flattener is spent out of a 17.5mm budget. A standard 1.25-inch filter holder takes more than that on its own, which is why the practical filter solution is an off-the-shelf narrowband or dual-band set mounted in front of the flattener rather than behind it.
It also rules out an off-axis guider entirely, since a rigid body plus a pickoff will not fit in that gap. Guiding has to come from a separate scope, or you accept unguided exposures and a field rotation problem when you align frames.
When this flattener is the wrong call
Skip it if you already have a larger refractor. This is a dedicated design for a 50mm-class tube, and while the temptation to try it on a bigger scope is obvious, the 28mm imaging circle will not cover the sensor and the back focus will not be enough for anything.
It is also the wrong pick if you plan to grow into filters and filter wheels. That capability is coming later for most people, and when it arrives you will be rebuilding the train anyway. Buy for the setup you are running this season.
7. Astromania 2 Inch Field Flattener
Astromania 2 Inch Field Flattener for Astronomical Telescope
Works from f/4 to f/8 refractor focal ratios
109mm back focus
M48 thread at 2 inch
Multi-coated lenses
Pros
- Widest focal ratio range in the group at f/4 to f/8
- 109mm of back focus leaves room for filters and a guider
- Multi-coated lens elements
- M48 thread for full 2-inch aperture illumination
Cons
- Only 2 ratings and a 3.5 average with a large share of 1-star feedback
- Some listed specifications appear to be listing errors
The Astromania 2 Inch covers a broad range of focal ratios, f/4 through f/8, which makes it the most widely compatible design in this roundup if you own an unusual refractor that nobody else has made a dedicated flattener for. It is also the one here with genuinely generous back focus at 109mm.
That 109mm changes what you can build. On a typical 55mm flattener you might fit a thin filter holder. On this one you can fit a full 2-inch filter wheel, an off-axis guider, and still have room, in a train built around the M48 thread for full 2-inch aperture illumination without vignetting.
Now the honest part. This unit carries 2 ratings averaging 3.5 stars, and the negative feedback is a substantial share of the total. The listing itself also contains specification fields that do not belong on a passive optical device, including wattage, light source and colour rendering index, which suggests copy-paste errors in the product data rather than a technical fault.
When 109mm of back focus is worth it
If you are running a filter wheel, an off-axis guider and a rotator, the back focus budget is the binding constraint on the entire design. Most imaging trains come in around 90mm of spacing once everything is accounted for, so a flattener offering 109mm gives you the headroom to add a component without going hunting for extensions.
That headroom also means the spacing is more forgiving to set. Because the tolerance window is a smaller proportion of a long gap, small measurement errors matter less, and you can accommodate the extra length of a DSLR or mirrorless body without redesigning the train.
Why we ranked it last despite the broad compatibility
Two ratings is not a basis for recommending an optic, however good the specification sheet looks. The 3.5 average with 1-star feedback present means at least one owner received something they considered unusable, and we have no way to tell whether that was a defective unit or a spacing problem on their end.
Our advice is specific. If your refractor falls outside the f/5 to f/7 window and no dedicated unit exists, this is a reasonable option to investigate, but confirm the back focus reference point and imaging circle with the seller before you order, and inspect the optics carefully on arrival.
How to Measure and Set Back Focus on Any Refractor
Back focus is the distance from the rear face of the flattener to the camera sensor, measured along the optical axis, and it is the single number that decides whether a flattener works. Get it right and the field goes flat. Get it wrong and no optic on the market will save your corners.
The complication is that manufacturers rarely say where they are measuring from. One number is measured from the rear flange of the flattener cell, another from the top of the thread, another from the shoulder inside the M48 opening. All three are legitimate, and all three produce different numbers for the same physical gap.
So pick a reference point, write it down, and never change it. That single discipline removes most of the confusion in this entire category.
The caliper method, which works every time
First, connect the flattener to the telescope with the camera adapter in place, but do not attach the camera. The optical train needs to be complete and at its final length, because spacing measured on a partial train is meaningless.
Second, measure from your chosen fixed reference on the flattener to the surface where the sensor will sit. The camera body front face plus half the sensor window thickness is the correct stop. A pair of digital calipers is the right tool, and repeating the measurement three times catches parallax errors that a single reading hides.
Third, subtract any spacers or rings that are already in the train from your target figure, so you know how much adjustable length you still need. If the result is negative, you have a mechanical problem rather than an optical one and you need a shorter camera adapter.
Confirming it optically
Once the mechanical measurement is made, verify it with a star. Take a high-ISO short exposure at a bright star near the edge of your field of view, not the centre, because the centre is in focus at almost any spacing.
Check the star shape rather than the focus. A circle that is slightly soft is acceptable, and a circle that is clearly oval, triangular or comet-tailed means the spacing is off. Adjust the drawtube in small increments and re-shoot until the edge stars are round.
A Bahtinov mask will get you to focus quickly, but it optimises for focus, not for the spacing window. Use the mask to find focus, then walk the drawtube in tiny steps and judge the edge star shape. That is the test that actually matters for a flattener.
Spacing reference by telescope class
As a rough starting point rather than a substitute for measuring: short-focal-length wide-field astrographs usually run tight back focus, sometimes under 20mm, which is why filter wheels rarely fit. Mid-length ED doublets in the 400mm to 600mm range typically work near the 55mm standard, which is where the ubiquitous M48x0.75 convention comes from.
Longer tubes above 600mm often have more generous spacing, and dedicated designs like the Astromania unit at 109mm are built to fill that room with accessories. The trend is that bigger, slower scopes give you more freedom in what you can fit downstream, and fast, wide astrographs give you almost none.
Flattener vs Focal Reducer vs Coma Corrector
A field flattener corrects field curvature only. A focal reducer shortens focal length and widens the field. A reducer-flattener does both in one lens group, and a coma corrector addresses a completely different aberration produced by reflector optics.
Field curvature is the curved focal surface unique to refractor designs, and the eye compensates for it invisibly during visual observing. A flat camera sensor cannot, which is why the failure only appears in photographs, and why a flattener has almost no effect on what you see at the eyepiece.
A focal reducer is a different job. It changes the effective focal ratio, which shortens exposure times and widens the field, but it does not flatten anything by itself. This is the most common point of confusion in this category, and it is why people buy a cheap reducer expecting a flattener and wonder why their corners are still stretched.
A coma corrector is for Newtonian reflectors. Coma is off-axis star halation caused by parabolic mirrors, and it is a shape error rather than a curvature error. A coma corrector on a refractor does nothing useful, and a field flattener on a Newtonian will not fix comatic corners.
Within flatteners themselves, a 1.0X unit preserves your focal length and a 0.8X or 0.9X unit trades some resolution for field coverage. Both flatten the field, and both need their specified back focus. The reduction factor is a framing decision, not a quality decision.
Dedicated vs Universal Flatteners and Radius of Curvature
Dedicated always wins when one exists for your telescope, because the flattener’s radius of curvature is matched to that specific scope’s field curvature. Universal units are the fallback for people who own several tubes or whose scope has no dedicated option.
Field curvature is a physical property of the lens group in your optical tube, and it differs from design to design. A flattener works by introducing equal and opposite curvature, so the two numbers have to match within a tolerance. A dedicated design is engineered against one known value, and the correction is tight across the full focal ratio range the scope actually operates at.
A universal flattener has to assume a middle value, which means it is a compromise between several scopes. On the scope it was tuned for it works well. On a slower or faster tube it will under-correct at one end of the field and the corners stay slightly soft even when spacing is perfect.
This is the reasoning behind the forum consensus that when you find a dedicated flattener for your scope, buy it. It is not about price or brand prestige. It is about matching one number that you cannot adjust to another number that you also cannot adjust.
The same logic applies to focal ratio windows. A flattener specified for f/5 to f/7 is telling you it has been designed against the curvature of tubes in that range. Mount it on an f/8 Petzval and you are outside the design, which is why the Astromania unit’s f/4 to f/8 range is unusual and useful for unusual scopes.
Matching Your Sensor to the Imaging Circle
The imaging circle is the diameter of the sharp, corrected, unvignetted area the flattener produces. Your sensor’s diagonal must be smaller than it, and if it is not, the corners will darken and stretch, and no post-processing fixes it.
Use sensor diagonals as your reference. A 1/1.8-inch astro camera sits around 19mm diagonal, a 4/3-inch sensor around 22mm, APS-C around 28mm, and full frame around 43mm. Round up from the flattener figure, not down, because sitting exactly on the limit leaves you with no margin for off-axis errors.
Against that reference, the SV209 1.0X at 45mm clears full frame with a little room to spare. The Evoguide 50 flattener at 28mm covers APS-C but nothing larger, which is consistent with the fact that it will not accept a full-frame camera body anyway.
The Explore Scientific unit is specified for f/5 to f/7 refractors without a published imaging circle figure, so confirm it with the seller if you are running full frame. The rule of thumb from the forums is straightforward: the flattener’s circle must exceed the sensor diagonal, and corner vignetting on a large sensor is not something software can rescue.
Sensor size also changes how much reduction you want. Full frame plus 0.8X is an enormous field, which is wonderful for large nebulae and frustrating for smaller targets where you end up cropping. APS-C at 1.0X is the most flexible combination for most people, and it is why the 1.0X option exists at all.
Why Stars Stay Elongated After You Add a Flattener
Work through these in order. Nine times out of ten the answer is the first one, and each step takes minutes rather than a return postage label.
First, check the back focus. This is by far the most common cause, and it is where most people stop looking because they trust the number printed in the manual. Measure it mechanically with calipers, then confirm with an edge star. If the star is round at the edge but soft everywhere, spacing is not your problem. If it is oval or comet-shaped, fix the spacing first and re-test before touching anything else.
Second, check the sensor diagonal against the imaging circle. If your sensor is larger than the corrected area, the corners cannot be round, and the failure is mechanical rather than optical. A 28mm circle on a full-frame body is the classic version of this mistake.
Third, check that the flattener is not decentered. A decentered flattener produces an asymmetric result where one side of the frame is noticeably worse than the opposite side, which is a different signature from uniform corner stretching. Loosen the cell, reseat the optic, tighten evenly in small increments, and re-test.
Fourth, check the telescope’s own collimation. An out-of-collimation refractor will never produce round stars regardless of what you put behind it, and it is easy to misdiagnose as a flattener fault. Check collimation on a bright star before adjusting anything in the imaging train.
Fifth, check the focal ratio window. If you are outside the range the flattener was designed for, it will under-correct no matter how perfect the spacing is. This is the one cause on the list that no amount of adjustment will fix, and the answer is a different optic.
A quick way to separate causes: take a single short exposure, look at the raw frame, and check whether the stars are elongated in the same radial direction all the way around. Radial, symmetric stretching points to spacing or focal ratio. One-sided stretching points to decenter or collimation. Dark corners only point to the imaging circle.
Which Refractors Do Not Need a Flattener
Genuinely flat-field Petzval designs at f/8 and slower usually need nothing added. They were designed to have a flat focal plane to begin with, and stacking a flattener on one can actually introduce more problems through added spacing and reflections than it solves.
Modern flat-field astrographs at f/4 to f/5 running a 1.25-inch or small 1/1.8-inch sensor also tend not to need one. The small sensor sits close enough to the optical axis that residual curvature stays below the visibility threshold, and the fast focal ratio keeps ray angles manageable.
Visual-only users do not need a flattener at all. Your eye focuses adaptively across the field, so field curvature is effectively invisible, and most flatteners add length that makes an eyepiece setup awkward for no optical gain.
One more case: if you already own a reducer and want a wider field, adding a flattener for the same scope is often unnecessary. Many reducers have a mild flattening effect, and the marginal gain from stacking a second element is smaller than the cost in spacing complexity and reflections.
Frequently Asked Questions
Do I need a field flattener for my refractor?
You need one if you image with a slow focal ratio of f/7 or beyond, use an APS-C or full-frame sensor, or want to keep native focal length. You probably do not need one with a flat-field Petzval at f/8, a fast flat astrograph with a small sensor, or if you observe visually only, since your eye compensates for field curvature.
What does a field flattener actually do?
A field flattener adds a lens group to your refractor’s imaging train that generates field curvature opposite to the telescope’s own, cancelling it out. This turns a curved focal plane into an effectively flat one, so stars at the edges of a flat camera sensor stay as round pinpoints instead of stretching into comet shapes. It only works at the exact specified back focus distance from the sensor.
What is back focus and why does it matter so much?
Back focus is the distance from the rear of the flattener to the camera sensor along the optical axis. It matters because the flattener’s correction is only optimal within a narrow tolerance window, typically around 55mm plus or minus 2mm. Outside that window, field curvature returns and corner stars stretch. Most flattener complaints turn out to be spacing problems rather than optical faults.
Should I buy a dedicated or a universal field flattener?
Buy a dedicated unit whenever one exists for your telescope, because its radius of curvature is engineered against that specific scope’s field curvature. Universal flatteners average a compromise value across several focal ratios, so they work well on the scope they were tuned for and under-correct on others. Forum consensus treats a dedicated flattener as near-essential and universal units as a fallback.
Is a focal reducer the same thing as a field flattener?
No. A focal reducer shortens focal length and widens the field but does not flatten anything. A field flattener corrects curvature but leaves focal length unchanged. A reducer-flattener combines both jobs in one lens group. Confusing the two is the most common reason people buy a cheap reducer expecting flat corners and find them still stretched.
Why are my corner stars still oval after adding a flattener?
Work through the causes in order. Check back focus first, since wrong spacing causes most of these cases. Then confirm your sensor diagonal is smaller than the flattener’s imaging circle. Next check that the flattener is not decentered in the train, which gives one-sided stretching. Finally verify the telescope’s collimation and that you are inside the flattener’s focal ratio window.
For our picks, the best apochromatic refractor telescopes roundup covers the tubes most of these flatteners are designed around, and the dew shield guide handles the other half of keeping an imaging train stable through a night.
Final Verdict: Which Field Flattener Should You Buy
The SVBONY SV193 0.8X is our overall pick, with the deepest review history in the category and consistently round corner stars once the spacing is right. If you want a flattener that is not tied to one telescope brand, the Explore Scientific unit is the pick, and its published 55mm plus or minus 2mm tolerance is a genuine advantage over generic alternatives. For full-frame sensors where you refuse to shorten focal length, the SV209 1.0X gives you a 45mm imaging circle at native focal length.
Match the unit to your tube rather than the other way round. Owners of the SV503 102ED and the SV550 80ED should start with the SVBONY unit designed for their scope, Evolux 82ED owners should take the 0.9X which includes a rotator and filter cavity, and Evoguide 50 owners have essentially one correct answer in this roundup. For any other refractor, measure the back focus carefully before you order, and confirm the reference point in writing.
And if your stars are still stretched, check the spacing before you blame the optic. That one habit saves more money than any price comparison on this page. For more telescope accessory coverage, see our portable telescope reviews and travel telescope picks.
