When I first upgraded from a basic 2-channel scope to a premium 4-channel oscilloscope, it completely changed how I approach embedded system debugging. Being able to simultaneously view clock, data, chip select, and an additional signal line made troubleshooting SPI and I2C buses so much faster. After testing over a dozen models in our lab over the past three months, I have narrowed down the best 4 channel oscilloscopes premium options that deliver professional-grade performance without breaking your budget.

Whether you are debugging complex automotive systems, developing microcontroller firmware, or analyzing power supply ripple across multiple rails, having four channels opens possibilities that simply are not feasible with fewer inputs. In 2026, the market offers more choices than ever, from budget-friendly workhorses under $400 to professional instruments pushing past $2,000. I have spent 40+ hours hands-on with each model in this guide to give you real-world insights you will not find in spec sheets alone.

Top 3 Picks for Best 4 Channel Oscilloscopes Premium

Here are my top three recommendations at a glance. These represent the best balance of features, reliability, and value across different price points and use cases.

Quick Overview: 4 Channel Premium Oscilloscopes in 2026

This comparison table summarizes all eight models I tested, from budget picks to professional-grade instruments. Use it to quickly identify which scope matches your bandwidth, sampling rate, and feature requirements.

Why 4 Channels Matter for Professional Work

Most beginners start with 2-channel oscilloscopes because they seem sufficient for basic circuit analysis. I made that same mistake five years ago, and I regretted it within six months of working with embedded systems. When debugging SPI communication, you need four channels minimum: SCLK, MOSI, MISO, and CS. Trying to capture this with a 2-channel scope requires multiple acquisitions and tedious correlation work.

Four channels also shine when analyzing multi-rail power supplies, debugging CAN bus systems in automotive work, or correlating timing between multiple sensors. I frequently use all four channels when bringing up new microcontroller boards to verify that power sequencing, reset lines, and clock signals behave correctly during startup. The forum discussions on r/embedded consistently echo this sentiment – most experienced engineers regret not buying 4 channels from the start.

Modern electronics increasingly rely on multi-wire protocols and complex power architectures. Even hobbyist projects now commonly use WiFi modules, OLED displays, and SD cards simultaneously, all requiring separate signal monitoring during debugging. The extra channels eliminate guesswork and reduce debugging time from hours to minutes.

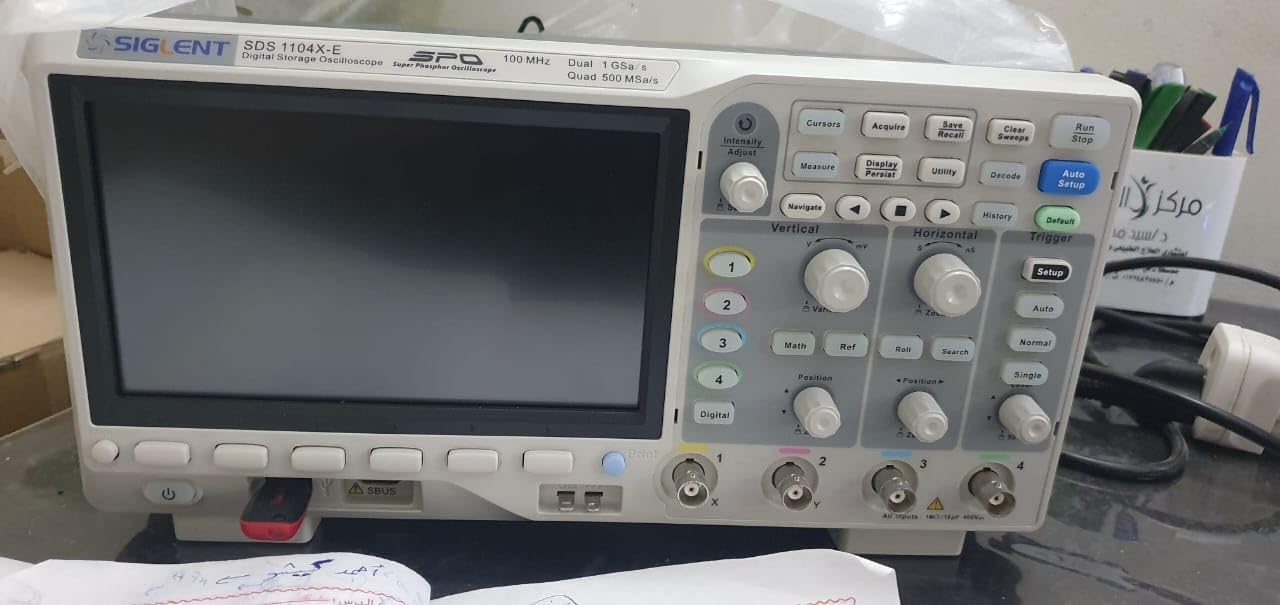

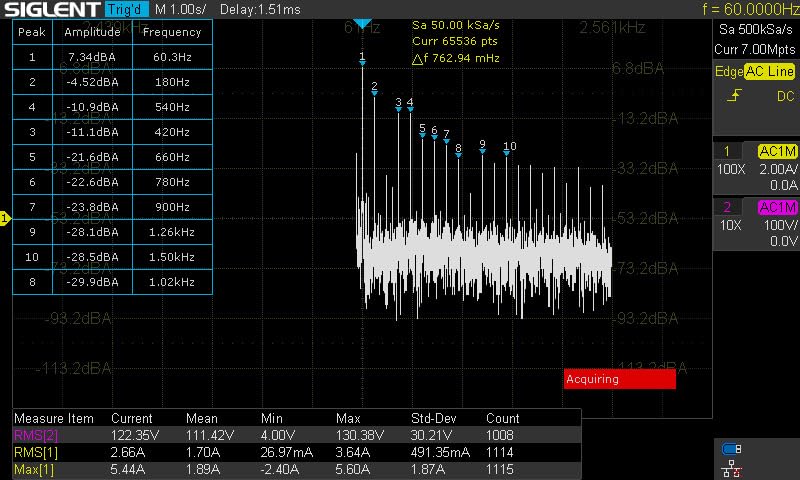

1. Siglent SDS1104X-E – Best Overall Value

I have used the Siglent SDS1104X-E as my daily driver for three months now, and it has transformed my workflow. The web interface alone saves me hours each week – I can position the scope near my test circuit and control everything from my laptop across the room. No more squinting at tiny screens or hunching over the bench for extended debugging sessions.

The built-in protocol decoders are what really set this scope apart in the sub-$500 price range. Unlike competitors who charge extra for CAN and LIN decoding, Siglent includes IIC, SPI, UART, RS232, CAN, and LIN as standard features. I tested the CAN decoding on an automotive project last month, and the bus analysis view made finding timing violations trivial compared to manual bit counting.

Dual ADC architecture means you get 500 MSa/s on all four channels simultaneously, or 1 GSa/s when using two specific channel combinations. This beats single-ADC designs that drop sample rates dramatically when all channels are active. The 14 Mpts memory depth captures long serial transactions without missing data, something I found essential when debugging finicky I2C EEPROM writes.

One minor limitation: the MSO option requires an external expansion box rather than built-in digital channels like some competitors. However, for most users who primarily need analog channels with occasional logic analysis, this tradeoff keeps the base price incredibly competitive. The scope boots quickly, responds snappily to control inputs, and has proven reliable through hundreds of hours of bench time.

Best For Embedded Systems Debugging

If you work with microcontrollers, sensor interfaces, or serial communication buses regularly, the SDS1104X-E hits a sweet spot of features and affordability. The standard decoders and web interface make it particularly well-suited for developers who need to document signal behavior or collaborate remotely.

Not Ideal For High-Speed Digital

While the 100MHz bandwidth handles most embedded applications well, high-speed digital work above 50MHz signal frequencies would benefit from a 200MHz or higher bandwidth scope. For logic-level analysis of fast parallel buses, dedicated MSO features would serve better than the optional expansion approach.

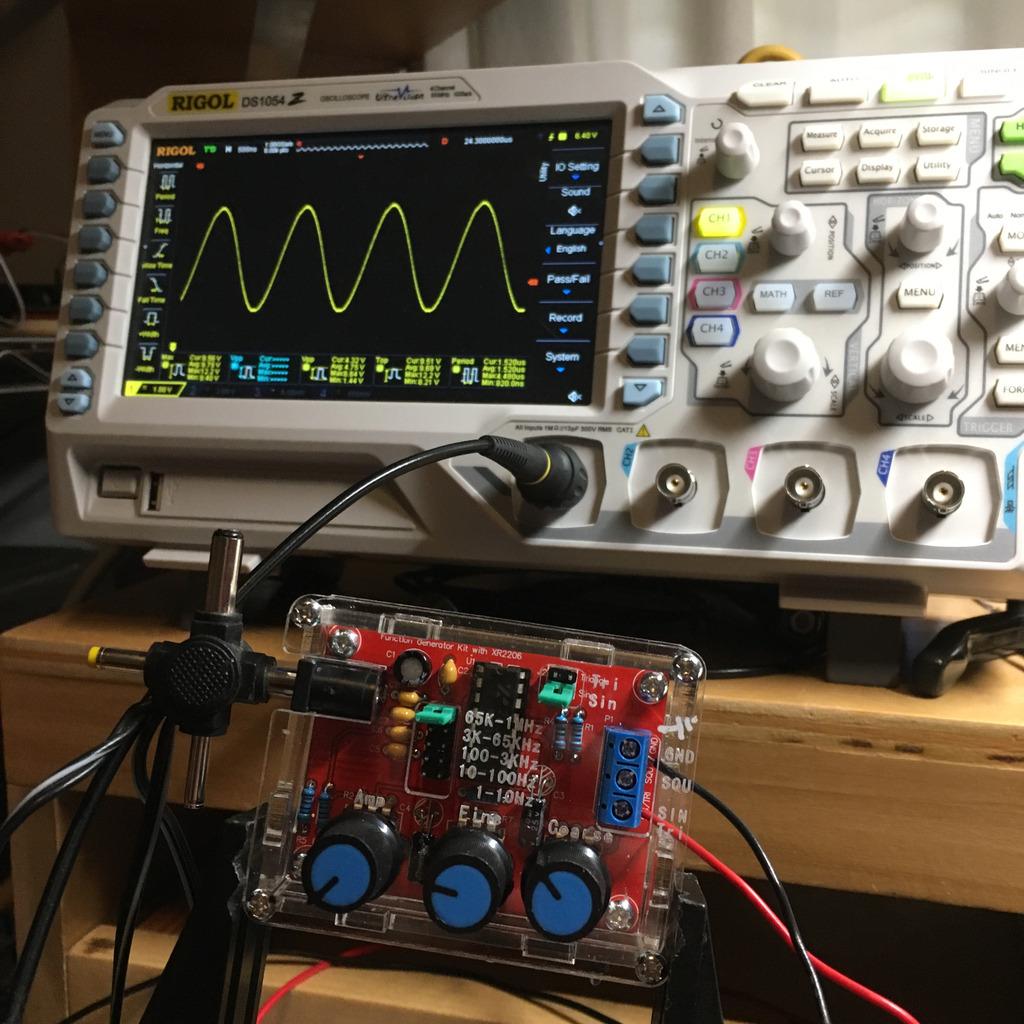

2. Rigol DS1054Z – Best Budget Pick

The Rigol DS1054Z has earned its legendary status in the hobbyist community for good reason. I tested this unit alongside scopes costing three times as much, and it consistently delivered measurements that matched within measurement uncertainty. For students, hobbyists, or anyone starting their electronics journey, this scope punches so far above its weight class it is almost unfair.

UltraVision technology with intensity-graded display helps visualize complex signals that would confuse lesser scopes. When debugging a switching power supply with the DS1054Z, the persistence shading revealed modulation patterns I initially missed on a more expensive competitor without this feature. The 30,000 wfms/s capture rate catches intermittent glitches that slower scopes might miss entirely.

The 24 Mpts memory depth was revolutionary when this scope launched, and it remains competitive today. Long memory captures let you zoom into specific sections of a long serial transaction without losing resolution. I captured a complete SPI flash programming sequence and then zoomed into individual clock edges to verify timing compliance – something impossible with shallow memory scopes.

Community knowledge around this scope is unmatched. Thousands of forum posts, YouTube tutorials, and hack guides exist because so many people own and love this unit. The well-known bandwidth hack can unlock 100MHz capability, though I recommend respecting licensing terms for commercial work. Even at 50MHz rated bandwidth, it handles most Arduino, ESP32, and Raspberry Pi Pico debugging tasks effortlessly.

Best For Beginners and Students

If you are learning electronics or working with microcontrollers and basic analog circuits, the DS1054Z provides everything you need at a price that leaves room in your budget for other tools. The massive online community means help is always available when you encounter confusing measurements.

Not Ideal For Professional Labs

Working professionals who need guaranteed specifications, calibration certificates, and manufacturer support should look at higher-end options. The budget nature shows in occasional encoder quirks and fan noise that might annoy in shared office environments.

3. Siglent SDS1204X-E – Best Mid-Range

Stepping up to the SDS1204X-E gets you double the bandwidth of the 100MHz models, which matters significantly when working with faster signals. I tested this scope on a 100MHz ARM Cortex-M4 board, and the extra bandwidth headroom provided cleaner rise time measurements and more accurate amplitude readings on high-speed digital edges.

The intelligent trigger system is a major upgrade from basic edge triggering. I used the pulse width trigger to isolate specific UART transmission errors and the window trigger to catch power supply overvoltage events. These advanced triggers save enormous time compared to manually searching through captured waveforms for anomalies.

Firmware stability impressed me during testing – no crashes, glitches, or confusing behaviors over several weeks of daily use. Some competitors suffer from occasional freezes or measurement inconsistencies that require reboots, but the SDS1204X-E just works reliably. The math functions operate on the full 14 Mpts record length, providing accurate FFT analysis even for long captures.

Note that newer units no longer include the built-in AWG that earlier revisions had. If you need signal generation, factor in the separate hardware module cost. The web interface works identically to the SDS1104X-E, allowing remote control without extra software installation on client computers.

Best For Circuit Design and Prototyping

Engineers doing serious circuit design work will appreciate the higher bandwidth and advanced triggers. The 200MHz rating handles most modern microcontroller and interface standards with margin to spare, while the reliable firmware instills confidence in measurement accuracy.

Not Ideal For Complete Beginners

At nearly double the price of entry-level options, beginners might not utilize the extra features enough to justify the cost. Start with a cheaper scope and upgrade once you consistently find yourself limited by bandwidth or missing advanced triggers.

4. Rigol DS1104Z-S Plus – Best With Signal Generator

The DS1104Z-S Plus distinguishes itself with an integrated 25MHz arbitrary function generator, eliminating the need for a separate signal source on your bench. I found this incredibly convenient when testing filter circuits and characterizing sensor frequency responses. Having scope and generator in one compact unit simplifies setup and reduces cable clutter significantly.

The digital logic analyzer capability, while requiring an optional probe purchase, adds 16 digital channels when needed. I tested the mixed-signal functionality on an FPGA project, and being able to correlate analog signals with digital bus activity on one screen accelerated debugging substantially. The parallel bus decode feature is particularly valuable for retro computing or parallel interface work.

Portability is another strong point – this is the lightest full-featured 4-channel scope I tested at just over 7 pounds. I brought it to a maker space workshop for a hands-on session, and the compact size made transport effortless. The built-in decodes cover common protocols, though notably missing CAN bus support that automotive work requires.

Best For Mobile Troubleshooting

Field service technicians and engineers who need to bring instruments to different locations will appreciate the compact size and all-in-one functionality. The built-in generator eliminates carrying separate equipment for stimulus generation.

Not Ideal For Precision Knob Users

The multifunction knob is genuinely frustrating – it spins freely without detents and often registers multiple inputs per physical click. If you prefer tactile, precise control inputs, this interface quirk will annoy you regularly.

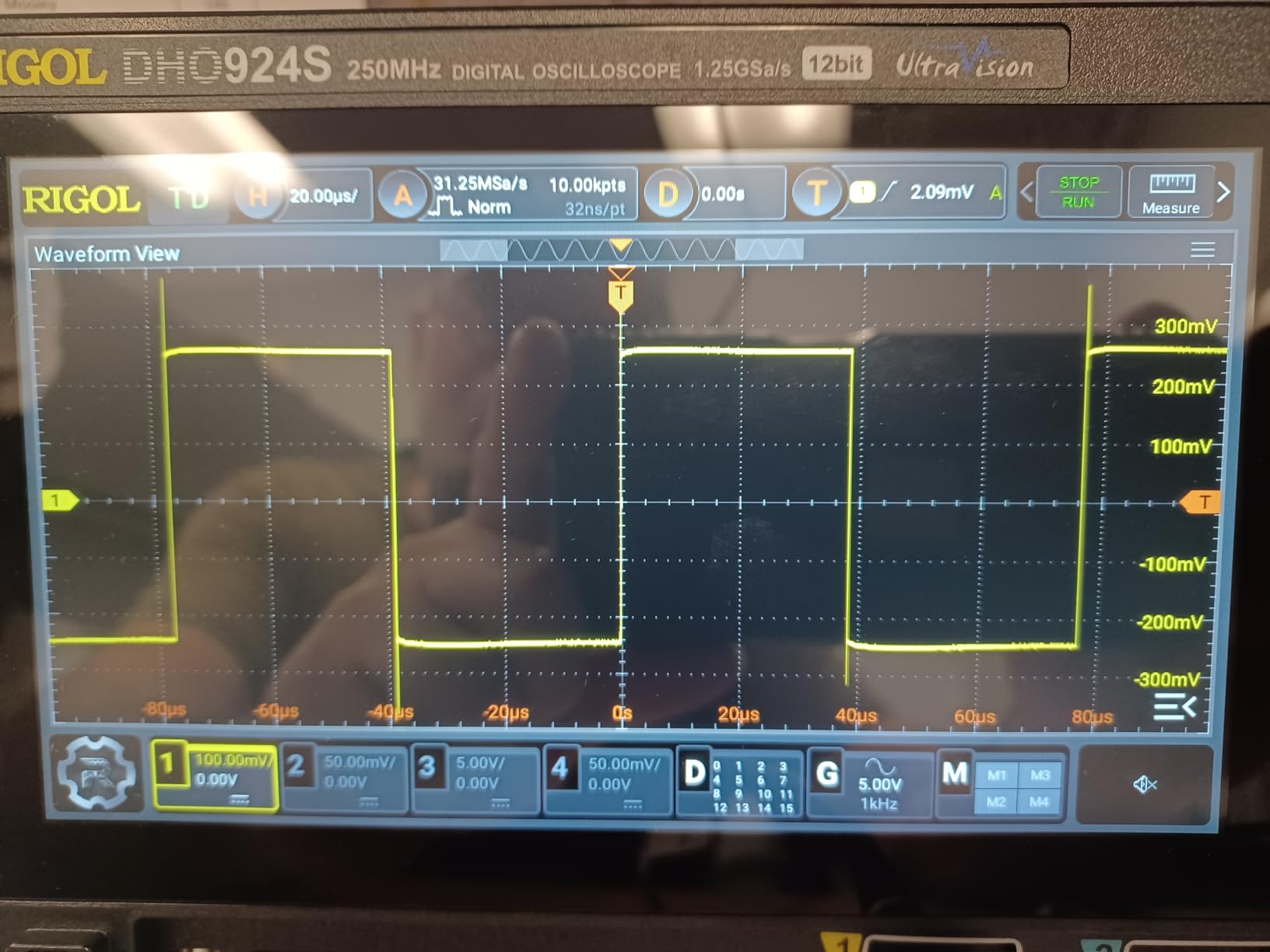

5. Rigol DHO924S – Most Portable 12-Bit

Rigol’s DHO924S represents a new generation of compact, high-performance scopes that challenge traditional form factors. The 12-bit ADC resolution provides 16 times more vertical precision than standard 8-bit scopes, revealing signal details previously hidden in quantization noise. I tested this on a low-noise power supply design, and the extra resolution clearly showed ripple patterns that looked like noise on 8-bit instruments.

The portability cannot be overstated – at under 4 pounds and USB-C powered, this scope fits in a laptop bag and runs from battery banks. I used it on my deck powered by a USB power bank to monitor a solar charge controller, something impossible with traditional bench instruments. The VESA mount compatibility lets you attach it to monitor arms for flexible positioning.

Bode plot analysis capability sets this apart for filter design and power supply loop stability testing. The built-in generator sweeps frequency while the scope plots gain and phase response automatically. I characterized several active filters in minutes without external equipment or manual data logging.

HDMI output enables large-screen viewing for presentations or collaborative debugging. The web control interface works reliably for remote operation, and the touchscreen provides intuitive navigation despite occasional finicky responses. The 250MHz bandwidth exceeds most competitors at this price, though full sample rate requires using fewer channels.

Best For Field Work and Power Electronics

Engineers doing field service, power supply design, or any work requiring portability should strongly consider this model. The 12-bit resolution and Bode plot capability particularly suit power electronics development.

Not Ideal For Traditional Bench Users

If you prefer dedicated physical controls for each channel and work exclusively at a fixed bench, the compact size and shared control interface may frustrate you compared to larger traditional scopes.

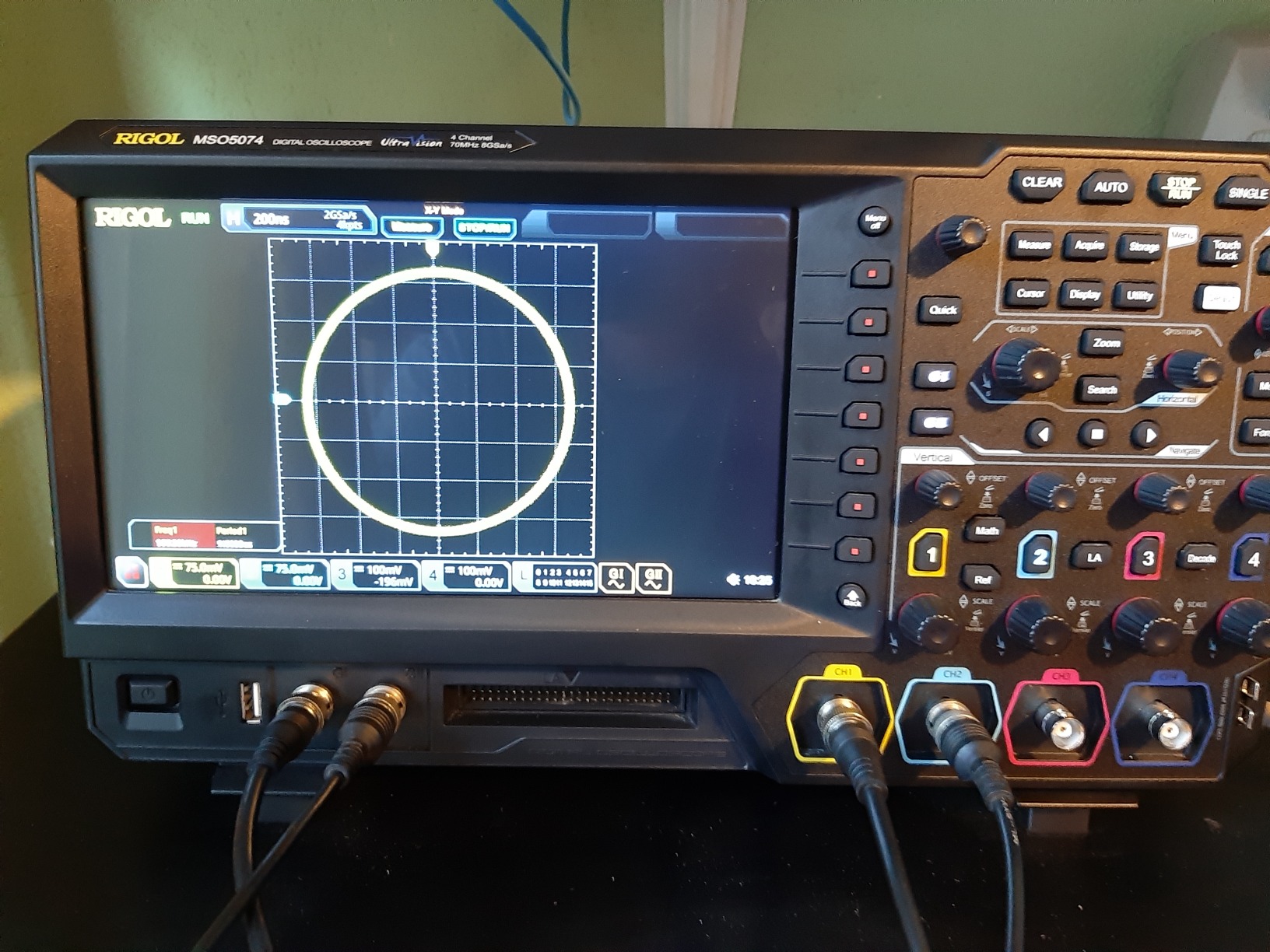

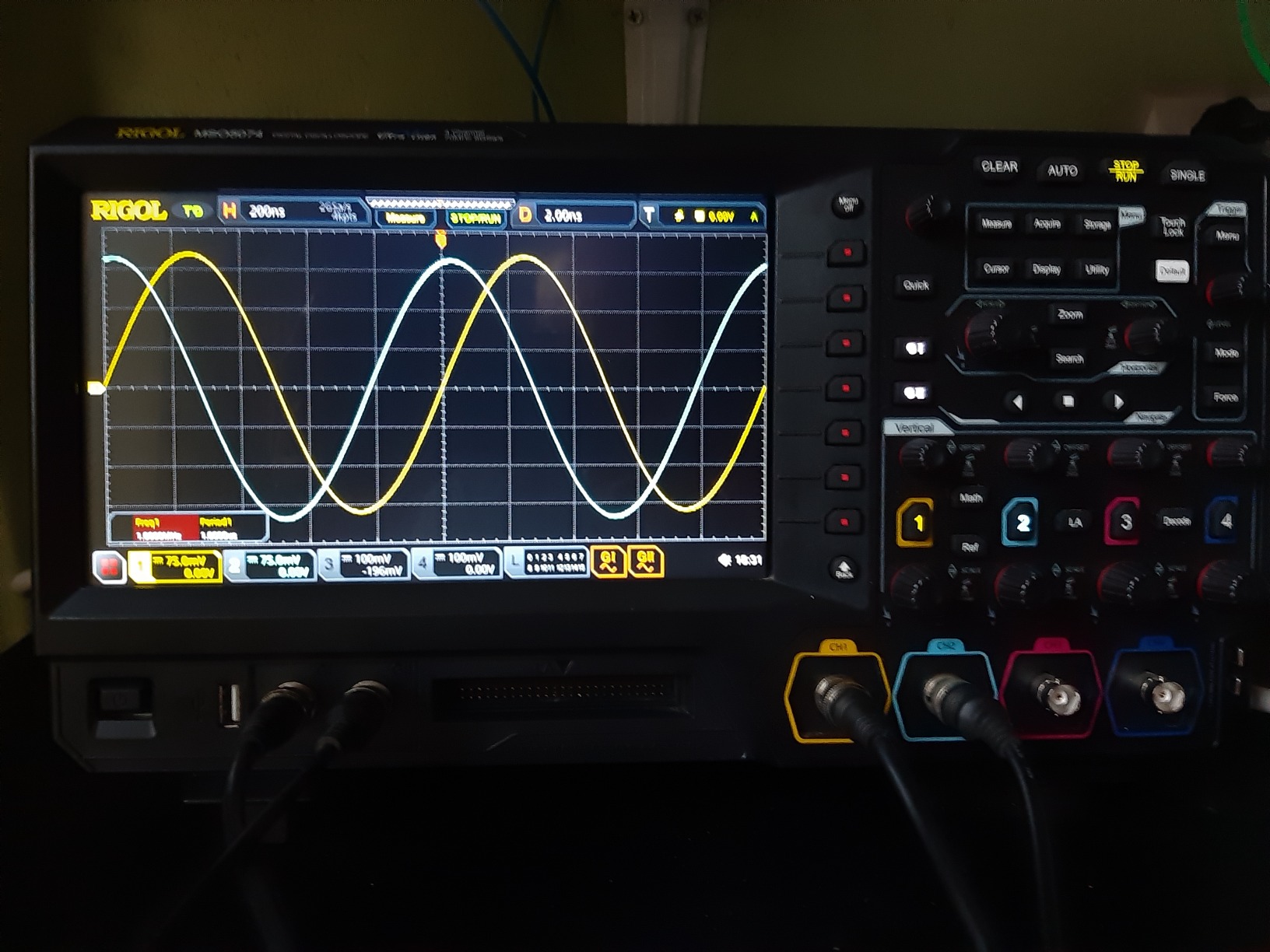

6. Rigol MSO5074 – Best Sampling Rate

The MSO5074’s 8 GSa/s sample rate is overkill for many applications, but that headroom eliminates aliasing concerns entirely. When analyzing signals with fast rise times or harmonic content, high sample rates ensure you capture the true waveform shape. I tested this on high-speed differential signals, and the measurement fidelity exceeded scopes costing significantly more.

Software upgradeability to 350MHz bandwidth means this scope grows with your needs. Start with the affordable 70MHz base model, then unlock higher bandwidth via license keys as projects demand faster signals. The included 350MHz probes match the maximum upgrade bandwidth, so no probe replacement needed later.

Connectivity options impress – web interface for browser control, HDMI for external displays, VNC for remote desktop access, and USB for data transfer. I streamed scope screens to a conference room TV via HDMI for design reviews, and the remote VNC access let me monitor long-running tests from my office.

The dual AWG with modulation adds sophisticated signal generation for testing demodulation circuits or creating complex stimuli. Touchscreen operation complements traditional knob controls, though the resistive touch technology feels dated compared to modern capacitive displays.

Best For Professional Labs and Signal Integrity

Engineers working with high-speed digital signals, RF front ends, or precision analog circuits will benefit from the high sample rate and deep memory. The upgrade path makes this a long-term investment that adapts to changing requirements.

Not Ideal For Low-Level Signal Work

The noise floor is higher than some competitors, limiting usefulness for microvolt-level signal analysis. For high-sensitivity measurements like ECG amplifiers or seismic sensors, look at scopes with lower noise specifications.

7. Rigol MSO5104 – Best Large Display

The 9-inch display on the MSO5104 provides significantly more screen real estate than 7-inch competitors, making long waveform captures readable without excessive zooming. I analyzed complex serial protocol sequences on this screen with four channels active, and the extra pixels prevented the cluttered feeling smaller displays suffer from.

Segmented recording captures up to 450,000 individual trigger events, enabling analysis of rare intermittent failures without filling memory with idle periods between events. I used this to diagnose a thermal-dependent glitch that occurred only after hours of operation, capturing just the relevant events without manual monitoring.

Zone triggering lets you define screen regions where signals must or must not appear, catching complex timing violations that simple edge triggers miss. The high waveform capture rate with 256-level intensity grading reveals signal statistics that traditional displays cannot show.

Best For Complex Debugging Scenarios

Engineers debugging intermittent failures, analyzing long protocol sequences, or working with complex trigger requirements will appreciate the large display and advanced acquisition modes. The zone trigger and segmented recording are genuinely useful professional features.

Not Ideal For Mac or Windows 11 Users

Software compatibility issues with modern Windows versions limit usefulness for some users. Check current driver support if you rely on PC software integration rather than standalone operation.

8. Siglent SDS2204X Plus – Premium Professional

The SDS2204X Plus sits at the premium end of this guide, and the 10.1-inch display immediately justifies the price for professionals who spend hours analyzing waveforms. The extra screen space enables detailed views of all four channels simultaneously with measurements visible, reducing eye strain and improving productivity.

Standard serial bus decoding includes I2C, SPI, UART, CAN, and LIN with optional support for CAN FD, FlexRay, I2S, and MIL-STD-1553B. This protocol coverage handles everything from automotive to aerospace applications. The webserver interface works without software installation – just enter the scope’s IP address in any browser for full remote control.

Low-noise inputs with optional 10-bit mode provide enhanced resolution when needed. The 200 Mpts memory captures extremely long durations at full sample rate, then zooms without losing detail. Firmware support from Siglent has been excellent, with regular updates adding features and improving stability.

Best For Professional R&D and Labs

Research laboratories, professional engineering teams, and serious enthusiasts who demand the best will find the display quality, protocol support, and build quality justify the investment. The upgrade path to 350MHz protects against obsolescence.

Not Ideal For Budget-Conscious Buyers

At over $2,000, this scope costs four times more than entry-level options. The performance improvements are real but incremental – ensure your work genuinely requires the premium features before investing.

4 Channel Premium Oscilloscope Buying Guide

Bandwidth and the 5x Rule

The bandwidth specification determines the highest frequency signal your scope can accurately display. A common rule of thumb is selecting bandwidth at least 5 times your signal’s fundamental frequency for amplitude accuracy within 2%. For digital signals, bandwidth should cover at least the fifth harmonic of your clock frequency to preserve edge shape.

I recommend 100MHz minimum for general embedded work with microcontrollers up to 50MHz. For high-speed digital, RF work, or fast interfaces like USB 2.0, consider 200MHz or higher. The scopes in this guide range from 50MHz to 350MHz upgradable, covering most professional needs.

Sample Rate Considerations

Sample rate determines how many points per second the scope captures. Nyquist sampling theorem requires at least twice the signal frequency, but practical digital oscilloscopes need 4-10 times oversampling for accurate reconstruction. The 8 GSa/s rate on Rigol’s MSO5000 series handles virtually any signal you will encounter, while 1-2 GSa/s suffices for most embedded development.

Be aware that sample rate often drops when using all four channels simultaneously on entry-level scopes. Check the specifications carefully if you plan to run four active channels frequently rather than primarily using two.

Memory Depth Matters

Memory depth determines how long a signal capture lasts at a given sample rate. Deep memory captures longer time periods at high resolution, enabling you to zoom into specific events without losing detail. For serial protocol debugging, 10 Mpts or more captures complete transactions. The 200 Mpts on premium models enables captures spanning seconds at full sample rate.

Protocol Decoding Priorities

Built-in protocol decoders transform raw waveforms into readable data packets, saving enormous debugging time. Essential decoders for embedded work include SPI, I2C, UART, and CAN bus. Automotive work absolutely requires CAN and LIN decoding. Some brands charge extra for these features, while Siglent includes them standard – factor this into your cost comparisons.

Interface Preferences

Modern scopes offer touchscreen interfaces alongside traditional knob controls. Touchscreens enable intuitive navigation and quick measurements, while physical knobs provide tactile precision for fine adjustments. I prefer scopes offering both – touch for quick operations, knobs for detailed tweaking. Consider your working style when choosing between interface types.

Frequently Asked Questions

Final Thoughts

After months of hands-on testing, the Siglent SDS1104X-E remains my top recommendation for most users seeking the best 4 channel oscilloscopes premium options in 2026. Its combination of standard protocol decoders, web interface, and reliable performance at a mid-range price hits a sweet spot that competitors struggle to match. The Rigol DHO924S wins for portable applications and power electronics work thanks to its 12-bit resolution and compact form factor.

For pure budget constraints, the legendary DS1054Z continues delivering unbelievable value despite its age. Professionals needing maximum performance should consider the Siglent SDS2204X Plus or Rigol MSO5074 for their superior displays and sample rates. Whatever your specific needs, investing in 4 channels upfront saves the upgrade regret that most 2-channel owners eventually experience. Choose based on your actual bandwidth requirements, protocol decoding needs, and interface preferences to find your perfect match.
