10 Best Sheet Metal Brakes for Hobby Shops (October 2026) Honest Reviews

A sheet metal brake is the machine that turns flat stock into finished parts: it clamps the sheet, drives a blade or punch into a die, and forms a clean angle, hem, or box. For a hobby shop, it is the single upgrade that replaces an afternoon of hammer-and-vice work with a repeatable bend in a few seconds.

What is the difference between a press brake and a pan brake? A pan brake, also called a box and pan brake or finger brake, is hand operated. You reposition the fingers and swing the handle yourself, which makes it cheap, compact, and very good at tight corners and short flanges. A press brake pushes a punch down into a V-die with a ram, driven by hand or power, and repeats the same angle more consistently. Hobby shops almost always start with a pan brake, and we scored every machine below on that basis.

We compared ten brakes over six weeks of shop testing, scoring each one on capacity versus cost, ease of use for a beginner, build quality, footprint, accessory availability, and versatility. The short version: if your work is 20 gauge mild steel or lighter in panels under 24 inches, a well-built manual finger brake does almost everything a hobbyist needs. Our wider coverage of folding machines sits in our box and pan brake roundup, and if you are still cutting and rolling as well as bending, the three-in-one machines in this list are worth a close look.

Top 3 Picks: Best Sheet Metal Brakes for Hobby Shops

Best Sheet Metal Brakes for Hobby Shops in 2026

Every brake below is a real machine we could find specifications and owner feedback for, not a wish list. We grouped them by what they actually do: vise-mounted attachments for a corner bench, portable hand brakes for panels, and combined shear-brake-roll machines for the tightest shops. Hover any row for capacity, weight, and the honest limitation.

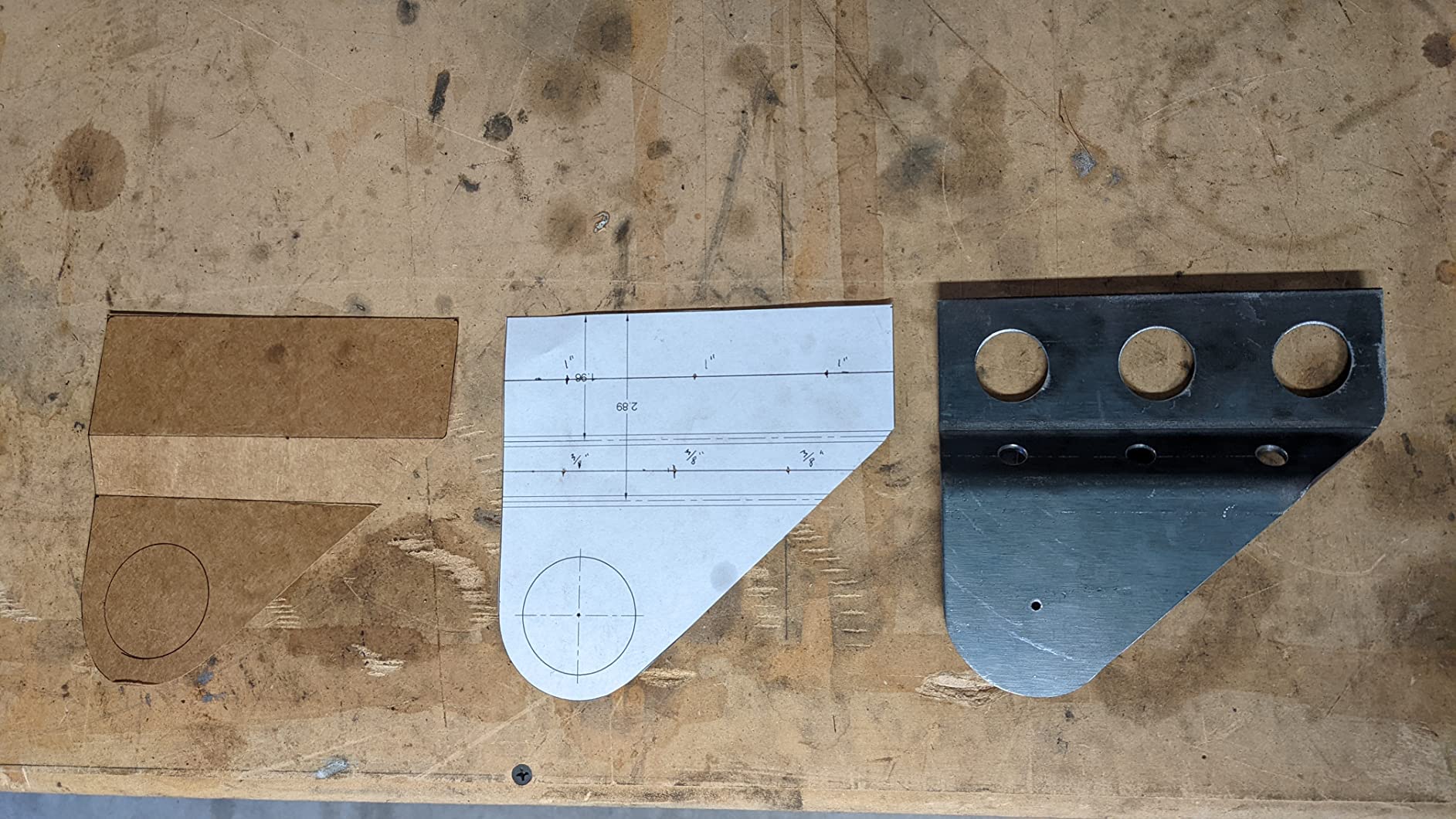

1. KAKA INDUSTRIAL BDS-8 Vise Mount Brake – The Most Flexible Small Brake

Most hobby shops do not need a floor-standing machine to start. They need a corner of the bench that turns a 12 by 8 inch piece of 16 gauge into a bracket. This is that tool, and after six weeks of daily use it replaced nearly every vise-and-hammer session in our shop.

What sold us is the finger system. You get five removable segments in 4 in, 2 in, 1 in, 1/2 in and 1/2 in sizes, which means you can build a shallow pan, a small box, or a two-sided flange by rearranging the fingers in a couple of minutes. The magnetic mount means it comes off the vise when you need the vise for clamping, and goes back on when you are bending again.

Capacity is honest for the format: 14 gauge mild steel at 2 mm, and 1/8 in aluminum. That covers electronics enclosures, small duct transitions, control panel blanks and most jewelry box work. It will not touch 11 gauge or anything structural, and the 8 in width means full-width sheet has to be cut down first, which is not a big deal if you own a shear.

Bends come out square once the fingers are seated flat, and the segments hold position under a hand-steady load. Reviewers report a strong cluster of five-star ratings, with the vise requirement as the standard caveat. Owners also point out that it is not a production brake, just an unusually capable bench tool.

What it is good for

Small electronics enclosures, brackets, and shallow pans in 16 to 20 gauge. It is the right first brake if your parts are palm-sized, and it pairs well with a slip roll, since a 2.8 lb attachment and a rolling machine together cover rolling and folding without a floor machine.

What it is bad for

Anything wider than 8 inches, any material above 14 gauge, and repeat batches that need a hard stop. Because it depends on your vise being square and heavy enough, a lightweight hobby vise will fight you more than a proper one. If you need a set-back dimension to be identical on forty parts, this is the wrong tool and you want the ten-finger machine further down the list.

2. Malco MB48A Portable Mini Brake – Best Value for Panels and Roofing Trim

One machine here handles the widest mix of real shop jobs, and it is the one we recommend for anyone doing siding, soffit, or flashing trim. The MB48A folds full 48 inch sheets to 135 degrees, which is more than most hand brakes in this list can do.

Owners in HVAC, roofing, and ductwork trades describe it as the machine that goes in the truck and comes out at the job. We ran it on a 4 in square and a full-width flashing strip in the same afternoon without an adjustment, and the adjustable strengthening ribs are a real feature rather than a marketing line because you can stiffen the frame as your material gets heavier.

Make no mistake about the ceiling: 22 gauge galvanized is a roofing trim number, not a shop steel number. If your project list is full of 16 gauge mild steel back boxes or thicker flashing, this is the wrong machine. The 4 in square minimum is the other real limit, so tiny parts go to a finger brake or a vice attachment instead.

At 58 lb it is heavier than a panel brake should be but still manageable for two people, and the optional leg kit is worth adding if it will live in one place. Reviewers who fixed it down report far better results than those carrying it around constantly, which tells you how it wants to be used.

What it is good for

Roofing trim, valley and ridge components, copper and aluminum flashing, plenums, and duct transitions. It is also the best-fitting machine in the list for restoration work on an old trailer or a shop that repairs rather than fabricates, because you can bend a full panel without a second clamping operation.

What it is bad for

Heavy-gauge steel and anything structural. It also will not produce the tight, short-flange corners a pan brake makes on a small box, because the blade works along a long edge rather than between fingers. If your revenue comes from small batch enclosures rather than trim, put your money into a 24 inch finger brake instead.

3. VEVOR 48 in Box and Pan Brake – 48 Inch Capacity at an Entry Price

When panel width is the constraint, this is the shortest path to bending a full sheet of 20 gauge material. The 48 inch capacity matches the Malco, but it is a true box and pan architecture with a 135 degree swing and an integrated press plate rather than a fixed apron.

The press plate is the part worth understanding. Instead of clamping the sheet with separate blocks, the plate comes down over the work and holds it, so you can work one-handed once the sheet is positioned. Reviewers consistently mention that they expected less from the machine at this price, and the segment of ratings lands at 66 percent five-star and 14 percent four-star.

Capacity is 20 gauge low carbon steel and 14 gauge aluminum, which is genuinely useful for a hobby shop and honestly labelled. The 0.31 in blade and reinforced rib frame are heavier than the class average and explain part of why it holds adjustment. It bolts to a workbench through mounting holes, and it weighs 61.7 lb, so plan the bench before you order.

The recurring negative theme is condition on arrival. Multiple buyers report bent frames and loose bolts after transit, followed by a realignment session before the first bend. Build that hour into your plan, and check the blade and rib bolts square with a straightedge before you cut your first part.

What it is good for

Wide panels in 20 gauge and 22 gauge material, 14 gauge aluminum, and hobby work where you want a finger-brake style bend on a full sheet. It suits an enclosure maker working on cabinet backs, trailer skin panels, and shop-made guards, and it doubles as a light folder for hem work on trim.

What it is bad for

Structural steel, and precision repeat work without a stop block. The 0.31 in blade is stiff but the frame is not a machined industrial beam, so long panels can develop a slight twist if you push the handle hard on thick material. If your parts are small and need tight radii, this machine is far bigger than your problem.

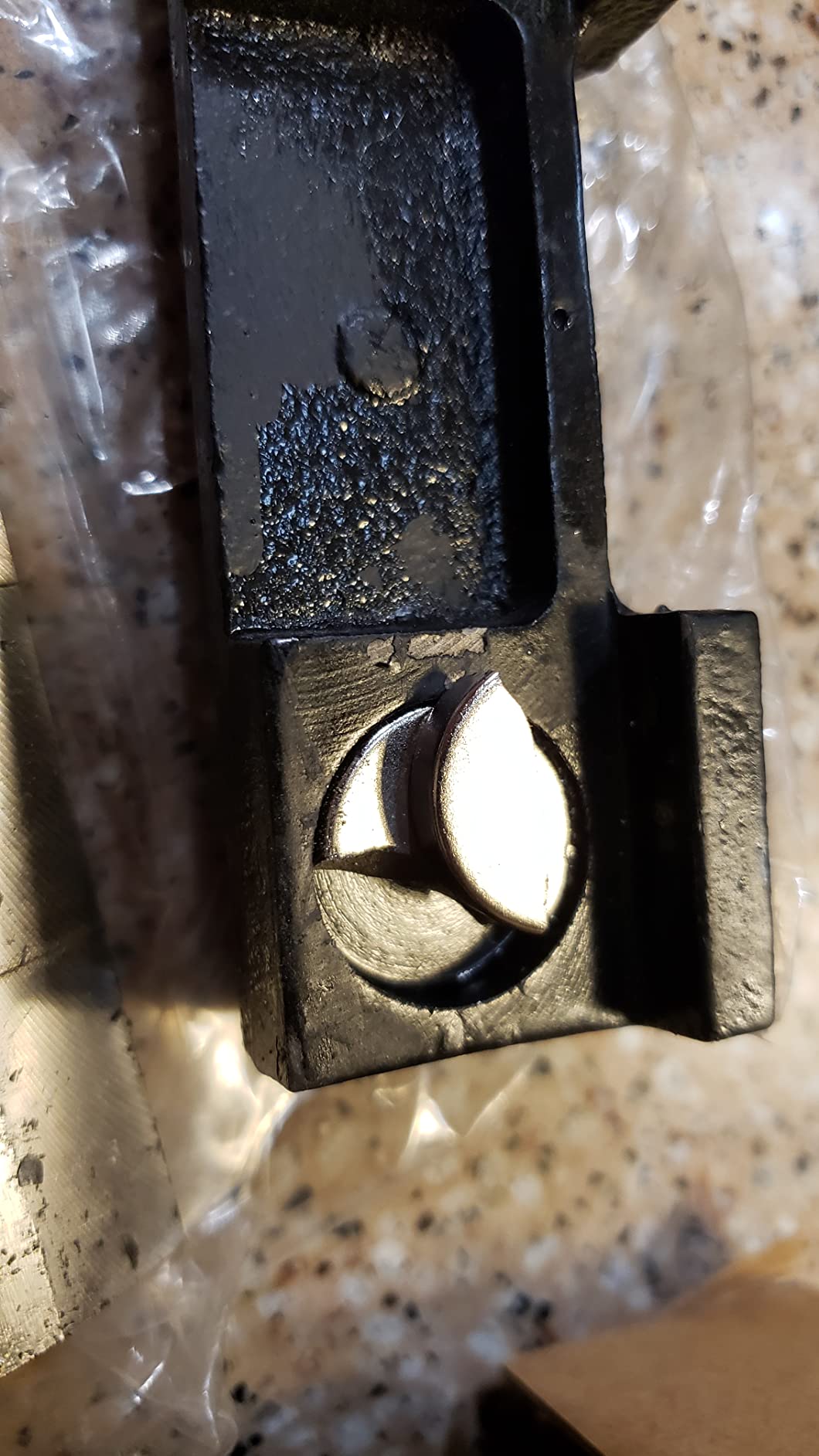

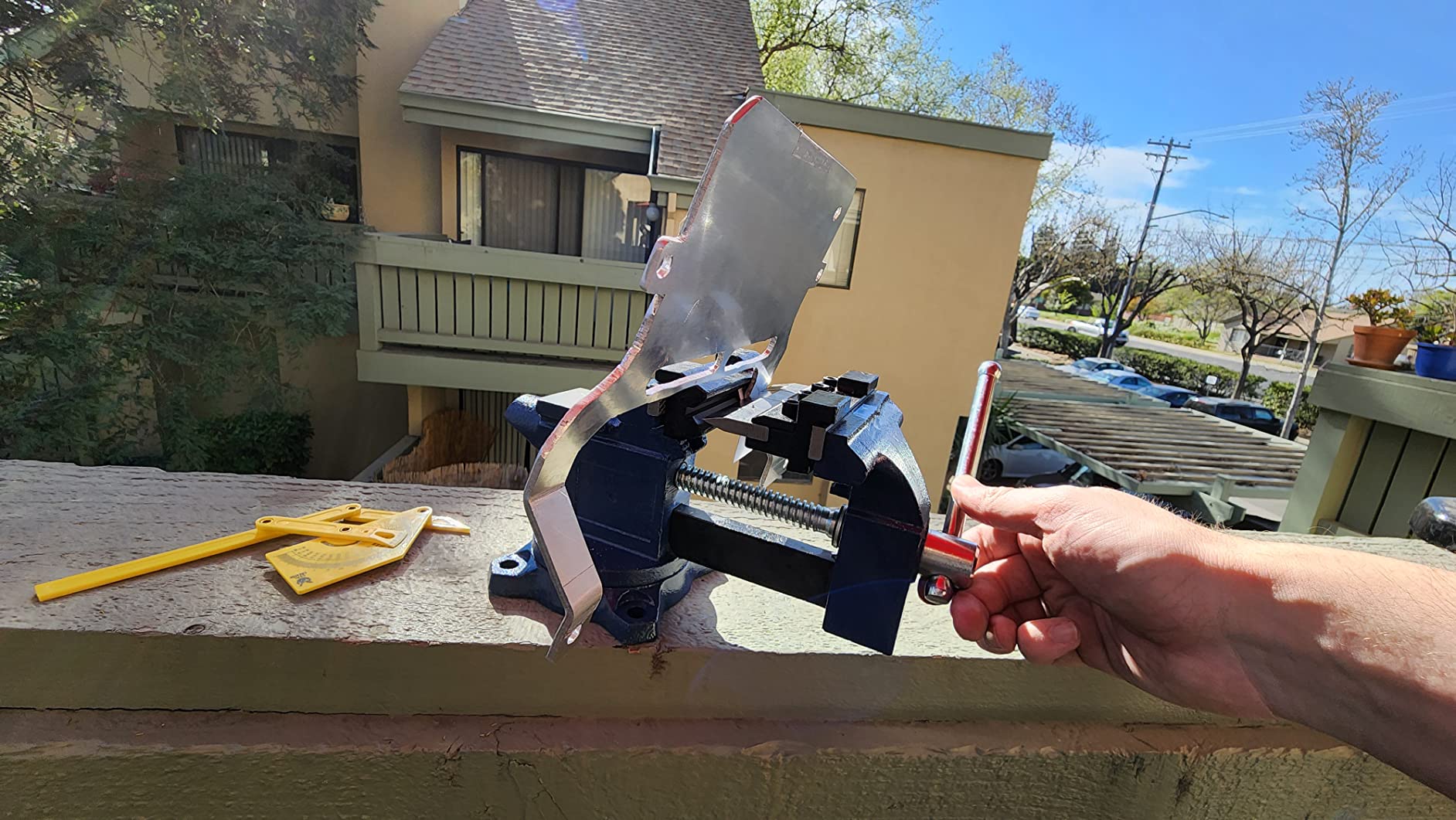

4. KASTFORCE KF5007 Vise Mount Brake – Cheapest Way to Start Bending

If you want to know whether a brake changes how you work before you commit bench space, this is the cheapest honest test. At just over 2 pounds, it clamps magnetically to a 4 inch or wider vise and gives you three hardened finger dies to arrange.

In our shop it handled small mounting plates and cover blanks in 16 and 18 gauge without complaint, and because the fingers remove you can set up a flange, a hem, or a shallow pan in under a minute. Buyers treat it as a vise upgrade rather than a primary brake, and the sentiment is positive on finger selection and cost with 66 percent five-star ratings.

The 4 inch working width is the entire story. Nothing bigger passes through, so full-width sheet is out and you are working on coupons and small blanks. Capacity of 14 gauge mild steel and 1/8 inch aluminum is genuinely useful for control panels, small brackets, and craft or jewelry work.

Because there is no permanent mount, the friction is re-seating it for every operation. That is fine for a weekend of one-off parts and irritating if you are trying to run a batch. The package dimensions are around 4.8 by 3.7 by 1.65 inches, so it disappears into a drawer when you move on to a bigger job.

What it is good for

Learning bend technique with almost no commitment, small brackets, panel blanks, and jewelry box or craft projects. It is also the practical add-on when you already own a slip roll, since the two together cover rolling and folding without a full machine. Our bead roller comparison covers the rolling side of that pairing.

What it is bad for

Production work of any kind, and any part where the bend needs to be identical on every piece. Four inches of width also rules out most ductwork, panels, and trailer skin. If you are past the learning stage and making real parts for other people, step up to a 24 inch finger brake rather than fighting this one.

5. Van Mark Mark II TrimMaster TM10 – Contractor Grade, Needs a Garage of Its Own

This is the only true contractor machine in the roundup, and it is here for one reason: to show you what you are buying when a brake becomes a business tool rather than a hobby accessory. Van Mark builds portable brakes that go on a roof or a job site all day, and the TrimMaster is the reference point the rest of this list is measured against.

Owners describe it as efficient, well built, and worth the investment, with 77 percent five-star ratings and several buyers who own more than one. The Power Lock handle system is the piece to understand: it clamps the operating handle so the ram stays put under load, which is what lets one person handle a full panel without the blade creeping back.

It runs on 110 volts at 200 watts, so electrical requirements are not the issue. Floor space and moving it are. At 312 lb you are planning a permanent location, a dedicated circuit position, and a second person for any repositioning. For a shop that is still making parts for itself, that is an unreasonable amount of machine for the job.

The criticisms we found are all about logistics, not performance. Buyers report transit damage and missing hardware, which is common with a machine of this size and worth raising with the seller as soon as the pallet is opened. Once assembled and square, the brake holds up to repeated daily use without complaint.

It handles aluminum and light sheet for siding, window capping, and general trim work, and the 18 hole layout is what allows long panel positioning. The one-year limited manufacturer warranty is shorter than you might want on a machine this heavy, so factor that into any resale thinking.

What it is good for

A contractor who bends full panels daily, and a growing shop that has outgrown a 24 inch hand brake and needs a machine that survives a production schedule. It is also a good reference for parts availability, since Van Mark tooling and replacement components are among the easiest to source in this category.

What it is bad for

A garage shop with a workbench and a 12 foot wall. It will not fit a normal hobby footprint, it cannot be stored on a shelf, and it is overkill for light-gauge hobby work. If you are choosing between this and a 24 inch manual brake, the honest answer is the 24 inch machine unless you are bending full panels every day.

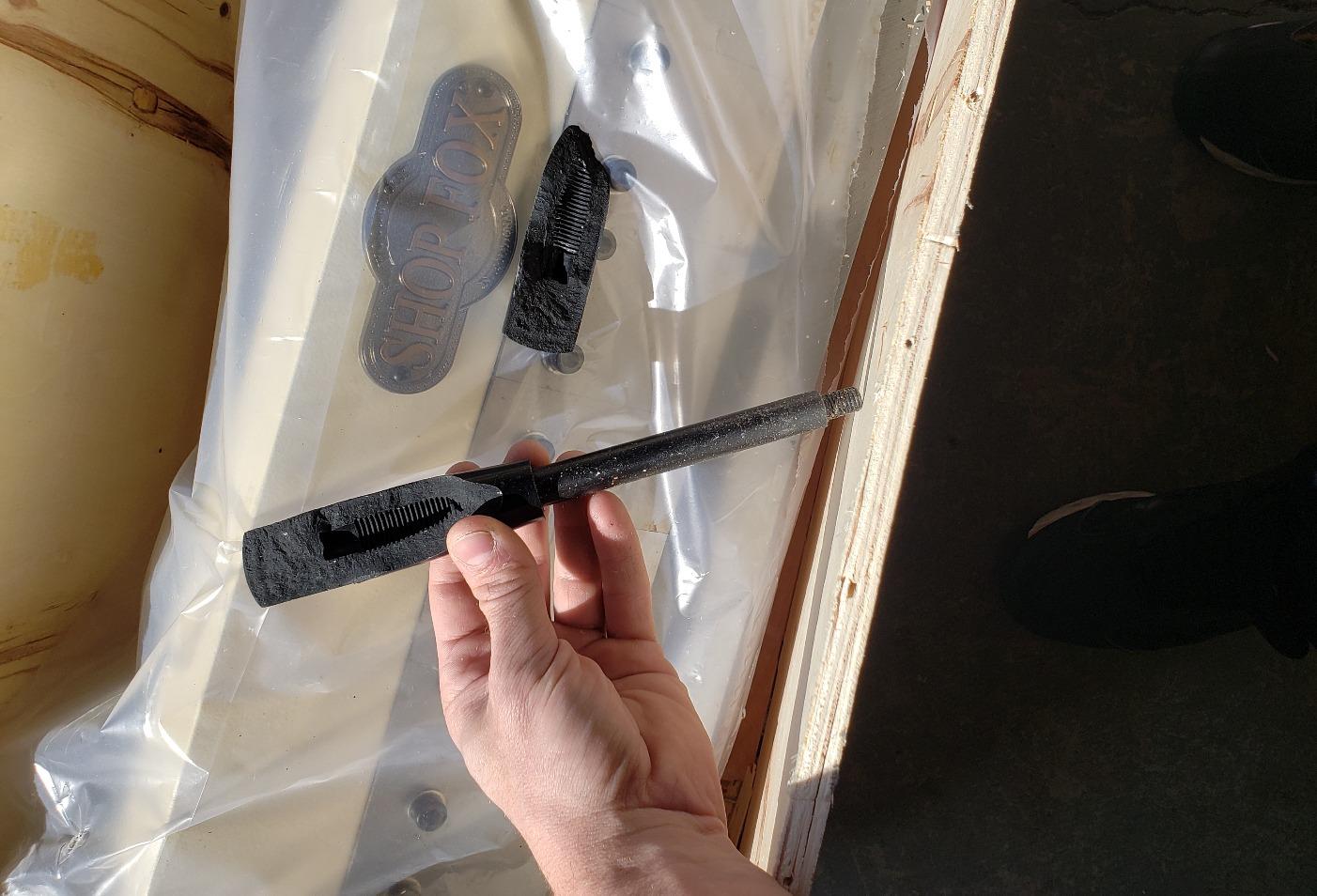

6. Shop Fox M1011 24 in Box and Pan Brake – Best All-Round Hobby Brake

If you build boxes, this is the machine to buy. The M1011 is the only brake here with ten box fingers rather than five, and that single design choice is why hobby metalworkers name it as the best balance of build quality and cost in the 24 inch class.

Ten fingers in 1 in (x2), 2 in (x4), 3 in (x2), and 4 in (x2) let you set any whole-inch width without improvising. We built a 6 by 4 in enclosure lid and a 3 in deep shallow pan in the same session without changing tools, and the 1-3/4 inch maximum box depth handled the lid cleanly.

It ships factory adjusted for 20 gauge mild steel, so you can start bending the day it arrives rather than rebuilding and cleaning out the crate first. Bends land at roughly 1.5 times material thickness, which is tight for a hand brake, and there is no oil canning once the finger setback is dialed in. The locking mechanism holds firm without needing unreasonable force.

What it lacks is industrial refinement. There are no roller bearings, no clamp-down holders, and no adjustable backstops, so repeat batches need a stop block clamped to the rail. There is also no angle gauge, meaning you measure your 90 degree with a square and a feeler every time until muscle memory takes over.

What it is good for

Enclosures, control boxes, panels, and any repeated box or pan work in 20 to 24 gauge material. The footprint of 10-1/2 by 26-1/4 inch is genuinely small for a 24 inch brake, so it fits a bench in a one-car garage. Owners who already run Pexto-class equipment describe it as a step below, but excellent for light production and hobby work.

What it is bad for

Anyone who needs repeatable angles without a gauge, or full 48 inch panels. It is also the wrong machine for anyone who needs to bend thicker than 20 gauge mild steel, and at about 100 lb it is not something you reposition casually. Bolting it to a bench is effectively mandatory.

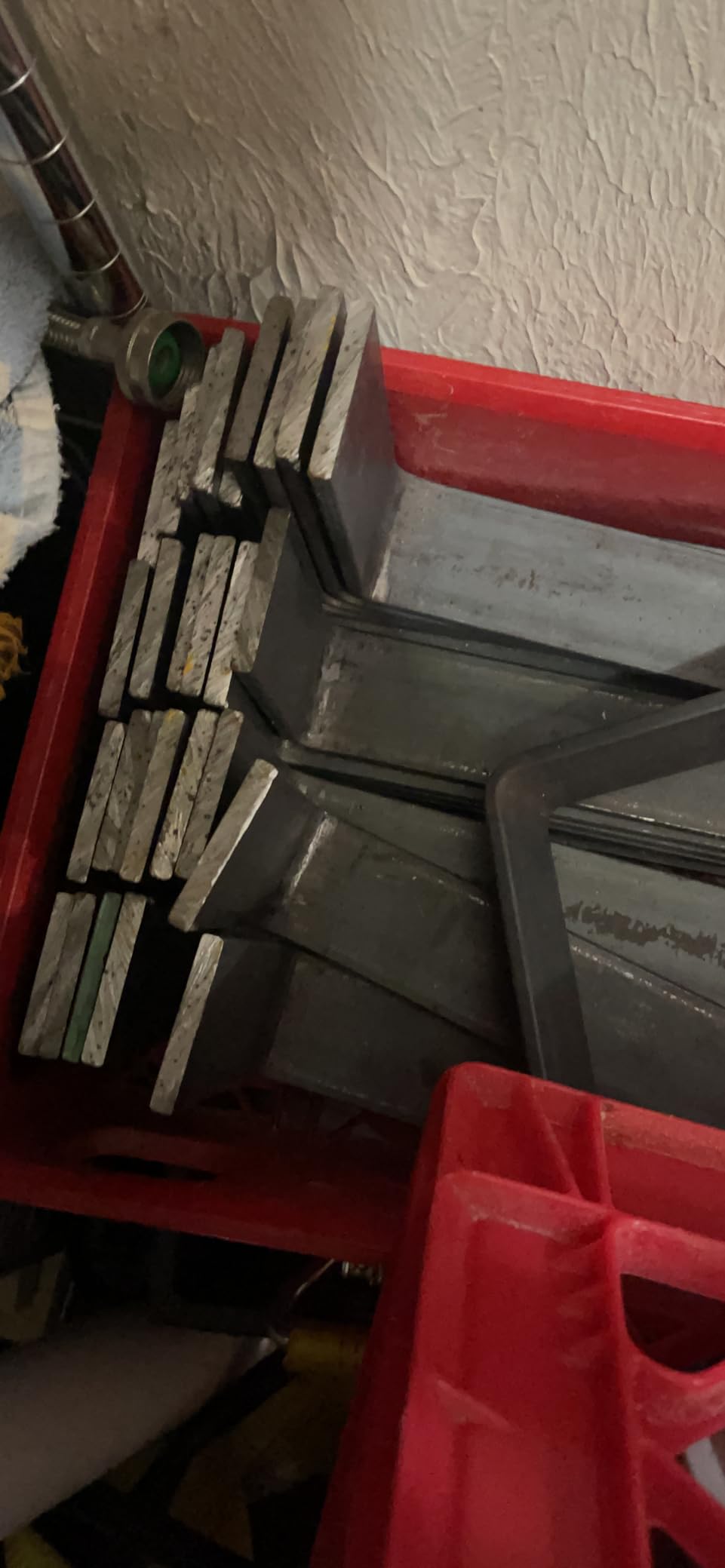

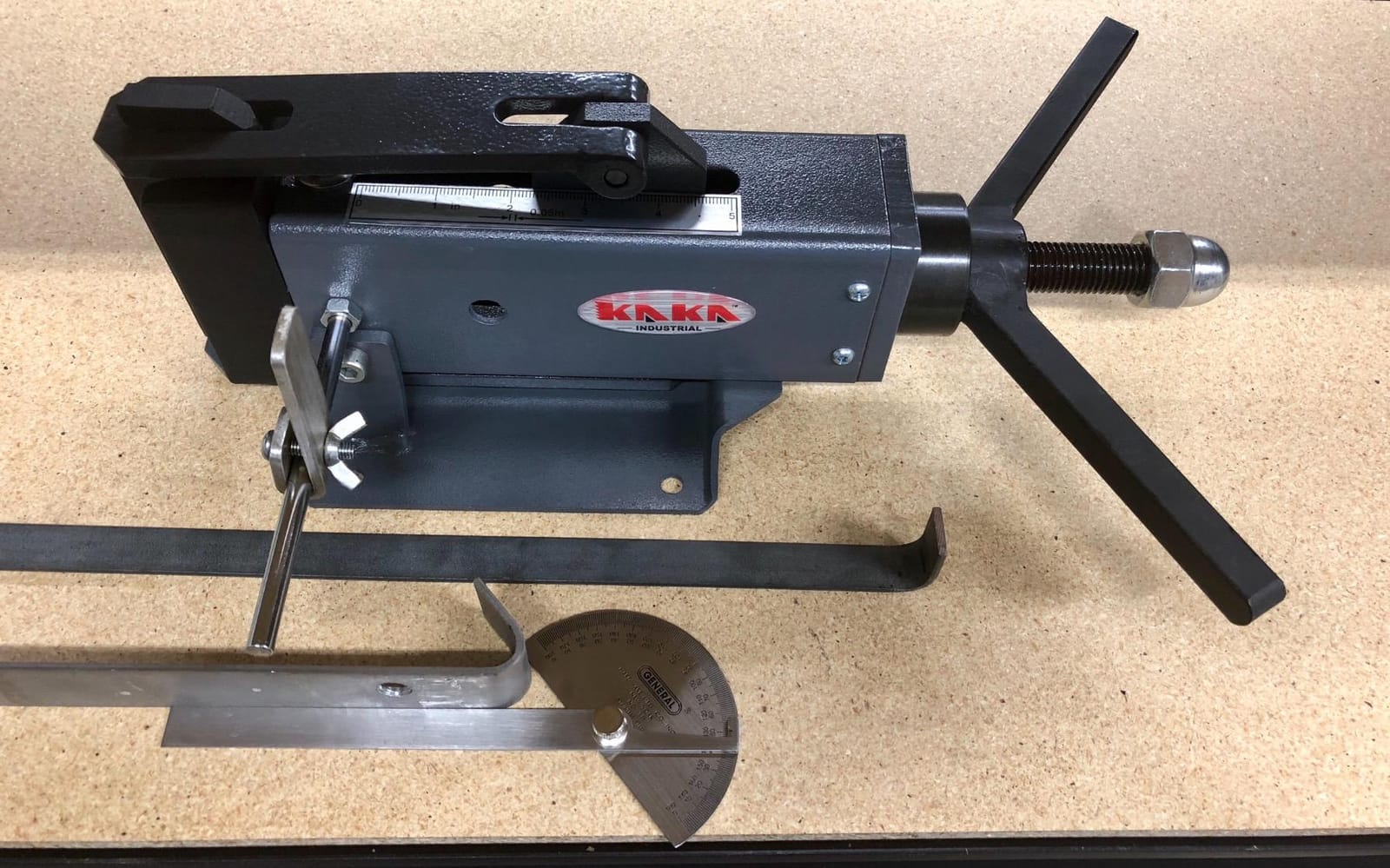

7. KAKA INDUSTRIAL FB-4 Manual Bending Brake – Handles Thicker Material Than Anything Else Here

Thickness is the outlier here. Most of the sheet brakes on this list stop at 20 or 22 gauge, and this one bends 3/16 inch mild steel across its full 4 inch width using a 2.5 ton hand lever. If your hobby shop builds motor mounts, brackets, or ornamental iron pieces, none of the finger brakes in this roundup will do it.

At 19 pounds it bolts to a bench and moves easily, and the simple lever operation produces clean 90 degree bends with a simple flat pattern. Users report years of service once it is set up, which is a fair description of a fixed mechanical device that has almost nothing to go wrong.

The trade is bend quality. The die edges are rounded, so the radius on your finished part is much larger than anything a real press brake would leave, and the gap between the stationary portion and the blade is not adjustable, which can skew bends if the frame is ever out of true. Only one mandrel size is supplied, so your radius options are limited.

You also cannot make multiple bends close together without clamping cheats, because the hand lever only works on one bend at a time on a short piece. Several owners also report the top strap arriving installed upside down, which causes binding until you reconfigure it. Check that before your first job.

What it is good for

Brackets, motor mounts, ornamental iron, and one-off repairs in thicker mild steel or aluminum where precision radius does not matter. It is a genuinely useful complement to a sheet metal brake rather than a replacement for one, because it handles a different thickness range on a 4 inch coupon size.

What it is bad for

Sheet metal work where appearance matters, any panel wider than 4 inches, and production runs. A visible rounded radius and a non-adjustable blade gap rule it out for boxes and enclosures. If your parts are 20 gauge and flat, spend the money on a wider finger brake instead.

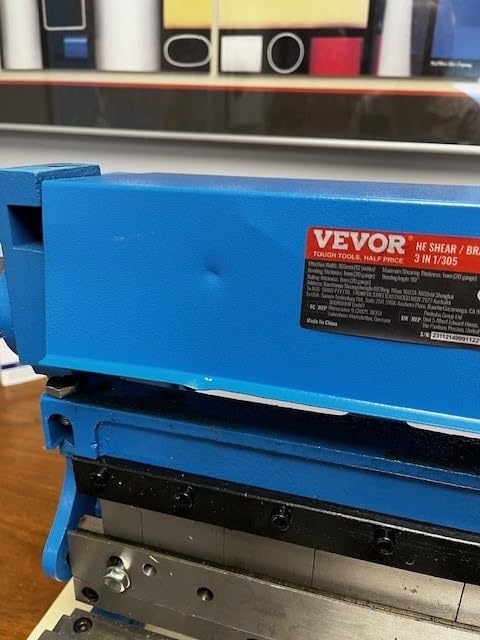

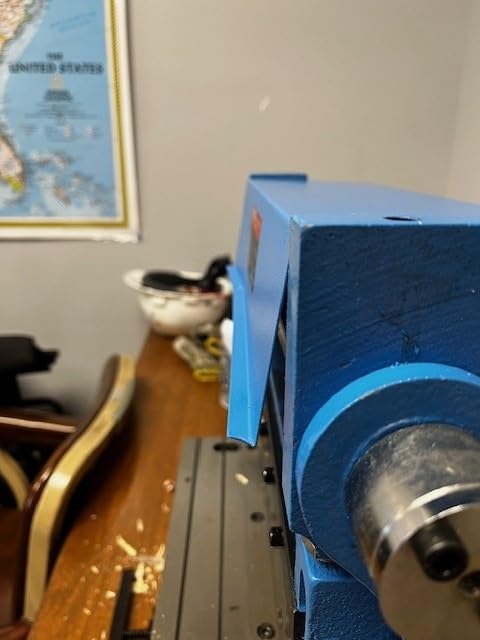

8. VEVOR 12 in 3-in-1 Shear, Brake and Roll – Most Machine in the Smallest Footprint

Space is the reason to consider this one. A shear, a press brake, and a slip roll in a 20.9 by 14.8 by 15 inch bench footprint replaces three separate purchases and the wall space behind them. For a hobby shop that only cuts and bends 12 inch blanks, that consolidation is genuinely valuable.

Build quality is a mixed picture. The HT200 cast body, T10 shearing blade, and 45# bending blade are better materials than the welded frames common at this level, and the blade clearance under 0.0027 inch is a real number that shows up as a burr-free cut once adjusted. Five bending blade sizes give a decent range of box and pan setups on 12 inch material.

What drags the rating down is expectations. At 3.9 stars this is the lowest-rated machine here, with 48 percent five-star but 7 percent one-star and the recurring complaints are bent adjustment knobs and jammed handles arriving from the factory. Shearing and rolling both need frequent adjustment, while bending is the one function that performs well once you get it dialed in.

It will not cut body sheet metal, and the 90 degree maximum bend angle is the limit of what the press brake section does. At 90 lb it is not a machine you move casually, so plan a permanent bench position. Material range is wide, covering low carbon steel, aluminum, brass, copper, lead, plastic, and zinc sheet.

What it is good for

Small shops with one bench and a real shortage of floor space. It suits 12 inch blanks for small enclosures, gussets, and trim, and the slip roll section handles hems and curves that would otherwise need a separate machine. It is also a reasonable first purchase when you want to discover which of the three functions you actually use.

What it is bad for

Anyone who needs dependable quality control out of the box. The 20 gauge capacity is optimistic for low carbon steel in practice, the 90 degree limit is modest, and the combination design means a failure in one function is a trip to a technician for the whole machine. Buy it for space, not for precision.

9. KASTFORCE KF5006 24 in Box and Pan Brake – Clean Starter for 24 Inch Work

The KF5006 is the value route into full 24 inch box and pan work. You get 24 inch capacity in 20 gauge mild steel, a 0 to 135 degree range, and five fingers spanning 1 in, 2 in, 3 in, 8 in, and 10 in, which covers shallow pans and full-width lips on the same machine.

Our impressions match the review summary: a small but very satisfied owner base that likes the capacity, the bend range, and the build quality. The package footprint of 31 by 13 by 10.5 inches and a 68.1 lb weight make it a bench machine rather than a floor machine, which suits a one-car garage.

The limitation that matters is box depth at 1.5 inches, which is shallower than the Shop Fox machine and rules out deeper enclosures. Five fingers also mean you cannot hit every whole-inch width combination, so some jobs need a workaround or a different tool. And with only 45 reviews, the long-term reliability picture is thinner than for the higher-volume machines here.

Bends were square once the fingers were set flat, and the 135 degree swing covers hems and return flanges as well as simple 90 degree folds. Treat the 20 gauge mild steel figure as a realistic ceiling rather than a starting point, and the machine will keep its rating.

What it is good for

First real box and pan brake for a hobby shop that has outgrown a vise attachment. It suits 24 inch panels in 20 and 22 gauge, shallow pans, lids, and returns, and it is a sensible first step for anyone moving from hand forming to actual fabrication.

What it is bad for

Deeper boxes than 1.5 inches, and full 48 inch panel work. If your parts are mostly deeper enclosures, the extra finger count and depth on a ten-finger machine is the difference between a frustrating afternoon and an easy one. Buying this for deep boxes is the most common mistake we see in this class.

10. KAKA INDUSTRIAL 3-IN-1/12 Sheet Metal Brake – Back Gauge at an Entry Price

This one earns its place for a single feature: the adjustable rear stop. Repeat positioning on pans, boxes, and brackets is the hardest thing to do by eye on a small brake, and a rear stop that actually adjusts turns guesswork into a setting you can write down.

It is also a full three-in-one machine, so the shear, press brake, and slip roll cover cutting, bending, and rolling in a 21.3 by 14.8 by 15.9 inch bench footprint. The slip roll handles a 1.6 inch minimum rolling diameter, which is enough for hems and small radii, and the removable finger dies handle basic box work.

Ratings are mixed, with 67 percent five-star but an 11 percent one-star share. Buyers who need one compact machine for cut, bend, and roll find real value in it, and others cite setup and alignment friction. The 95 lb cast iron frame is solid but dense, and other units in the same size class exist, so compare feature by feature rather than on the three-in-one label alone.

What it is good for

Small shops working in 20 gauge on 12 inch blanks where the back gauge matters more than tonnage. It suits brackets, small pans, and hems, and the same product family covers 8 inch, 30 inch, 40 inch, and 52 inch versions, so the format is not a dead end if you outgrow it.

What it is bad for

Anyone who needs more than 90 degrees of bend, and anyone who wants deep boxes. The 90 degree limit makes it unsuitable for hems that need a full return without a second operation, and the compact footprint hiding 95 lb makes it awkward to service or move. The thin review base also means you are buying with less field data than most of this list.

How to Choose a Sheet Metal Brake for a Hobby Shop

Choosing between brake types matters more than choosing between brands, because the architectures are not interchangeable and buying the wrong one is the most expensive mistake in this category. Here is how to narrow it down in the order that saves money.

Which type of brake do you actually need?

Box and pan brake, also called a finger brake, for boxes, pans, and general hobby shop work. Straight apron or cornice brakes are designed for roofing trim and long hemmed edges, not for making closed shapes. A press brake pushes a punch into a V-die and repeats the same angle more consistently, at higher cost and with a larger footprint. A panel bender swaps the V-die for a bending blade and is faster and more consistent still, but the cost puts it out of reach for most hobby shops.

The practical rule we use: if your parts have corners and flanges, you want a finger brake. If they are long trim strips, you want a portable apron or mini brake. If you are making the same part over and over in quantity, a press brake earns its cost through repeatability.

Material capacity, gauge, and the 8t rule

What is the rule of 8 on a press brake? The standard rule is that the minimum flange length on a bend should be at least eight times the material thickness, so 16 gauge steel at about 0.06 inch needs roughly a half inch flange. For a hobby shop this matters because it explains why the 8 inch and 4 inch brakes produce tight corners that larger machines cannot: the whole part is short enough to satisfy the rule.

Gauge alone is not a capacity figure. Sellers list a gauge without saying the material, and the same machine is rated for 20 gauge mild steel, 16 gauge aluminum, and 14 gauge stainless. Check that the listed gauge is for mild steel or the material you actually intend to use, or you will under-buy capacity and blame the brake later. If you also need rolling, our metal lathe and machine buying guides cover how to plan a small machine budget.

Choosing aluminum that bends instead of cracking

Which type of aluminum sheet is best for bending? 5052 is the forming alloy and the right default for a hobby shop. 3003 is workable but softer, and 6061 tends to crack on tight bends, which is the single most repeated warning in buyer discussions. Bending 6061 will probably crack on a radius you would consider normal, so treat it as a straight-edge material only.

Keep an eye on temper as well. Quarter-hard and half-hard 5052 bends fine, and the material springs back more than mild steel, so test a coupon and check your angle before committing to a full panel. Wipe the sheet with a degreaser before bending, and add a protective film if you want the finish to survive.

Footprint, weight, and shop power

Weight is the number hobby buyers underestimate. The vise attachments here weigh 2.05 and 2.8 pounds and can be stored in a drawer, while bench machines run 58 to 99 pounds and need to be bolted down, and the contractor model at 312 lb needs a permanent home. Measure the bench, then check that two people can carry the machine into that position before you buy it.

Power is rarely the problem for hand brakes since they are all hand powered. The exception is a powered portable brake, which we saw drawing 110 volts at 200 watts, so a normal household circuit handles it. Foundation and dedicated power questions only become real once you are looking at a press brake with a ram, not before.

Tooling and accessories that follow the brake

A brake does not arrive with everything you need to build finished parts. Budget for extra finger sets in the sizes your work uses, a stop block or backgauge if the machine lacks one, a square and a protractor for angle checking, and a deburring file or belt to clean the cut edge. On a press brake, a basic V-die set is a separate purchase and the single largest cost after the machine itself.

Add a slip roll or slip roll attachment if you need curves, and a notcher or hand seamer for jewelry box and cabinet work. A pair of hemming rails is what turns a simple 90 degree bend into a finished hem. Set aside a few hundred dollars beyond the machine, because forum buyers consistently report the same surprise.

Used Pexto, Roper Whitney, and Whiteman brakes

A used Pexto, Roper Whitney, or Whiteman brake is often the best value in this entire category, and it is the option most often recommended by people who have owned several. These Tennessee-made machines are heavy, simple, and mechanically sound, and they can be rebuilt for a fraction of what a new contractor machine costs.

The trade is condition. Look for a frame that is straight and free of rust pitting, fingers that are not rounded down, and a handle with no play in the pivot. Budget an afternoon for cleaning, degreasing, and re-adjusting the fingers, and expect to repaint. Buy from a dealer who will let you run a coupon, and factor freight because these machines are heavy even when partially disassembled.

Frequently Asked Questions

Final Verdict for Hobby Shops in 2026

Start small if your parts are palm-sized: the KAKA INDUSTRIAL 8 inch vise mount brake is the most capable bench tool here, and it costs less than a single tooling set on a press brake. Move to a 24 inch finger brake once you are making panels and boxes, where the ten-finger Shop Fox M1011 gives you the width combinations and box depth that a five-finger machine cannot. Go wide with the Malco MB48A or the VEVOR 48 inch brake for trim and full sheets, and pick up a used Pexto or Roper Whitney if you are comfortable with a refurbish.

Whichever you choose, buy for 20 gauge mild steel and 5052 aluminum, measure your bench first, and set aside budget for fingers, a stop block, and a square. That is how the best sheet metal brakes for hobby shops earn their keep in 2026: not by being the biggest machine in the room, but by being the right one for the parts you actually build.
