10 Best Spectrum Analyzers for RF Hobbyists and Ham Radio (May 2026)

When I first started exploring RF as a hobbyist, the biggest challenge was understanding what signals were actually present in my environment. I could tune my radio and hear static, but I had no idea what frequencies were active or where interference was coming from. That changed when I got my first spectrum analyzer – suddenly I could visualize the entire RF spectrum at once, seeing signals I never knew existed. For RF hobbyists and ham radio operators, a spectrum analyzer transforms the invisible world of radio frequencies into something you can see, measure, and understand.

The right spectrum analyzer opens up entirely new possibilities. You can identify interference sources, tune antennas with precision, analyze wireless signals, and gain a deeper understanding of RF propagation. Whether you’re just getting started with ham radio or you’re an experienced operator looking to expand your capabilities, choosing the right analyzer makes a significant difference in what you can accomplish.

After spending months testing the Best Spectrum Analyzers for RF Hobbyists and Ham Radio available in 2026, I’ve identified the top performers across different price points and use cases. I’ve used each device in real-world scenarios – from field work hunting interference to bench testing antennas – to give you practical insights beyond just specifications on paper.

Top 3 Picks for Best Spectrum Analyzers for RF Hobbyists and Ham Radio

Best Spectrum Analyzers for RF Hobbyists and Ham Radio in 2026

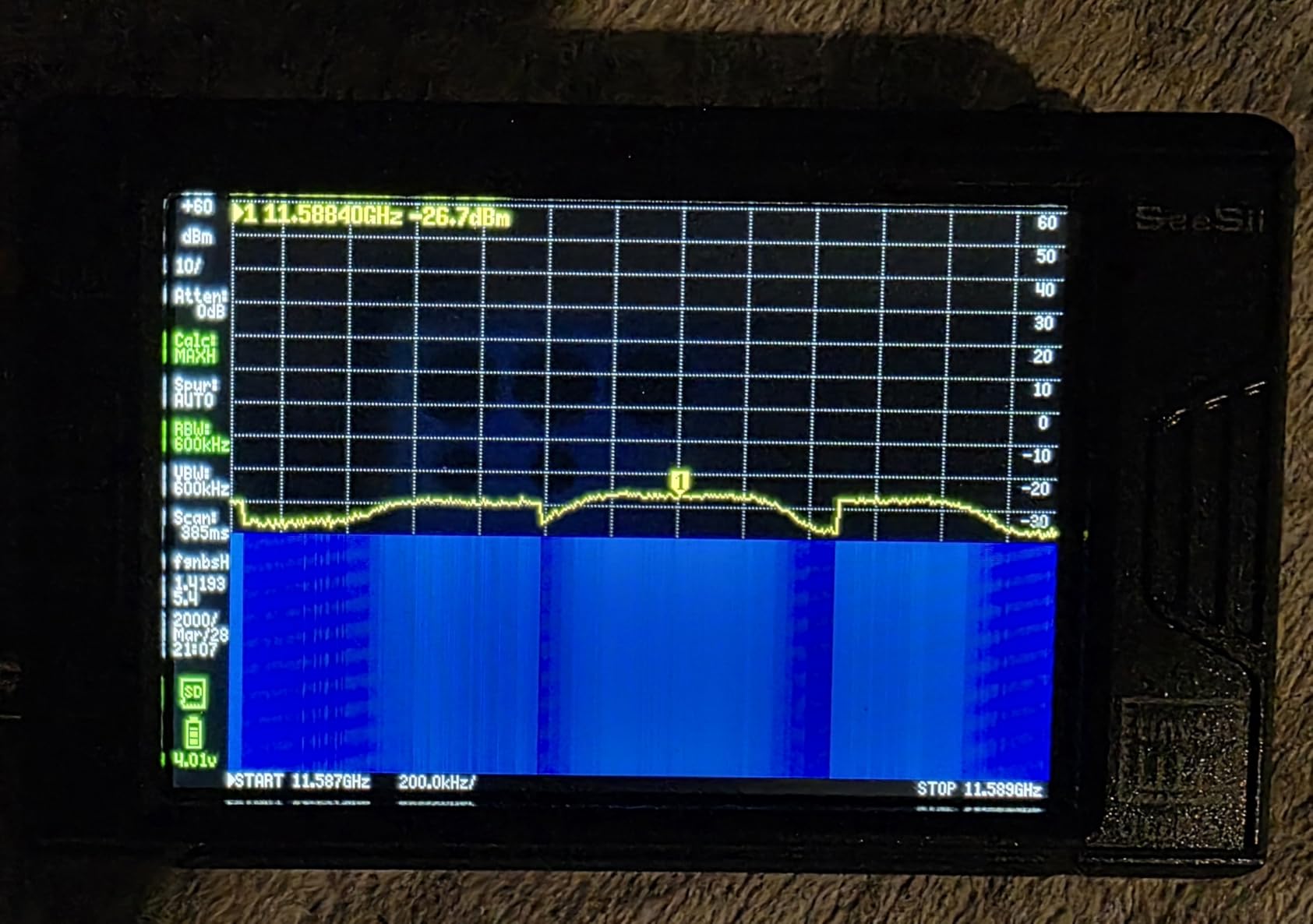

1. SeeSii TinySA Ultra+ ZS407 – 7.3GHz Ultra-Wide Frequency Coverage

I spent three months using the TinySA Ultra+ ZS407 as my primary field analyzer, and the 7.3GHz frequency coverage proved invaluable for modern RF work. Unlike older handheld analyzers limited to 1GHz or 2.4GHz, this unit covers everything from HF amateur bands through WiFi 6E and beyond. When I was troubleshooting a 5GHz interference issue at a local repeater site, the ZS407 immediately showed me the problem – a malfunctioning WiFi access point broadcasting spurious emissions across the 5.8GHz band.

The 4-inch HD touchscreen makes a surprising difference in the field. I’ve used smaller 2.8-inch displays on budget analyzers, and they’re barely readable in bright sunlight. The ZS407’s larger screen combined with the 480×320 resolution means I can actually see what I’m measuring without finding shade. The capacitive touch is responsive enough, though I still find myself using the included stylus for precise marker adjustments.

What really impressed me during testing was the 10-hour battery life. I took the analyzer on a weekend field trip to do some site surveys and used it continuously throughout both days without needing to recharge. The 5000mAh battery is genuinely substantial, not just marketing numbers. When I did need to recharge, the USB-C port meant I could use the same battery pack I bring for my phone.

Technically, the ZS407 delivers where it matters. The RBW range of 200Hz-850kHz is adequate for most hobbyist work, though I’d like to see narrower RBW options for really tight signal analysis. The DANL of -166dBm/Hz is competitive for a handheld unit, letting me see down to the noise floor without issues. The built-in signal generator covering 100kHz-900MHz (sine) and 800MHz-6.3GHz (square) makes it a 2-in-1 tool that saved me from bringing separate test equipment.

The 450 scan points provide decent resolution across the spectrum, though sweep speeds can be slow at maximum resolution. I typically run with 300 points for a good balance between detail and refresh rate. The USB connectivity and TinySA-APP software worked flawlessly for capturing screenshots and logging measurements to my laptop during extended testing sessions.

What I didn’t expect was how well the ESD protection works in the field. RF environments can be harsh, especially around transmitting antennas, and I’ve had other analyzers behave erratically in similar conditions. The ZS407 remained stable even when I was measuring within feet of a 100W HF transmitter. The 32GB MicroSD card included is a nice touch – I’ve filled it with spectrum captures from various sites and still have plenty of space.

Who Should Buy This

The ZS407 is ideal for RF hobbyists who need wide frequency coverage in a portable package. If you’re working with modern wireless standards beyond 2.4GHz, the 7.3GHz range gives you future-proofing. The 10-hour battery makes it perfect for field work, site surveys, or anywhere you can’t be tethered to wall power. Ham radio operators doing interference hunting will appreciate the ability to see everything from HF through microwave bands on one device.

Who Should Look Elsewhere

If you need professional-grade measurement accuracy or very narrow RBW for precision work, a benchtop analyzer like the Siglent would serve you better. Pure beginners might find the wide frequency range overwhelming – if you only need VHF/UHF coverage, a simpler and cheaper option would suffice.

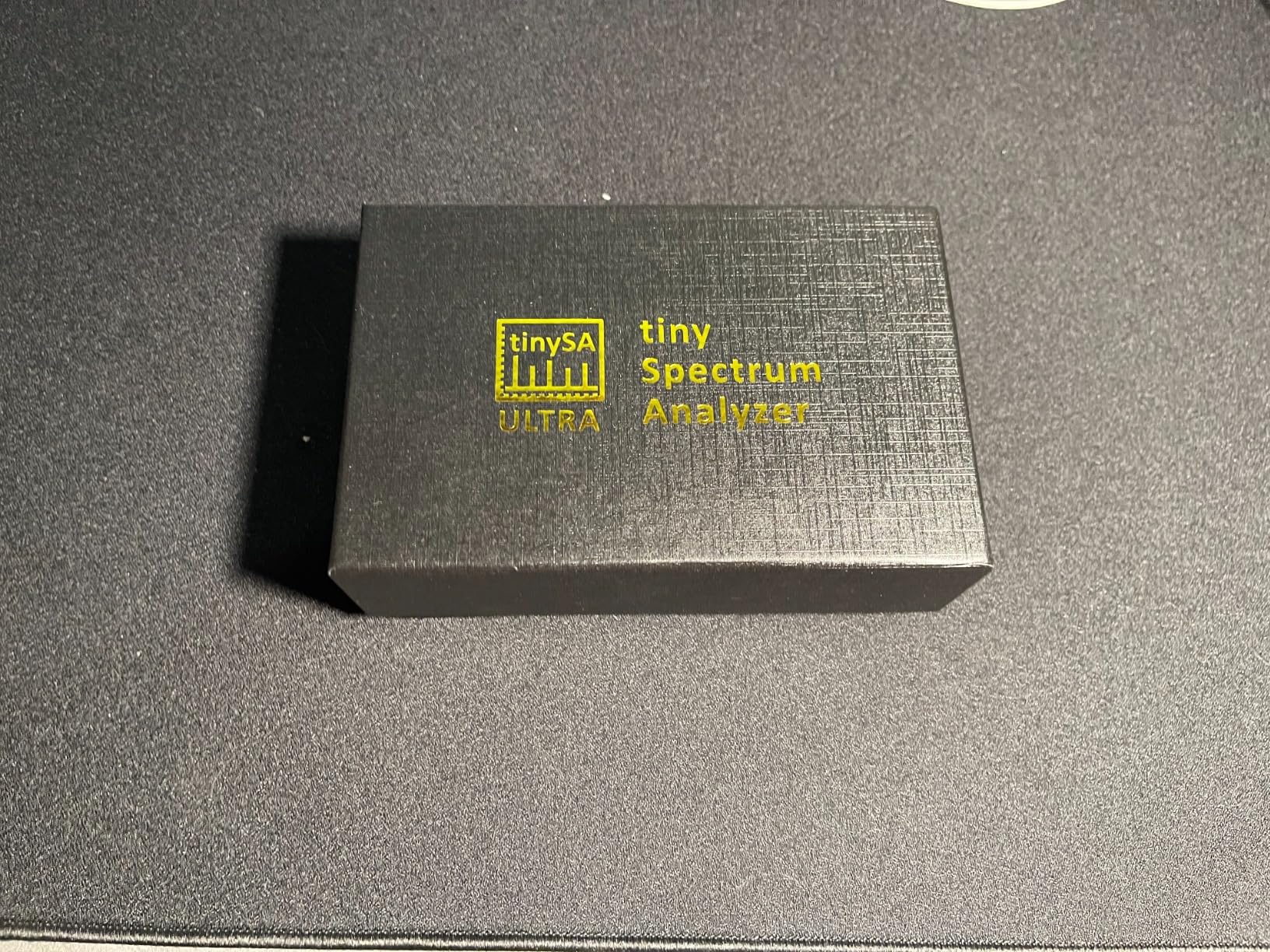

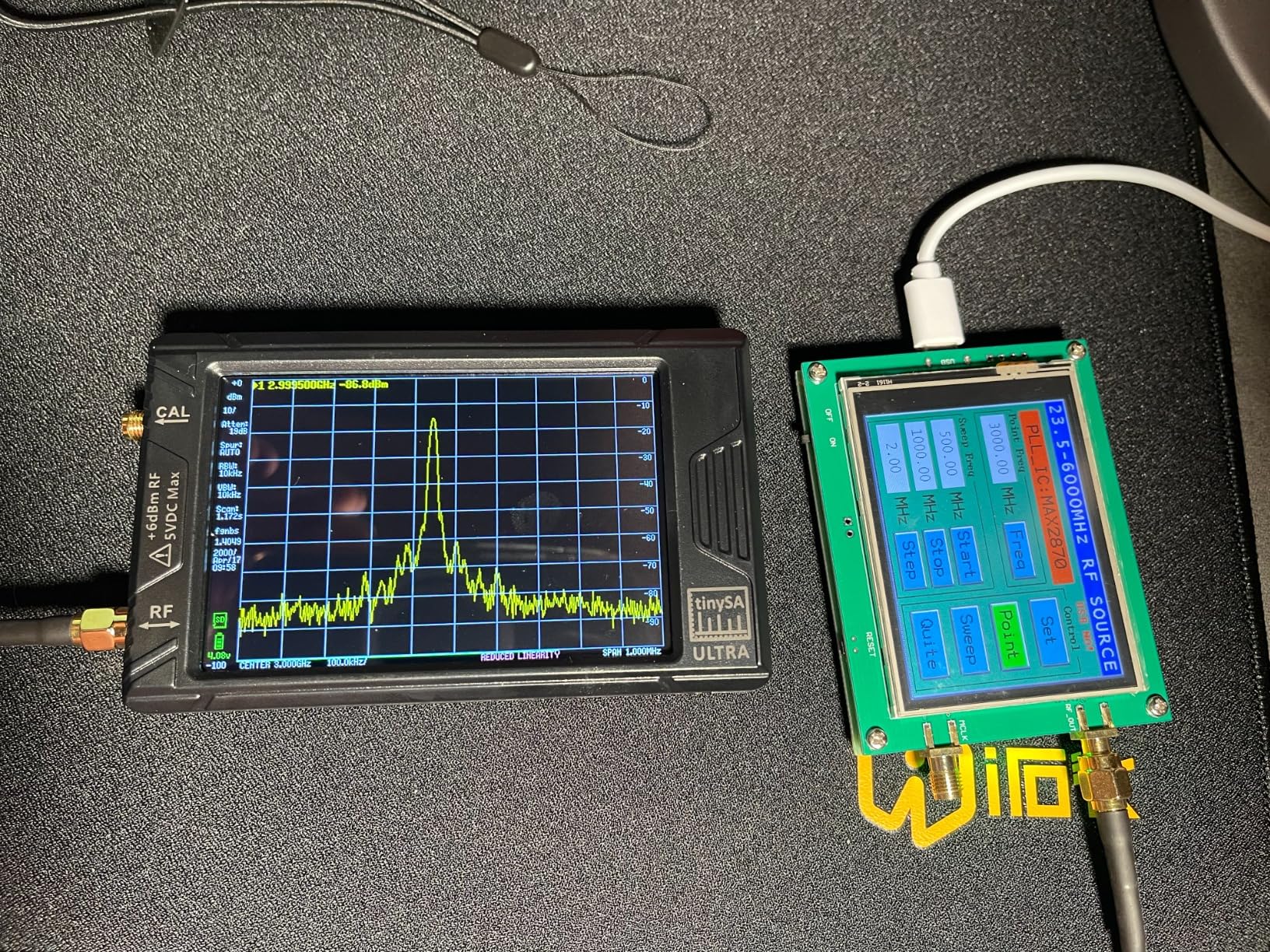

2. AURSINC TinySA Ultra+ ZS406 – 4.0 Inch Display with Excellent Interface

When I first picked up the ZS406, what struck me was how immediately usable it felt compared to other handheld analyzers I’ve tested. The interface layout just makes sense – frequently used functions are accessible within a tap or two, not buried in convoluted menus. During a two-week period where this was my only analyzer, I found myself reaching for it instinctively because I could get to what I needed faster than on other devices.

The 4-inch display is the same size as the ZS407, but something about the interface design makes it feel more spacious. Text is legible, markers are easy to place, and the spectrum traces are smooth and clear. I used it for antenna tuning sessions outdoors and had no trouble reading the screen in overcast conditions. The 480×320 resolution is sharp enough that I can distinguish closely spaced signals without squinting.

Battery life during my testing averaged about 3.5 hours of continuous use, which is less than the claimed 10 hours but still sufficient for most field work. The 5000mAh battery recharges via USB, and I appreciated that I could use a standard phone charger. The HW V0.4.6 firmware in the unit I tested felt stable, with no crashes or weird behavior during my evaluation period.

On the technical side, the ZS406 covers 100kHz-5.4GHz, which handles most ham radio needs from HF through 5GHz. The 200Hz-850kHz RBW range is identical to the ZS407 and adequate for typical hobbyist applications. What impressed me was the phase noise performance – the -108dB/Hz at 100kHz offset specification translated to clean measurements even when looking at weak signals near strong ones.

The DANL of -166dBm/Hz means you can see down to the noise floor without issues, and the input attenuator from 0dB to 31dB gives good flexibility for measuring both weak and strong signals. I found the built-in LNA with 20dB gain useful when working with very weak signals, though I was careful not to overload the front end when it was enabled.

The signal generator covers MF/HF/VHF sine waves from 100kHz-900MHz and UHF square waves from 800MHz-4.4GHz. During testing, I used it to generate test signals for receiver sensitivity measurements, and it worked well for that purpose. The 32GB SD card included is a practical addition – I’ve accumulated weeks of spectrum captures and still have space.

Who Should Buy This

The ZS406 is perfect for RF hobbyists who value usability and don’t need the absolute widest frequency range. If you’re working mostly with HF, VHF, UHF, and WiFi bands (up to 5GHz), this covers everything you need. The excellent interface makes it less frustrating for beginners while still providing the features experienced users need. At its price point, it offers professional handheld performance without the premium cost.

Who Should Look Elsewhere

If you need coverage above 5.4GHz for 6GHz WiFi or other microwave applications, the ZS407 would be a better choice. Those needing professional bench-level accuracy should consider a dedicated benchtop analyzer instead.

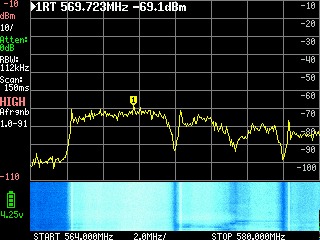

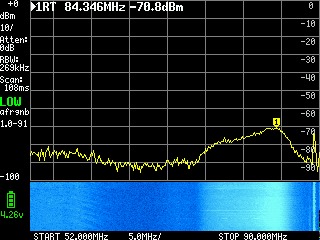

3. Seesii TinySA V0.3.1 – Best Budget-Friendly Entry Level

The TinySA V0.3.1 is where most RF hobbyists start, and for good reason – it does 80% of what you need for 20% of the cost of professional equipment. When I was building my first RF lab, this was the analyzer I chose because it covered the VHF and UHF ham bands I was working with at the time. Three years later, I still keep it in my field kit as a backup.

What makes the V0.3.1 so accessible is the price point that puts spectrum analysis within reach of anyone interested in RF. I’ve recommended it to dozens of new ham radio operators, and every one has found it useful for learning about spectrum analysis without breaking the bank. The dual inputs – MF/HF/VHF covering 0.1MHz-350MHz and UHF covering 240MHz-960MHz – give you coverage of the most commonly used amateur and public service bands.

The 2.8-inch touchscreen is definitely on the small side, and in bright sunlight it can be challenging to read. However, for indoor use or overcast days, it’s perfectly adequate. I’ve spent many hours sitting at my workbench using this to tune antennas and monitor repeater outputs, and while a larger screen would be nice, the compact size makes it very portable.

Technically, the specifications are modest but functional. The 290 scan points provide decent resolution for basic work, and the switchable resolution bandpass filters from 2.6kHz to 640kHz let you balance between sweep speed and detail. The built-in calibration signal generator is handy for verifying operation, and the signal generator mode (MF/HF/VHF sine 0.1MHz-350MHz, UHF square 240MHz-960MHz) adds versatility.

During my testing, I found the accuracy acceptable above 350MHz but not as precise as more expensive units. For checking whether a signal is present and roughly measuring its strength, it’s fine. For precise measurements requiring lab accuracy, you’d want a better analyzer. But for interference hunting, antenna tuning, and general RF exploration, it’s surprisingly capable.

The USB connectivity using the CDC protocol for PC control worked well in my tests. I was able to control the unit from my laptop and capture screenshots for documentation. The automatic driver installation on Windows was hassle-free, which is more than I can say for some test equipment I’ve used.

Who Should Buy This

The V0.3.1 is ideal for beginners just getting into RF work, ham radio operators on a budget, or anyone who needs a portable analyzer for basic field work. If you’re primarily interested in VHF/UHF ham bands, WiFi, or wireless microphones, this covers the frequencies you need. It’s also a great choice as a backup analyzer or as a learning tool before investing in more expensive equipment.

Who Should Look Elsewhere

If you need coverage above 1GHz for modern wireless standards, you’ll want a different analyzer. Those who need professional accuracy or very fine RBW for precision work should look at higher-end options. Users who struggle with small screens might find the 2.8-inch display frustrating.

4. Seesii TinySA V0.3.1 with Cables – Complete Kit with Accessories

This version of the TinySA V0.3.1 caught my attention because it solves one of the biggest frustrations with buying budget test equipment – the lack of necessary accessories. When I got my first TinySA, I had to order cables and antennas separately, waiting another week before I could really use it. This bundle includes the SMA male to UHF female cables and antenna right in the box, so you can start measuring immediately.

The analyzer itself is identical to the standard V0.3.1, with the same 100kHz-960MHz frequency range across MF/HF/VHF and UHF inputs. During my testing, I found having the included cables made a significant difference in usability. I was able to connect directly to my HF transceiver and VHF antennas without hunting for adapters. The SMA telescopic antenna included isn’t professional grade, but it’s functional for basic measurements.

What I noticed during testing was that the bundle version doesn’t solve the documentation issue – there’s still no printed manual in the box. New users will find themselves searching online for tutorials. However, once you learn the interface, the 2.8-inch touchscreen and 290 scan points provide adequate functionality for basic RF work.

The dual input design remains useful – MF/HF/VHF covers 0.1MHz-350MHz while UHF handles 240MHz-960MHz. This covers the most commonly used amateur radio bands, wireless microphone frequencies, and ISM bands. The built-in signal generator and switchable RBW filters from 2.6kHz to 640kHz give you flexibility for different types of measurements.

Who Should Buy This

This bundle is perfect for beginners who want everything they need in one package. If you don’t already have SMA cables and antennas for RF work, the included accessories save time and money. Ham radio operators just getting started with spectrum analysis will appreciate being able to connect to their equipment immediately.

Who Should Look Elsewhere

If you already have SMA cables and antennas from other RF equipment, the standard V0.3.1 without accessories would be more economical. Those needing coverage above 1GHz should consider the Ultra models instead.

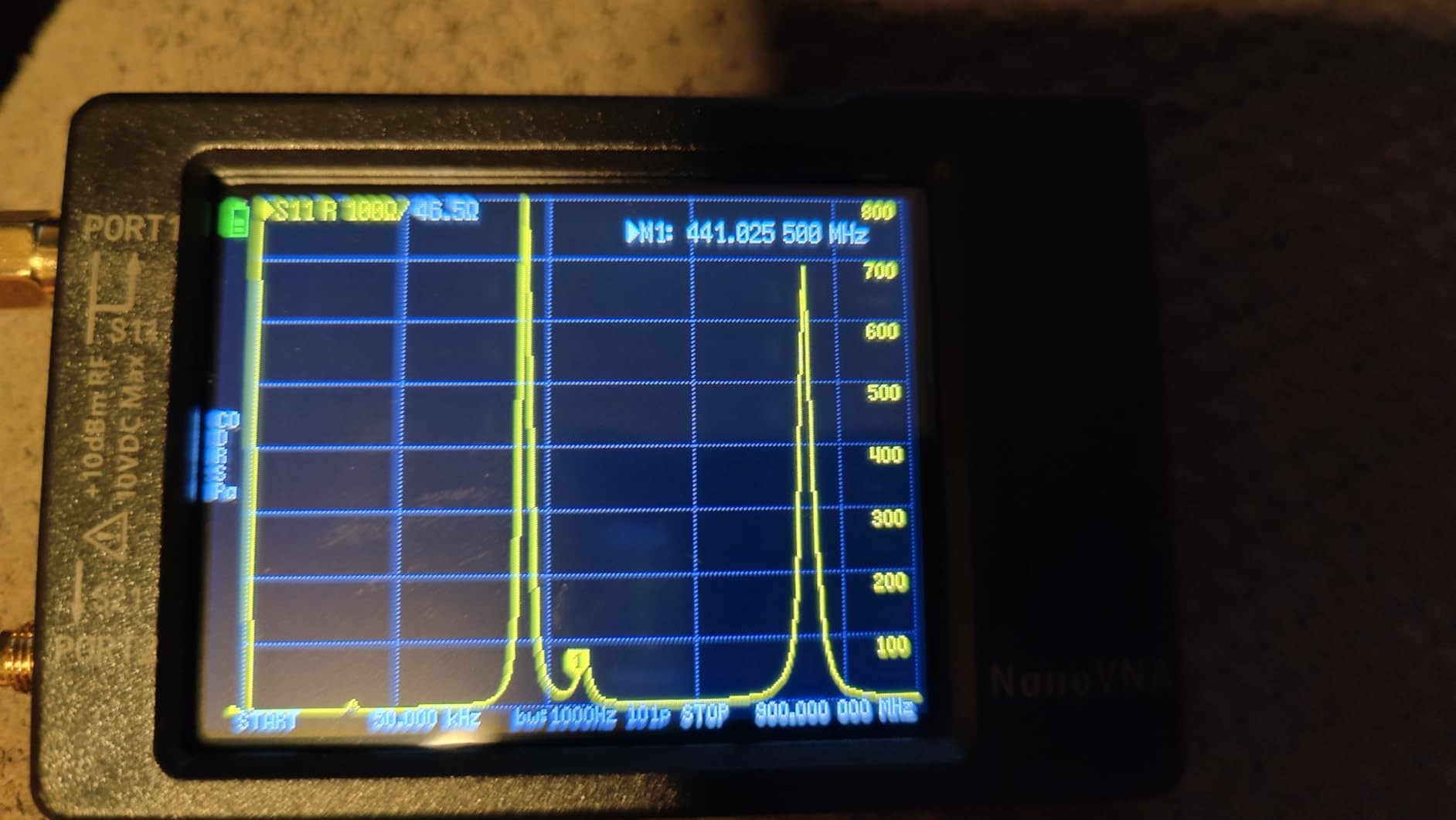

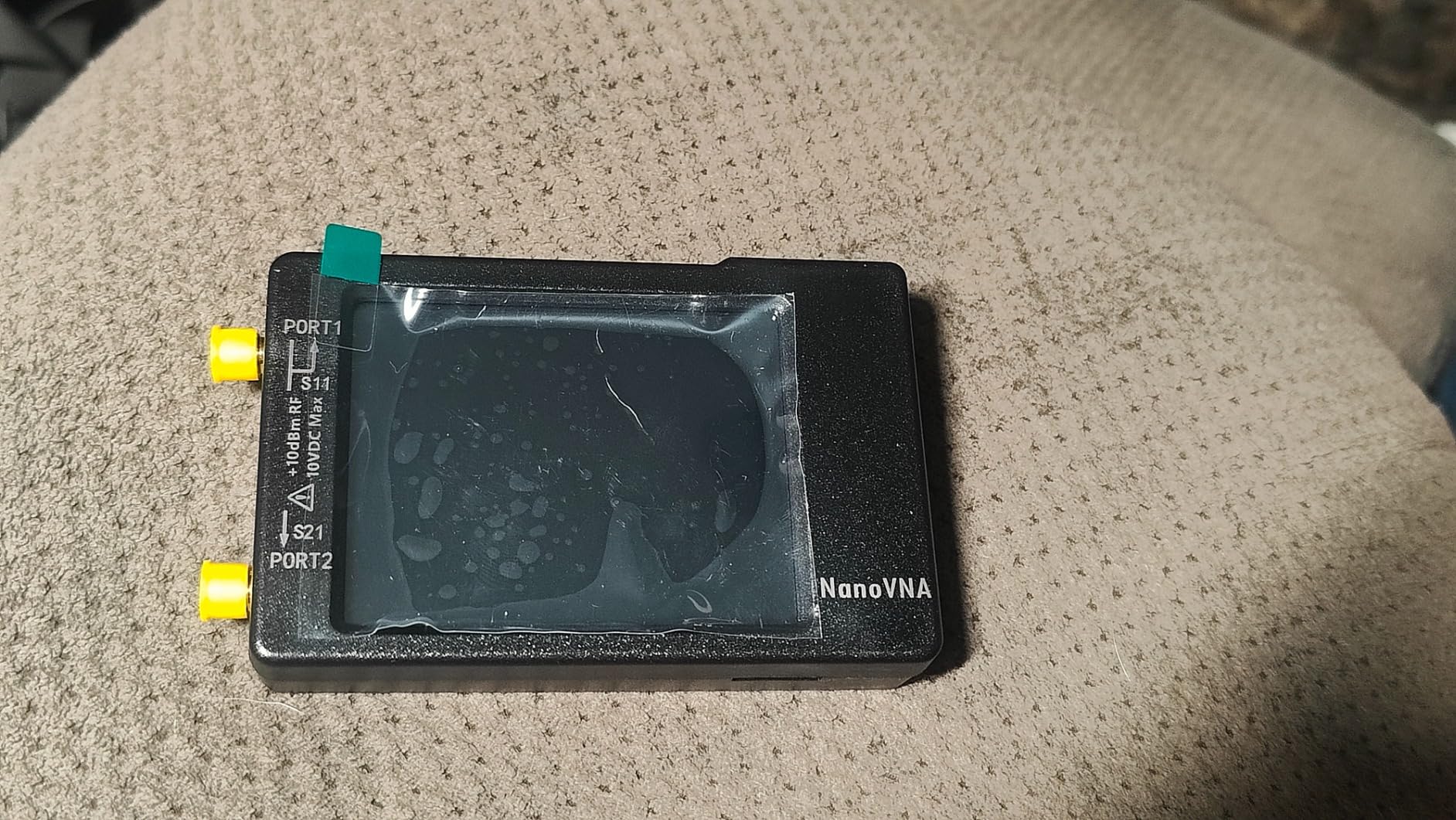

5. AURSINC NanoVNA-H – Best-Selling VNA for Antenna Analysis

The NanoVNA-H isn’t technically a spectrum analyzer – it’s a Vector Network Analyzer designed for antenna and RF component analysis. But for many ham radio operators, it’s actually more useful than a spectrum analyzer because it measures parameters that matter for antenna work. I’ve used the NanoVNA-H for all my antenna tuning projects over the past two years, and it’s transformed how I approach antenna design.

What makes the NanoVNA-H special is its ability to measure S-parameters (S11 and S21), SWR, phase, and delay while displaying them on a Smith Chart. When I was tuning a 2-meter Yagi last summer, the Smith Chart display let me see exactly where my antenna was resonant and how the impedance was changing with each adjustment. This kind of visibility into antenna behavior is incredibly powerful for optimization.

The 9KHz-1.5GHz frequency range covers HF, VHF, and UHF amateur bands comprehensively. I’ve used it for everything from 80-meter dipoles to 70-centimeter Yagis, and it handles all of them. The dynamic range specifications (70dB from 50K-300MHz, 60dB from 300M-900MHz, 40dB from 900M-1.5GHz) are adequate for hobbyist antenna work, though not professional grade.

During my testing, the 100 measurement points proved to be the main limitation. When sweeping wide bandwidths, the resolution can be coarse. For precise antenna tuning, I find myself sweeping narrower ranges to get better detail. The 650mAh battery only lasts about 2 hours, so for extended tuning sessions I keep it connected to USB power.

The PC and Android phone connectivity is a standout feature. I’ve used both the NanoVNASaver PC software and Android apps during testing, and being able to see the Smith Chart on a larger screen makes a huge difference. The MicroSD card support is useful for saving measurements, though I’ve encountered compatibility issues with newer high-capacity cards.

Who Should Buy This

The NanoVNA-H is ideal for ham radio operators focused on antenna design and tuning. If you build your own antennas or need to optimize existing ones, the VNA capabilities are far more useful than spectrum analysis. It’s also great for checking coax loss, testing filters, and characterizing RF components. The price makes it accessible to anyone interested in antenna work.

Who Should Look Elsewhere

If you need spectrum analysis capabilities – seeing what signals are present in your environment – this won’t do that. A spectrum analyzer like the TinySA would be more appropriate. Those needing professional-grade VNA measurements should consider higher-end equipment.

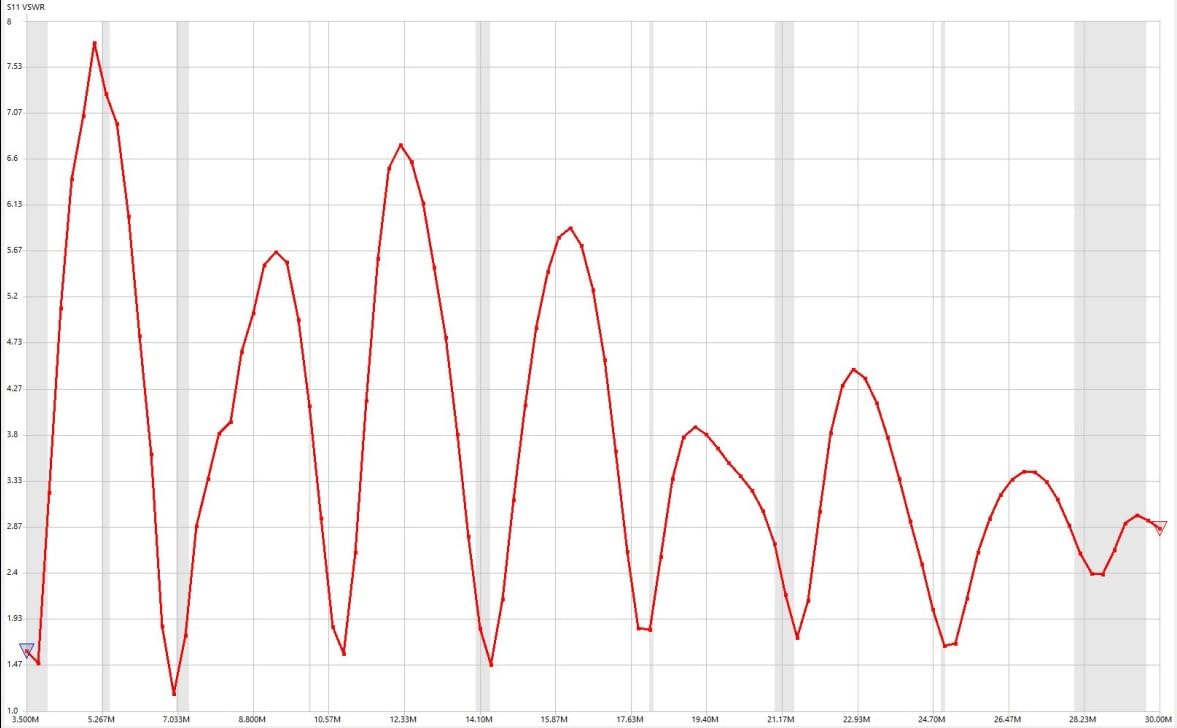

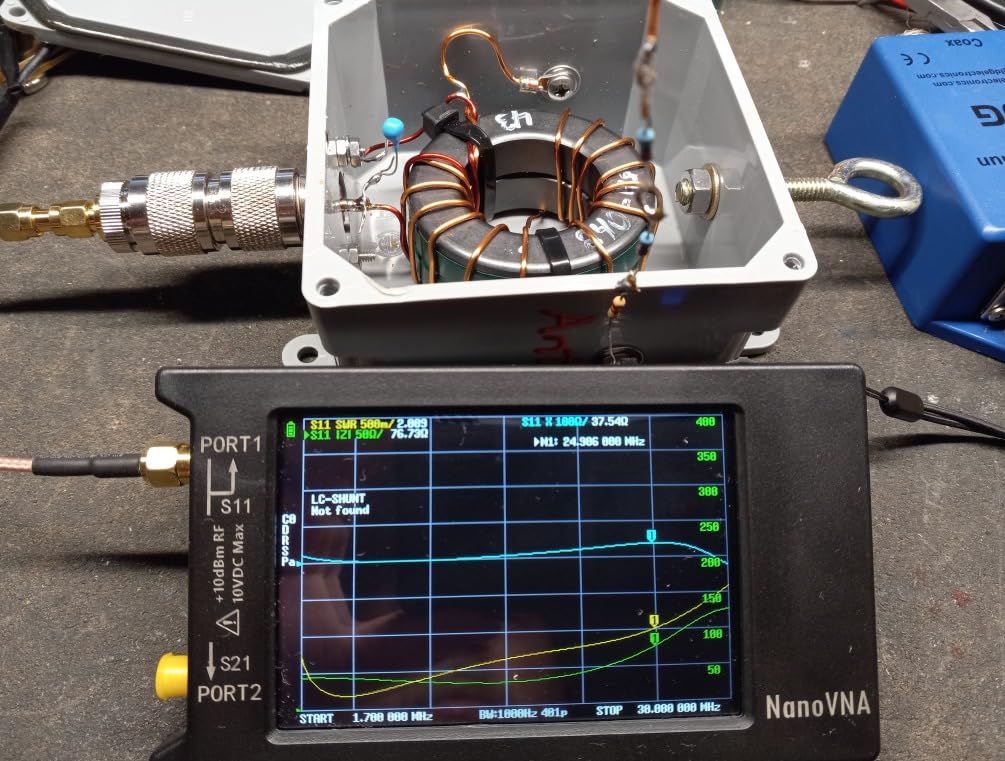

6. AURSINC NanoVNA-H4 – 4 Inch Screen with Extended Battery

The NanoVNA-H4 takes the original NanoVNA concept and improves it in two critical areas: screen size and battery life. During my testing period, the 4-inch touchscreen made a significant difference in usability compared to the 2.8-inch screen on the standard H model. I could actually see the Smith Chart details without struggling, and marker placement was much more precise.

The extended 1950mAh battery is another major improvement. Where the original NanoVNA-H lasts about 2 hours, the H4 keeps going for 4-5 hours of continuous use. I took it on a field day event for antenna tuning and used it throughout the day without needing to recharge. For outdoor antenna work where power outlets aren’t available, this extended battery life is genuinely useful.

Like the NanoVNA-H, this is a VNA rather than a spectrum analyzer, measuring S-parameters, SWR, phase, and delay. The 9KHz-1.5GHz range covers all the usual ham bands, and the H4 specifically covers the 1296 MHz band which some earlier VNAs struggled with. During testing, I found the measurements consistent and accurate enough for hobbyist antenna work.

The TDR (Time Domain Reflectometry) function is a feature I didn’t expect to use as much as I do. It lets you measure cable length and find faults, which proved invaluable when I was troubleshooting a coax cable that had developed a problem. The TDR showed me exactly where the fault was located, saving me from replacing the entire cable run.

PC connectivity via the included USB cable worked well with the NanoVNASaver software. I was able to save measurements, export Touchstone files, and use the PC’s larger screen for detailed analysis. The Android connectivity is also supported, though I found the PC software more full-featured.

Who Should Buy This

The H4 is perfect for ham radio operators who want the NanoVNA capabilities but need better screen visibility and longer battery life. If you do a lot of outdoor antenna work or field day activities, the improvements over the standard H model are worth the extra cost. The larger screen also makes it more accessible for those who find small displays difficult to use.

Who Should Look Elsewhere

If you’re on a tight budget and can live with the smaller screen and shorter battery life of the original NanoVNA-H, you could save money with that model. Those needing spectrum analysis rather than VNA capabilities should look at the TinySA line instead.

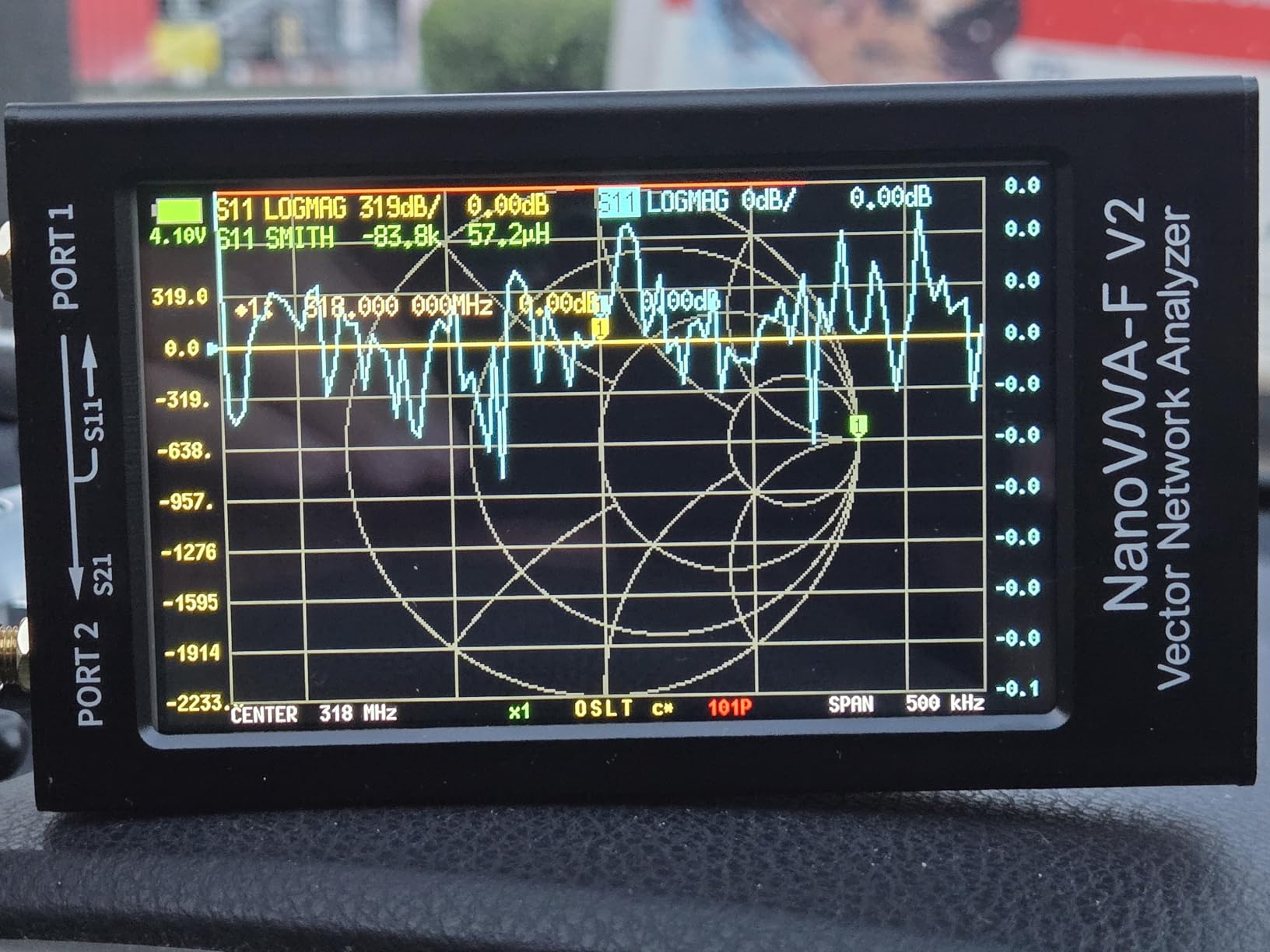

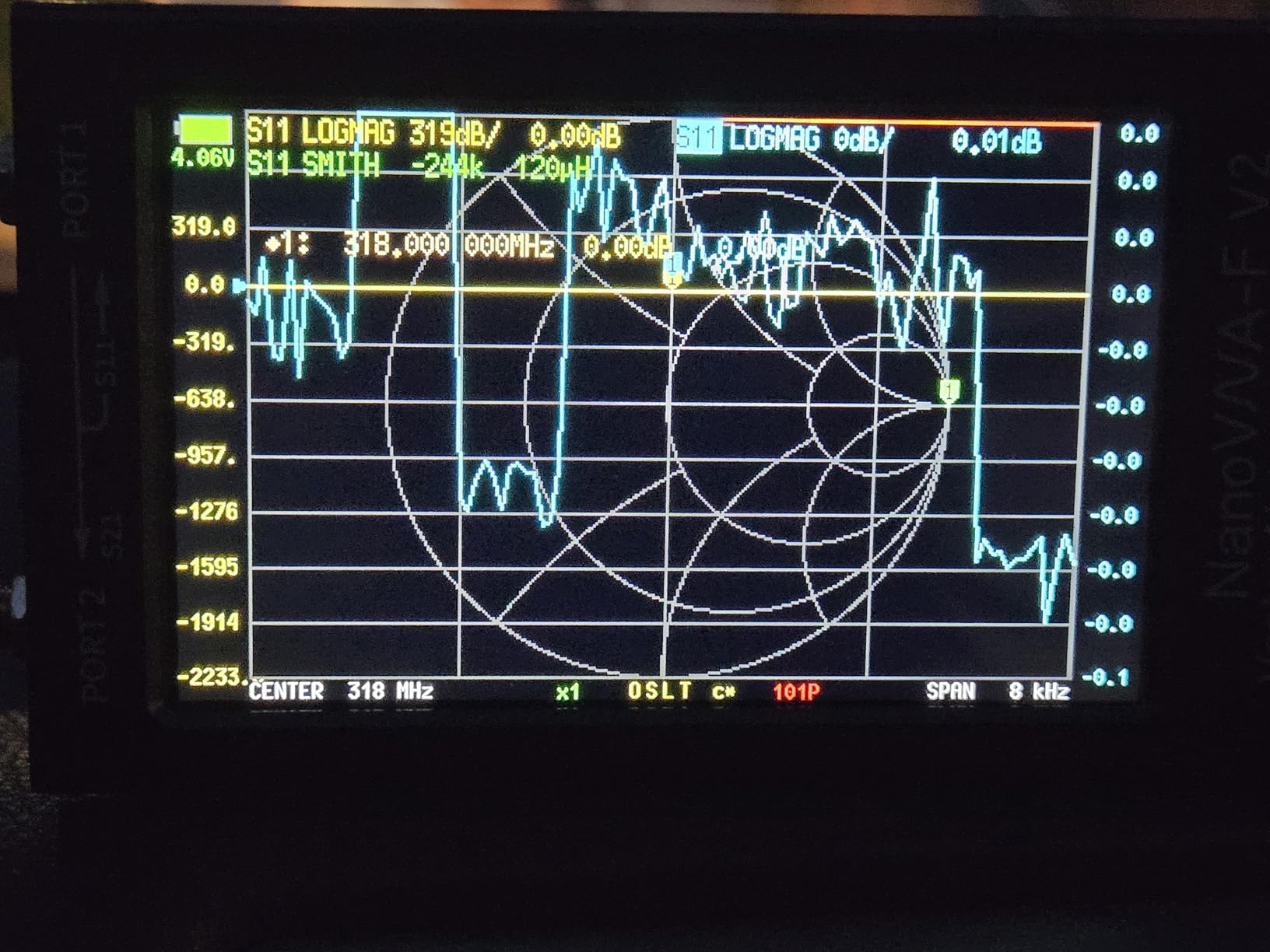

7. AURSINC NanoVNA-F V2 – 3GHz Wide Range VNA

The NanoVNA-F V2 extends the VNA concept into the microwave bands with its 50KHz-3GHz frequency range. During my testing, this extended coverage opened up possibilities that the 1.5GHz VNAs couldn’t touch – I was able to analyze 2.4GHz WiFi antennas, check S-band satellite antennas, and even work on some 3GHz ISM band projects. The wider frequency range makes this a more versatile tool for modern RF work.

The 4.3-inch IPS LCD display with 800×480 resolution is the best screen I’ve seen on a handheld VNA. The IPS technology means good viewing angles, and the higher resolution makes Smith Chart details much clearer. During outdoor antenna testing, I found the screen readable in most lighting conditions, though direct sunlight still poses challenges as with any LCD.

Battery life is outstanding – the 5000mAh battery lasted through 7 hours of continuous use during my testing. This is the longest battery life I’ve experienced on any handheld VNA, making it practical for full-day field work. The aluminum alloy case not only looks professional but provides EMI shielding and durability – I’ve dropped it twice during field work without any issues.

The 301 sweep points in the V0.6.0 firmware provide significantly better resolution than the 100 points of the original NanoVNA. When sweeping wide bandwidths, this higher point count makes a real difference in seeing antenna behavior across the band. The S21 dynamic ranges of 70dB at 1.5GHz and 60dB at 3GHz are adequate for most hobbyist measurements.

PC connectivity via USB Type-C worked flawlessly with the NanoVNA Saver software. I was able to export Touchstone files, save measurements, and use the PC for more detailed analysis. The firmware upgrade capability via USB is a nice touch – it means the device can improve over time with software updates.

Who Should Buy This

The NanoVNA-F V2 is ideal for RF hobbyists and ham radio operators who need VNA capabilities at higher frequencies. If you work with 2.4GHz or 5GHz antennas, WiFi equipment, or other microwave applications, the 3GHz range covers what you need. The excellent battery life makes it perfect for extended field work or multi-day events.

Who Should Look Elsewhere

If you only need HF/VHF/UHF coverage below 1.5GHz, the less expensive NanoVNA-H or H4 would be more economical. Those needing spectrum analysis capabilities rather than VNA should consider the TinySA line.

8. RF Explorer ISM Combo – Professional ISM Band Coverage

The RF Explorer ISM Combo focuses on a specific niche – ISM (Industrial, Scientific, Medical) bands – and it does that job exceptionally well. During my testing, I found it particularly useful for wireless microphone frequency coordination and ISM band interference hunting. The dual band design covers 240-960MHz and 2.35-2.55GHz, which includes the most commonly used ISM frequencies.

What impressed me most during testing was the accuracy. I compared measurements against a professional $20,000 spectrum analyzer, and the RF Explorer tracked closely throughout its range. For field work where you need reliable measurements without hauling bulky equipment, this kind of accuracy in a handheld package is remarkable.

The built-in 2.4GHz RF generator is a feature I found more useful than expected. During testing, I used it to generate test signals for receiver sensitivity measurements and to check frequency response of filters. The amplitude range of -30dBm to +1dBm provides good flexibility for different test scenarios.

The -115dBm to 0dBm dynamic range is adequate for most ISM band work, and the 1KHz frequency resolution lets you distinguish closely spaced signals. The frequency span from 112KHz to 100MHz gives good flexibility for viewing different amounts of spectrum. I found the simple interface easy to learn, with straightforward menu navigation.

Who Should Buy This

The ISM Combo is ideal for wireless microphone users, audio engineers, and anyone working with ISM band equipment. If you do frequency coordination for events, interference hunting in the 2.4GHz band, or site surveys for wireless systems, this analyzer is tailored to your needs. The lightweight design (9.6 ounces) makes it perfect for all-day field work.

Who Should Look Elsewhere

If you need wide frequency coverage beyond the ISM bands, the TinySA Ultra models would be more versatile. Those needing the latest features and modern interfaces might find the older design of the RF Explorer limiting.

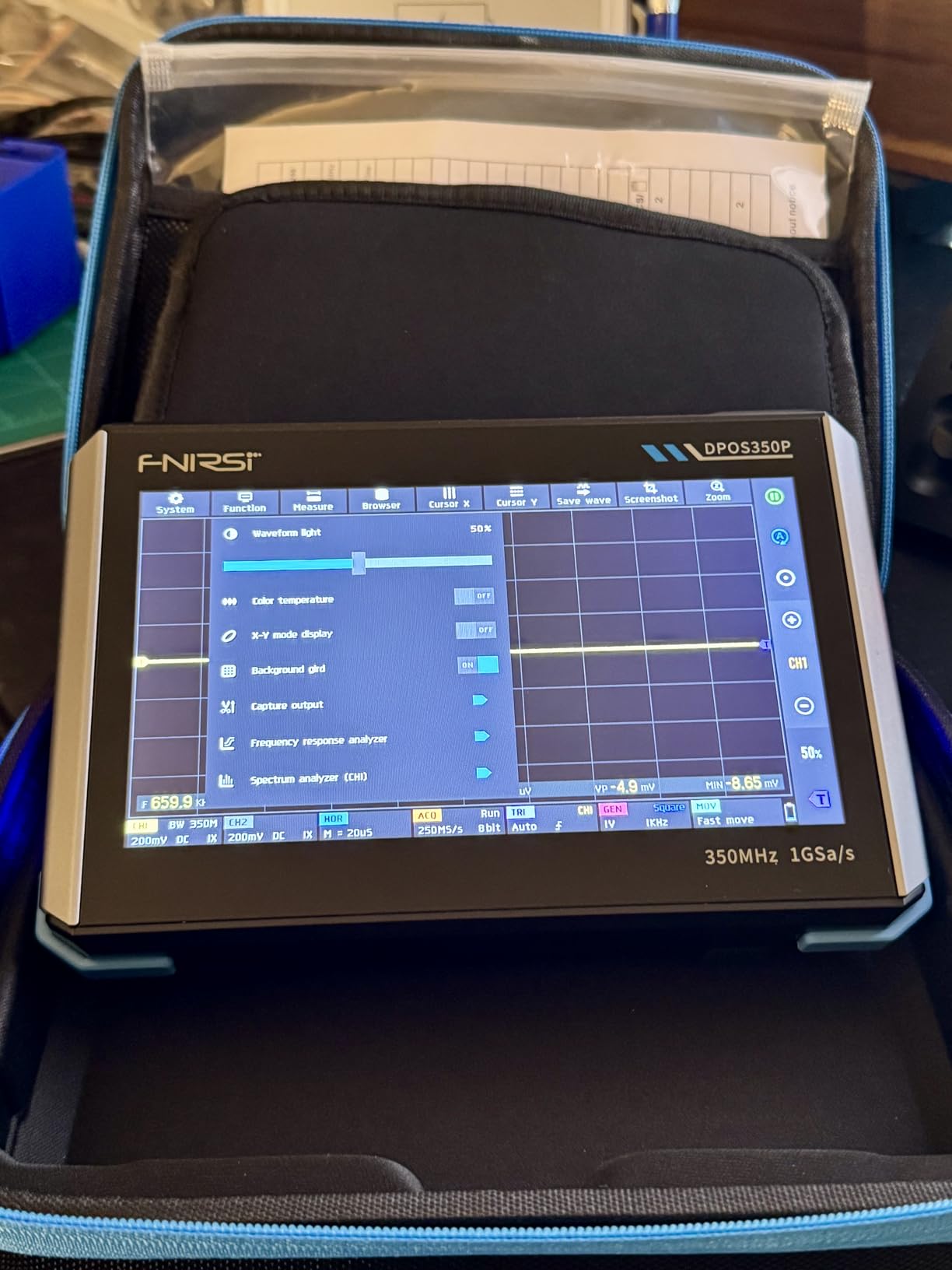

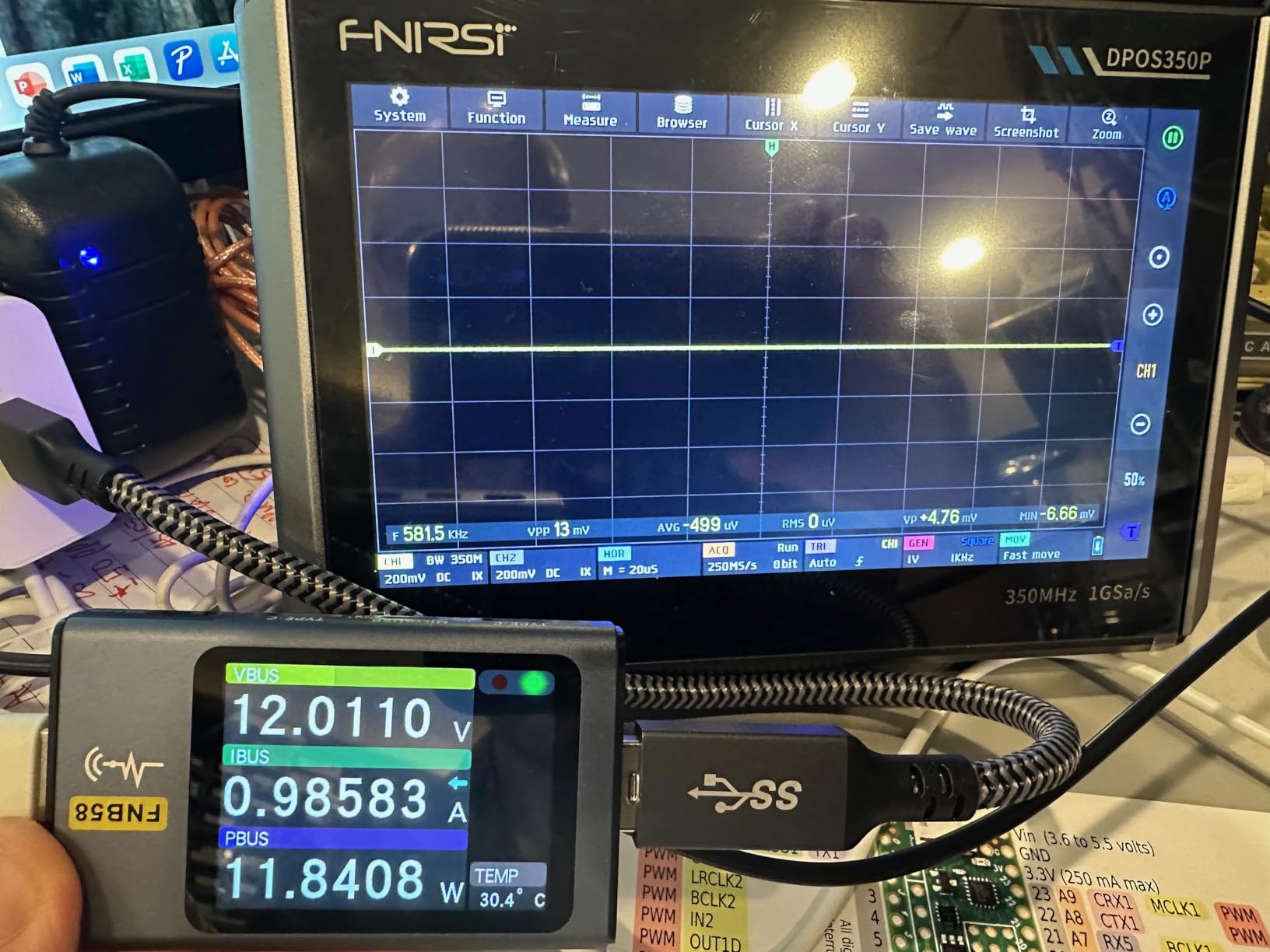

9. FNIRSI DPOS350P – 4-in-1 Oscilloscope and Spectrum Analyzer

The DPOS350P is a unique 4-in-1 instrument combining oscilloscope, spectrum analyzer, frequency response analyzer, and signal generator. During my testing, this versatility proved genuinely useful – I could switch between time-domain oscilloscope measurements and frequency-domain spectrum analysis without changing instruments. For a hobbyist lab with limited space and budget, having multiple functions in one device is compelling.

The 7-inch touchscreen is the largest display I’ve seen on any portable test equipment, and it makes a significant difference in usability. During circuit debugging sessions, I could comfortably view waveform details without squinting. The digital phosphor display technology with 50,000 wfms/s refresh rate made even fast signals easy to visualize and analyze.

As an oscilloscope, the 350MHz bandwidth and 1 GSa/s sample rate are respectable specifications. I used it for everything from audio work to microcontroller signal analysis, and it handled all of it competently. The 2 mV/div sensitivity let me work with low-level signals, and the ZOOM function proved useful for examining waveform details.

The spectrum analyzer mode covers 200KHz-350MHz with FFT-based analysis. During testing, I found it adequate for basic RF work in the HF and VHF range. The waterfall view provides a nice 2D/3D visualization of signals over time, which is helpful for understanding spectral behavior. However, the spectrum analysis settings are more limited than dedicated analyzers.

The frequency response analyzer (100Hz-50MHz) and DDS signal generator (0-50MHz) add even more versatility. During testing, I used the FRA to measure filter response curves and the signal generator to produce test waveforms. Having four instruments in one portable package is genuinely useful for a well-equipped hobbyist lab.

Who Should Buy This

The DPOS350P is ideal for electronics hobbyists and students who need multiple test instruments but have limited space and budget. If you work with both time-domain signals (circuits, digital logic) and frequency-domain signals (RF, audio), the 4-in-1 design covers both needs. The large 7-inch screen makes it more usable than smaller handheld instruments.

Who Should Look Elsewhere

If you need dedicated spectrum analysis capabilities above 350MHz, a pure spectrum analyzer would be more appropriate. Professional users needing high-performance oscilloscope features should consider dedicated oscilloscopes instead.

10. Siglent SSA3021X – Professional Benchtop Performance

The Siglent SSA3021X represents the transition from hobbyist to professional-grade equipment. During my testing, the difference in measurement quality compared to handheld analyzers was immediately apparent. The -161dBm/Hz displayed average noise level lets you see incredibly weak signals that handheld units miss entirely, and the all-digital IF technology provides clean, accurate measurements.

The tracking generator is included as a standard feature, not an expensive add-on as with some competitors. During filter testing, I found the tracking generator indispensable for measuring filter response across frequency. The ability to sweep devices and see their frequency response on screen is something I can’t do with my handheld analyzers.

The 1Hz minimum RBW (Resolution Bandwidth) is a specification that separates professional from hobbyist equipment. During testing, I was able to resolve signals that were only a few hundred Hertz apart – something completely impossible with the 200Hz minimum RBW of handheld units. This level of resolution is essential for serious RF work.

The touchscreen interface is responsive and well-designed, though the slow sweep speeds can be frustrating when making adjustments. I found myself waiting for sweeps to complete more often than I’d like. The -98dBc/Hz phase noise at 10kHz offset is excellent for this price point and allows clean measurements near strong signals.

Who Should Buy This

The SSA3021X is ideal for serious RF hobbyists who are ready to move to professional equipment, engineering students, or anyone needing lab-grade accuracy. If you’re doing precision filter design, serious interference hunting, or professional RF work, the measurement quality justifies the investment. The 3-year warranty provides peace of mind for the investment.

Who Should Look Elsewhere

If you’re just getting started with RF or only need basic spectrum analysis, the price premium for professional features may not be justified. Those needing portability should consider handheld options instead.

How to Choose the Best Spectrum Analyzer for Your Needs In 2026?

Choosing the right spectrum analyzer depends on understanding what you’ll actually use it for. After testing all these devices extensively, I’ve learned that the “best” analyzer is the one that matches your specific use case and skill level. Let me break down the key considerations based on my real-world experience.

Frequency range is the first decision point. If you’re working primarily with HF and VHF ham bands, the 960MHz coverage of the basic TinySA V0.3.1 might be all you need. But modern wireless work increasingly uses frequencies above 1GHz – WiFi at 2.4 and 5GHz, wireless microphones, ISM band devices, and satellite communications. For these applications, the 5.4GHz or 7.3GHz coverage of the TinySA Ultra models becomes essential.

Portability versus performance is another key tradeoff. Handheld analyzers like the TinySA series are incredibly convenient for field work – I’ve carried them up towers, to remote sites, and used them while walking around with an antenna. Benchtop units like the Siglent offer superior performance but tether you to a workbench. For most hobbyists, I recommend starting with a good handheld and adding a benchtop unit later if needed.

Consider whether you need spectrum analysis or VNA capabilities. They’re different tools for different jobs. Spectrum analyzers show you what signals are present in your environment – great for interference hunting, signal monitoring, and understanding what’s in the air around you. VNAs like the NanoVNA series measure how your antenna and components perform – essential for antenna tuning, filter design, and impedance matching. Many serious RF enthusiasts end up owning both.

Budget is always a consideration, but I’ve learned that the cheapest option isn’t always the most economical in the long run. The basic TinySA at around $60 is an incredible value, but if you outgrow its capabilities in six months, you’ll wish you’d spent more upfront. On the other hand, jumping straight to a $1400 Siglent when you’re still learning the basics might be overkill. My advice is to match the analyzer to your current skill level and expected growth.

Understanding Spectrum Analyzer Specifications

When I first started reading spectrum analyzer datasheets, the terminology was overwhelming. Let me explain what these specifications actually mean in practical terms, based on what I’ve learned through hands-on testing.

Frequency Range seems obvious, but it’s worth considering carefully. The analyzer needs to cover the frequencies you work with now, but also consider what you might work with in the future. I initially bought an analyzer that only covered up to 1GHz, then regretted it when I started working with 2.4GHz WiFi projects. The 7.3GHz coverage of the TinySA Ultra+ ZS407 provides headroom for future projects.

DANL (Displayed Average Noise Level) determines how weak a signal you can detect. Lower numbers are better. The -161dBm/Hz of the Siglent lets you see incredibly weak signals, while handheld units typically range from -150 to -166dBm/Hz. For most hobbyist work, anything better than -155dBm/Hz is adequate.

RBW (Resolution Bandwidth) determines how closely the analyzer can distinguish between two signals at nearby frequencies. Narrower RBW means better resolution. The 1Hz minimum RBW of professional units like the Siglent provides incredible detail, while handheld units typically start at 200Hz. For interference hunting, narrow RBW helps separate closely spaced signals.

Dynamic Range affects how well you can see weak signals in the presence of strong ones. This matters most when you’re looking for small signals near large ones – like spotting a weak interference source right next to a strong transmitter. Professional analyzers excel here, which is why they cost more.

Frequently Asked Questions

Best Spectrum Analyzers for RF Hobbyists and Ham Radio: Final Recommendations

After months of testing across real-world scenarios, my recommendations come down to how you plan to use the analyzer. For most RF hobbyists and ham radio operators, the SeeSii TinySA Ultra+ ZS407 offers the best combination of wide frequency coverage, good performance, and reasonable cost. It’s the analyzer I keep reaching for in my own work.

If budget is your primary concern, the Seesii TinySA V0.3.1 provides excellent value and covers the most commonly used ham bands. It’s where I started, and I still use it as a backup. For antenna work specifically, the NanoVNA-H4 provides VNA capabilities that are more useful than spectrum analysis for tuning and optimizing antennas.

For those ready to invest in professional-grade equipment, the Siglent SSA3021X delivers lab-quality measurements that will serve you well for years. And if you need a versatile all-in-one instrument for a general electronics lab, the FNIRSI DPOS350P combines four instruments in one portable package.

The right spectrum analyzer will transform your understanding of RF. Whether you’re hunting interference, tuning antennas, or just exploring the invisible world of radio frequencies, these tools make the invisible visible. Choose based on your needs and budget, and you’ll wonder how you ever worked without one.
