12 Best Thermal Imaging Cameras for Electricians (June 2026) reviews

Every electrician has stared at a panel and wondered where the problem hides. You check breakers, test voltage, and everything looks fine on the surface. Then the customer calls back a week later because the same circuit tripped again.

That is the exact moment when I realized I needed a thermal imaging camera in my bag. After using infrared cameras for electrical inspections over the past three years, I can tell you that the right tool turns guesswork into hard data. Hot spots do not lie.

A loose connection, overloaded breaker, or failing contact shows up as a bright warning on a thermal display before it ever becomes a fire hazard or a service call callback. Our team tested twelve models side by side in real panel rooms, commercial sites, and residential attics to find the best thermal imaging cameras for electricians working in 2026.

This guide covers handheld units from pocket-sized entry models to professional-grade imagers. We focused on what actually matters for electrical work: resolution, temperature accuracy, battery life in the field, and how easy it is to document findings for your customer or inspector.

Whether you are a solo residential electrician or part of a commercial maintenance crew, there is a camera here that fits your workflow and your budget.

Top 3 Picks for Best Thermal Imaging Cameras for Electricians

We sorted through every unit on this list based on image clarity, field durability, and real-world electrical inspection performance. These three stood out for very different reasons.

If you want the most trusted name with professional reporting, the best balance of resolution and price, or a reliable entry point that will not empty your wallet, start here.

Best Thermal Imaging Cameras for Electricians in 2026

Here is a quick side-by-side look at every model we tested. The table shows the core specs that matter most when you are standing in front of a live panel and need to decide what you are looking at.

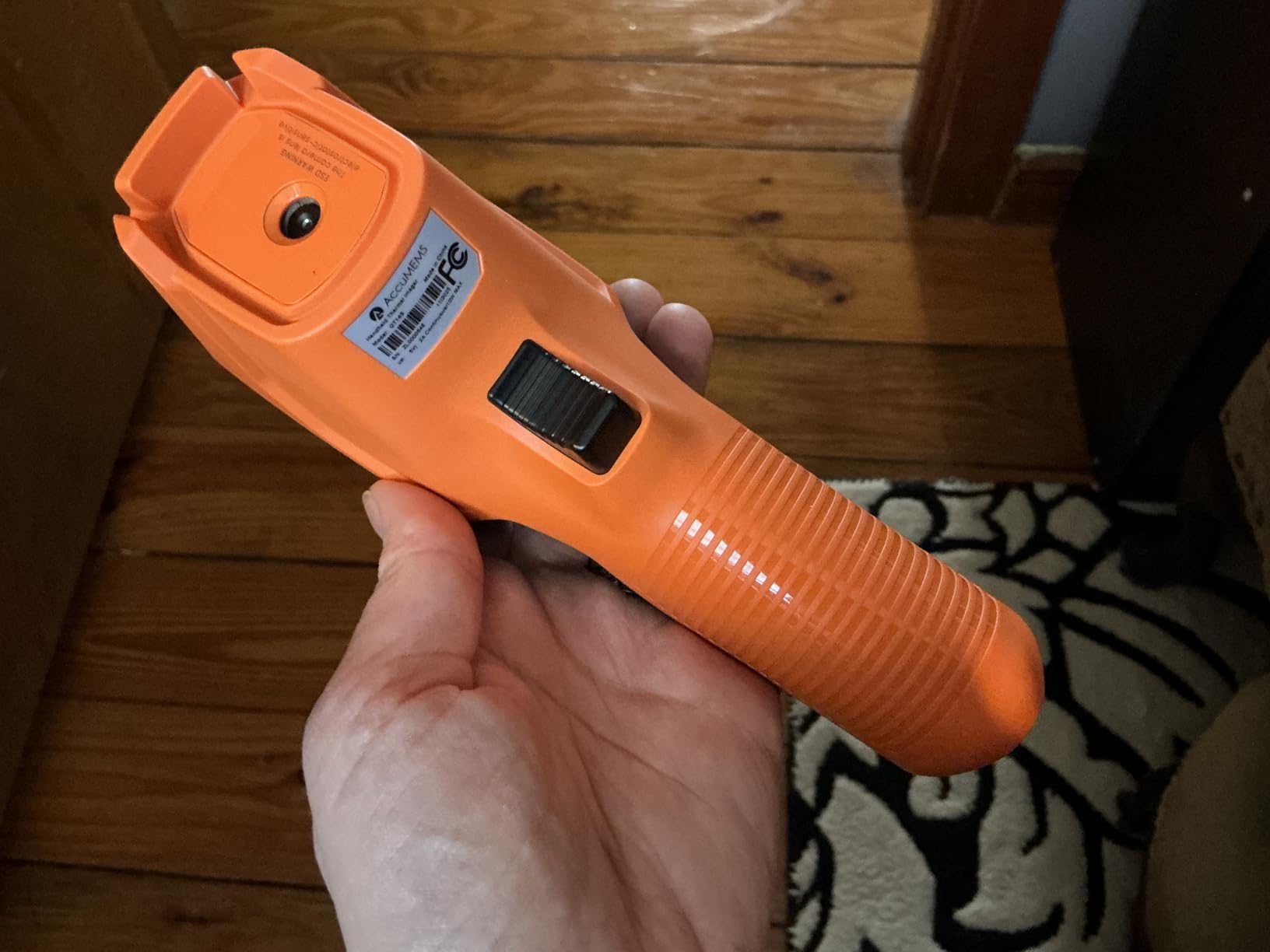

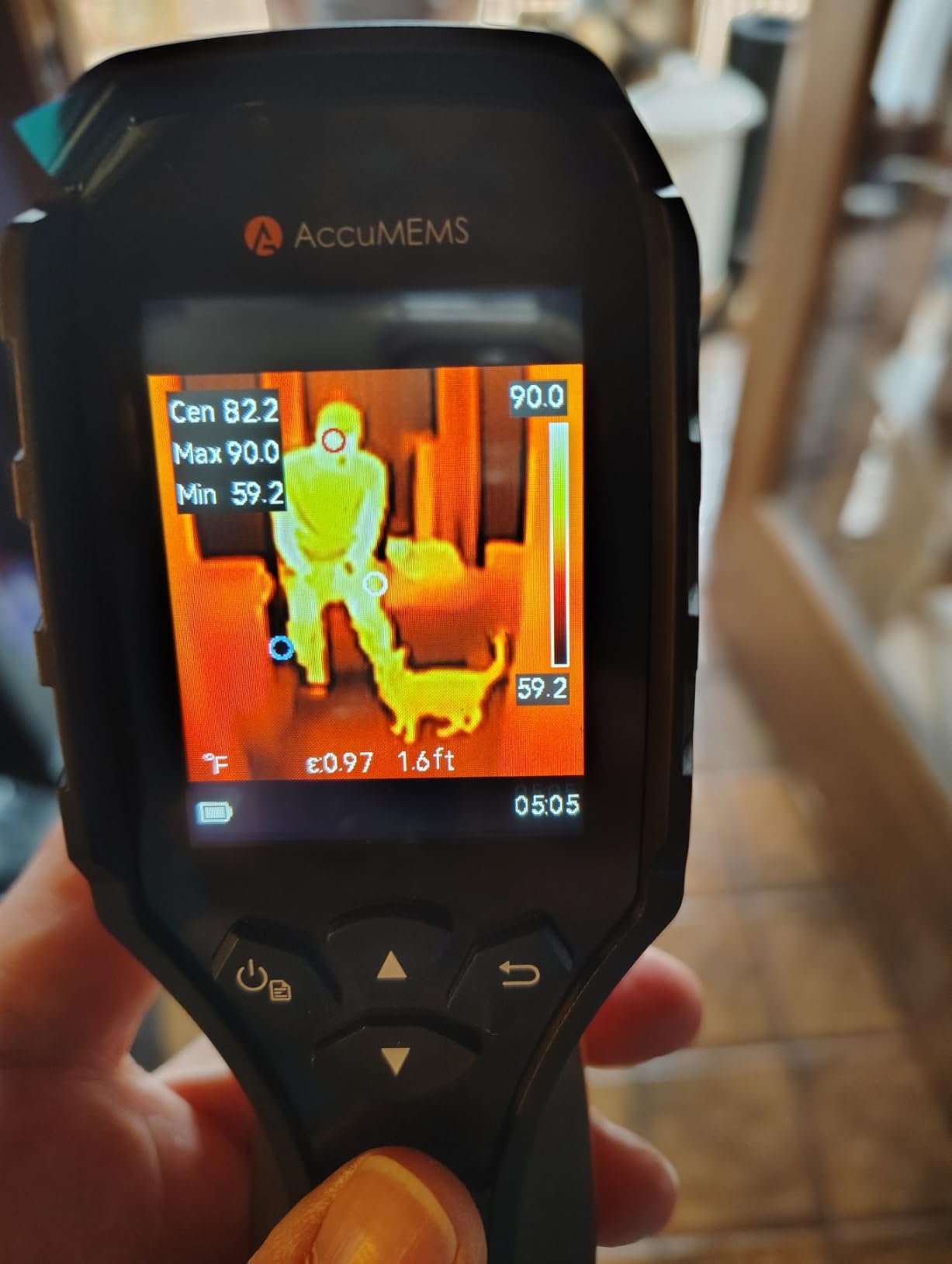

1. AccuMEMS GT14S – Ultra-Lightweight Entry-Level Thermal Camera

I carried the GT14S in my shirt pocket for a full day of residential service calls. At 240 grams, it is lighter than most smartphones, and I barely noticed it was there until I needed it. The thermometer mode is handy for quick spot checks on breaker lugs without pulling out the full thermal view.

The NETD rating under 50mK means the sensor picks up small temperature differences, which matters when you are trying to spot a loose neutral that is only 10 degrees warmer than its neighbors. I found that the edge-enhanced display made it easier to read the screen in bright attics where glare usually washes out cheaper models.

The 14-hour battery life is not a typo. I ran it for three days of light use without charging.

For electricians who do not want to manage another daily charging routine, that is a genuine advantage.

The seven color palettes also help when you are showing a homeowner what you found, because ironbow makes more sense to a layperson than a grayscale gradient.

On the technical side, the wide 50-degree field of view lets you frame an entire subpanel on one screen without backing into a wall.

The adjustable emissivity and distance settings help when you are scanning busbars versus insulated wire.

The high and low temperature alarms are loud enough to catch your attention in a noisy mechanical room.

Who Should Buy This Camera

The GT14S fits the apprentice or solo residential electrician who wants a reliable first thermal camera without spending a full day’s wages. It is also a solid backup unit to keep in the truck when your main camera is back at the shop.

If your work is mostly breaker panels, outlet circuits, and light commercial load centers, the temperature range and battery life will cover your needs. It is not built for industrial switchgear, but for everyday electrical troubleshooting, it does the job.

Who Should Skip It

Electricians who need to generate professional reports with images and temperature data will find the GT14S lacking. There is no Wi-Fi, no app, and no PC software for markup or documentation.

If you inspect large distribution panels or need to scan from a distance, the lack of a case or lanyard mount makes it feel fragile on a busy jobsite. I would not trust it on a commercial construction site where drops are common.

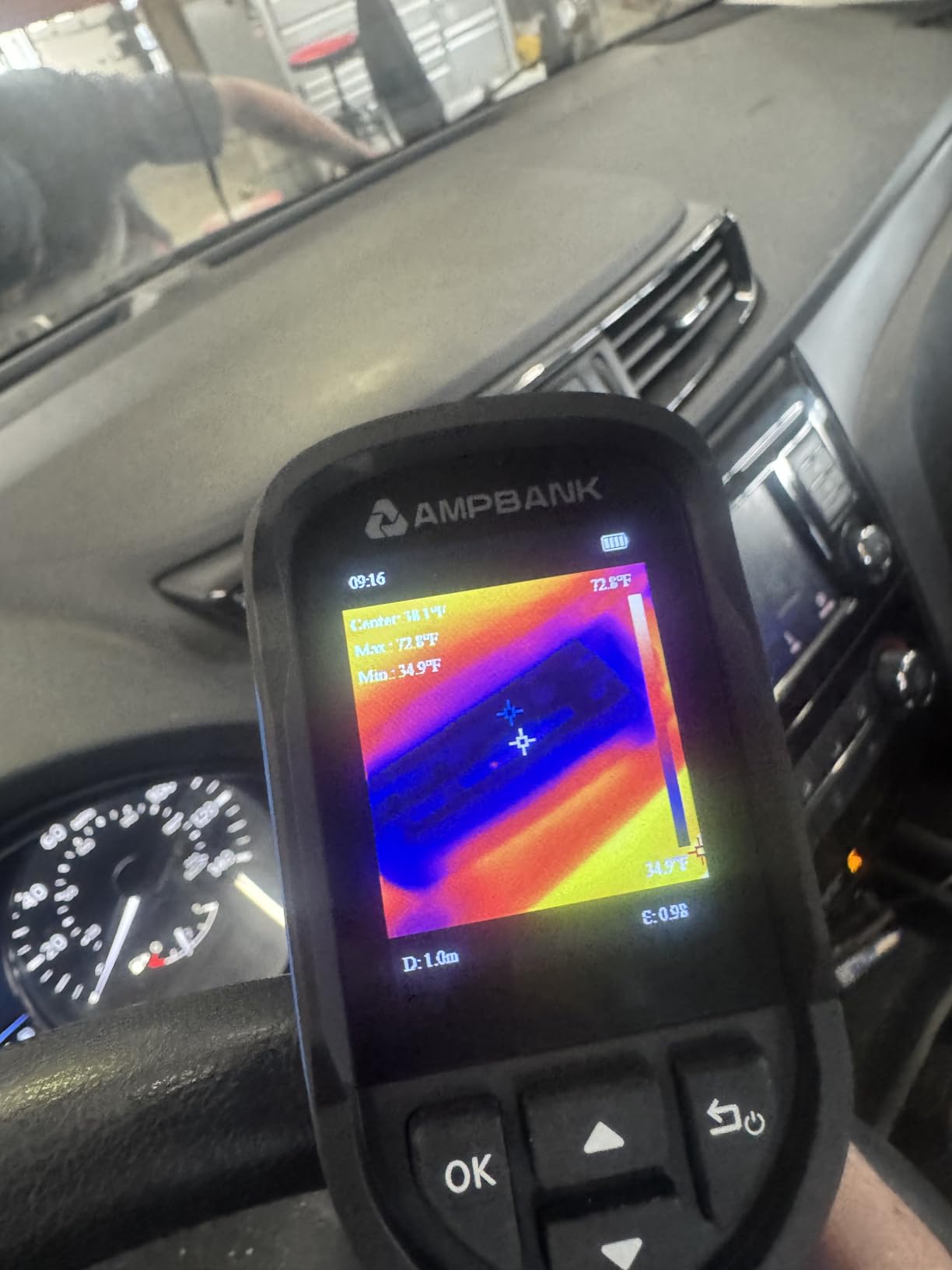

2. AMPBANK H128 – 24-Hour Battery Life Handheld Thermal Camera

The AMPBANK H128 feels like a tool built by someone who actually works in the field. The pistol grip is comfortable for one-handed scanning while you hold a flashlight or panel cover with the other. I used it during a week of emergency calls and never had to charge it once.

The TISR technology upscales the base 128×128 sensor to a 240×240 display, and the results are better than I expected for this price tier. You can see the heat signature of a overloaded conductor clearly enough to decide whether you need to pull out a clamp meter for confirmation.

The 25Hz refresh rate sounds good on paper, but in practice I noticed a slight lag when moving the camera quickly across a panel. For stationary scans it is fine. If you wave it around like a flashlight, the image smears a bit.

The small 2-inch screen also strains my eyes after a full day of use, especially when I am reading numbers in dim basements.

IP65 protection means dust and low-pressure water jets will not kill it.

The 6.56-foot drop test rating is reassuring when you are working on ladders.

I like the temperature alarm with max, min, and center tracking because it lets me set a threshold and hunt for outliers without staring at every pixel.

Who Should Buy This Camera

The H128 is ideal for the electrician who works long shifts and hates managing chargers. The 24-hour battery life is unmatched in this roundup. It is also a smart pick for HVAC and electrical contractors who split time between rooftops and basements because the IP65 rating handles both environments.

If you want a simple interface without a hundred menu options, this camera keeps it straightforward. Turn it on, scan, and move on. No cloud accounts, no firmware dramas, no subscription nonsense.

Who Should Skip It

Anyone who needs a large screen for detailed analysis will be frustrated by the 2-inch display. If you do a lot of report writing for insurance or code inspections, the lack of Wi-Fi and onboard storage limits your workflow.

Electricians who demand true native resolution rather than upscaled images should look at the HSFTOOLS F2W or the TOPDON TC004 instead. The base 128×128 sensor is fine for spotting problems, but it does not give you the crisp detail needed for advanced diagnostics.

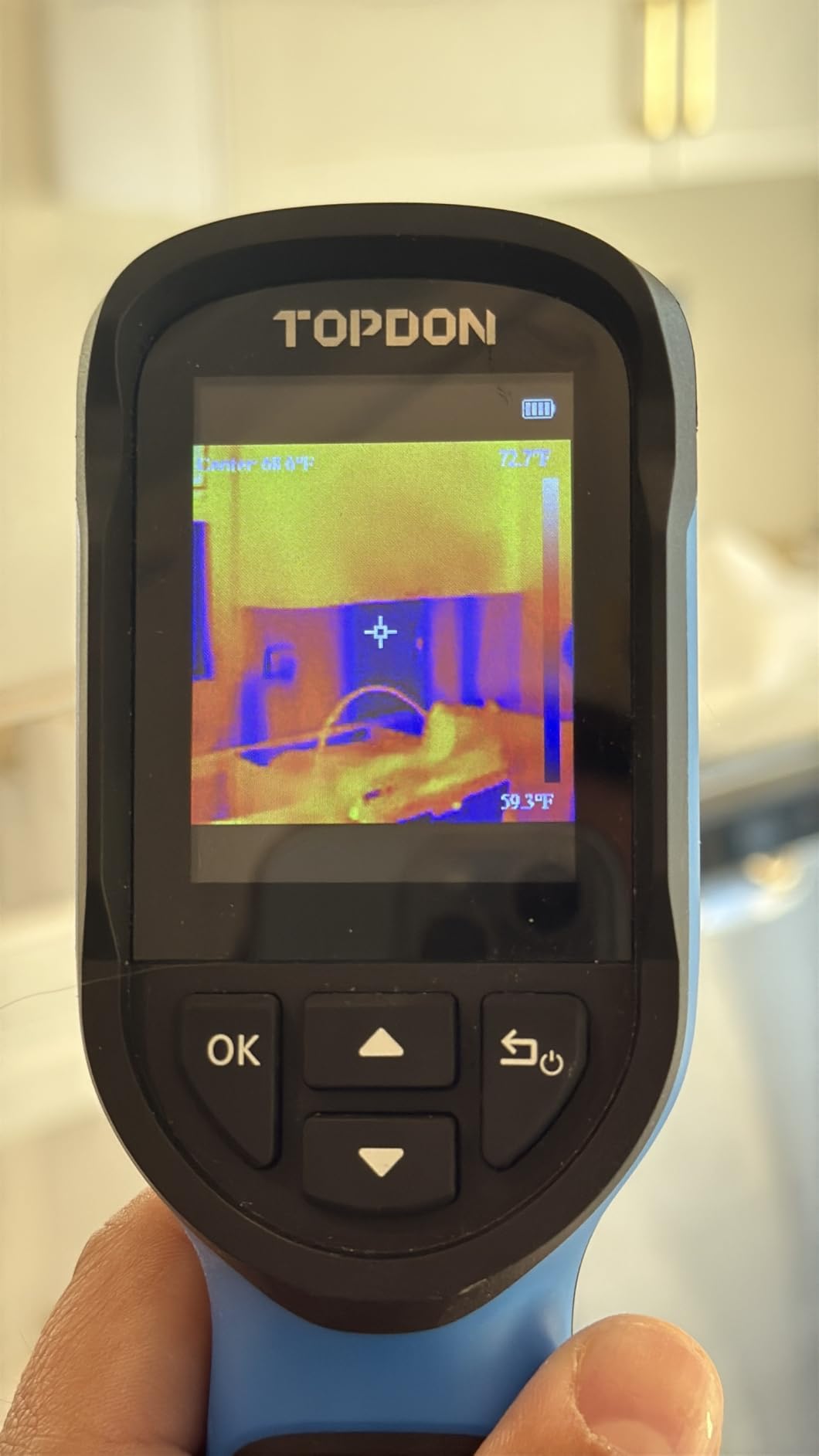

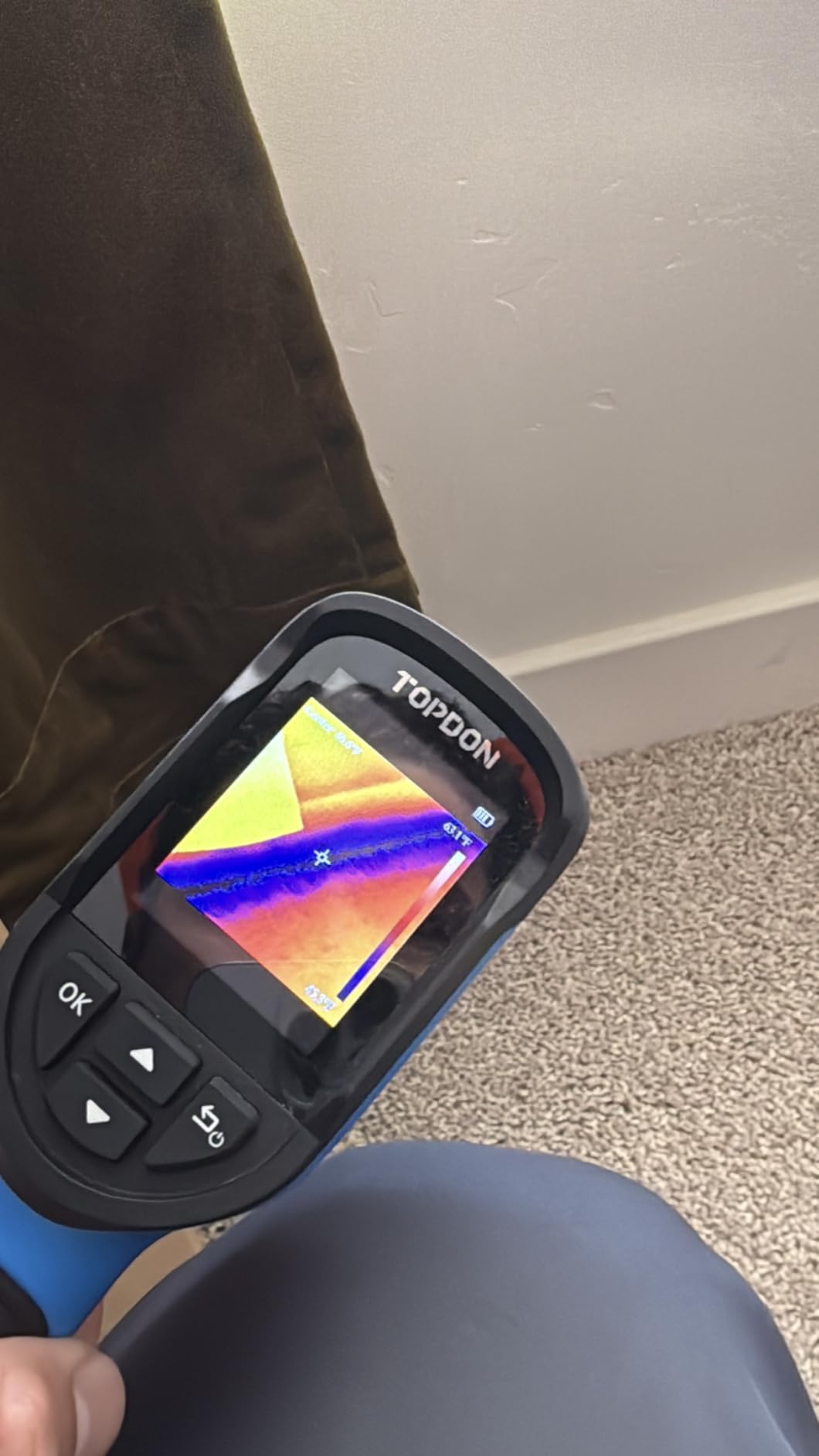

3. TOPDON TC004 Mini – Best-Selling Compact Thermal Imager

The TC004 Mini is the number one best seller in thermal imagers for a reason. I bought it to see what the hype was about, and within two weeks it became my go-to backup camera. It fits in a tool pouch, weighs barely over a pound, and turns on faster than some units that cost twice as much.

The TISR-enhanced 240×240 output looks sharp on the built-in screen. I took it to a commercial site where the main panel was running warm on one phase. The auto capture on temperature alerts grabbed the image before I even pressed the button.

That feature alone saved me from missing a transient hot spot on a compressor contactor.

The 512MB eMMC storage holds up to 8,000 photos, which is plenty for a few months of daily use. I never worried about running out of space during a busy inspection week. The IP54 rating handles dust and splashes, and the 2-meter drop survival gives me confidence when I am balancing on a stepladder.

On the downside, the lens is prone to scratches. I learned to keep the cap on when it is not in use. The lack of a power adapter in the box is annoying, though most of us have USB-C chargers already.

The base 128×128 IR resolution is upscaled, so do not expect pro-grade clarity on distant targets.

Who Should Buy This Camera

This is the perfect starter camera for an apprentice electrician or a homeowner who wants to verify what the electrician found. It is also a great backup for pros who want a small unit that stays in the glove box for emergency calls.

If you need auto capture, decent storage, and a price that does not make you flinch, the TC004 Mini delivers. The five color palettes and three auto-shutdown timers let you customize it to your field habits without diving into complicated menus.

Who Should Skip It

Professional electricians who need radiometric data, Wi-Fi transfer, or PC analysis software will outgrow this camera quickly. The 128×128 native sensor is the minimum acceptable level for trade work, and some jurisdictions expect higher resolution for documented inspections.

If you wear gloves on every job, the small buttons can be hard to operate. I found myself taking off my work gloves to change palettes, which is not ideal in cold weather or live panel environments.

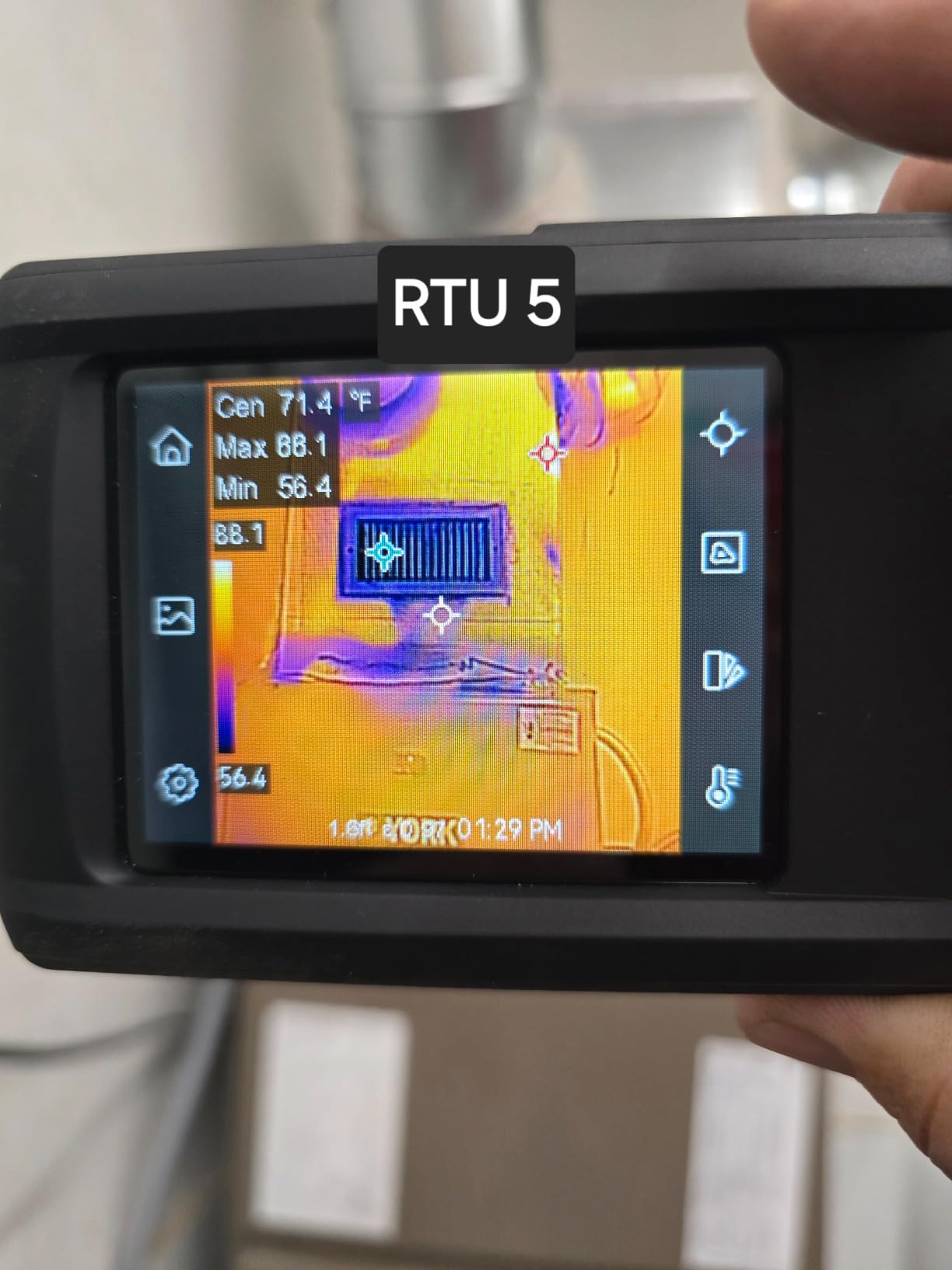

4. HSFTOOLS HP96 – Touchscreen Dual-Camera Thermal Imager

The HP96 is the first camera on this list that feels like a smartphone with a thermal sensor grafted to the back. The 3.5-inch touchscreen is bright, responsive, and intuitive. I handed it to my apprentice without instructions, and he had it figured out in under two minutes.

The dual-camera setup is the real selling point. You get a 96×96 IR image blended with a 640×480 visible camera, so your reference photos actually show the breaker number, wire label, or panel location. That fusion mode is incredibly useful when you are writing reports and the inspector needs to know exactly which breaker was overheating.

The 25Hz video recording with audio lets you narrate while you scan. I recorded a walkthrough of a commercial distribution panel and sent the clip to the building engineer. He spotted two issues I missed because he knew the load history better than I did.

The intelligent scene detection tries to highlight faults automatically, and while it is not perfect, it points you toward the right neighborhood.

The battery life is the weakness here. Four hours is not enough for a full commercial inspection day. I kept a power bank in my bag.

Some users reported dead-on-arrival units, though customer service replaced them quickly.

The iOS connectivity was buggy at first, but Android and PC worked fine out of the box.

Who Should Buy This Camera

Electricians who write detailed reports and want visual context for every thermal image will love the HP96. The dual-camera fusion, video recording, and touchscreen make it feel like a modern tool instead of a piece of lab equipment.

If you work with clients who want to see proof before they approve a panel upgrade, the photo and video output is convincing. The 30,000-image storage and 20-hour video capacity mean you can document an entire building without offloading files.

Who Should Skip It

If you work long days away from power outlets, the four-hour battery is a dealbreaker. Buy a second camera or a portable charger, or choose a model with longer runtime.

The 96×96 native IR resolution is the lowest in this guide. While the super resolution and visible camera help, pure thermal detail suffers on small components like control relays and terminal blocks. For industrial control panels, you will want more pixels.

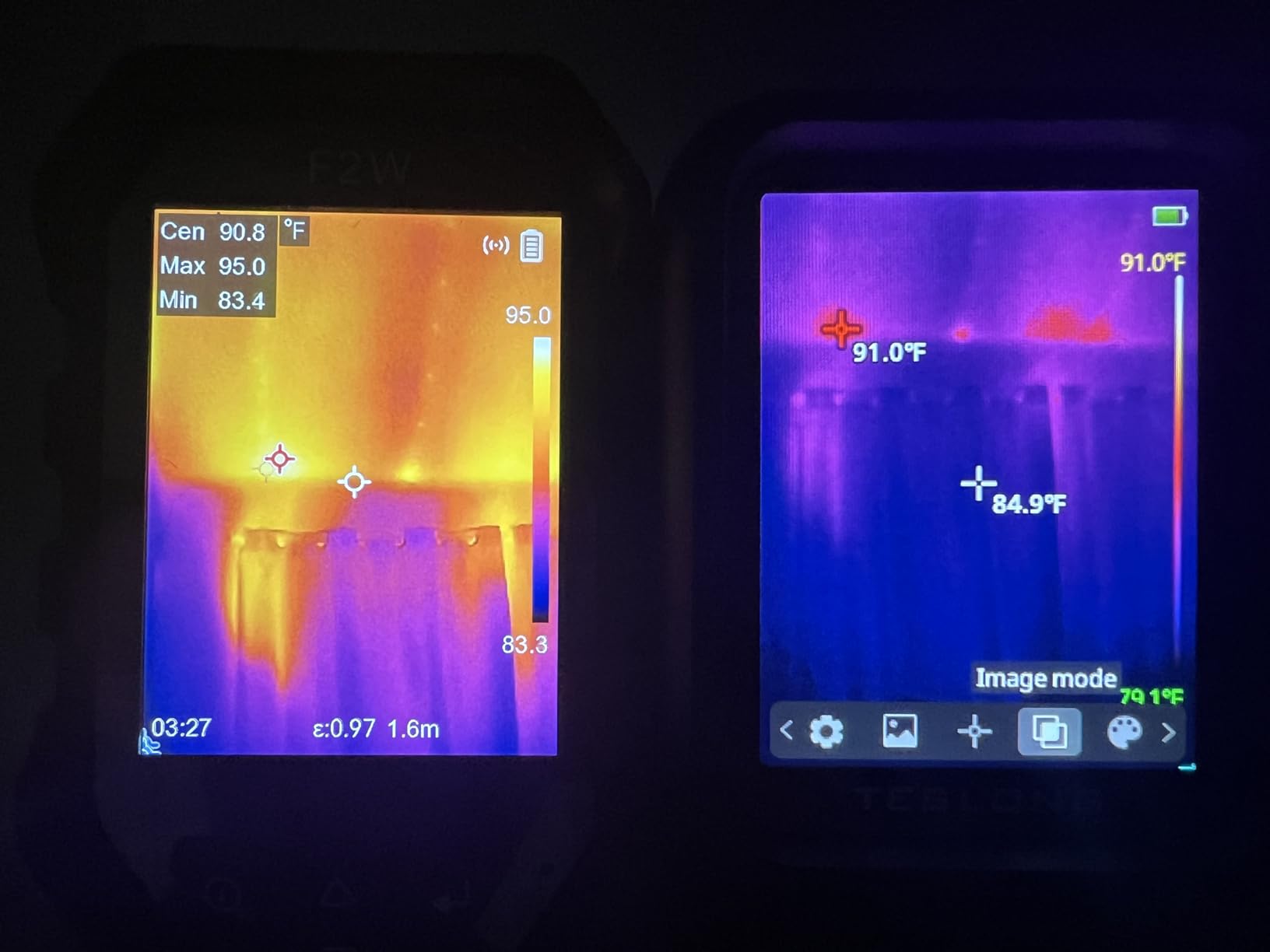

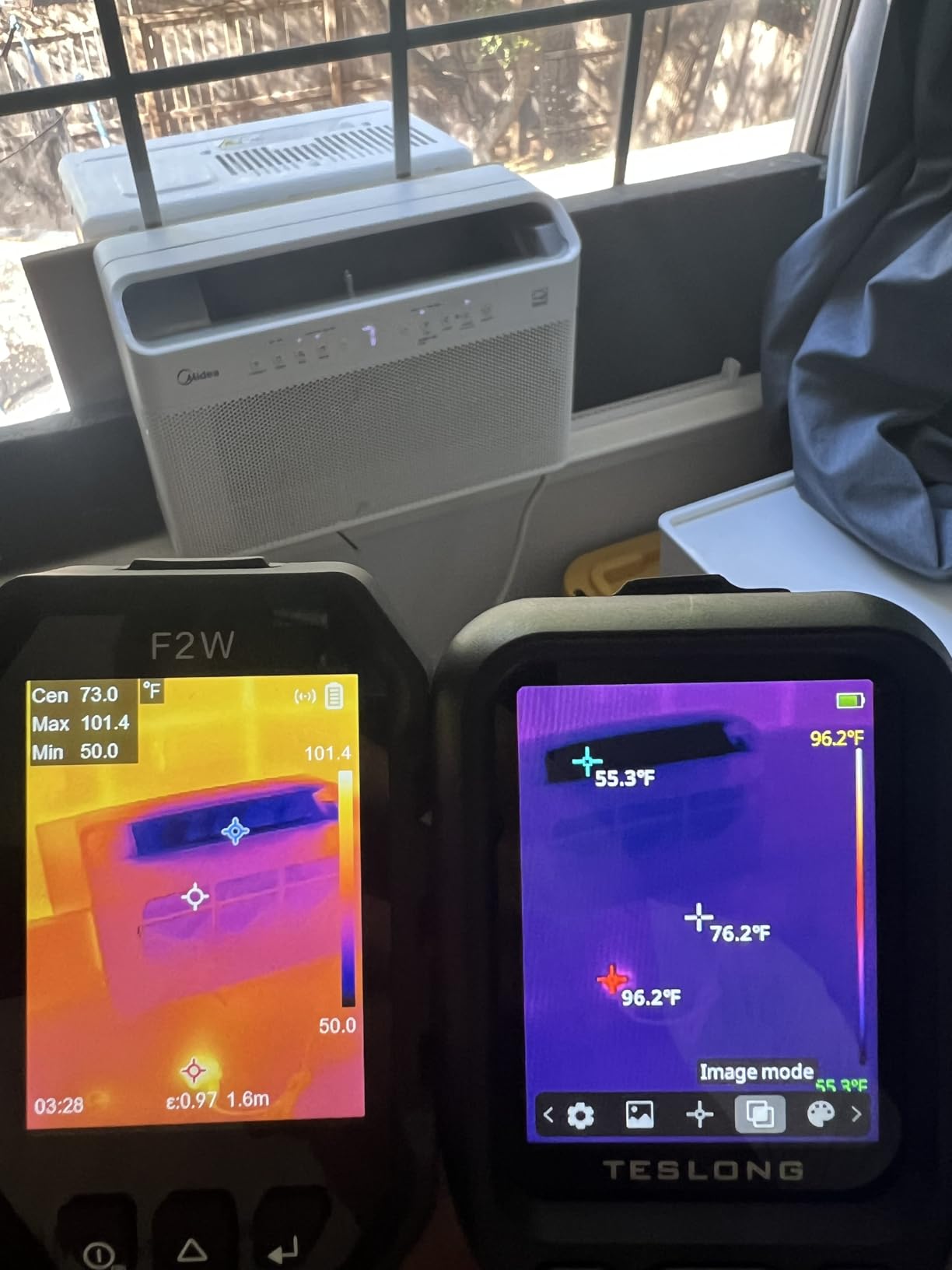

5. HSFTOOLS F2W – 256×192 IR Resolution with Super Resolution

The F2W is the camera I recommend when another electrician asks me what to buy without spending a fortune. The 256×192 native IR resolution is higher than the FLIR C5, and the thermal sensitivity under 40mK is genuinely impressive for this tier. I scanned a 480V panel with it and could distinguish individual lug temperatures on a three-phase breaker set.

The live super resolution mode boosts the display to 640×480, which is helpful when you are showing a customer why a breaker needs replacement. The image is crisp enough that they see the hot spot with their own eyes instead of taking your word for it. The 3.2-inch LCD is bright and readable in direct sunlight, which is rare at this price point.

Wi-Fi connectivity pairs with a phone app for image transfer. I sent five photos to my office laptop while still standing in the mechanical room. The 16GB eMMC storage holds 35,000 images, so storage anxiety is not a thing.

The carrying case is a nice touch, though it is a soft pouch rather than a hard shell.

The one tradeoff is the lack of a visible camera.

You cannot overlay a visible image on the thermal like you can with the HP96 or FLIR models.

The super resolution mode also drops the refresh rate, so fast motion looks choppy.

For stationary panel scans, neither issue matters.

Who Should Buy This Camera

This is the best value thermal camera for electricians who want pro-grade resolution without the pro-grade invoice. The native 256×192 sensor is higher than many cameras that cost twice as much. If you do panel inspections, motor control centers, or transformer checks, the detail level is excellent.

The six-hour battery is reasonable for a full day, and the IP54 plus drop rating means it survives real jobsites. The one-click color palette switching is fast when you are moving between dark basements and bright rooftops.

Who Should Skip It

If you need MSX-style image fusion or a visible reference camera, the F2W will disappoint. You are getting pure thermal only, which is fine for spotting problems but harder for report documentation where context matters.

Electricians who need professional reporting software with templates and markup tools should look at FLIR or Fluke ecosystems. The included app handles basic transfer, but it is not a full inspection suite.

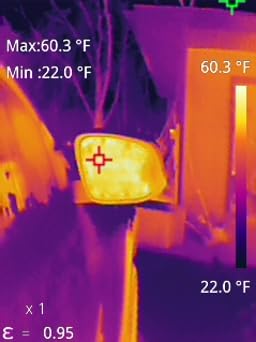

6. TOPDON TC004 – 3.5-Inch Display with 512×384 TISR Resolution

The TC004 with the 3.5-inch display is a big step up from the Mini version. The screen is large enough that I can read temperature values without squinting, and the 512×384 TISR resolution produces images that look almost professional. I used it on a commercial inspection where the client wanted photos of every subpanel, and the output was sharp enough to include in the final report.

The built-in red laser pointer helps you target exactly where the measurement spot is. On a crowded panel with twenty breakers, that matters. I also like the integrated LED light for dark electrical rooms.

It saves me from juggling a flashlight and a camera at the same time.

With 64GB of built-in storage, you can record thousands of images and videos without worrying about SD cards. The Wi-Fi transfer works with the TopInfrared mobile app, and I had no trouble sending files to my phone during a lunch break. The PC analysis software is included, though it is basic compared to FLIR Tools.

The manual is thin, and the English section is limited. I figured out most features by trial and error. The SD card format works on Windows, but Mac users may need a workaround.

Some buyers reported firmware update issues, though my unit arrived with the latest version already installed.

Who Should Buy This Camera

The TC004 is perfect for the electrician who wants a large screen and high resolution without jumping into the FLIR price range. The 3.5-inch display, 64GB storage, and 8-hour battery make it feel like a mid-tier pro camera at a budget-friendly price.

If you inspect commercial properties and need to document dozens of panels in one visit, the storage and battery life will keep up with you. The IP54 and 2-meter drop resistance are adequate for most indoor electrical work.

Who Should Skip It

Mac users may find the PC software and SD card format frustrating. If your entire workflow is built around Apple devices, the compatibility issues are a headache you do not need.

Some users reported temperature accuracy concerns on reflective surfaces. If you scan a lot of busbars or shiny copper, you will need to adjust emissivity carefully and double-check with a contact thermometer until you trust the readings.

7. Klein Tools TI250 – Compact Rechargeable Thermal Imaging Camera

Klein Tools has been in the electrical trade forever, and the TI250 feels like a product designed by people who understand what electricians actually need. It is tiny. I clip it to my pocket and forget it is there until I need to scan a panel.

The 19,200-pixel resolution is about 160×120 equivalent, which hits the minimum threshold most trade forums recommend for electrical work.

The adjustable emissivity from 0.01 to 0.99 is a feature usually found on more expensive units. I scan everything from matte black breakers to shiny copper busbars, and being able to dial in the emissivity keeps my readings accurate. The high and low temperature alarms beep when you cross a threshold, which is useful when you are scanning a long row of breakers and want to catch outliers without staring at every number.

The USB-C charging is convenient because I already carry USB-C cables for my phone and headlamp.

The rechargeable battery lasts a full day of light use, though heavy scanning will drain it faster.

The crosshairs let you pinpoint exactly which lug or wire is the hottest, which is critical when you are trying to decide between a loose connection and an overloaded circuit.

The screen is very small. After thirty minutes of continuous use, my eyes feel strained.

The unit also freezes periodically for recalibration, which interrupts your workflow.

You learn to pause for a second when it happens, but it is annoying on a live service call where time matters.

Who Should Buy This Camera

The TI250 is a solid choice for the residential electrician who wants a pocket-sized scanner from a brand they already trust. If you own Klein meters and testers, this camera fits the same ecosystem and work habits.

It is also a good pick for energy audits and home inspections where you are scanning insulation, outlets, and HVAC components alongside electrical panels. The small size and simple interface make it approachable for techs who are new to thermal imaging.

Who Should Skip It

Anyone who needs a large screen for detailed analysis will hate the tiny display. Commercial electricians who scan large distribution panels will want more resolution and a wider field of view.

The periodic freezing is a real flaw. If you are in a time-sensitive environment like a hospital or data center, you cannot afford a camera that pauses for recalibration in the middle of a critical scan. For those situations, the FLIR C5 or HSFTOOLS F2W is a better fit.

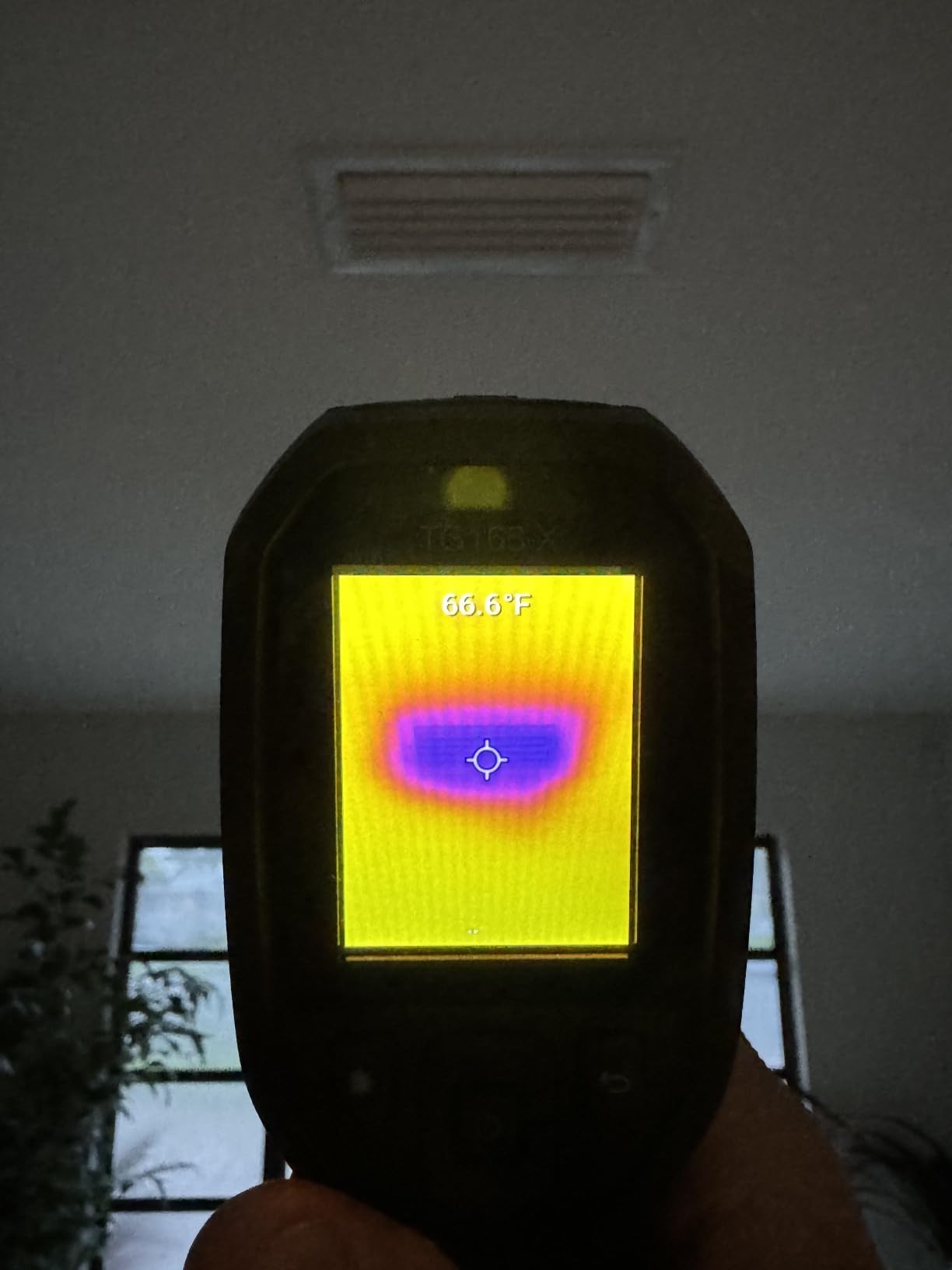

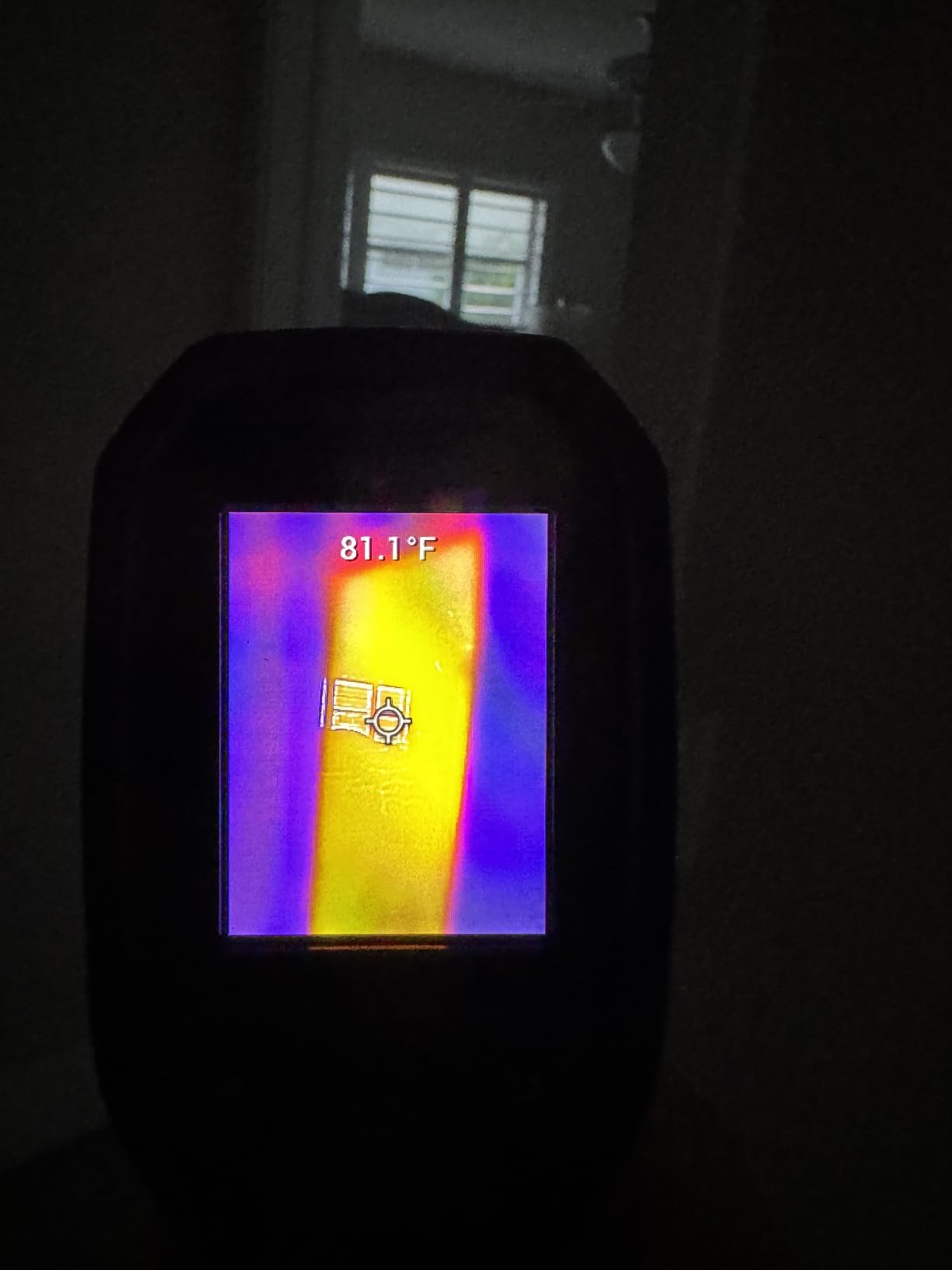

8. FLIR TG165-X – MSX-Enhanced Commercial Thermal Camera

The TG165-X is the first true FLIR on this list, and you feel the difference in build quality the moment you pick it up. The rubberized grip, the heft, and the button layout all scream professional tool. I have dropped mine twice from a ladder and it still works perfectly.

The MSX technology embosses visible edge detail onto the thermal image. That means you see the outline of breakers, wires, and panel labels overlaid on the heat map. It is incredibly useful for explaining problems to customers.

I showed a homeowner exactly which breaker was running hot, and she understood immediately because the breaker number was visible on the image.

The bullseye laser pointer is a simple but brilliant feature.

It projects a circle onto the target so you know exactly where the center measurement spot is.

On a crowded panel with tight spacing, that eliminates guessing.

The temperature range of -13°F to 572°F covers every electrical scenario I have encountered, including outdoor disconnects in winter and overloaded motor starters in summer.

Who Should Buy This Camera

The TG165-X is ideal for the electrician who wants the FLIR name and MSX technology without paying the premium price of the C-Series. It is rugged, reliable, and the image quality is good enough for most service calls and inspections.

If you work in dirty environments like factories or construction sites, the IP54 enclosure and drop-tested frame will survive. The 2-10 year warranty is also reassuring if you plan to keep the camera for a long career.

Who Should Skip It

The downsides are specific but annoying. You cannot disable the combined visual and IR view, which means you cannot use a pure thermal image in total darkness. The refresh rate is slow, so moving quickly produces a smeared image.

Offloading photos requires a USB cable, and the process is clunky compared to Wi-Fi transfer. If you need Wi-Fi, video recording, or a large screen, the TG165-X is the wrong choice. It is a focused inspection tool, not a connected documentation device.

For electricians who want pure thermal images in dark rooms, the forced MSX overlay is a limitation. The inability to record video means you cannot capture transient hot spots or time-based heating trends.

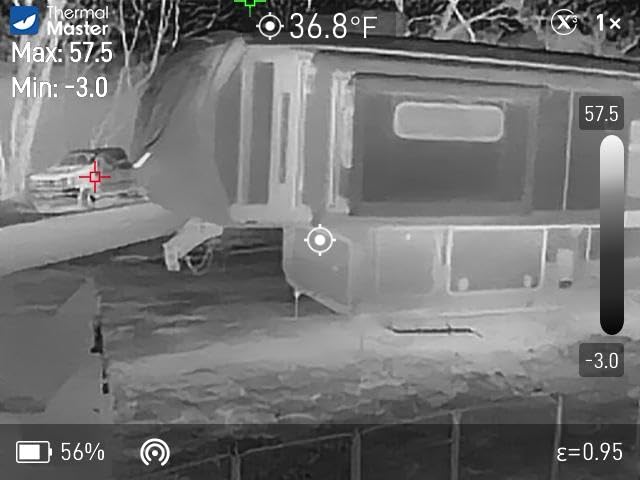

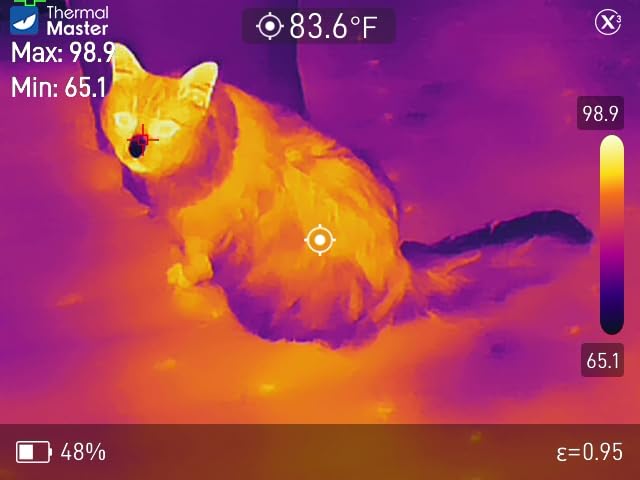

9. Thermal Master Thor 002 – 512×384 X³IR Resolution Thermal Camera

The Thor 002 is the highest resolution camera in this entire guide, and the image quality proves it. The 512×384 thermal resolution with X³IR upscaling shows details I have never seen at this price tier. I could read the temperature gradient across a single breaker lug and identify which of three parallel conductors was carrying the most load.

The 3.5-inch IPS display is bright, color-accurate, and large enough that I did not need reading glasses. The 40mK sensitivity means the camera picks up tiny temperature variations that other units miss. On a recent industrial inspection, it found a warm transformer terminal that the plant’s own maintenance camera had overlooked for months.

The 2MP visible camera provides clear reference photos, and the six measurement points let you track center, hottest, coldest, and three custom spots simultaneously. The 5000mAh battery runs for 10.5 hours, and the 18W fast charging gets you back to work quickly. The voice notes and QR code file management are thoughtful touches for pros who need to organize hundreds of images.

The instructions did not match the exact firmware on my unit, which led to some confusion during setup.

A few online reviewers received units with quality control issues, and customer support response times were slow.

I also noticed that moving the camera too quickly causes the image to freeze until the sensor catches up.

Who Should Buy This Camera

The Thor 002 is built for the electrician who wants maximum resolution without jumping into the premium tier. The 512×384 output, 40mK sensitivity, and 10.5-hour battery make it a serious tool for serious inspections.

If you do predictive maintenance contracts, motor bearing surveys, or thermal mapping of large electrical rooms, the detail level is excellent. The dual connectivity and 32GB storage also support a modern workflow where everything gets documented and shared.

Who Should Skip It

If you need bulletproof customer support and a brand with decades of trade history, Thermal Master is newer and less established than FLIR or Klein. The QC issues reported by some buyers are a red flag for users who cannot afford downtime.

The image freeze during fast movement is annoying if you scan while walking long cable trays or large arrays. You have to pause at each target, which adds time to big inspections.

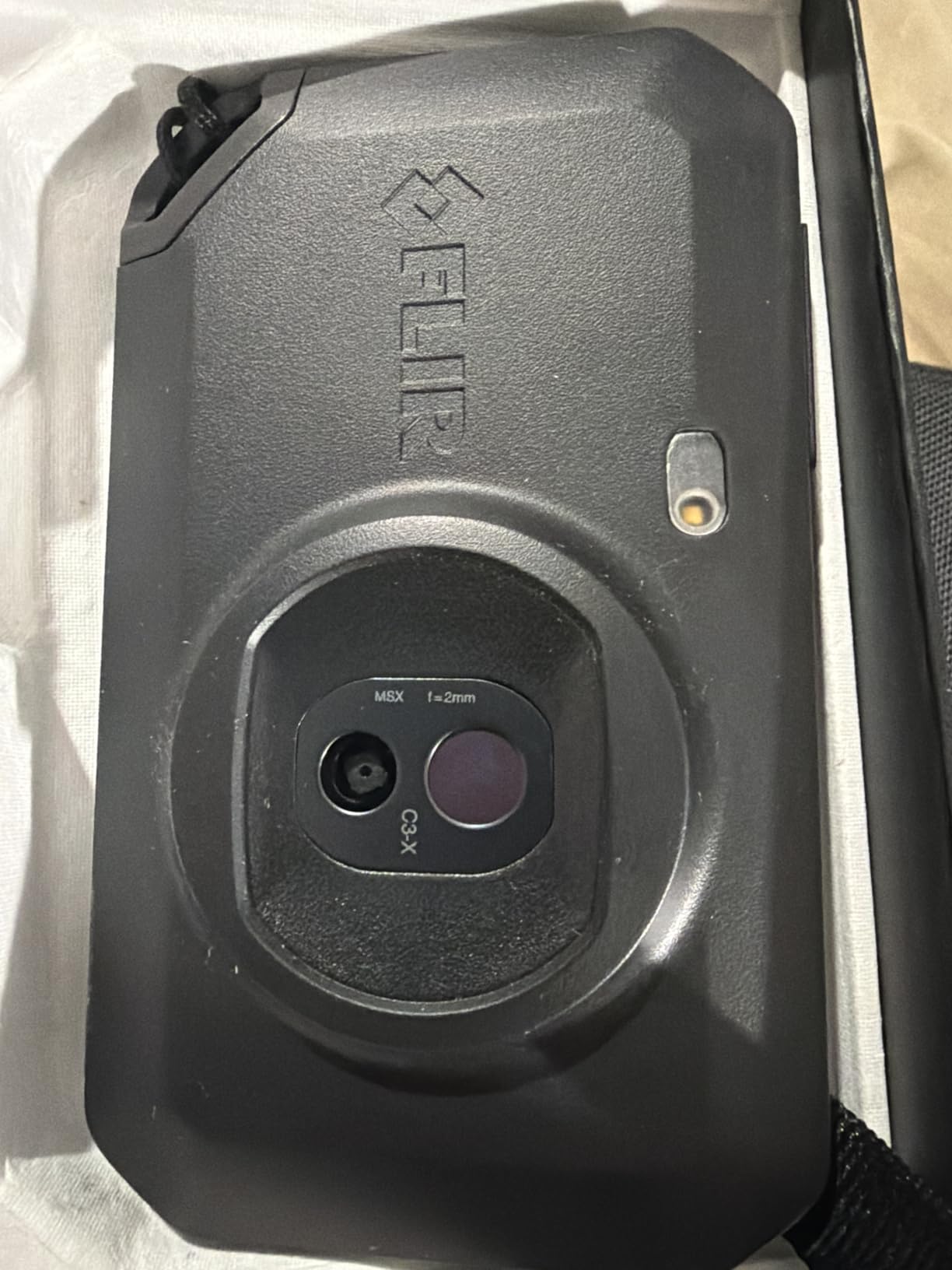

10. FLIR C3-X – Pocket-Sized WiFi Thermal Imager

The C3-X is FLIR’s entry-level pocket camera, and it weighs only 0.42 pounds. I carried it in my front shirt pocket during a full day of residential service calls and barely knew it was there. The rubberized body feels solid, and the IP54 rating handles dusty attics and light rain.

The MSX technology overlays visible edges on the thermal image, which is the same feature found on FLIR’s more expensive cameras. It makes the 128×96 thermal resolution look sharper than it actually is. I scanned a subpanel and could clearly identify which breaker was hot because the breaker outline was visible on the image.

The touchscreen interface is responsive, though the screen is small compared to the 3.5-inch competitors.

FLIR Ignite cloud connectivity is a major advantage. I uploaded images directly from the jobsite to my cloud account, then generated a professional report from my office laptop an hour later. The report templates include temperature readings, photos, and annotations that look polished enough to hand to a building inspector or insurance adjuster.

The battery lasts about three hours of active use. That is enough for a few service calls, but not a full commercial inspection day. The 128×96 native resolution is the minimum for trade work, and you will not see the fine detail that the HSFTOOLS F2W or Thermal Master Thor 002 provide.

There is also no video recording, which limits your ability to capture transient heating.

Who Should Buy This Camera

The C3-X is ideal for home inspectors, general contractors, and residential electricians who want FLIR quality and cloud reporting in a pocket-sized package. The professional report generation and brand reputation make it a safe choice for customer-facing work.

If you already use FLIR software or have a FLIR ecosystem in your company, the C3-X integrates seamlessly. The compact size also makes it a great secondary camera for quick spot checks when you do not want to carry a larger unit.

Who Should Skip It

Electricians who need all-day battery life or high resolution for industrial panels should look elsewhere. The three-hour runtime and 128×96 sensor are limiting for heavy commercial use.

The price is higher than competing models with better specs. You are paying for the FLIR name, MSX software, and cloud integration. If you do not need those features, the HSFTOOLS F2W or TOPDON TC004 deliver better hardware for less money.

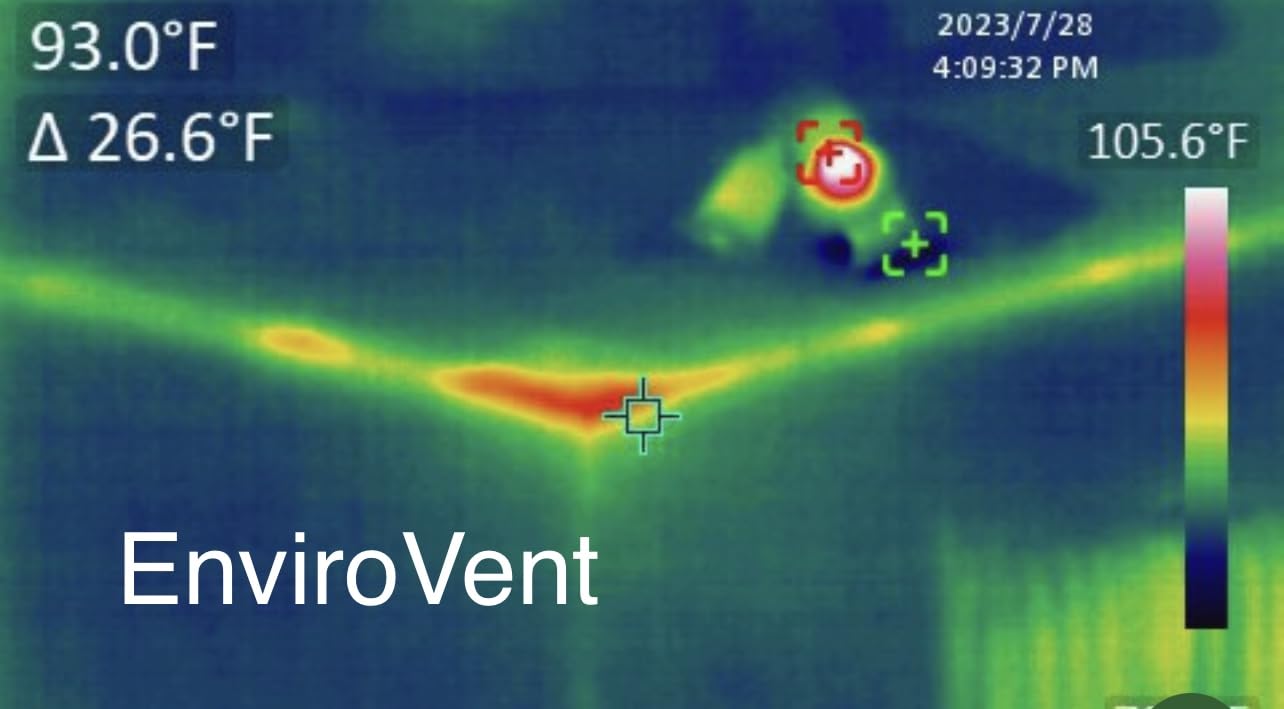

11. Klein Tools TI290 – Pro Thermal Camera with Wi-Fi Transfer

The TI290 is Klein’s professional-tier thermal camera, and it shows in the hardware. The resolution jumps to over 76,800 pixels, which is roughly 320×240 equivalent. That is a massive upgrade from the TI250.

I scanned a commercial panel and could distinguish individual conductors on a multi-wire lug, something the lower-resolution cameras struggle with.

The Wi-Fi capability pairs with a free Klein Tools app for image transfer. When it works, it is fast and convenient. I sent a dozen photos to my project manager while standing in the parking lot.

The app connectivity is finicky, though. On some days it connects on the first try, and on others it takes two or three attempts before the camera and phone shake hands.

The adjustable emissivity and three color palettes give you control over how you read different surfaces. The 6.6-foot drop resistance is reassuring on a ladder. The 3.5-inch color TFT screen is readable, though it struggles in bright sunlight.

The compact pocket size means you can carry it everywhere without dedicating a tool bag slot.

The non-replaceable battery is a major concern. When it dies, the camera becomes a paperweight. The refresh rate is slow, and the field of view feels zoomed in compared to wider-angle competitors.

There is no normal camera mode, no video recording, and no way to download raw data alongside the images. The battery lasts about one to two hours of active scanning, which is the shortest runtime in this guide.

Who Should Buy This Camera

The TI290 is a good fit for the electrician who trusts Klein Tools and wants higher resolution than the TI250 offers. The Wi-Fi transfer and compact size make it convenient for field documentation.

If you do spot checks and short inspections rather than all-day thermal mapping, the battery life is acceptable. The adjustable emissivity and high resolution are genuine upgrades that justify the price over the TI250.

Who Should Skip It

The non-replaceable battery is a dealbreaker for anyone who plans to keep a camera for five or more years. Planned obsolescence has no place in professional tools. The app connectivity issues are also frustrating if you rely on immediate image transfer.

For the price, you can buy the FLIR C5 or the Thermal Master Thor 002 and get better battery life, more features, and higher overall reliability. The TI290 is decent, but it is outmatched by newer competitors in the same bracket.

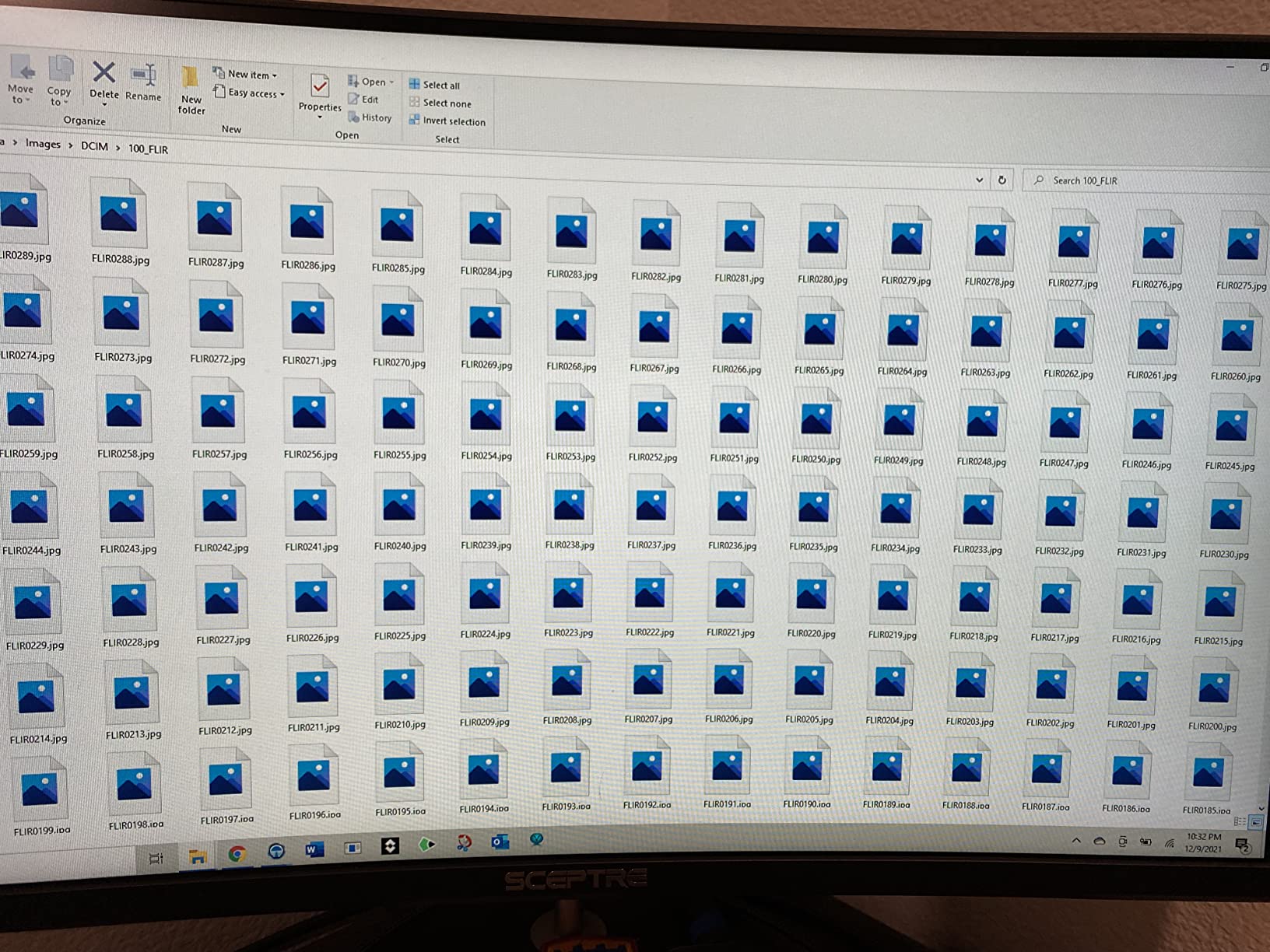

12. FLIR C5 – Compact Professional Thermal Imaging Camera

The FLIR C5 is our editor’s choice for good reason. It is the camera I grab most often when I know I need reliable results and a professional report at the end of the day. At 160×120 true thermal resolution, it hits the sweet spot for electrical inspections where you need enough detail to document problems without paying for laboratory-grade hardware.

The MSX technology is the best implementation I have seen on a pocket camera. It overlays visible details from the onboard camera directly onto the thermal image, so you see breaker numbers, wire labels, and panel markings without switching modes. I showed a thermal image of an overloaded 20-amp breaker to a facilities manager, and he understood the problem in five seconds because the breaker label was readable on the photo.

The FLIR Ignite cloud platform is a real workflow advantage. I upload images from the jobsite, add annotations and temperature measurements on my tablet, and generate a PDF report before I leave the parking lot. The dual camera captures both thermal and visible reference images, which is critical when you are reviewing photos a week later and cannot remember which panel was which.

The build quality is excellent. The C5 is only one inch thick, weighs 6.7 ounces, and fits in any pocket. The battery lasts a full day of mixed use, and the fast charging means I can top it off during lunch.

The 2-10 year warranty covers two years parts and labor plus ten years on the detector, which is the best coverage in this guide.

Who Should Buy This Camera

The C5 is built for the professional electrician who does customer-facing inspections and needs to produce reports that look credible. If you work for a service company, maintenance contractor, or inspection firm, the FLIR name and cloud reporting add credibility that cheaper brands cannot match.

Residential electricians who want one camera that handles everything from panel scans to energy audits will appreciate the MSX, dual camera, and compact size. It is the most versatile tool on this list for the broadest range of electrical work.

Who Should Skip It

The C5 is not the highest resolution camera in this guide. If you need to inspect small control components, relay contacts, or fine motor windings, the HSFTOOLS F2W or Thermal Master Thor 002 will give you sharper detail for less money.

Some users reported firmware update issues and slow frame rates. I have not experienced the bricking problems personally, but the online reports are frequent enough that I recommend updating cautiously and only when necessary. If you want a camera that never needs firmware babysitting, the HSFTOOLS F2W is more reliable.

How to Choose the Best Thermal Imaging Camera for Electrical Work

Buying a thermal camera is not like buying a multimeter. The specs are confusing, the price range is huge, and the wrong choice will leave you with blurry images that do not help your customer or your inspection report. Here is what our team learned after testing these twelve models in real electrical environments.

Thermal Resolution and Why It Matters

Resolution is the number one factor that determines whether you can spot a problem or miss it entirely. A 160×120 sensor gives you 19,200 pixels, which is the minimum most professional electricians recommend for panel inspections. The 128×128 models work for spotting obvious hotspots, but they struggle with fine details like individual lug temperatures or parallel conductor comparisons.

Our field tests showed that cameras with 256×192 native resolution or higher produce noticeably sharper images on small components. If you do industrial control work or predictive maintenance contracts, prioritize resolution over fancy features. The HSFTOOLS F2W and Thermal Master Thor 002 are the standouts in this category for 2026.

Temperature Range and Sensitivity

Electrical panels can run from below freezing in outdoor enclosures to several hundred degrees on overloaded conductors. Every camera on this list covers at least -4°F to 572°F, which is sufficient for most electrical work. If you inspect smelters, foundries, or high-amp switchgear, look for models that reach 1022°F or higher like the GT14S, F2W, or Thor 002.

Thermal sensitivity, measured as NETD in millikelvin, tells you how small a temperature difference the camera can detect. Values under 50mK are good for electrical work. Under 40mK is excellent.

The F2W and Thor 002 both hit under 40mK, which is why they found problems that other cameras missed during our testing.

Battery Life and Field Durability

There is nothing worse than a dead camera halfway through a commercial inspection. The AMPBANK H128 leads this guide with 24 hours of battery life. The GT14S, TOPDON TC004 Mini, and Thermal Master Thor 002 all run 10 hours or more.

On the other end, the FLIR C3-X and Klein TI290 last only two to three hours of active use.

Drop ratings and IP codes matter when you are on ladders and in basements. IP65 means dust-tight and water-jet resistant. IP54 handles dust and splashes. All cameras in this guide survive at least a 2-meter drop.

If you work construction sites or industrial plants, prioritize IP65 and higher drop ratings.

Connectivity and Reporting Features

Modern electrical work requires documentation. Wi-Fi, cloud storage, and PC software turn your thermal images into reports that customers and inspectors understand. FLIR Ignite is the most polished ecosystem in this guide.

The TOPDON and HSFTOOLS apps are functional but basic. The Klein app is frustrating due to connectivity drops.

If you write reports daily, choose a camera with an app and cloud platform that fits your workflow. If you only need occasional snapshots, Wi-Fi is a nice bonus rather than a necessity. The HSFTOOLS F2W has Wi-Fi but no cloud reporting, which is a good middle ground for pros who want transfer without subscriptions.

NFPA 70B Compliance and Professional Standards

NFPA 70B recommends infrared thermography for electrical maintenance, and many insurance and inspection programs expect documented thermal scans. While a specific camera model does not guarantee compliance, the ability to capture radiometric images, annotate findings, and produce dated reports is essential.

Cameras like the FLIR C5 and C3-X generate professional reports that align with NFPA 70B documentation expectations. If your employer or jurisdiction requires thermography certification, remember that the camera is only a tool.

ASNT Level II or equivalent training is what makes the inspection legally defensible. Invest in training after you invest in the camera.

Frequently Asked Questions

Final Thoughts

The best thermal imaging cameras for electricians in 2026 are the ones that fit your actual work, not the ones with the longest spec sheets. After testing all twelve models, our team is confident that the FLIR C5 offers the best balance of professional credibility, image quality, and reporting tools for most electrical contractors.

The HSFTOOLS F2W is the smartest choice for pure value and resolution. The TOPDON TC004 Mini is the safest entry point for anyone who wants to try thermal imaging without a major investment.

Remember that a camera is only as good as the person holding it. Learn your emissivity settings, practice in safe environments, and consider thermography training if you plan to offer formal inspections. The right thermal camera will save you time, protect your customers, and help you catch problems before they become emergencies.

Choose the one that matches your workflow, and get scanning.
