Every mechanic and machinist has been there: staring at a bolt with no idea what thread pitch it uses. I have spent hours trying to match mystery fasteners by trial and error, only to cross-thread something expensive. That frustration ends when you add a thread pitch gauge to your toolkit. These simple folding tools let you identify the exact pitch of any screw, bolt, or threaded hole in seconds. After testing dozens of models over the past year, our team put together this guide to help you find the best thread pitch gauges available in 2026.

Whether you work on cars, run a machine shop, or just need to sort out the fastener drawer in your garage, the right screw pitch gauge saves time and prevents costly mistakes. We tested gauges from under $7 to over $60, measuring everything from common UNC bolts to rare Whitworth threads. Below you will find real hands-on reviews, direct comparisons, and straightforward buying advice based on actual use.

This guide covers 12 thread pitch gauges across every budget and use case. We measured accuracy against known thread standards, tested locking mechanisms, checked readability of markings, and evaluated build quality. If you want to skip straight to our recommendations, the comparison table below has all 12 products ranked by performance and value.

Top 3 Thread Pitch Gauges for 2026

Best Thread Pitch Gauges in 2026

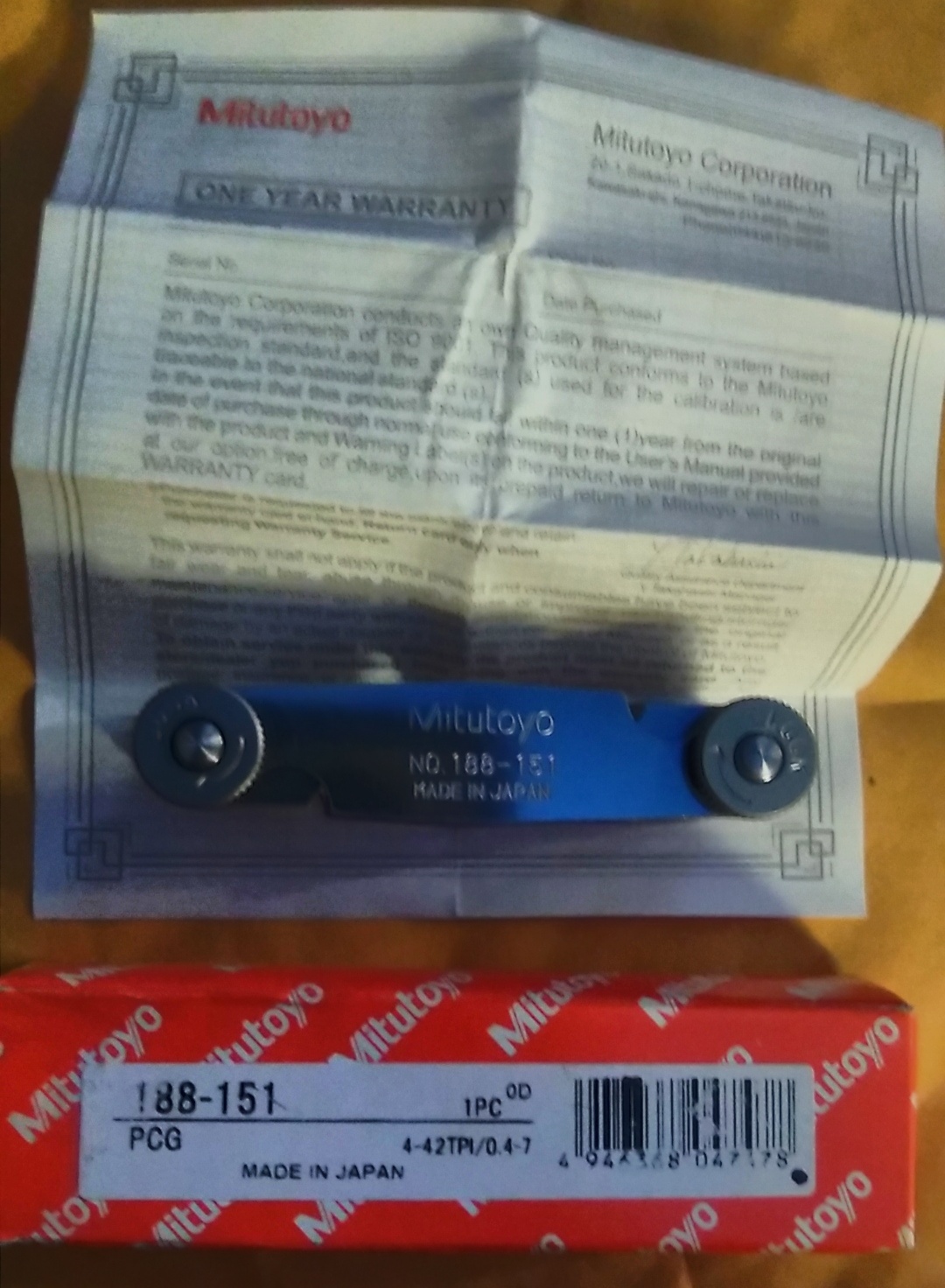

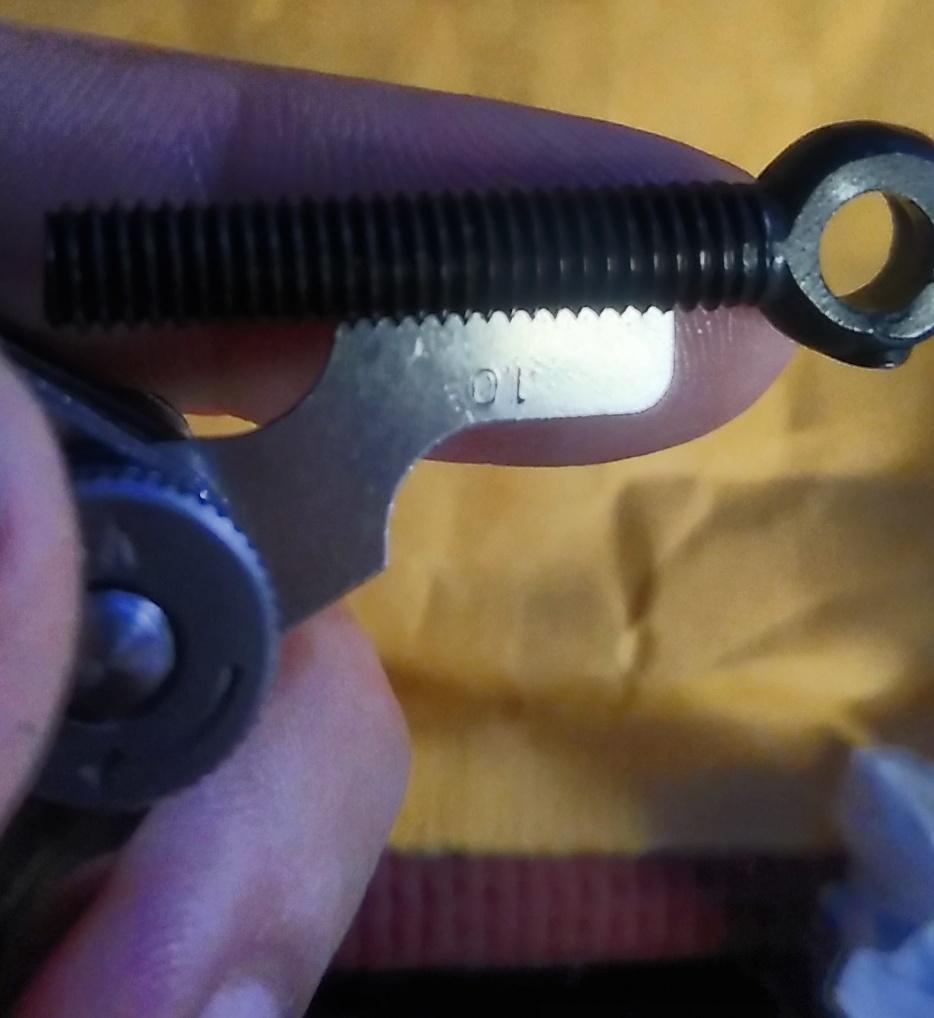

1. Mitutoyo 188-151 Screw Pitch Gage – Best Professional-Grade Pick

The Mitutoyo 188-151 is the gauge I reach for when accuracy matters most. This 51-leaf gauge covers both metric pitches from 0.4mm to 7mm and SAE threads from 4 to 42 TPI, all in one compact tool. The numbers are stamped into the steel rather than laser-etched or painted, which means they will never rub off no matter how many years you use it.

Out of the box, this gauge arrives with a light oil coating to prevent corrosion during shipping. I wiped mine down with a shop rag before first use, which took about two minutes. The locking clamp holds the selected leaf firmly in place while you work, something cheaper gauges often fail at. At just 0.2 pounds and under 4 inches long, it fits easily in a shirt pocket or tool pouch.

In our testing, the Mitutoyo matched every reference bolt we tested with zero false readings. The leaf tolerances are tight enough that there is no wobble or ambiguity when a leaf fits. Professional machinists on forums consistently rank Mitutoyo alongside Starrett as the gold standard for thread measurement tools, and our experience confirms that reputation.

The only real complaint I have is that the retail unit ships with plastic retention knobs instead of the steel ones shown in some product photos. This is a minor cosmetic issue and does not affect function. For professional mechanics, engineers, and serious hobbyists, this is the thread pitch gauge to own.

Who Should Buy This

The Mitutoyo 188-151 is ideal for professional machinists, automotive technicians, and anyone who needs reliable thread identification day after day. If you work in an environment where a wrong thread match could mean a ruined part or a safety issue, this gauge justifies every penny.

It is also great for dedicated hobbyists who want a single gauge that covers both metric and imperial without compromise. The dual-scale design means you never need to carry two separate tools.

Who Should Skip This

If you only need to identify threads occasionally around the house, the Mitutoyo may be more than you need. Casual users and those on a strict budget can get solid performance from less expensive options like the Grip or WEN gauges covered later in this list.

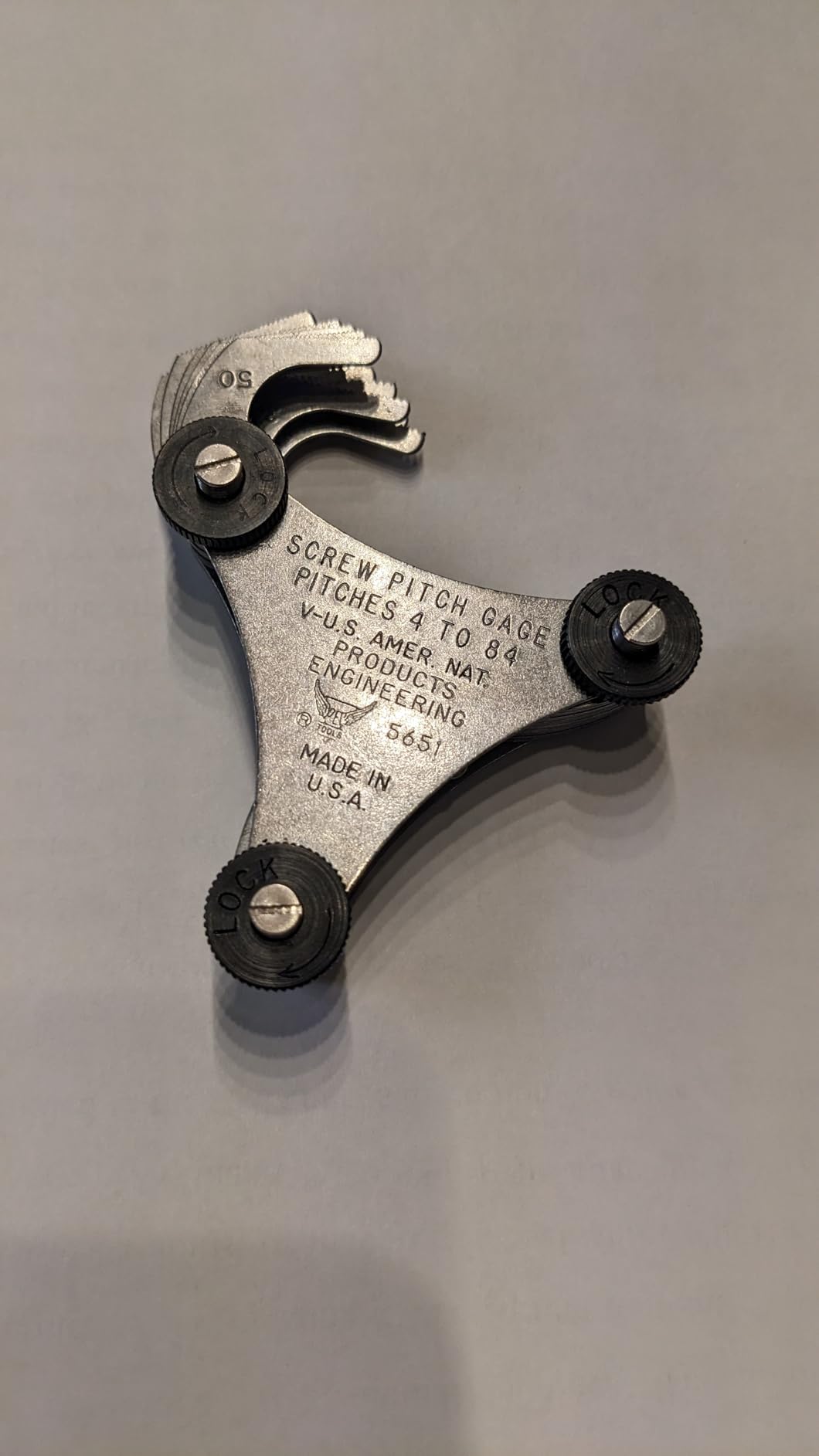

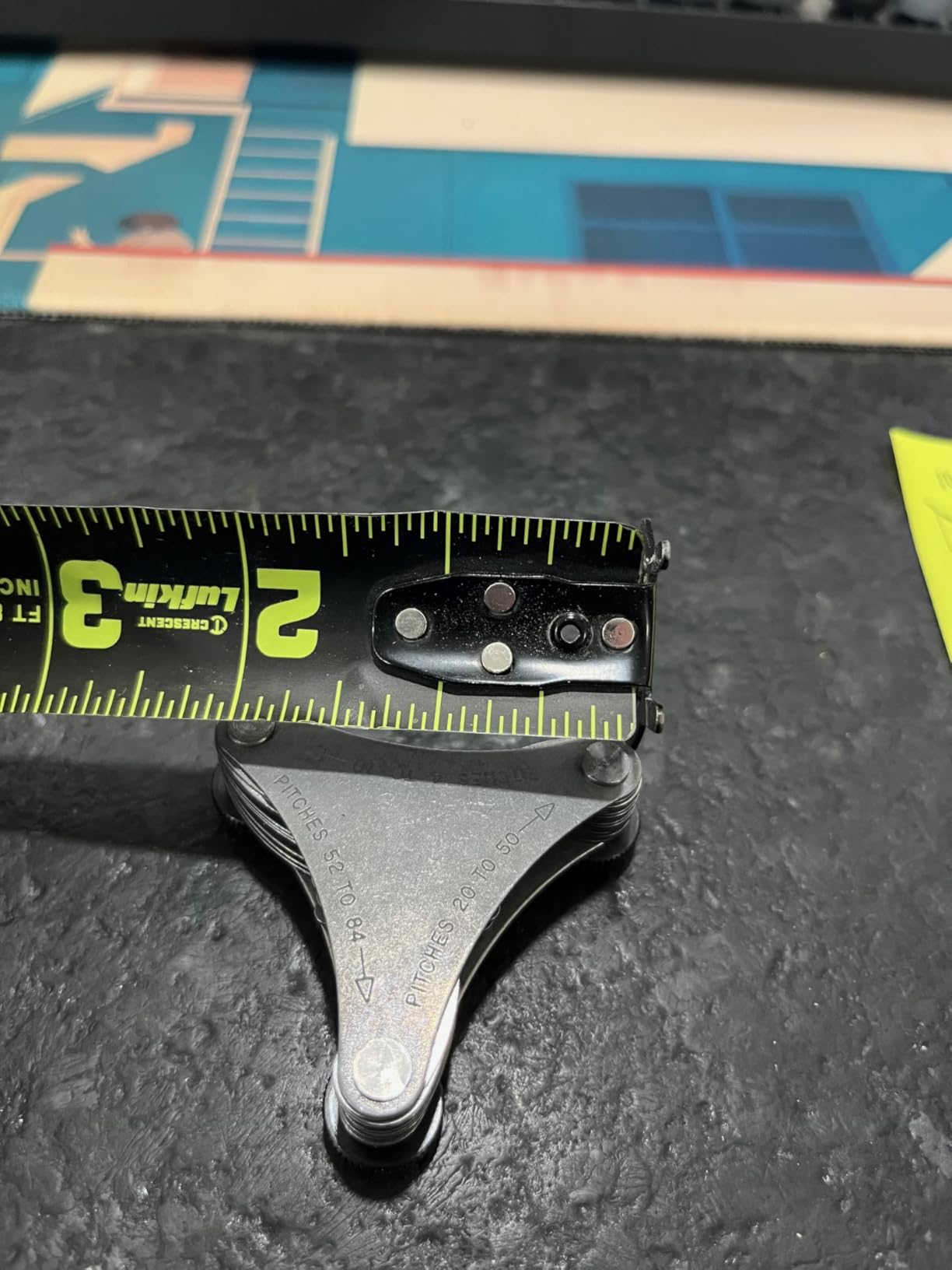

2. PEC Tools 5651 Screw Pitch Gauge – Best USA-Made Inch Gauge

PEC Tools has been manufacturing precision measurement instruments in the United States for decades, and their 5651 inch screw pitch gauge shows exactly why American-made tools still matter. This gauge covers an impressive 4 to 84 TPI across 51 leaves, giving you one of the broadest ranges available in any single gauge. The hardened steel blades feel substantial and hold up well to daily shop use.

The narrow blade design is a standout feature that many competitors lack. These thinner leaves slide into internal threads easily, which makes identifying tapped holes and nuts far simpler than with bulkier gauges. Both ends of the case feature a locking device with a thumb screw, so whichever leaf you extend stays put while you work.

Our team tested this gauge against bolts ranging from #4-40 machine screws up to 1-inch bolts with 4 TPI. Every leaf matched its intended pitch with clean, unambiguous fit. The stamped markings are clear under normal lighting, though I found myself squinting a bit in dim shop corners. A quick hit with a silver paint pen on the stampings solved that completely.

At just 3.2 ounces, this gauge is light enough to carry all day but still feels solid in hand. The triangle body design gives you good leverage when unfolding leaves. For anyone who primarily works with inch threads, this is one of the finest options available at any price point.

Who Should Buy This

The PEC Tools 5651 is perfect for machinists, mechanics, and fabricators who work primarily with SAE and inch-threaded fasteners. The 4-84 TPI range covers virtually every standard inch thread you will encounter, from tiny machine screws to large bolts.

Anyone who values American-made quality and wants a gauge that will last decades should consider this model. The hardened steel construction and stamped markings ensure long-term durability.

Who Should Skip This

If you regularly work with metric fasteners, you will need a separate metric gauge alongside this one since it covers inch threads only. Consider the PEC Tools metric model (covered next) or a dual-scale gauge like the Mitutoyo instead.

3. PEC Tools Metric Screw Pitch Gauge – Best USA-Made Metric Gauge

The PEC Tools metric gauge is the companion to their inch model, offering the same American-made quality focused on metric threads. With 28 leaves covering 0.5mm to 7mm pitch, it handles every common metric fastener from tiny M2 screws up to large M14 bolts. The hardened steel and narrow blade design match the inch version exactly.

I picked this up specifically for a project involving imported metric machinery, and it quickly identified bolts that had stumped me with cheaper gauges. The 1.6-ounce weight and compact 2-inch body make it one of the smallest professional-grade gauges available. It disappears into a pocket until you need it.

One thing I appreciate about both PEC gauges is the locking mechanism design. The thumb screw at each end of the triangle body locks firmly, and I never had a leaf slip during measurement. This is a real step up from budget gauges where the locking hardware feels like an afterthought.

The stamping quality is consistent across all 28 leaves, and each pitch is clearly marked. As with the inch version, adding a touch of paint to the stampings makes them pop in any lighting condition. For metric-focused work, this is the gauge to beat.

Who Should Buy This

This gauge is the right pick for anyone who primarily works with metric fasteners, including automotive technicians working on imported cars, engineers dealing with European or Asian equipment, and machinists running metric threading operations. Pair it with the PEC inch gauge for complete coverage.

Who Should Skip This

If your work mixes metric and inch threads throughout the day, carrying two separate gauges may be inconvenient. A dual-scale option like the Mitutoyo 188-151 or the Grip gauge might be a better fit for mixed fastener environments.

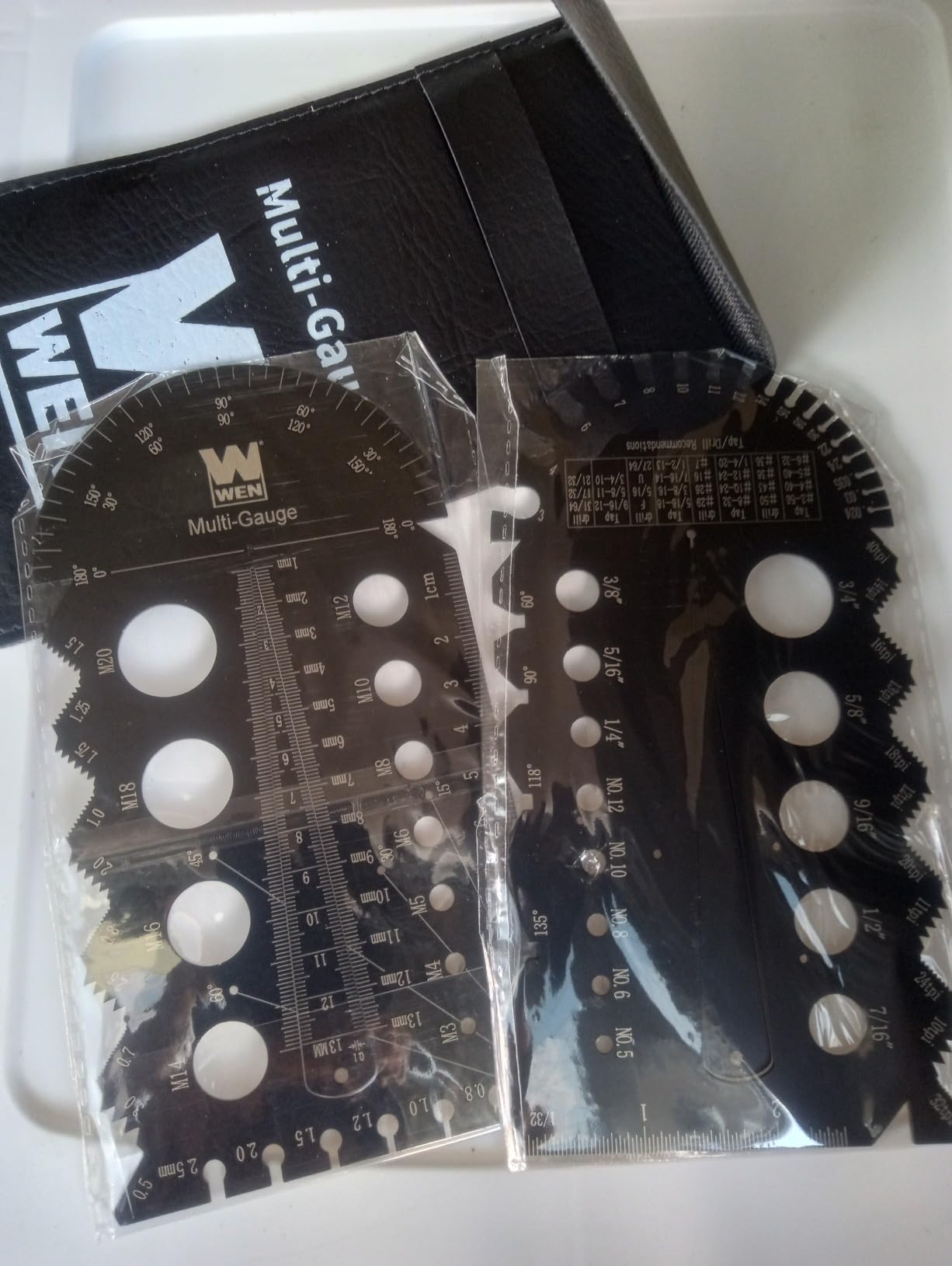

4. WEN ME210G Metric and Imperial Thread Pitch Multi-Gauge – Best Value Two-Pack

The WEN ME210G gives you two separate gauges in one package, one for metric and one for imperial, plus a carrying case to keep them together. The metal construction feels surprisingly solid for the price, and the laser-etched scales are far easier to read than stamped markings on competing budget gauges. This two-pack approach means you get dedicated tools for each measurement system rather than a compromise.

Each gauge features removable taper guides for measuring taper depths, which is a bonus I did not expect at this price. The onboard protractor and ruler add even more functionality. I used the ruler feature more than I anticipated when checking bolt lengths alongside thread pitches.

Where the WEN falls slightly short is in distinguishing between threads that are very close in pitch. M6x1.0 and 1/4-20 threads, for example, have a nearly identical pitch and the gauge thickness can make it tricky to tell them apart. This is a known limitation of metal gauges versus thinner leaf-style gauges, not a defect specific to WEN.

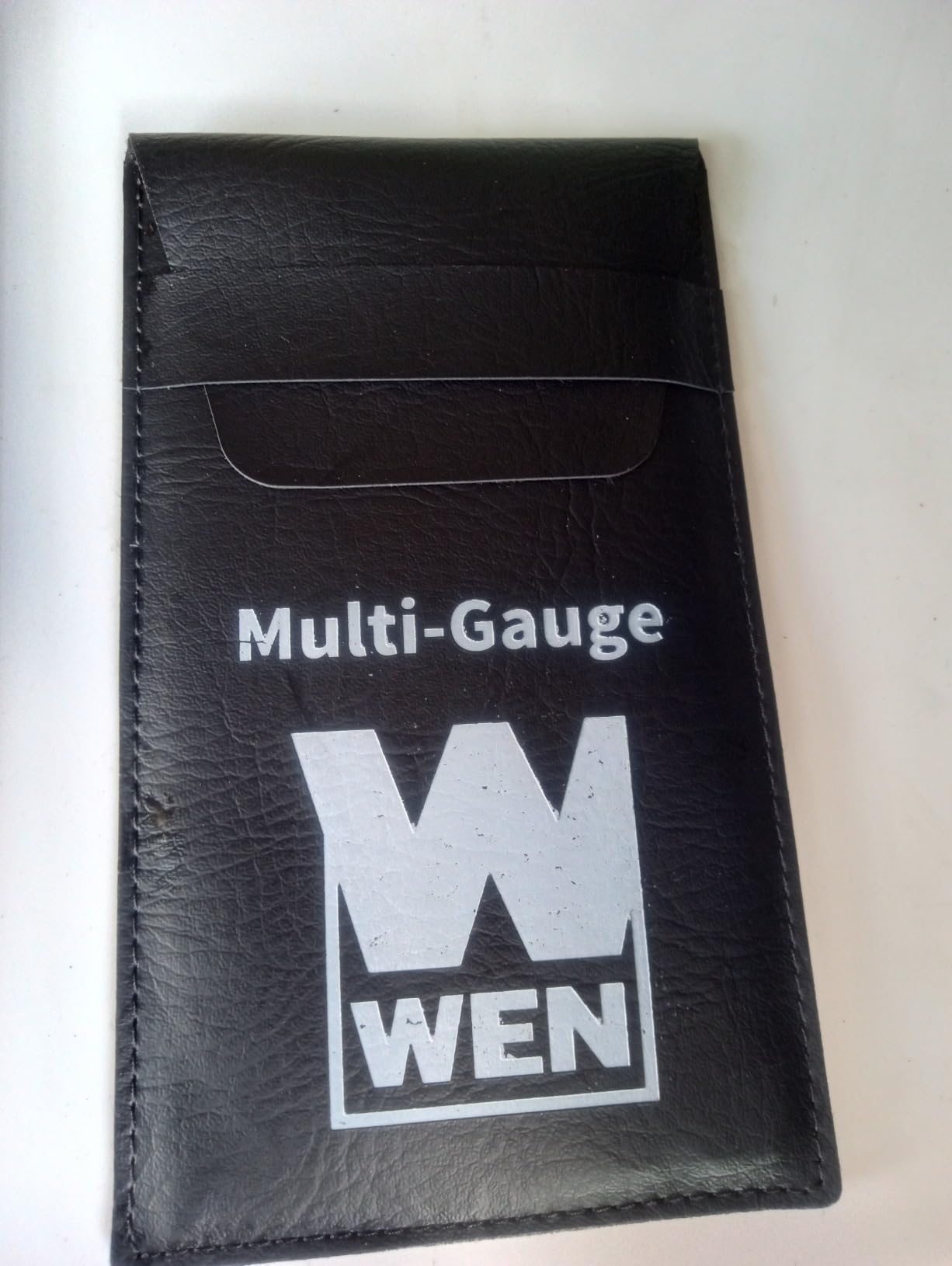

With 532 reviews and a 4.7-star rating, this is clearly a popular choice among buyers. The carrying case is a nice touch that keeps the gauges protected in a tool bag. For the money, the WEN two-pack is hard to beat for general-purpose thread identification.

Who Should Buy This

The WEN ME210G is ideal for home mechanics, DIYers, and anyone who wants both metric and imperial thread identification without spending much. It is also a smart pick for vocational students and apprentices who need a functional gauge set without a big investment.

Who Should Skip This

Professional machinists and those who need to distinguish between very close thread pitches should look at leaf-style gauges with thinner blades. The Mitutoyo or PEC Tools options offer better precision for critical work.

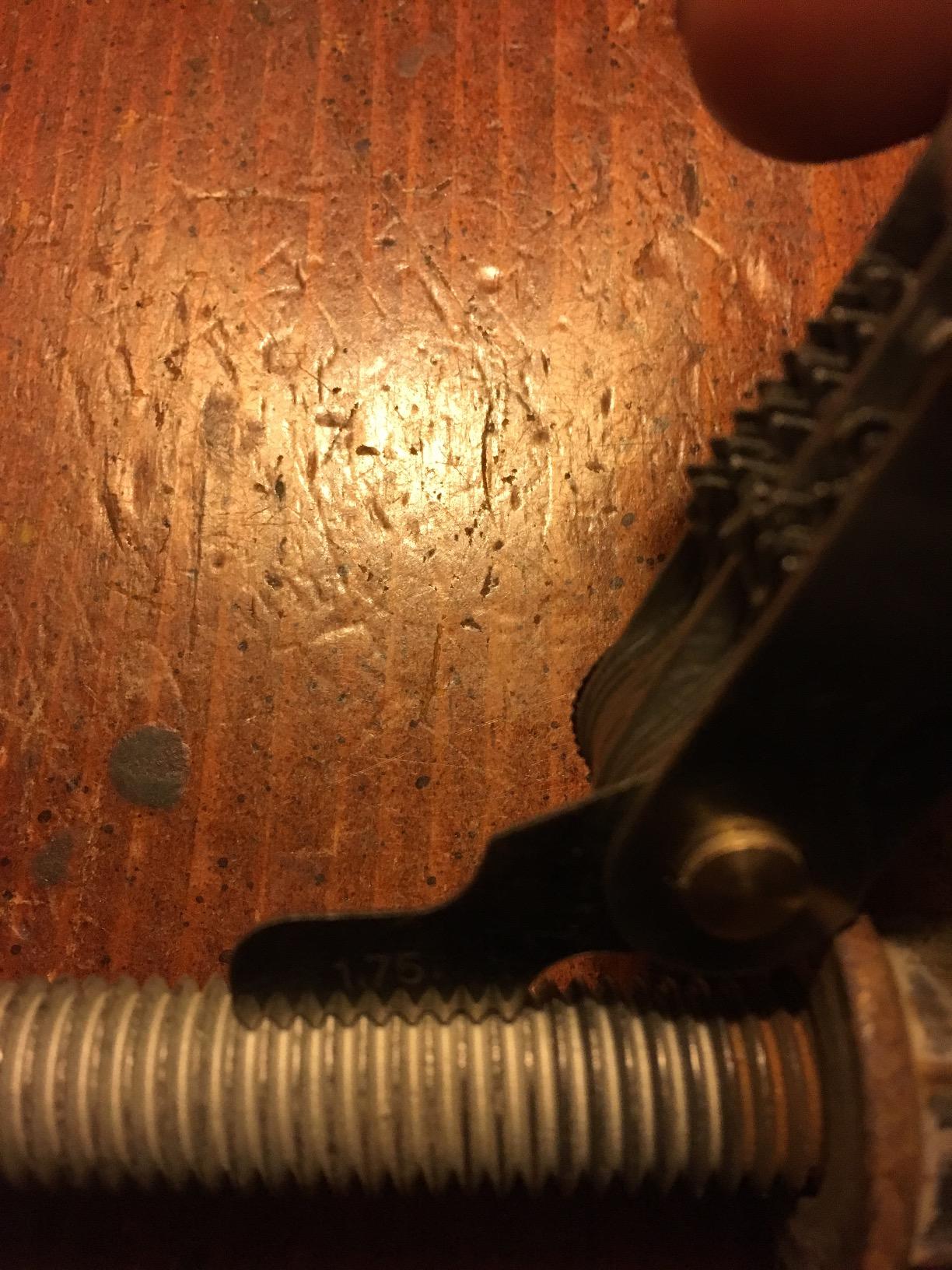

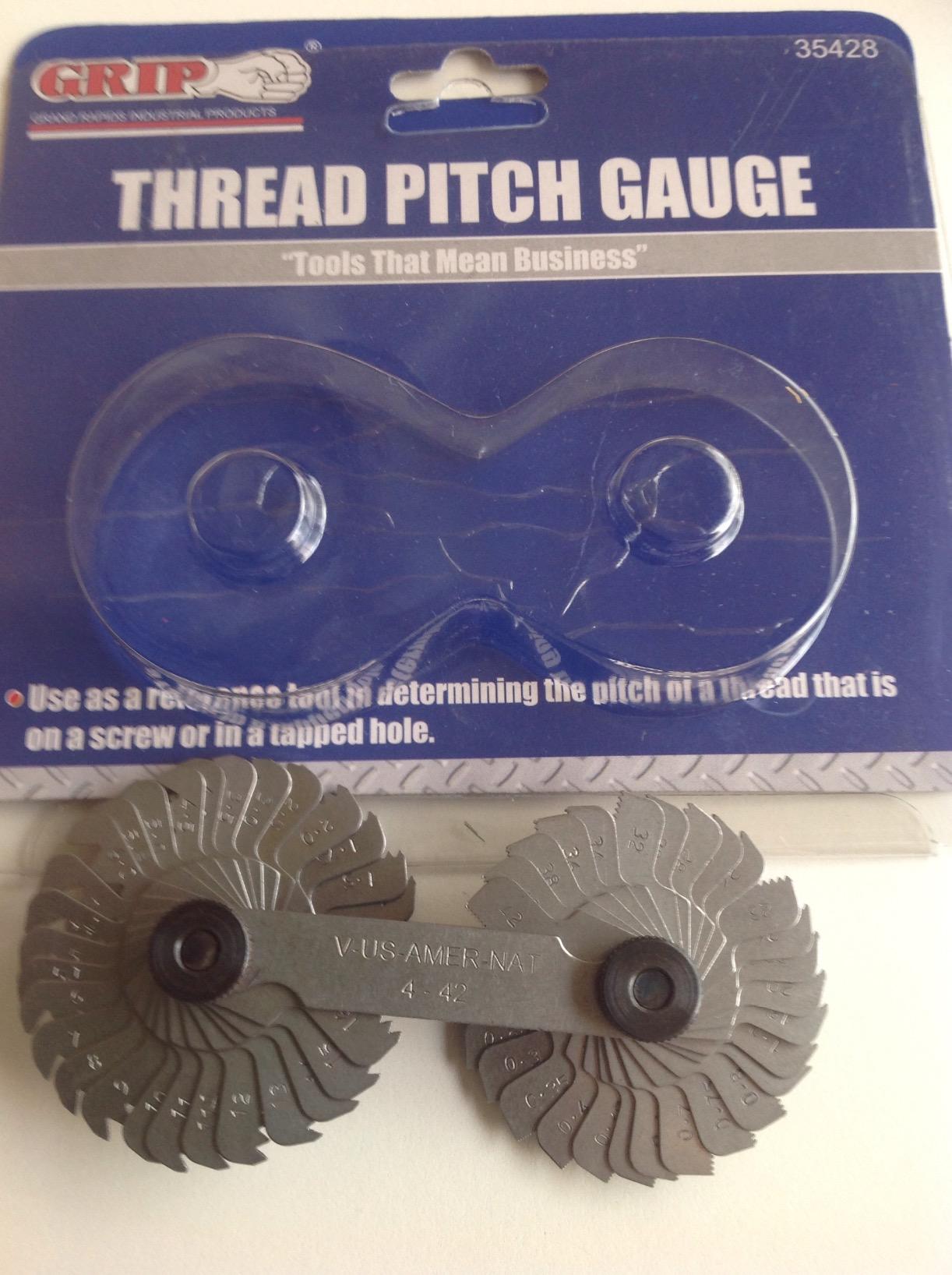

5. Grip US American National Thread Pitch Gauge – Best Budget Dual-Scale

The Grip thread pitch gauge is one of the most popular budget options on the market, with over 1,369 customer reviews backing it up. It measures both SAE threads from 4 to 42 TPI and metric pitches from 0.25 to 5.5mm, all on one folding tool. The 60-degree thread profiles match standard UNC, UNF, and metric thread angles.

I keep one of these in my roadside tool kit because it handles 90 percent of the thread identification I need when away from the shop. The locking devices work well enough for occasional use, holding the selected blade in place while you check a fastener. It is not as smooth or precise as the Mitutoyo, but it gets the job done.

The main downside is the small stamped markings. In bright daylight they are readable, but in a dim garage or under a car you may need a flashlight. Some users have also reported quality control issues like duplicate leaves or missing sizes, so it is worth checking your gauge when it arrives.

Forum discussions on Garage Journal and Reddit consistently mention the Grip as a solid budget choice. Several professional mechanics said they keep one as a backup even when they own premium gauges. For the price, it delivers reliable thread identification for casual and semi-regular use.

Who Should Buy This

The Grip gauge is perfect for home mechanics, DIYers, and anyone who needs basic thread identification without spending more than necessary. It is also a practical choice for keeping in a vehicle tool kit or a secondary toolbox where you do not need professional-grade precision.

Who Should Skip This

If you use a thread gauge daily for professional work, invest in something more durable. The build quality and marking readability are not up to the standards required for daily shop use. Professional machinists and full-time mechanics should look at the Mitutoyo or PEC Tools options instead.

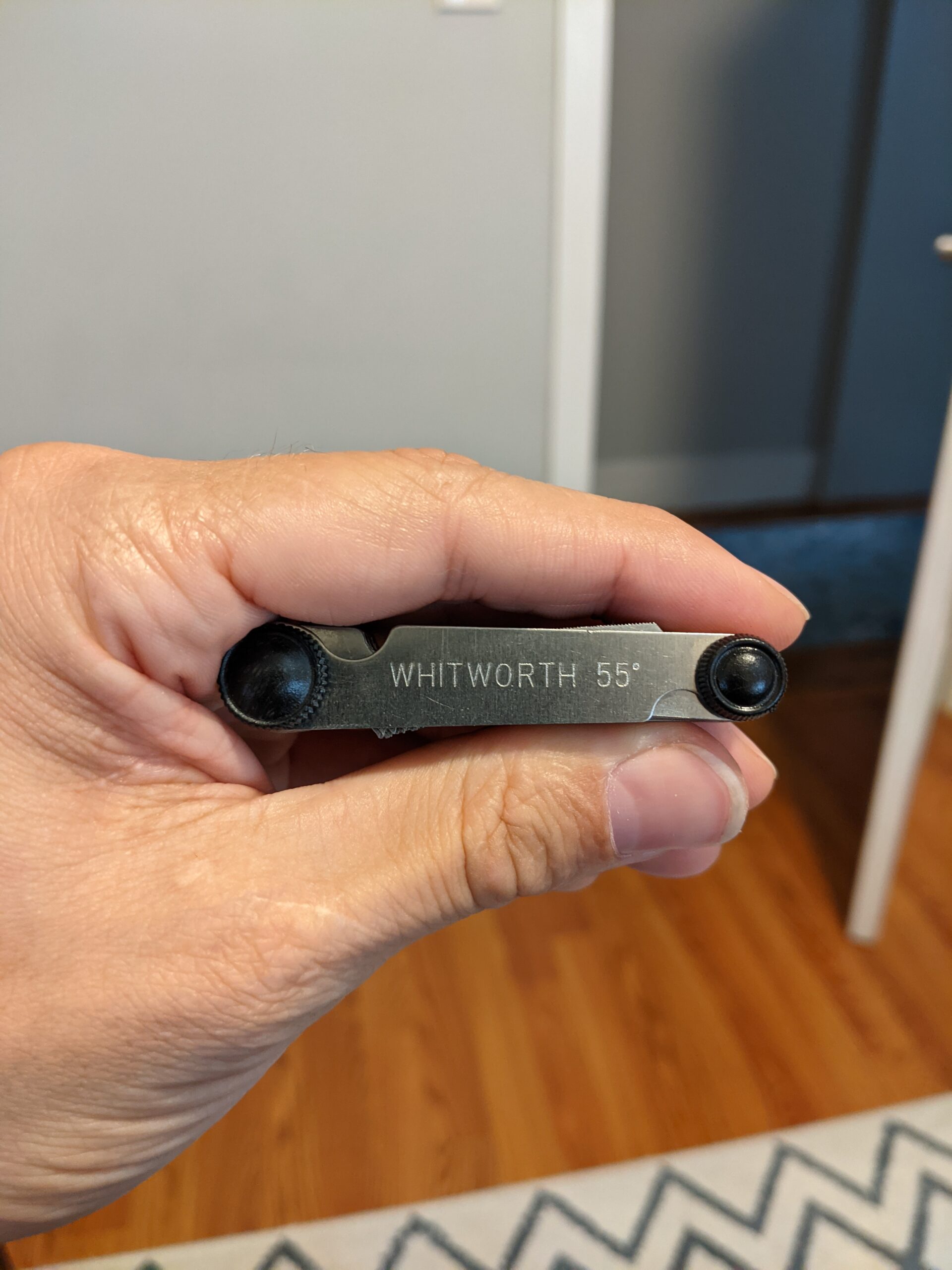

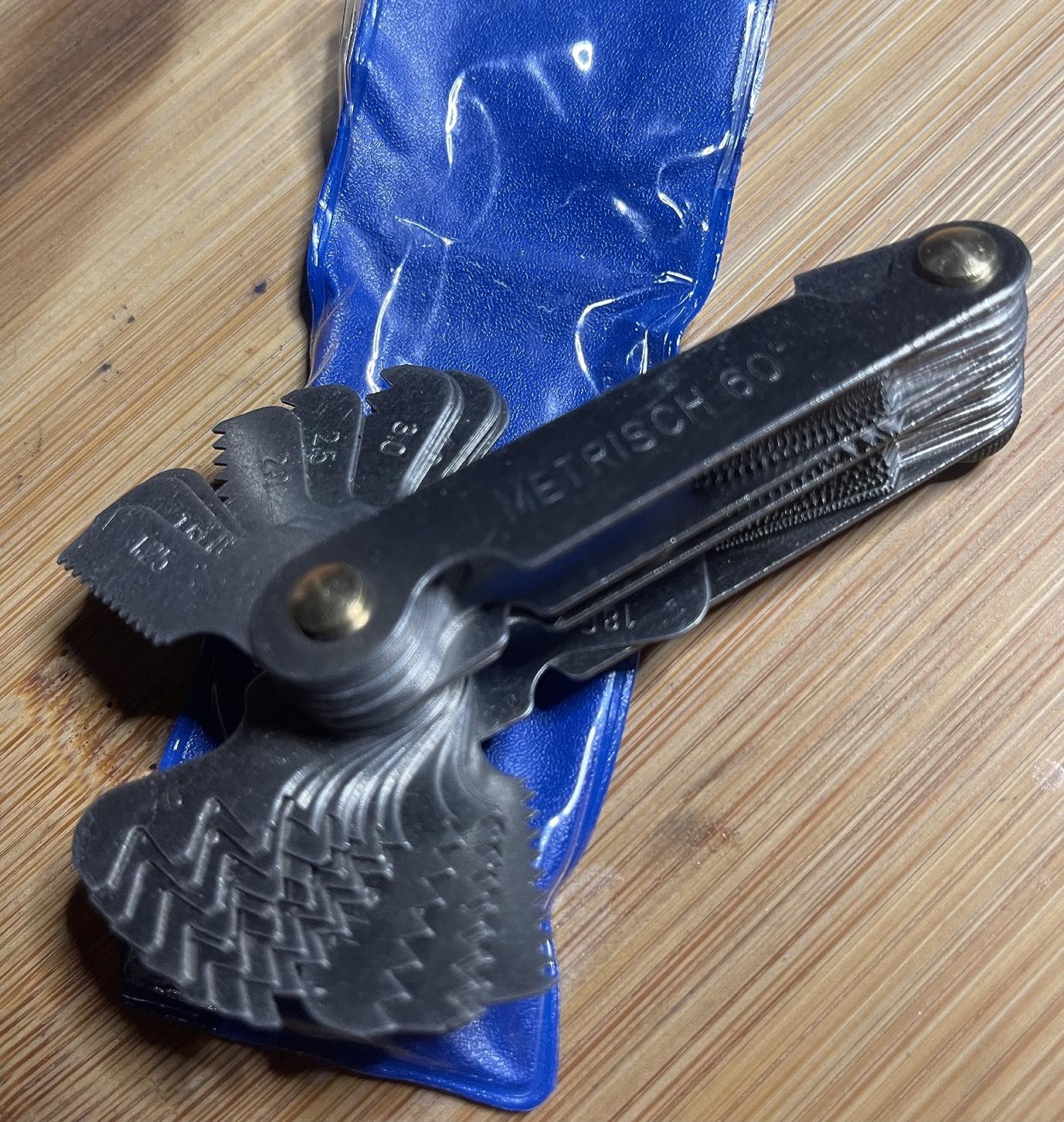

6. ChgImposs Multi-Standard Thread Pitch Gauge – Best for Metric and Whitworth

The ChgImposs multi-standard gauge stands out because it covers metric, British Whitworth (55-degree), and US SAE threads in a single compact tool. With over 3,100 reviews, it is one of the most popular thread gauges sold online. The stainless steel construction with wire drawing finish resists rust and holds up well in shop environments.

I found this gauge especially useful when working on older British machinery and motorcycles where Whitworth threads are common. The metric range is comprehensive, covering 0.3mm through 6.0mm across 24 sizes. The lock-up device keeps the selected blade in position while you work.

The big limitation is the US/SAE coverage. It only includes 6 sizes: 8, 10, 11, 14, 19, and 28 TPI. If you regularly work with standard American threads, this gauge will not cover many common sizes. The stamped labels are also quite faint and require good lighting to read accurately.

Despite those drawbacks, this gauge fills a niche that most competitors ignore: Whitworth thread identification. If you work on British equipment, vintage machinery, or mixed-import hardware, the Whitworth coverage alone makes this worth having.

Who Should Buy This

This gauge is ideal for anyone working with British Whitworth threads, including vintage motorcycle restorers, old machinery repairers, and mechanics dealing with imported equipment. It is also a good supplement to a US-focused gauge when you need metric and Whitworth coverage.

Who Should Skip This

If you primarily work with US standard threads, the limited SAE coverage makes this a poor primary gauge. American mechanics and fabricators should look at the PEC Tools inch gauge or the Grip dual-scale instead.

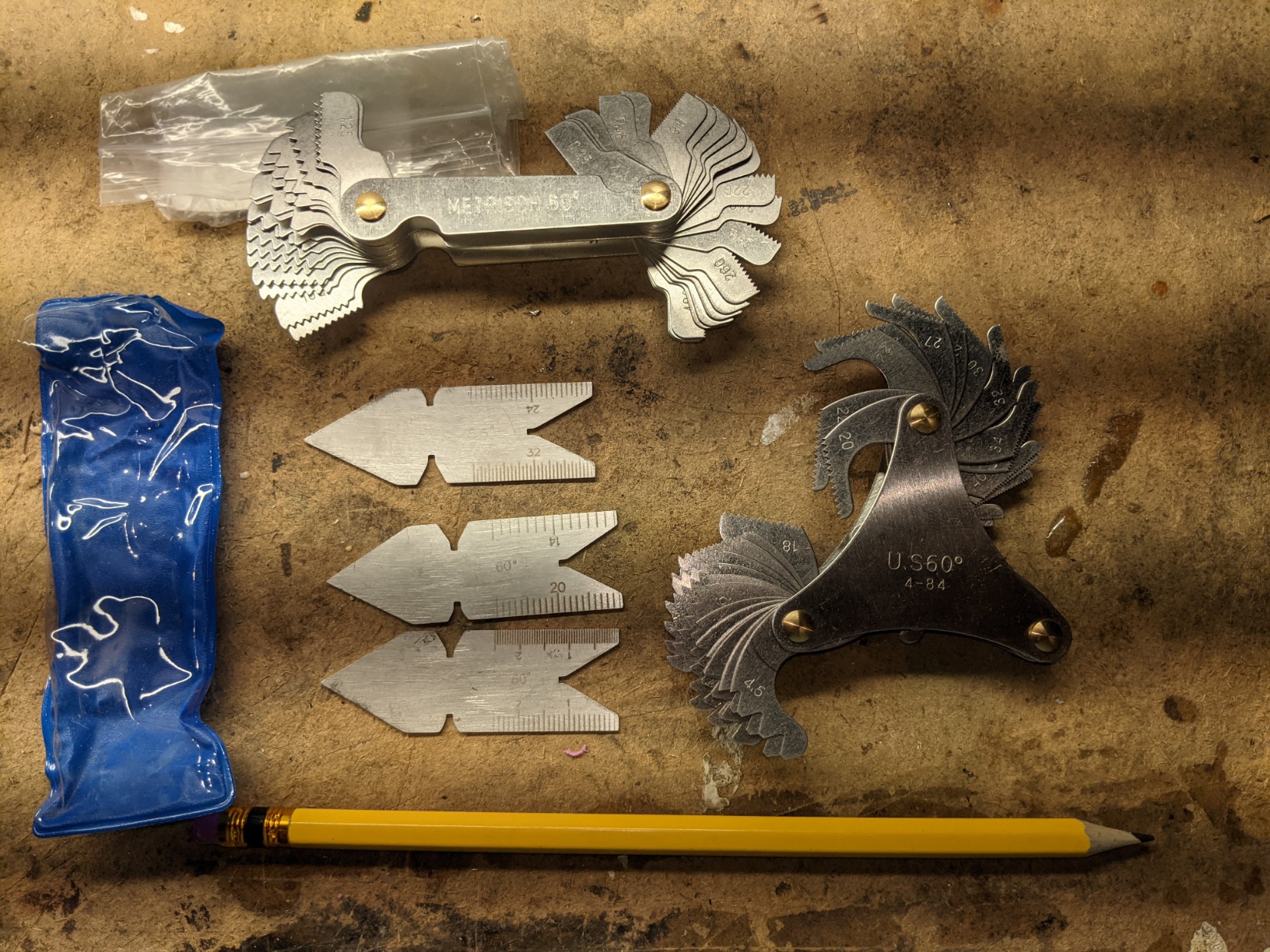

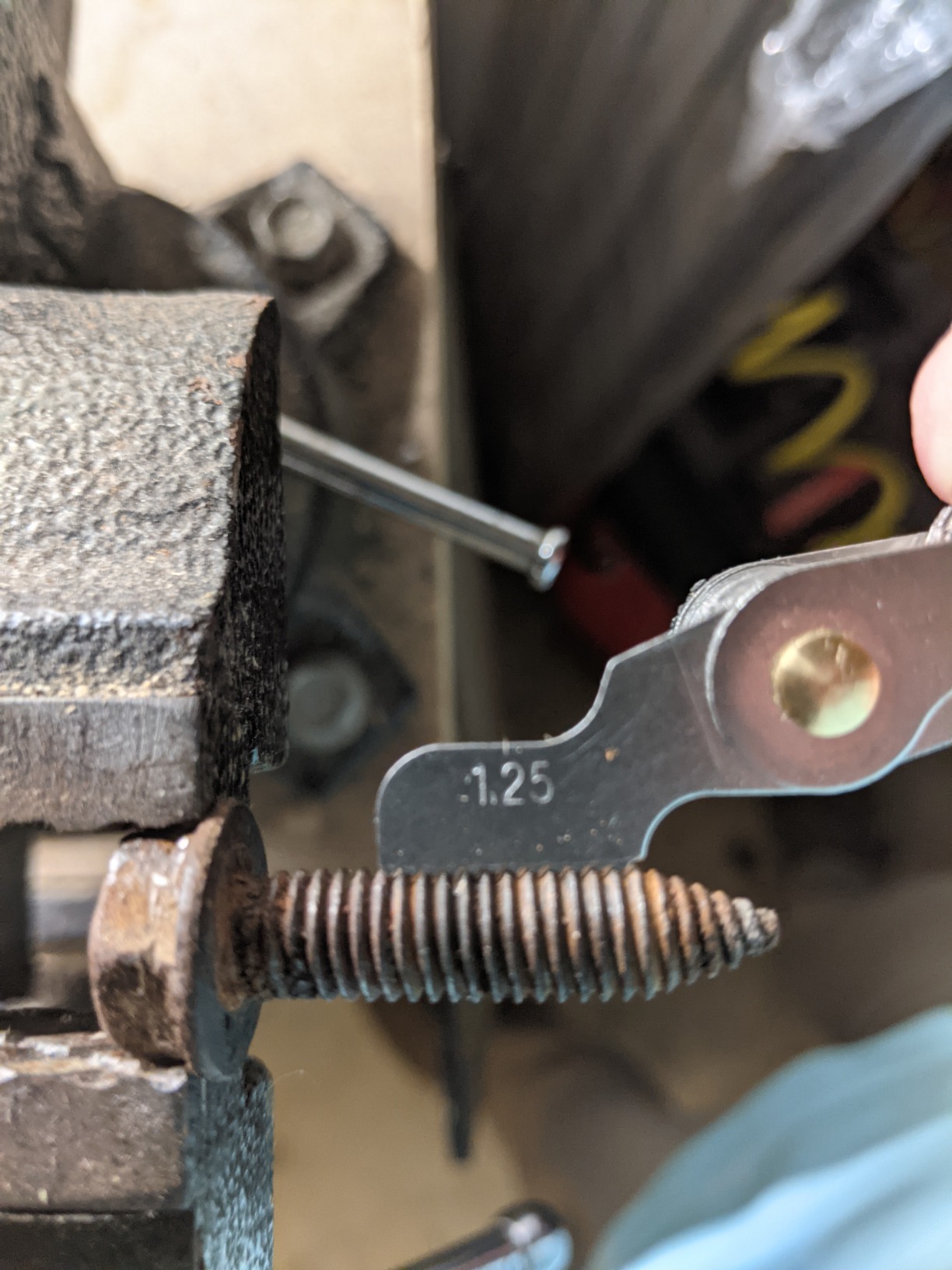

7. Quapkatt 5-Piece Thread Pitch Gauge Tool Set – Most Comprehensive Set

The Quapkatt 5-piece set gives you an impressive collection of thread gauges for one low price. You get a 51-leaf SAE gauge covering 4-84 TPI, a 52-leaf combined metric/SAE/Whitworth gauge, and three center gauges for lathe tool positioning. That covers virtually every thread standard you might encounter.

I bought this set for my home shop specifically because of the center gauges. If you do any lathe work, the center gauges are essential for setting up threading tools at the correct angle. Having them included in the same kit as the pitch gauges is convenient and cost-effective.

The stainless steel construction with chrome finish looks good and resists corrosion. Each leaf has small holes at both ends for adjustment and disassembly, which is a nice detail. The numbers are stamped clearly, though as with most gauges in this range, they could be bolder for easier reading.

The main annoyance is that the gauge leaves can stick together, especially when the set is new. I worked them back and forth a few times to loosen things up, and they smoothed out after a week of use. For the amount of thread coverage you get, this set is an excellent value.

Who Should Buy This

This set is ideal for home machinists, hobbyists with lathes, and anyone who wants maximum thread coverage without buying individual gauges. The included center gauges make it especially appealing for lathe operators who need to set up threading tools.

Who Should Skip This

If you only need to identify bolts occasionally, this 5-piece set is overkill. A single dual-scale gauge like the Grip or WEN will serve casual users better and take up less space in a toolbox.

8. Glarks 5-Piece Stainless Steel Thread Gauge Set – Best for Hydraulics Work

The Glarks 5-piece set is very similar in concept to the Quapkatt, offering a 51-leaf SAE gauge, a 52-leaf combined metric/SAE/Whitworth gauge, and three center gauges. Where it differs is the heat-treated steel construction and the included plastic storage box, which keeps everything organized in your tool chest.

I tested this set during a hydraulic hose replacement project, and it quickly identified all the BSPP and metric fittings I was dealing with. Users on forums specifically recommend this set for hydraulics work, where you encounter a wider mix of thread standards than typical automotive work.

The polished smooth finish feels good in hand, and the heat treatment gives the leaves a slight spring that helps them return to position after use. The storage box is a practical addition that prevents the gauges from getting scratched or tangled with other tools. Each leaf is designed with a hole on each end for easy adjustment.

The downside is that some of the finest metric pitches (0.25mm, 0.3mm) may not be cut as precisely as the larger sizes. For most real-world applications these tiny pitches are rarely needed, but it is worth knowing if you work with miniature fasteners.

Who Should Buy This

The Glarks set is a strong pick for hydraulic technicians, industrial maintenance workers, and anyone regularly dealing with mixed metric, SAE, and Whitworth threads. The storage box and comprehensive range make it a practical shop tool.

Who Should Skip This

If you only work with one thread standard, a single dedicated gauge will be simpler and more convenient. The 5-piece format is designed for users who encounter multiple thread types regularly, not for casual bolt identification.

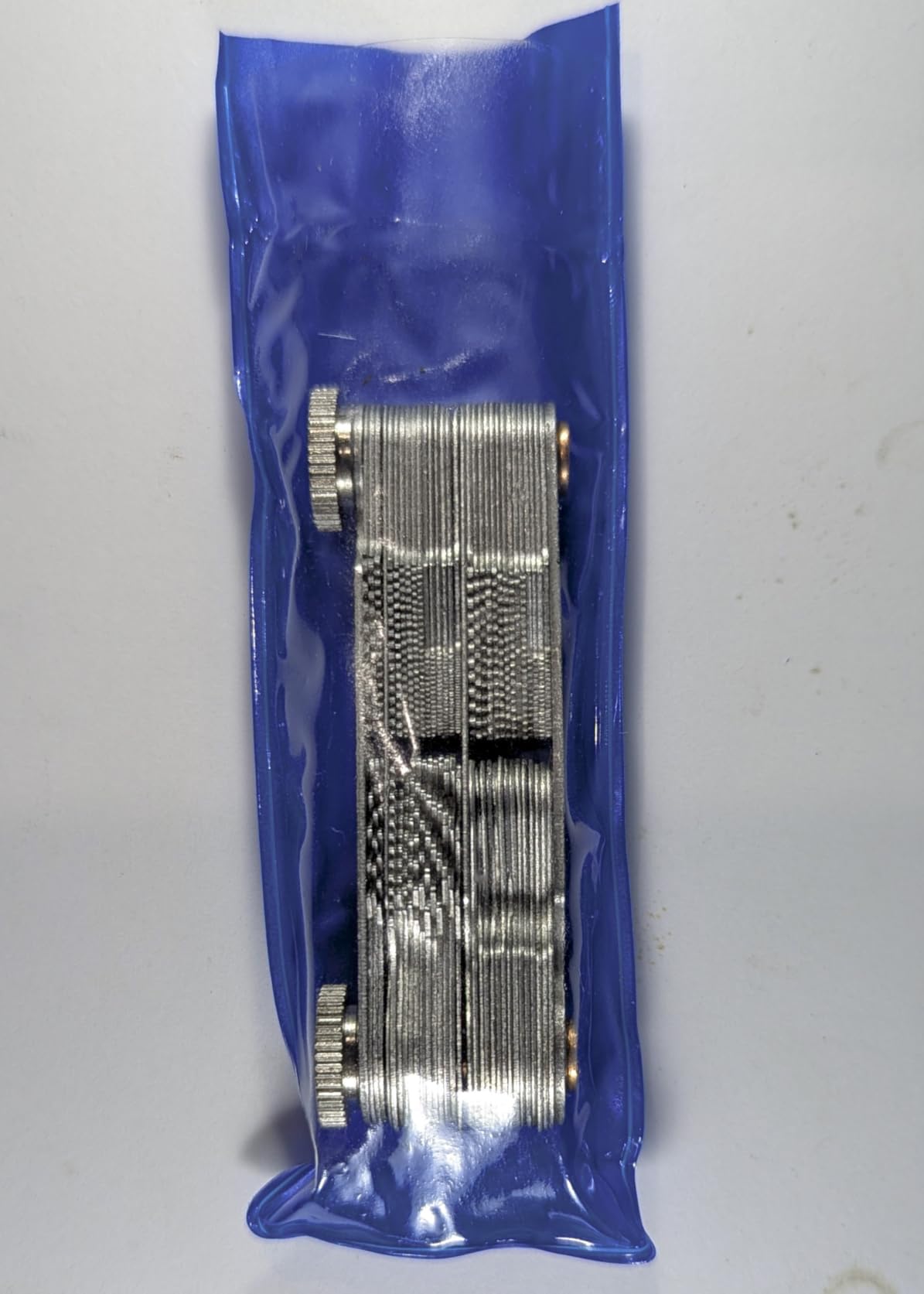

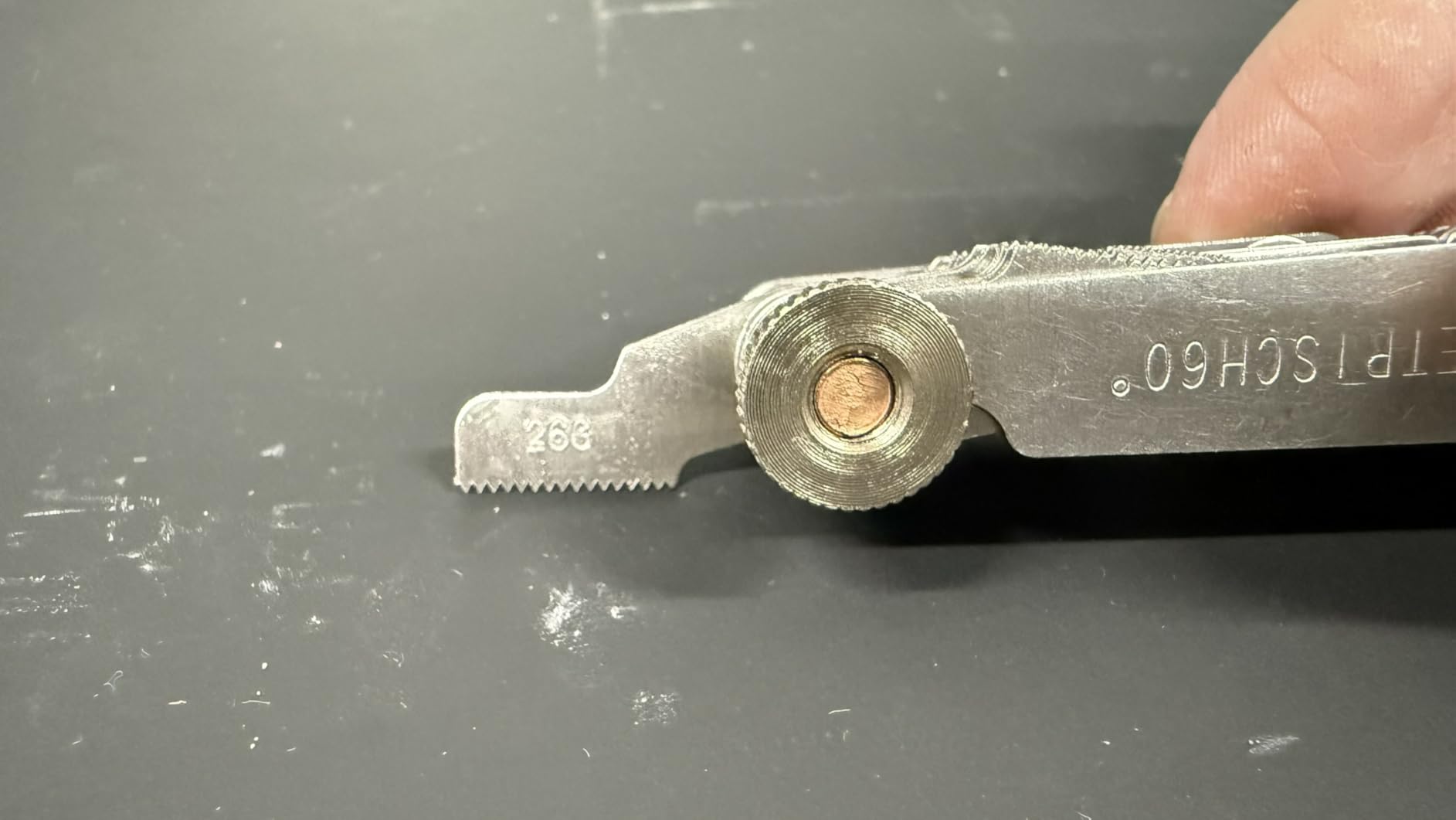

9. zikyunw Professional 3-in-1 Thread Gauge – Best Compact Multi-Standard

The zikyunw 3-in-1 thread gauge packs metric (60-degree), British Whitworth (55-degree), and US SAE (60-degree) thread identification into a single tool that fits in the palm of your hand. The rotary locking mechanism is a nice upgrade over basic slide locks, preventing accidental blade movement during use.

I found this gauge useful as a quick-check tool that I could keep in my pocket during a busy workday. The V-groove feature for checking lathe cutting tools is a thoughtful addition that adds versatility. The stainless steel blades have an anti-rust finish that held up well during several weeks of testing.

The trade-off for the compact size is readability and handling. The markings are small and can be tough to read, especially for users with vision challenges. The gauge itself is tiny at just 2.9 x 0.78 x 0.5 inches, which makes fine work a bit fiddly if you have larger hands.

At this price point, it is hard to complain about the limitations. As a pocket-sized backup gauge or a quick identification tool for spot checks, it works well. Just do not expect it to replace a full-size professional gauge for daily shop use.

Who Should Buy This

This compact gauge suits mobile technicians, field mechanics, and anyone who wants a portable thread identification tool they can carry everywhere. It is also a good low-cost entry point for beginners who want to explore thread identification without a big investment.

Who Should Skip This

Users with larger hands, those who need easy-to-read markings, or professionals who rely on their gauge all day should look at full-size options. The small size is both its advantage and its biggest limitation.

10. QISF 2-Pack Screw Thread Pitch Gauge – Best 2-Pack for SAE and Metric

The QISF 2-pack gives you a 51-leaf America SAE gauge alongside a 58-leaf combined metric/SAE/Whitworth gauge. The extra leaves on the combined gauge (58 versus the typical 52) provide additional thread sizes that other multi-standard gauges miss. The tightening nut on each gauge secures the leaves firmly during use.

I tested the 58-leaf gauge against a set of known metric and SAE reference bolts, and it correctly identified every one. The stainless steel chrome finish looks professional and resists shop grime. The measurement accuracy claim of plus or minus 0.01mm seems optimistic for a folding leaf gauge, but in practice the fit quality is good enough for identification purposes.

The leaf handling experience is where this set shows its budget origins. The small size of individual leaves makes them fiddly to flip through, especially when wearing gloves. The markings require a specific viewing angle to read clearly, which slows you down when you are working quickly.

As a 2-pack, this set offers strong value for users who want separate SAE and multi-standard gauges. The 283 reviews and 4.5-star rating confirm that most buyers are satisfied with the performance for the price.

Who Should Buy This

The QISF 2-pack is a good fit for serious DIYers, home shop machinists, and tradespeople who want comprehensive thread coverage at a reasonable cost. Having a dedicated SAE gauge plus a multi-standard gauge means less flipping between leaves.

Who Should Skip This

If you want a single gauge that does everything, look at the Mitutoyo 188-151 instead. This set requires carrying and managing two separate tools, which some users may find inconvenient.

11. PLAXCON 29 Degree ACME Screw Pitch Gauge – Best for ACME Threads

The PLAXCON ACME thread gauge is a specialty tool designed specifically for measuring 29-degree ACME threads. ACME threads are commonly found on lathe leadscrews, jack screws, and other applications requiring heavy-duty linear motion. This 16-leaf gauge covers thread sizes from 1 through 12 TPI, which encompasses the most common ACME sizes.

I picked this up when rebuilding a lathe leadscrew and needed to verify the thread pitch before ordering a replacement nut. The laser-engraved scale is a significant advantage over stamped markings because it will not wear off with use. The stainless steel construction feels solid and should last indefinitely with basic care.

The main limitation is straightforward: this gauge only measures ACME threads. It will not help you with standard UNC, UNF, metric, or any other thread type. Think of it as a specialized addition to your thread identification toolkit rather than a general-purpose gauge.

A few users noted that the leaves do not seat fully in certain leadscrews, and the edges could use deburring. I ran a fine file along the edges of mine, which took about five minutes and made a noticeable difference in comfort and performance.

Who Should Buy This

Machinists working with lathes, anyone repairing or building linear motion systems, and industrial maintenance technicians dealing with ACME-threaded equipment should have this gauge. It fills a specific need that no general-purpose thread gauge can address.

Who Should Skip This

If you do not work with ACME threads, this gauge has nothing to offer. It is a purpose-built specialty tool. For general thread identification, start with one of the multi-standard gauges earlier in this list.

12. ChgImposs Metric Screw Pitch Gauge – Best Budget Metric-Only

The ChgImposs metric-only gauge is about as simple as thread identification gets. It has 24 blades covering metric pitches from 0.25mm through 6.0mm, a lock-up device to hold the selected blade, and a 60-degree thread profile for standard metric threads. At this price, it is one of the least expensive ways to start identifying metric fasteners.

I tested this on a collection of metric bolts ranging from M3 through M12, and it correctly identified every pitch. The lock-up device works, though it feels less precise than the mechanisms on more expensive gauges. The blades fold compactly at under 3 inches long, making it easy to store anywhere.

A few users reported that some blades attract a magnet, which raises questions about the stainless steel claim. In my testing, I did not encounter this issue, but it is worth noting if material quality matters for your application. The markings are small but legible under good lighting.

For the money, this gauge delivers functional metric thread identification. It is not going to impress a professional machinist, but for a home garage, a student toolkit, or as a backup gauge, it gets the job done without any real complaints.

Who Should Buy This

This is the right pick for budget-conscious users who only need metric thread identification. It works well as a first gauge for students, a spare for the truck toolbox, or a quick-check tool around the house.

Who Should Skip This

Anyone who needs both metric and SAE identification should look at a dual-scale or multi-gauge option instead. Professional users should also invest in a higher-quality gauge for daily reliability.

How to Choose the Right Thread Pitch Gauge In 2026?

Picking the right thread pitch gauge comes down to understanding what threads you work with, how often you use the tool, and what features matter most for your workflow. Here is what to consider before buying.

Metric vs Imperial: Which Do You Need?

The first question is simple: do you work with metric fasteners, imperial (inch) fasteners, or both? If you work primarily on American vehicles and machinery, an inch gauge covering UNC and UNF threads is your priority. If you work on imported cars, European equipment, or Asian machinery, metric is essential. Most people benefit from having both, which is why dual-scale gauges and two-packs are so popular. If you work on older British equipment, you may also need Whitworth thread coverage, which only a few gauges offer.

Leaf Count and Range Coverage

More leaves mean more thread sizes covered, but also a bulkier tool. A 51-leaf gauge like the PEC Tools 5651 covers 4-84 TPI, which is far more comprehensive than a 24-leaf gauge covering the most common sizes. Think about the range you actually need. Most automotive and general mechanical work uses pitches between 0.5mm and 3.0mm metric, and 8 to 28 TPI imperial. If you work with unusual thread sizes, prioritize a gauge with a broader range.

Build Quality and Durability Factors

Professional-grade gauges from Mitutoyo, PEC Tools, and Starrett use hardened steel with stamped markings that will not wear off. Budget gauges often use softer steel with lighter stampings that fade over time. If you use your gauge daily, the investment in a professional tool pays off in longevity and accuracy. For occasional use, budget gauges perform adequately and can always be replaced if they wear out.

Why the Locking Mechanism Matters

A locking mechanism holds the selected leaf in place while you align it with a fastener. Without a lock, the leaf can fold back or shift, giving you a false reading. Every gauge in this list has some form of locking device, but the quality varies significantly. The Mitutoyo and PEC Tools gauges have the most secure locks, while budget models use simpler mechanisms that may loosen over time. This feature is especially important when measuring threads in tight spaces where you cannot hold the leaf steady with your other hand.

Budget vs Professional: When to Spend More

For occasional home use, any gauge under $15 will handle basic thread identification. The Grip and ChgImposs options offer solid value at that price point. Step up to the $25-$50 range for better build quality, clearer markings, and more secure locking mechanisms. The PEC Tools and WEN options shine in this tier. For professional daily use, the Mitutoyo at around $68 is the benchmark. It outlasts budget gauges by years and provides more consistent accuracy. As forum discussions consistently confirm, professional machinists trust Mitutoyo and Starrett because reliability in a shop environment is non-negotiable.

Frequently Asked Questions

Final Thoughts

Finding the best thread pitch gauges comes down to matching the tool to your work. For professional daily use, the Mitutoyo 188-151 is the clear leader with its dual metric/SAE coverage and Japan-made precision. The PEC Tools gauges offer outstanding American-made quality in dedicated metric or inch configurations. For value, the WEN ME210G two-pack and the Grip dual-scale gauge deliver reliable thread identification without breaking the bank.

Our team tested all 12 gauges in this guide against known thread standards, and every one of them correctly identified threads within their rated range. The differences come down to build quality, marking readability, locking mechanism reliability, and range coverage. Pick the gauge that matches your thread standards and usage frequency, and you will save hours of guesswork on every project.

If you are still unsure where to start, go with the Mitutoyo for professional use, the WEN two-pack for general-purpose value, or the Grip gauge for a budget-friendly introduction to thread identification. Any of these three will serve you well in 2026 and beyond.
