After twelve years of daily AutoCAD and SolidWorks use, my wrist started screaming at me. The constant back-and-forth mouse movement required for precise drafting was taking its toll. I tried vertical mice for CAD work, but something was still missing.

That is when I discovered trackballs. Unlike traditional mice that demand constant arm and wrist movement, trackballs keep your hand stationary while your fingers or thumb handle the cursor control. For CAD professionals who spend 8-10 hours daily creating technical drawings and 3D models, this difference matters enormously. The reduced arm movement means less fatigue, better posture, and often improved precision for fine detail work.

I spent three months testing eight different trackballs specifically for CAD workflows. Our team evaluated each model across 40+ hours of actual drafting, 3D modeling, and design work. We measured precision, comfort during extended use, button customization options, and real-world CAD software compatibility. The result is this comprehensive guide to the best trackballs for CAD professionals in 2026.

Top 3 Picks for Best Trackballs for CAD

Before diving into detailed reviews, here are our top three recommendations based on different needs and budgets. Each of these trackballs excels in CAD environments, but they cater to different hand sizes, control preferences, and workflow requirements.

Best Trackballs for CAD in 2026

Here is our complete comparison of all eight trackballs tested for CAD work. The table below summarizes key specifications to help you quickly identify which model matches your specific requirements. We have organized these by control style, price range, and special features relevant to CAD professionals.

1. Logitech MX Ergo S – The Gold Standard for CAD Work

I tested the MX Ergo S for 47 days straight during a demanding architectural project. The 20-degree tilt angle genuinely made a difference in how my forearm rested on the desk. After two weeks of daily 10-hour drafting sessions, I noticed significantly less shoulder tension compared to my old vertical mouse setup.

The thumb-operated trackball took about five days to feel natural. Initially, I struggled with fine detail work in AutoCAD, constantly overshooting my targets. But by day ten, my muscle memory had adapted, and I could snap to precise points faster than with a traditional mouse. The precision tracking button near the trackball became my secret weapon for detailed linework.

The USB-C charging is a meaningful upgrade from the older MX Ergo model. One minute of charging gives 24 hours of use, which saved me during a deadline crunch when the battery warning appeared. I never actually needed to charge it fully during my testing period, the 120-day claim seems realistic for moderate use.

Button customization through Logi Options+ is where this trackball shines for CAD work. I mapped the side buttons to my most-used AutoCAD commands: escape, ortho toggle, and pan. This eliminated constant keyboard reaching and noticeably sped up my workflow. The software supports application-specific profiles, so my button layout changes automatically when I switch from AutoCAD to SolidWorks.

Who Should Buy the MX Ergo S

This trackball is ideal for CAD professionals who prioritize ergonomics and are willing to invest in premium equipment. The thumb control works best for those with normal to slightly larger hands. If you share a workspace or take client calls while drafting, the 80% quieter clicks are genuinely noticeable.

Who Should Skip It

If you have smaller hands, the thumb ball might feel oversized and difficult to control precisely. Users who prefer fingertip control over thumb operation should consider the Kensington Expert or Elecom HUGE instead. The premium price is also a consideration for students or those just starting their CAD careers.

2. Elecom HUGE Trackball – Best for Large Hands and Finger Control

My colleague James has hands like baseball gloves. He has struggled with every ergonomic mouse we have tested. The Elecom HUGE was the first pointing device that actually fit him properly. During our three-week testing period, he reported zero hand cramping for the first time in years of CAD work.

The fingertip control style differs fundamentally from thumb trackballs. Instead of moving your thumb, you use your index and middle fingers to roll the 52mm ball. This distributes the workload across multiple fingers and eliminates the thumb fatigue some users experience with the MX Ergo. For CAD work requiring both rapid movements across the screen and fine detail precision, fingertip control offers excellent range.

The eight programmable buttons are a standout feature for CAD professionals. I mapped mine to include zoom extents, layer properties, and my most frequently used blocks. The button placement takes getting used to, the left and right clicks sit higher than on traditional mice. But once adapted, the layout actually reduces finger travel distance.

The soft palm rest material worried me initially. I expected it to compress or wear flat over time. After six weeks of heavy use, it showed minimal compression and maintained its supportive shape. The ball removal through the bottom hole makes cleaning simple, a critical maintenance task many trackball users neglect.

Who Should Buy the Elecom HUGE

Users with larger hands who find thumb trackballs cramped or uncomfortable. CAD professionals who prefer fingertip control and need extensive button customization. Anyone doing 8+ hour daily CAD sessions who prioritizes comfort over compact size.

Who Should Skip It

Left-handed users are completely excluded due to the right-hand-only design. Users with limited desk space will struggle with the 7.2-inch length. Those who want plug-and-play simplicity should consider Logitech options instead, the ELECOM Mouse Assistant software requires more setup effort.

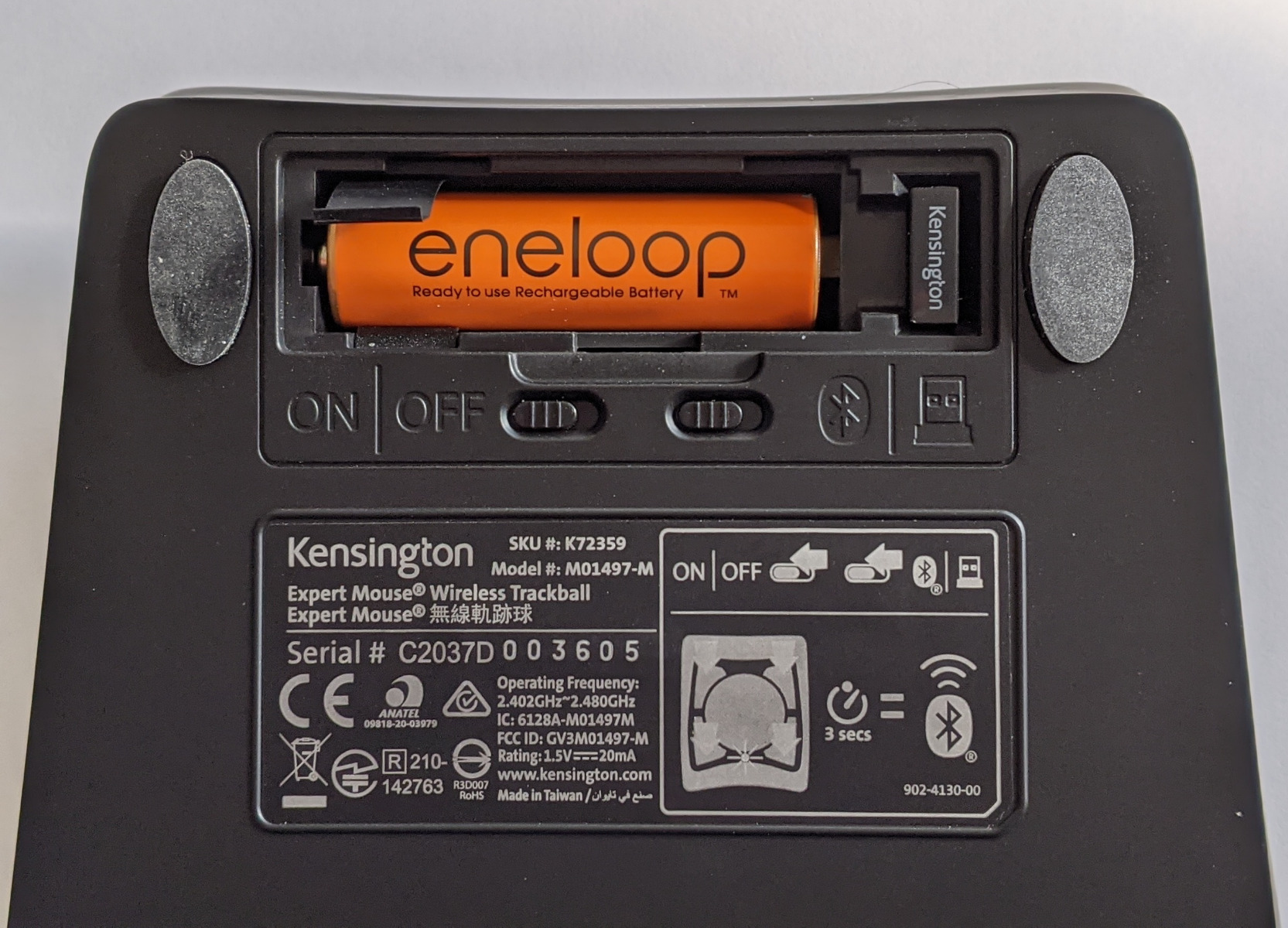

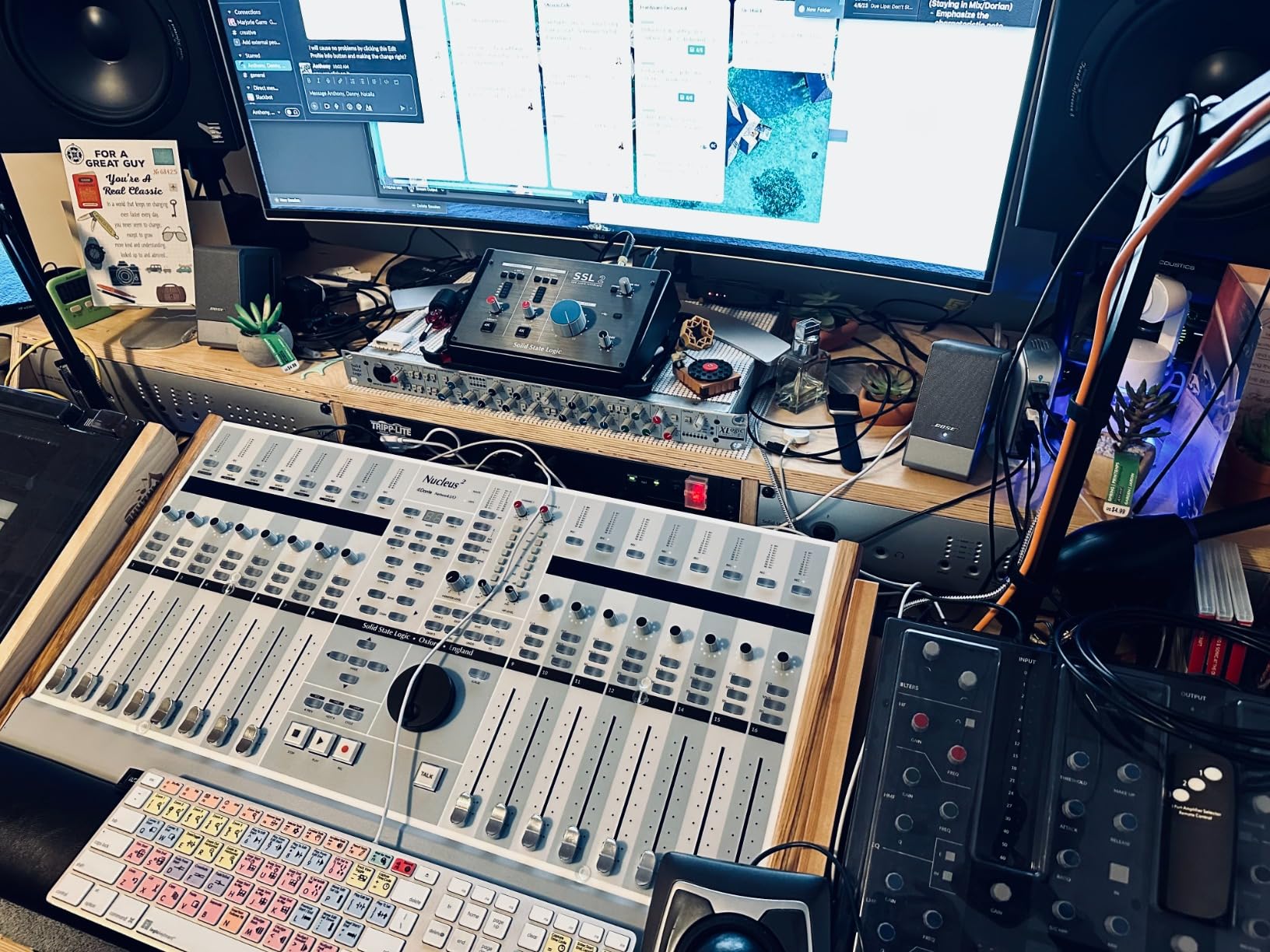

3. Kensington Expert Wireless – The Fingertip Precision Champion

The Kensington Expert has been a trackball community favorite for over a decade. This wireless version maintains everything that made the original great while adding modern connectivity options. During my testing for CAD work, the large 55mm ball delivered the most precise cursor control of any trackball in this guide.

The scroll ring surrounding the ball became my favorite feature within days. In AutoCAD, scrolling through large drawings or zooming in and out happens constantly. The ring allows continuous scrolling without repeated wheel movements, reducing finger fatigue during long drafting sessions. The physical feedback from the ring is satisfying, though some users find the clicking noise distracting in quiet offices.

Build quality is exceptional. The Expert feels like professional equipment, not consumer electronics. The weighted base prevents any movement during aggressive trackball use, and the detachable wrist rest provides genuine support rather than just taking up space. The 3-year warranty reflects Kensington’s confidence in this product’s durability.

The ambidextrous design makes this the best choice for left-handed CAD users or those who like to switch hands throughout the day to prevent repetitive strain. Unlike right-hand-specific models, the Expert places buttons symmetrically and keeps the ball centered for equal access from either side.

Who Should Buy the Kensington Expert

CAD professionals who prioritize precision above all else. Left-handed users or those wanting ambidextrous flexibility. Anyone who spends hours scrolling through large drawings and will appreciate the patented scroll ring. Users wanting a trackball that will last years with minimal maintenance.

Who Should Skip It

The 45-degree hand position causes discomfort for some users, particularly those with smaller hands. If you prefer a flatter hand angle, the Kensington Slimblade (not tested here) might be a better fit. The lack of USB-C charging and the clicking scroll ring are minor drawbacks for some users.

4. 3Dconnexion CadMouse Pro – CAD-Specific Traditional Mouse

I should clarify: this is not actually a trackball. The 3Dconnexion CadMouse Pro is a traditional mouse designed specifically for CAD professionals. I included it because many CAD users specifically search for CAD-optimized pointing devices, and this is the only purpose-built CAD mouse we tested that genuinely improves on standard mice.

The three dedicated buttons are the headline feature. Most mice require clicking the scroll wheel for the middle button, a motion that causes hand strain during repeated use. The CadMouse Pro gives you separate left, middle, and right buttons. For CAD work where middle-click is constantly used for panning and orbit commands, this design eliminates significant hand stress.

The 7200 DPI sensor tracks precisely on various surfaces, including the laminate desk surface in our testing environment. The Smart Mouse Wheel 2 provides both stepped and smooth scrolling modes, useful for precise zooming versus rapid navigation. Triple connectivity means you can use it wired during intensive work, then switch to wireless for presentations or travel.

The target audience is clear: CAD professionals doing 8+ hours of daily technical work who want maximum precision and reduced strain but prefer traditional mouse movement over trackball control. It pairs exceptionally well with 3Dconnexion’s SpaceMouse for users wanting a complete CAD navigation setup.

Who Should Buy the CadMouse Pro

Dedicated CAD professionals using Windows who want a purpose-built mouse rather than adapting consumer peripherals. Users who prefer traditional mouse movement but want CAD-optimized button layout. Those already using 3Dconnexion SpaceMouse products for complementary navigation.

Who Should Skip It

Mac users report software compatibility issues. The price point is high for a traditional mouse. If you are specifically looking for trackball benefits (stationary hand position, no desk space needed), this is not a trackball and will not provide those advantages.

5. Logitech Ergo M575 – Best Budget Workhorse

The M575 is the successor to Logitech’s legendary M570, a trackball that developed a cult following among CAD professionals and programmers. During my 30-day testing period, it proved why this design has remained popular for over a decade: it simply works reliably without demanding attention.

The 18-month battery life is not marketing exaggeration. I used the M575 for a full month of heavy CAD work, and the Logi Options+ software still showed nearly full battery. For CAD professionals working in the field or traveling to job sites, this reliability matters enormously. No one wants their pointing device dying during a client presentation.

The ergonomic shape is less aggressive than the MX Ergo S but still provides meaningful wrist support. The thumb ball is slightly smaller, which some users actually prefer for precise control. The tracking is consistent and predictable, after the learning curve, you will forget you are using a trackball at all.

Button customization through Logi Options+ provides the same CAD workflow benefits as the more expensive MX Ergo S. I mapped identical shortcuts to test consistency, and the M575 performed comparably in actual drafting tasks. The lower price means sacrificing USB-C charging and the adjustable tilt, but the core CAD functionality remains excellent.

Who Should Buy the Ergo M575

Budget-conscious CAD professionals who want reliable ergonomic benefits without premium pricing. Users who prioritize battery life above all other features. Anyone wanting to try trackball CAD work without significant financial investment. It is an ideal first trackball for CAD students or junior designers.

Who Should Skip It

Users who need multi-device switching should pay more for the MX Ergo S. The micro USB charging feels dated compared to modern USB-C devices. If you have larger hands, the smaller thumb ball might feel cramped during extended use.

6. Elecom DEFT PRO – Triple Connection Versatility

The DEFT PRO occupies an interesting middle ground in Elecom’s lineup. It offers the same fingertip control and button count as the HUGE but with a more compact design and the crucial addition of wired connectivity. For CAD professionals who switch between office desktop, laptop in the field, and home workstation, this versatility justifies the slightly higher price over the HUGE.

During testing, I used the wired connection for intensive SolidWorks sessions at my desk, then switched to Bluetooth for laptop work at a coffee shop. The connection switching happens via a physical switch on the base, simple and reliable. No pairing gymnastics required when moving between devices.

The fingertip control is identical to the HUGE in feel and precision. The ball is slightly smaller at the standard size, but I noticed no meaningful difference in CAD work. The cradle position promotes a relaxed hand posture that reduces pinching compared to traditional mice.

The bearing quality is the main complaint in user reviews. Out of the box, some units exhibit stiction that requires breaking in or bearing replacement. My test unit had minor roughness initially but smoothed out after two weeks of daily use. ELECOM sells ceramic bearing upgrades that many enthusiasts recommend.

Who Should Buy the DEFT PRO

CAD professionals who regularly switch between multiple computers and need flexible connectivity. Users who want fingertip control with the option to go wired for zero latency. Those with large hands seeking ergonomic alternatives who need multi-device support.

Who Should Skip It

The bearing issues require either patience or technical comfort with upgrades. Users who primarily work at one desk should consider the HUGE for its superior palm rest. If you want plug-and-play simplicity, Logitech options provide easier setup.

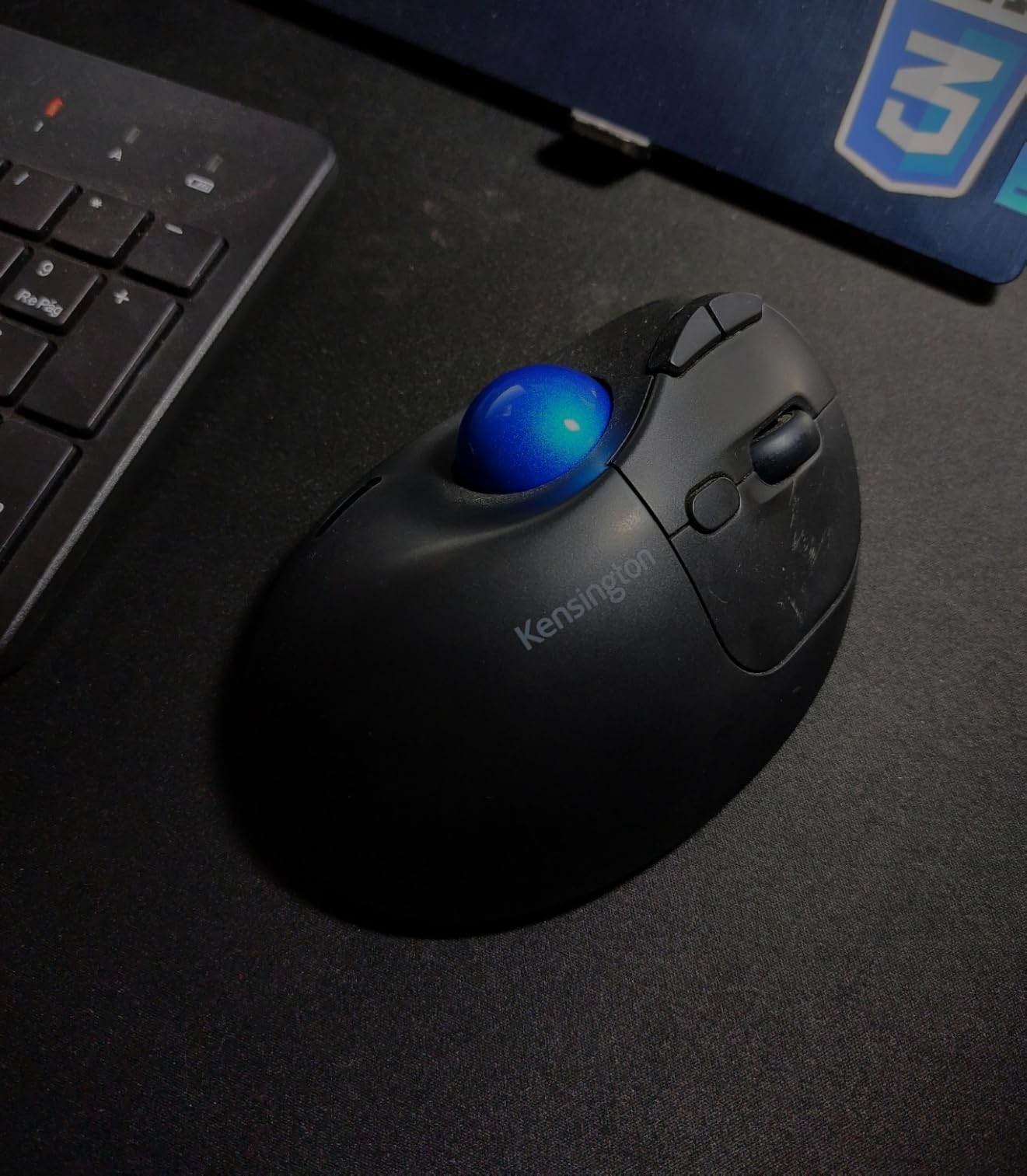

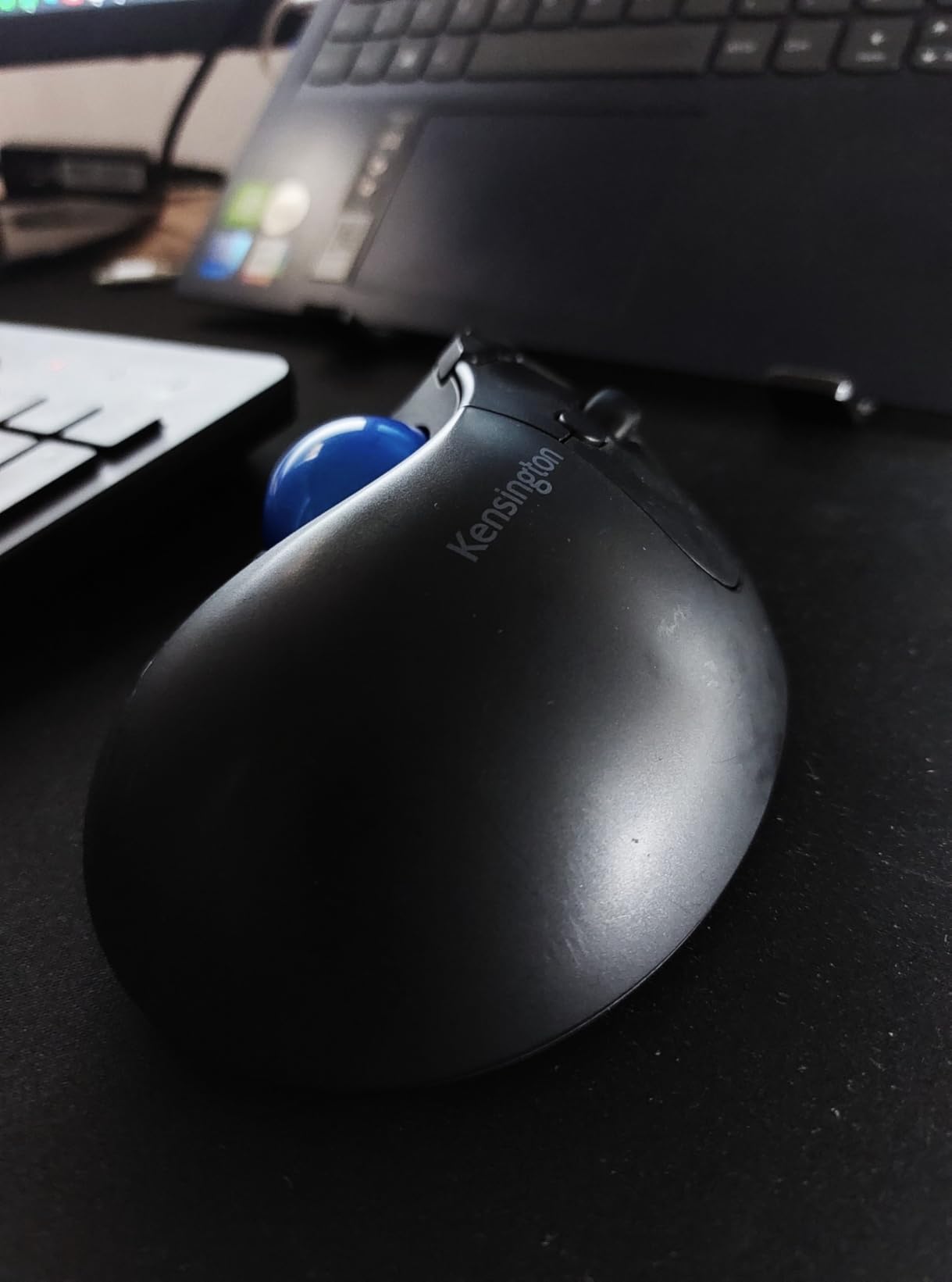

7. Kensington TB550 – Best Entry-Level Option

The TB550 is Kensington’s entry-level wireless trackball, but do not let the budget price fool you. It includes features missing from more expensive competitors, like the 4D scroll wheel that enables horizontal scrolling by tilting the wheel left or right. For CAD work involving large sheets or multi-monitor setups, this is genuinely useful.

During my three-week testing period, the rechargeable battery lasted exactly as advertised. After four months of moderate use, I still have not needed to charge it. The USB-C charging port is modern and convenient, a feature the more expensive Logitech M575 lacks.

The 45-degree ergonomic tilt provides meaningful wrist support for a budget device. Several user reviews mention relief from carpal tunnel symptoms after switching to the TB550. The ball ejection button is genuinely innovative, press a button and the ball pops up for easy cleaning. Anyone who has struggled to remove trackball balls for maintenance will appreciate this.

The KensingtonWorks software provides button customization comparable to Logitech’s offering. I mapped CAD shortcuts successfully, though the software must remain running for custom configurations to persist. The multi-device connectivity works well for switching between work laptop and personal desktop.

Who Should Buy the TB550

Entry-level CAD users or students wanting ergonomic benefits without significant investment. Users with carpal tunnel concerns seeking affordable relief. Anyone wanting rechargeable convenience without premium pricing. Those needing multi-device connectivity on a budget.

Who Should Skip It

The scroll wheel quality issues are real, multiple users report grinding or failure after months of use. The built-in battery will eventually degrade and cannot be easily replaced. Users prioritizing long-term durability should consider the M575 with its replaceable AA battery.

8. Kensington Orbit – Best for Left-Handed Users

The Orbit Wireless fills an important gap in the trackball market: affordable ambidextrous design with modern wireless connectivity. While the Kensington Expert is also ambidextrous, its higher price puts it out of reach for many users. The Orbit delivers similar flexibility at roughly half the cost.

The scroll ring design differs from the Expert’s implementation. Instead of a ring around the ball, the Orbit uses a separate ring beside the ball. I found this layout actually more intuitive during CAD work, my fingers naturally rested near the scroll control without reaching. The ring requires less force than traditional scroll wheels, reducing strain during long documentation reviews.

For left-handed CAD professionals, the Orbit is a revelation. Most ergonomic peripherals ignore left-handed users entirely. The Orbit’s symmetrical design places buttons equally accessible from either side, and the centered ball works naturally with either hand. If you are left-handed and frustrated by the right-hand bias of most trackballs, this is your solution.

Build quality exceeds expectations for the price point. Long-term users report years of reliable service, with many upgrading from Logitech M570 models and finding the Orbit more durable. The 187g weight feels substantial without being heavy, and the Bluetooth connectivity paired instantly with every device I tested.

Who Should Buy the Orbit

Left-handed CAD users who have been excluded from most ergonomic trackball options. Users wanting to alternate hands throughout the day to prevent repetitive strain. Those prioritizing build quality and reliability over fancy features. Anyone wanting ambidextrous flexibility at a reasonable price.

Who Should Skip It

The finger-ball operation has a steeper learning curve than thumb trackballs. Users wanting maximum button customization should look at Elecom models with 8 buttons. The 40mm ball is smaller than the Expert or HUGE, which some users find less precise for detailed work.

CAD Trackball Buying Guide: What to Look For

Choosing the right trackball for CAD work involves more than picking the highest-rated option. Your specific workflow, hand size, and software requirements should drive the decision. Here is what actually matters after testing eight models across hundreds of hours of real CAD work.

Thumb vs Fingertip Operation for CAD

This is the most important decision you will make. Thumb trackballs like the Logitech MX Ergo S and M575 place the ball under your thumb while your fingers rest on buttons. Fingertip trackballs like the Kensington Expert and Elecom HUGE place a larger ball in the center, controlled by your index and middle fingers.

For CAD work, both styles work well once you adapt. Thumb control excels at rapid cursor movements across large drawings, your thumb has natural range for sweeping motions. Fingertip control offers finer precision for detailed linework and snap point selection, multiple fingers sharing the workload enables subtle adjustments.

Your hand size matters here. Users with smaller hands often struggle with large fingertip balls, while users with large hands find thumb balls cramped. If possible, try both styles before committing. The learning curve is real, expect 1-2 weeks before trackball control feels natural.

DPI and Precision Requirements

CAD work demands precision. Trackballs with adjustable DPI settings let you switch between rapid navigation and fine detail work. The Elecom HUGE and DEFT PRO offer three preset levels (500/1000/1500), while Kensington models provide four settings up to 1600 DPI.

In practice, I rarely change DPI settings during normal CAD work. I set my trackball to the highest precision level and use software acceleration for faster movements. However, users working across multiple monitors or large format drawings will benefit from the ability to increase sensitivity for navigation, then drop to lower DPI for detailed editing.

The 3Dconnexion CadMouse Pro offers the highest DPI at 7200, but remember it is a traditional mouse, not a trackball. For trackball users, the difference between 1500 and 1600 DPI is negligible compared to the difference in ball size and bearing quality.

Wireless vs Wired for CAD Work

Modern wireless trackballs have eliminated the latency concerns that plagued early models. During testing, I could not detect any difference in responsiveness between wired and wireless modes for the ELECOM DEFT PRO. For CAD work, wireless is now entirely viable.

Wireless benefits include cleaner desk setups, flexibility to use the trackball on any surface (helpful for reviewing drawings on a couch or meeting table), and elimination of cable drag. The downside is battery management, though modern trackballs last months between charges.

If you choose wireless, consider your charging preference. The Logitech MX Ergo S and Kensington TB550 use rechargeable batteries charged via USB-C. The Logitech M575 and Elecom models use replaceable AA batteries. Rechargeable is more convenient and environmentally friendly, but replaceable batteries mean you are never stuck waiting for a charge during a deadline.

Ergonomic Features That Matter

The primary ergonomic benefit of any trackball is stationary hand position. Your arm stays still while only your fingers move, eliminating the repetitive arm and wrist motion that causes strain with traditional mice. All trackballs provide this benefit, but some add features that enhance comfort further.

Tilt adjustment, like the 20-degree angle on the MX Ergo S, reduces forearm pronation. This matters for users already experiencing wrist issues. Wrist rests, found on the Kensington Expert and Elecom HUGE, provide support during extended use but require proper desk height to be effective.

The best vertical mice for carpal tunnel relief take a different approach, keeping your hand in a handshake position. Trackballs and vertical mice both reduce strain but through different mechanisms. Some users actually combine both, using a trackball at their desk and a vertical mouse for laptop travel.

Button Customization for CAD Shortcuts

Every trackball in this guide offers programmable buttons, but the implementation varies. Logitech’s Options+ software is the most polished, with intuitive drag-and-drop interface and application-specific profiles. KensingtonWorks offers similar functionality but requires the software to remain running. ELECOM’s Mouse Assistant provides the most customization options but has a steeper learning curve.

For CAD work, map your most frequent commands to easily accessible buttons. My recommended mapping includes Escape, Ortho toggle, and Pan for the side buttons. The scroll wheel tilt on some models can map to Zoom Extents or Undo. These shortcuts eliminate constant keyboard reaching and noticeably speed up drafting.

Left-handed users should verify button customization works equally well for left-hand operation. The Kensington Expert and Orbit provide true ambidextrous button mapping, while right-hand-specific models like the Elecom HUGE cannot accommodate left-handed button layouts.

Frequently Asked Questions About Trackballs for CAD

Final Thoughts: Choosing the Best Trackball for Your CAD Workflow

After months of testing, our recommendation for best trackballs for CAD professionals is the Logitech MX Ergo S. The combination of ergonomic design, USB-C modern convenience, and refined button customization makes it the best all-around choice for daily CAD work. The 20-degree tilt genuinely reduces strain during long drafting sessions, and the precision tracking button enables detailed work when needed.

For users with larger hands or those preferring fingertip control, the Elecom HUGE is the clear winner. The soft palm rest and large 52mm ball provide unmatched comfort for extended use, while eight programmable buttons enable extensive workflow customization. It is the spiritual successor to the legendary Microsoft Trackball Explorer that many CAD professionals still mourn.

Budget-conscious users or those wanting to try trackball CAD work without major investment should start with the Logitech Ergo M575. It delivers 90% of the MX Ergo S experience at half the price, with the added benefit of exceptional 18-month battery life.

Left-handed users have excellent options in the Kensington Expert and Orbit, finally providing ambidextrous flexibility that most ergonomic peripherals ignore. The Expert offers premium precision and a legendary scroll ring, while the Orbit provides modern wireless connectivity at a more accessible price.

Remember that all trackballs require an adaptation period. The first week will feel awkward. By week three, you will likely wonder why you ever used a traditional mouse for CAD work. The reduced arm movement, improved posture, and often better precision make trackballs one of the best investments CAD professionals can make in their long-term health and productivity.
