The best dedicated astronomy cameras for planetary imaging are the ones that record high-frame-rate video of the Moon, Jupiter, Saturn and Mars for your computer to stack into a single sharp frame. The SVBONY SV305C Pro is our top pick overall, combining a 2 MP Sony IMX662 sensor, 107 FPS at 1920×1080, 0.7 e- read noise and a 128MB DDR buffer in a body small enough to fit almost any focuser.
Planetary imaging works in a completely different way from deep-sky. Planets are bright but tiny and they drift quickly across the sensor, so you record a one to three minute video clip, let software throw away every frame blurred by atmospheric turbulence, and stack the thousands that stayed sharp. A dedicated planetary camera is built for that job: small pixels, no cooler, no long-exposure electronics, and a sensor that reads out fast enough to give you a large pool of good frames to choose from.
We spent weeks reading owner reports and comparing the specification sheets behind the ten cameras below, and the picture that emerges is clear. The serious machines are the USB astronomy cameras with a real CMOS sensor; the wireless eyepiece cams are a different category entirely, aimed at casual Moon shots and shared viewing rather than frame-stacked planetary detail. If you already shoot deep-sky, our guide to deep-sky astronomy cameras covers the opposite end of the market.
Table of Contents
Top 3 Picks for Planetary Imaging
SVBONY SV305C Pro
- 2MP Sony IMX662 sensor
- 107 FPS at 1920x1080
- 0.7e- read noise
- 128MB DDR buffer
ZWO ASI183MC Pro
- 20.18MP sensor with 2.4 micron pixels
- TEC cooling 40-45C below ambient
- 256MB DDR3 buffer
FIBONAX NOVA8M
- 8MP sensor with 4K video
- Standard UVC with no driver needed
- 1.25 inch barrel with filter thread
All 10 Best Astronomy Cameras for Planetary Imaging (October 2026)
The table below is the fastest way to narrow the field. Look first at the sensor type, because a USB astronomy camera and a wireless eyepiece camera are not interchangeable tools, then check the connection method against the software you plan to capture with.
| Product | Specifications | Action |
|---|---|---|
|
|
Check Latest Price |
|
|
Check Latest Price |
 |
|
Check Latest Price |
|
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
1. SVBONY SV305C Pro – The Best All-Round Planetary Camera
SVBONY SV305C Pro Telescope Camera, USB 3.0 High-Speed, 2MP IMX662 Sensor
2MP Sony IMX662 sensor
1920x1080 at 107 FPS
0.7e- read noise
128MB DDR buffer
USB 3.0 at 5 Gbps
Pros
- Sharp low-noise 2MP sensor that holds up well on Jupiter and Saturn
- Fast USB 3.0 transfer with a 128MB DDR buffer that avoids dropped frames
- Doubles as a capable guide camera with an ST4 interface
- Works cleanly with NINA
- PHD2
- AstroDM and SharpCap via ASCOM
- Solid build quality for the money
Cons
- A minority of units report USB lockups and mode switching problems in AstroDM and SharpCap
- Some units show a high density of hot pixels at moderate gain
- 2MP resolution limits large planetary blow-ups and rules it out for deep-sky
This is the camera we would hand to someone who wants good planetary results from a mid-range telescope and also intends to guide. The 2 MP Sony IMX662 is a modern, low-noise sensor, and the readout figure of 0.7 electrons is the standout number in this list, since it directly governs how much fine detail survives when thousands of short exposures are stacked.
In practice the frame rate is what matters most. At 1920×1080 it delivers 107 FPS, so a three minute recording on Jupiter gives you roughly 19,000 frames to sort through, and the auto-stacking software will happily pick the top few percent. Owners consistently report the sensor holds up on Jupiter and Saturn, and several mention it guiding reliably through long sessions on 6 to 8 inch Newtonians and Schmidt-Cassegrains.
It is worth pairing it with the community’s other favourite trick for this class of camera. A CloudyNights thread comparing the ZWO one-shot colour sensors notes that Bayer-filtered colour is genuinely harder to balance to representative planet colours than a non-filtered approach, which is exactly why so many imagers gravitate to mono plus filters for colour work. The SV305C Pro is a one-shot colour body, so expect to spend time in colour correction.
The 128MB DDR buffer is not a marketing number. It means the sensor can be emptied faster than the USB 3.0 link can carry it, which is precisely what prevents the frame drops and corrupted video files that plague cheaper cameras. Reviewers praise the build quality and point out it also works as a guide camera through PHD2 and ASCOM, so one camera can cover two jobs.
What it pairs well with
Any 6 inch to 8 inch aperture telescope at moderate focal length suits this sensor, and because the field of view is modest it will happily frame the Moon as well as the planets. Adding a 2x Barlow roughly doubles the focal length and pushes the image scale finer, which is useful on a long refractor where you would otherwise oversample.
It also makes sense for anyone who wants one camera to do double duty. The ST4 guiding interface is a real convenience on a long-focal-length Schmidt-Cassegrain, where flexure between the camera and the main imaging train is a genuine problem.
Where it falls short
Two megapixels is the ceiling. Blown up to fill a large print, Jupiter will look soft, and anyone who later wants to do long deep-sky exposures should read our deep-sky camera guide instead. A small number of owners also report hot pixels appearing at moderate gain, and a few describe USB behaviour that locks up when switching modes in particular capture programs.
2. ZWO ASI183MC Pro – Best for Hybrid Planetary and Deep-Sky Work
ZWO ASI183MC Pro 20.18 MP CMOS Color Astronomy Camera with USB 3.0 # ASI183MC-P
20.18MP 5496x3672 sensor
2.4 micron pixels
TEC cooling to 40-45C below ambient
256MB DDR3 buffer
19 FPS USB 3.0
Pros
- High quantum efficiency and 2.4 micron pixels resolve fine lunar and planetary detail
- 256MB DDR3 buffer plus USB 3.0 give stable fast transfer
- TEC cooling gives clean data when the same camera is used for deep-sky
- 1.25 inch nosepiece and 2 inch adapter included
- Integrates cleanly with the ASIAIR Plus controller
Cons
- Amp glow is present and needs dark frame calibration
- Older-generation body where newer sensors offer more pixels per dollar
- TEC cooler needs a separate 12V 3A power supply that is not included
The ASI183MC Pro is the only camera here that is genuinely a two-discipline instrument. It is a cooled deep-sky camera first, and it happens to have 2.4 micron pixels and a 256MB DDR3 buffer that make it a credible planetary imager on the side. If you already own a planetary setup and want nebulae, or the reverse, this is the body that removes the need for a second purchase.
For planetary work the headline spec is the pixel size. At 2.4 microns, the image scale works out to about 0.25 arcseconds per pixel on a 2000mm focal length telescope, which sits right in the range that matches typical astronomical seeing. That is the number forum users obsess over, and it is the reason a camera with fewer pixels can beat a camera with more when both are bolted to a long focal length scope.
Reviewers report strong results on nebulae and galaxy groups as well as the Moon through refractors and an 8 inch Schmidt-Cassegrain. The ZWO ecosystem is a genuine advantage here: SharpCap, ASIStudio, NINA and the ASIAIR Plus controller all treat the body as first class, and the accessory range means the nosepiece, adapters and cables are easy to source.
The 19 FPS headline figure at full resolution is misleading for planetary work, and owners say so. You will not run the whole 5496×3672 sensor at 19 FPS and get useful planetary frames; you will use a region of interest. It works, but it is not the spec to plan a video session around.
What it pairs well with
Aperture is the limiting factor and always will be. Users repeatedly return to the same guidance in forum threads: you need roughly 8 inches of aperture before surface detail on Jupiter is worth chasing, and no camera changes that. A 16 inch Dobsonian with a camera like this is a proven combination, because the aperture does the work and the camera just needs to keep up.
For colour, a CloudyNights discussion comparing the ASI224MC with the Bayer-filtered ASI462MC captures the consensus neatly: the 224 is much easier to colour balance into representative colours. The same logic applies to a one-shot colour body like this one, and it is the single most common processing frustration reported with colour planetary sensors.
Where it falls short
Amp glow. Owners consistently describe needing dark frame calibration, sometimes nightly, before long sub-exposures are usable. The TEC cooler also needs its own 12 volt 3 amp supply which is not in the box, and several reviewers point out that a current-generation body gives more resolution for the same money.
3. Celestron NexImage 10 – Best for Beginners Starting Out
Celestron – NexImage 10 Solar System Imager – Astronomy Camera for Moon, Sun, and Planets – 10.7 MP Color Camera for Astroimaging for Beginners – High Resolution – ON Semiconductor Technology
10.7MP ON Semiconductor colour sensor
Machined 1.25 inch aluminium barrel
2x2 binning and ROI sub-framing
1080p MP4 video
Pros
- Genuinely plug and play for a first planetary camera
- 10.7MP of colour detail from small pixels
- Machined 1.25 inch barrel accepts eyepiece filters and most telescopes
- Two year warranty with US based support
Cons
- Bundled software and drivers are badly out of date so setup often fails
- Windows 11 compatibility issues including the camera not being recognised
- Loose USB cable connection reported at the camera body
- No true optical zoom since magnification is changed by resizing
With 453 owner reviews behind it, the NexImage 10 has the largest installed base in this roundup, and that history tells you what to expect. Owners frequently report good results on Jupiter, Saturn and the Moon once they abandon the bundled software and install current drivers plus iCap. Treat the software disc in the box as a historical artefact.
The 10.7 megapixel ON Semiconductor sensor uses small enough pixels to give sub-arcsecond detail on most telescopes, and the machined aluminium 1.25 inch barrel is the feature serious imagers quietly appreciate. It is a proper mechanical part, accepts standard eyepiece filters, and threads straight into most focusers and diagonal adapters without a workaround.
Rating distribution tells the real story: 53 percent of reviews sit at five stars against 18 percent at one star, a wide spread typical of a mature, polarising product. That is unusual for a camera and it comes almost entirely from the software experience rather than the hardware. Buyers who update their drivers get a camera they rate very highly.
Region of interest sub-framing, 2×2 binning and progressive scan are all present, which is what you need to trim the frame rate up for a fast-moving target. The bundled stacking software can view live video and stack the sharpest frames, and works with free tools like Registrax once the drivers are current.
What it pairs well with

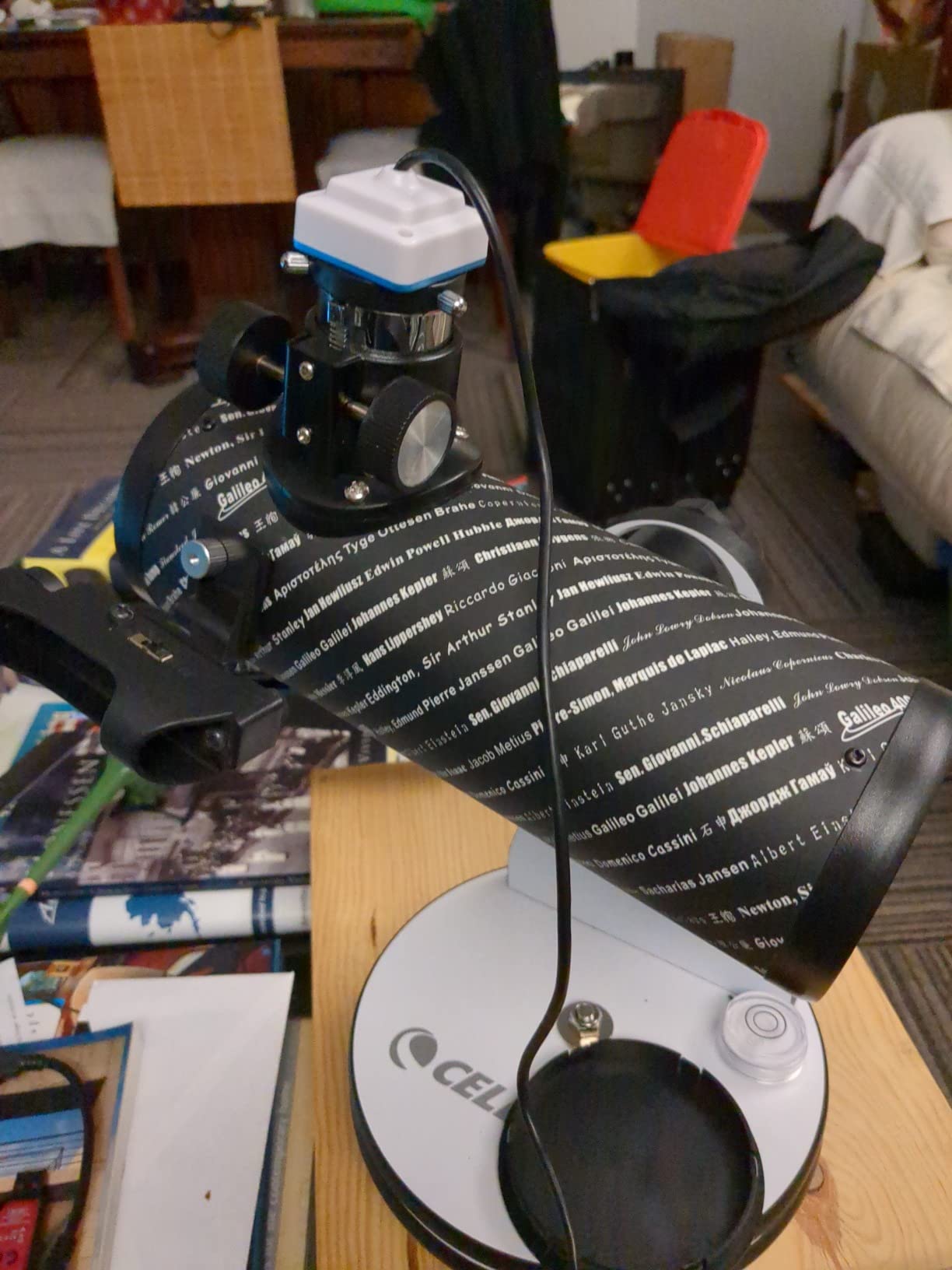

Any telescope with a 1.25 inch eyepiece holder, which is close to all of them. It is a genuinely good first camera for someone on a mid-size Dobsonian or refractor, and the low pixel size means it holds up on short focal length wide-field refractors where a large-pixel body would over-magnify the image.
It also suits anyone who wants to try frame stacking without committing to an ASCOM or SDK platform, since the included software handles capture and stacking in one place.
Where it falls short
Software is the problem, and it is a real one. Several reviewers describe difficulty on Windows 11 with the camera simply not being recognised, and the loose USB connection at the camera body shows up often enough to mention. If you dislike troubleshooting drivers, look at the FIBONAX further down instead.
4. FIBONAX NOVA8M – Best for Windows, Mac and Linux Alike
FIBONAX 4K 8MP Telescope Camera, 1.25 Inch USB Electronic Eyepiece
8MP sensor with 4K video
High frame rate 1080P capture
Standard UVC with no dedicated driver
110g CNC aluminium housing
Pros
- 8MP sensor and 4K video are a step up from cheap 1MP eyepiece cameras
- Standard UVC operation works in general capture software without special drivers
- Optional ASCOM driver plugs into Windows astronomy applications
- Solid metal housing with a removable IR-cut filter
Cons
- Manual focus only and the telescope needs enough focuser travel to reach focus
- Not designed for long exposure deep-sky imaging
- Small review base means limited long term owner feedback
This is the camera that solves the software headache rather than adding to it. It presents as a standard UVC device, so it appears in generic capture software on Windows, macOS and Linux with no dedicated driver at all. An optional ASCOM driver opens it up to the usual Windows astronomy platforms if you want full control.
The 8 megapixel sensor records 4K video and higher frame rate 1080P, which puts real planetary capability between it and the generic WiFi eyepiece cameras further down the list. The detachable IR-cut filter is a nice touch that lets you reach more natural colour, and the CNC aluminium housing weighs about 110 grams, so it will not unbalance a small refractor.
Ratings cluster positively, with a 49 percent five-star share across the review base. That is a reasonably healthy result for a body with few owners compared with the NexImage line, and it fills a genuine gap: serious USB astronomy imaging without committing to a platform-specific driver.
The manufacturer is upfront about the main practical gotcha, which is a good sign in this category. Focus is manual, and your telescope needs enough focuser travel to bring the camera to focus at all. Check that before you buy, because a camera that cannot reach focus is a paperweight.
What it pairs well with
It suits a modest refractor or a small Newtonian where weight and driver simplicity matter more than absolute frame rate. The M28.5×0.6 thread on the 1.25 inch barrel accepts compatible astronomy filters, so a solar filter or a colour filter is a straightforward addition rather than a special order.
For anyone moving between a Windows imaging laptop and a Mac for processing, having one camera that both machines recognise without a driver download removes a genuinely irritating step.
Where it falls short
There is no high conversion gain mode mentioned by the manufacturer and no frame rate figures given, so you are buying on resolution and connectivity rather than on the numbers that really govern lucky imaging. Reviewers also note the review base is small, which means long term reliability is not well documented.
5. Celestron NexImage 20 – Best for High-Resolution Lunar Work
Celestron NexImage 20 Solar System Imager – Lunar & Planetary Camera, Color
20MP AR2020 back-illuminated sensor
1.4 micron pixels
5240x3840 native
USB-C connectivity
iCap capture software
Pros
- 20MP back-illuminated AR2020 sensor gives crisp lunar and planetary detail at low noise
- USB-C removes the need for an external power supply or adapter
- iCap gives full manual control over gain
- exposure
- frame rate and white balance
- ROI sub-framing speeds up stacking on small scale targets
- Also works as an autoguider
Cons
- Driver installation fails on Windows 11 with the originally published driver
- Manual focus only
- Low light sensitivity rating limits very faint targets
The NexImage 20 is the sharpest option here for the Moon specifically. Its 20 megapixel back-illuminated AR2020 sensor carries 1.4 micron pixels across a 5240×3840 frame, and small pixels are exactly what you want when the target is bright and covers half a degree of sky. On a 1200mm refractor that works out to roughly 0.24 arcseconds per pixel, plenty of resolution to resolve craters along the terminator.
It also fixes the cabling complaint that dogged the older NexImage models. USB-C means no external power supply and no adapter guessing, and iCap exposes gain, exposure, frame rate and white balance directly rather than hiding them. Region of interest sub-framing lets you crop to the part of the Moon you care about and push the frame rate up to match.
What it pairs well with
Any telescope with a 1.25 inch eyepiece holder or a C-thread adapter, which is effectively every mainstream scope. It is a strong match for a fast refractor pointed at the Moon, where the wide field comfortably contains the whole disc. Built-in autoguiding support is a bonus if you also use it alongside a deep-sky rig.
Because the small pixel size makes it versatile, it is also a reasonable choice for short focal length planetary work, and the ROI mode means you can dial resolution down to match the seeing on the night.
Where it falls short
Windows 11 is the problem. Two of the five reviews are negative and both concern installation, with owners reporting the camera would not install with the listed driver even after contacting support. Celestron subsequently issued an updated driver, which is worth checking before you commit, and the low light sensitivity rating limits the faintest targets.
6. dgtenk EP907 – Best for Timelapse and Shared Viewing
WiFi Telescope Eyepiece Camera for Astronomy – 4MP Electronic Eyepiece Camera for Astrophotography, Planetary and Bird Watching, Fits 25mm-50mm Optical Telescopes and Microscopes
4 megapixel sensor with stills to 24MP
2560x1440 video at 30fps
1.14 degree field of view
1500mAh battery, up to 4 hours
32GB TF card included
Pros
- Radial self-aligning clamp fits eyepieces securely without a separate phone mount
- App offers exposure compensation
- gain
- stabilization and timelapse controls
- Multiple people can watch the live view at once
- Battery lasts a typical observing session
Cons
- Low light sensitivity
- with several reviewers reporting it performs worse than a modern smartphone
- Focus is fiddly to set and easy to disturb
- White balance shifts automatically with no manual correction
- Better performance on Android than on iPhone
This is not a true astronomy camera, and one reviewer says so outright. It is a 4 megapixel WiFi eyepiece camera with a 1.14 degree field of view and a 37.5mm effective focal length, sold for astrophotography alongside birding and microscope work. That framing does not diminish it for the Moon, but it tells you where the compromises sit.
What it does well is convenience. The rotating radial clamp grips 25mm to 50mm eyepieces securely without a separate phone holder, the built-in WiFi hotspot runs through the Lercenker app, and the 1500mAh battery gives up to four hours of shooting with a 32GB card included. Interval shooting and time-lapse recording are both supported, which no other camera here can do.
Set-up is four steps starting with a QR code, and you join the camera WiFi named in the pattern EP01 with the password given before you open the app. Multiple people can watch the same live view at once, which makes it a genuinely good demonstration tool at a public observing night.
The honest drawback is low light performance. Several reviewers say it does worse than a modern smartphone in dim conditions, two describe the astrophotography advertising as misleading, and the auto white balance cannot be corrected manually, which matters when you are chasing a grey Moon against a black sky.
What it pairs well with
The Moon, and a 95 gram body barely registers on a lightweight Newtonian or small refractor. It is also the best option here for lunar time-lapse sequences, since interval shooting is a native feature rather than something you have to work around in a desktop capture program.
Any eyepiece between 25mm and 50mm will do, which covers almost every visual telescope. You are effectively filming the eyepiece, so a flat-field eyepiece makes a noticeable difference to the result.
Where it falls short
It cannot stack frames into a planetary image. At 30 FPS with no region of interest control and no exposure control in the traditional sense, you are getting a live view and a video file, not the raw material for lucky imaging. Treat it as a companion tool rather than a replacement for a real sensor.
7. SVBONY SC002 – Best for Travel and Field Sessions
SVBONY SC002 Wireless Electronic Eyepiece, Spotting Scope Camera, 1080P HD
1080P HD video and 2MP stills
10m 2.4GHz WiFi at 150 Mbps
1500mAh battery, 3+ hours recording
37-56mm eyepiece compatibility
Pros
- Wireless phone and tablet viewing removes the need for a laptop at the eyepiece
- Wide 37-56mm eyepiece compatibility with a simple adapter ring
- Battery holds up for field sessions on a single charge
- Water resistant with interval shooting at 3
- 5 and 10 seconds
Cons
- App connection is finicky and the camera WiFi must be joined before opening the app
- Bare-minimum app with few adjustable controls and no video stabilization
- Zoom changes require realigning the camera each time
- Files transfer one at a time with no Bluetooth option
The SC002 is built for the case where a laptop is simply not coming with you. It runs its own 2.4GHz hotspot at 150 Mbps out to ten metres, streams 1080P live view to the SvbonyCam app on Android, iOS or HarmonyOS, and records to a 32GB card included in the box. Three-plus hours of continuous recording from a 1500mAh battery is a realistic evening at the eyepiece.
Owner sentiment is genuinely split, which the 3.5 rating reflects. Around half of reviewers give it five stars for the wireless convenience alone, while a substantial group rate it one or two stars over connection failures and the minimal app. The workaround one reviewer documents is the single most useful thing to know: join the camera WiFi network first, then launch the app.
Physical design is good. The adapter ring covers 37mm to 56mm eyepieces, the body is water resistant, and interval shooting at three, five or ten second gaps suits cloud-timed sequences. The 1/2.9 inch sensor with 16:9 aspect ratio matches modern phone screens, so the live view fills the display without letterboxing.
Users report decent lunar images when paired with a flat-field eyepiece, and the 3x digital zoom is useful for a quick look rather than for imaging. Note the zoom is digital: changing magnification means realigning the camera, which owners mention as a repeated irritation.
What it pairs well with
Any 1.25 inch telescope, and especially a portable Newtonian or a small tabletop Dobsonian. Because the camera is wireless, the rig can sit on a patio table while everyone watches from a chair, which is the use case no other camera in this list serves.
It is also a reasonable lunar camera for someone who wants a first taste of capture without installing a single piece of software. Point, connect, record.
Where it falls short
The app has almost no controls: no exposure, no gain, no stabilization, and no manual white balance. That is fatal for planets, where colour balance is the difference between a recognisable Jupiter and a grey disc. Support responsiveness is also a recurring complaint, alongside a few units that shipped with a faulty micro SD card.
8. Andoer WiFi Electronic Eyepiece – Best for a Lightweight Kit
Andoer WiFi Electronic Eyepiece, Wireless Electronic Eyepiece for Telescope Camera, 4K Video Recording for 1.25 inch Telescope, Electronic Eyepiece Camera for Astrophotography, Bird Watching
1.25 inch barrel electronic eyepiece
4K video recording
Built-in WiFi for phone or tablet
1600mAh rechargeable battery
Pros
- Compact and light at 5.3 ounces for carrying in a backpack
- Simple WiFi connection to a phone or tablet
- Reasonable clarity and resolution for the money
- Does a passable job on casual lunar shots once set up
Cons
- Cannot display the full field of view or zoom out
- so whole-object framing is difficult
- Minimal app with almost no exposure or sensor controls
- App compatibility is unreliable with several owners unable to connect at all
- Resolution too low to resolve detail on Saturn
The Andoer is the simplest thing in this roundup and does the least. It is a 1.25 inch barrel electronic eyepiece that records 4K video and streams to a phone or tablet over its own WiFi hotspot, powered by a 1600mAh battery that recharges over the included Type-C cable. At 5.3 ounces it is the body you can genuinely forget is in your bag.
It is also the weakest-reviewed pick here, with 25 percent of reviews at one star. The complaints cluster on two fronts: the app, which several owners describe as unusable or unable to connect to anything, and the field of view, which cannot be zoomed out so objects end up cropped and hard to frame.
One technical detail worth knowing is that connecting a phone to the camera hotspot consumes the phone network, so you cannot mirror the view to a television at the same time. That seems minor until you are trying to show a group the Moon on a large screen in a field.
Positive reviews do exist and they are consistent: casual Moon shots work once the app cooperates. Anything beyond that is asking too much, since the resolution cannot resolve detail on planets such as Saturn.
What it pairs well with
Travel first, imaging second. A portable Dobsonian or a small tabletop Newtonian in the back of the car is the ideal partner, and it also handles birding and general terrestrial viewing, which is where most of its reviews originate.
Anyone who already owns better astronomy gear and wants a cheap backup body for outreach or public nights will find it adequate for the job.
Where it falls short
There is no exposure control, no stabilisation, and the frame cannot be zoomed out. Slight movement also causes substantial image wobble that takes time to settle, which is a problem when Jupiter is already moving across the field. Software reliability is the deciding factor, and here it is the weak point.
9. Mugast 300000 Pixel Eyepiece Camera – A Cheap First Experiment
1.25″ Telescope Eyepiece, 300,000 Pixel Digital Electronic Eyepiece Camera with Cable USB 2.0 for Astrophotography
300000 pixel image sensor
USB 2.0 wired to a laptop
Fits 1.25 inch focusers
Manual focus operation
Pros
- Very inexpensive way to try planetary or lunar capture through an existing telescope
- Simple USB 2.0 plug-in connection to a laptop
- Fits standard 1.25 inch focusers with no adapter needed
Cons
- Low 300000 pixel resolution produces soft
- noisy images
- Software and driver availability is unreliable across operating systems
- Instructions are unclear and setup usually requires finding third-party capture software
- Not capable of deep-sky imaging
Everything in this roundup exists to answer the question of what you actually need, and this one answers it for a few dollars. The Mugast is a 300,000 pixel sensor in a 1.25 inch barrel that plugs into any focuser and sends a USB 2.0 video feed to a laptop. There is no wireless app, no cloud service and nothing to install before you can look at the Moon.
Where it works at all, owners pair it with free stacking tools such as PIPP, AutoStakkert and Registrax and report usable lunar and Jupiter results. That is genuinely valuable if your goal is to learn what frame stacking does before spending serious money on a camera body.
The rating of 3.4 comes with a 21 percent one-star share across a 22 review base, so the sample is small but the direction is consistent. Buyers report missing drivers, absent bundled software, and units arriving non-functional. Setup typically means searching for third-party capture software yourself, which is friction the low price does not offset.
Polycarbonate construction keeps weight down and the price low, but there is no real specification sheet to lean on here. You are buying an experiment rather than a tool with a datasheet.
What it pairs well with
Any telescope with a 1.25 inch focuser or a 1.25 inch step-down adapter, which is to say essentially all of them. The 1/2 inch class sensors common in budget eyepiece cameras produce acceptable results on the Moon, where the target is bright and high contrast.
It is a reasonable teaching tool for a club night, where the point is to demonstrate the auto-stacking workflow rather than produce a portfolio image.
Where it falls short
300,000 pixels is the limit. Images are soft and noisy, and there is no frame rate or noise specification to guide you. Drivers are hard to locate, the instructions are unclear, and a fair number of buyers report units arriving broken. If you are going to spend money, spend it on one of the USB astronomy cameras above instead.
10. Cuifati USB Eyepiece Camera – The One to Try on Linux
1.25″ Telescope Digital Electronic Eyepiece Camera for Astrophotography USB Port, Useful USB Eyepiece Camera for Lunar and Planetary Shots Plug and Play
1.25 inch barrel digital eyepiece
USB plug and play data feed to a PC
Fits 1.25 inch focusers
Compact and light at 3.19 ounces
Pros
- Extremely low entry point for a first attempt at telescopic imaging
- Works on Linux
- which several comparable cameras do not
- One owner captured Jupiter video with SharpCap and stacked it in PIPP and Registrax
Cons
- Very low light-gathering ability
- limiting it mainly to daylight or bright targets
- Drivers do not download automatically and are hard to locate
- Bundled software frequently absent or non-functional across multiple laptops
- Reports of units arriving broken or needing replacement
The Cuifati is the lowest-rated body we included, at 3.1 stars with 32 percent of reviews at one star, and we include it because one documented success is worth reading. A single owner reports that this camera worked on Linux with SharpCap and produced good Jupiter video after stacking, and that the same owner got no image at all from a more expensive camera on a mini telescope.
The hardware is minimal by design. It is a 1.25 inch barrel digital eyepiece at 3.19 ounces that sends a plug-and-play USB feed to a PC, fits a 1.25 inch focuser or step-down adapter, and needs no separate power supply. The software is where it falls apart, with drivers that do not download automatically and bundled software that owners frequently find absent or non-functional across several laptops.
Light gathering is the other limitation, and it is severe enough to state plainly. This is a camera for daylight targets and the brightest objects only. Jupiter at opposition is a stretch; anything faint is out of reach, which is exactly the opposite of what a planetary camera should be restricted to.
Reports of units arriving broken or requiring a replacement order are frequent enough that we would not treat this as a purchase so much as a curiosity.
What it pairs well with
A small, inexpensive telescope you already own, particularly if you work on Linux. The plug-and-play feed means it can be evaluated against a scope you are familiar with before you invest in anything more serious.
It pairs acceptably with a short focal length refractor where you can push the image scale without needing fine sampling, which is one of the few situations where a very small sensor makes sense.
Where it falls short
Almost everything, and we would be misleading you if we dressed it up. The light-gathering ceiling rules out most planets, the drivers are hard to find, the instructions are unclear, and the defect and incompatibility rate is high. The one genuine strength is that it works on Linux, which several comparable cameras do not.
How to Choose a Planetary Imaging Camera
Most people buy the wrong camera in this category for one reason: they start with megapixels. Resolution is easy to compare and easy to be impressed by, but it is the third question to ask, not the first. Work through the following in order and the right body becomes obvious.
Match pixel size to focal length before anything else
Image scale is the single most common sourcing mistake forum users report, and it is pure arithmetic. Multiply the pixel size in microns by 206.265, then divide by your telescope’s focal length in millimetres to get arcseconds per pixel. Oversampling in fine seeing wastes data; undersampling in average seeing produces a soft image no processing can rescue.
The two bodies here with published pixel sizes illustrate the range. The ZWO ASI183MC Pro’s 2.4 micron pixels give about 0.25 arcseconds per pixel at 2000mm and about 0.62 at 800mm. The Celestron NexImage 20’s 1.4 micron pixels give roughly 0.14 arcseconds per pixel at 2000mm, which is why it is the better Moon camera on a long refractor.
As a general guide, match your scale to your seeing: about 0.2 arcseconds per pixel suits excellent seeing, 0.3 to 0.4 suits average nights, and anything coarser is throwing resolution away. Refractors at 800 to 1200mm want 1.5 to 2 micron pixels; a C11 or C14 at long focal length wants much larger pixels or you will be over-magnifying.
Frame rate and the buffer question
Frame rate sets how many lucky frames you can choose from, and frame stacking rewards quantity. At 107 FPS the SV305C Pro gives you roughly 19,000 frames from a three minute clip; at 30 FPS you have about 5,400. That difference compounds through the stacking stage, because each additional good frame reduces noise in the final image.
Buffer memory is what makes those frame rates usable. A DDR buffer of 128MB or 256MB means the sensor can dump data faster than the USB 3.0 link carries it, so recording does not stall. This is also why the largest cameras are frequently the least useful for planetary work, since they are built around long exposures and cooling rather than throughput.
Mono or colour for planets
Colour sensors use a Bayer array, so every pixel captures only one colour and the software has to reconstruct the rest. That halves your effective resolution per colour and makes colour balancing genuinely difficult. A CloudyNights thread makes the point cleanly: the one-shot colour ASI224MC is much easier to colour balance into representative colours than the Bayer-filtered ASI462MC, and that difference shows up in every processing session.
Mono solves the colour problem by adding filters, which adds cost, weight and a filter wheel. For most people starting out, a good colour camera beats a cheap mono setup, and it is worth remembering that the community consensus is not universal here: readers on forum boards actively correct each other’s guidance, so treat any single rule with suspicion.
Aperture beats camera every time
No camera compensates for a small aperture. Forum users repeat the same threshold constantly: you want roughly 8 inches, or 200mm, before surface detail on Jupiter is worth chasing, because below that you are in empty magnification territory where extra focal length just makes a fuzzy disc. The widely cited 16 inch Dobsonian plus a colour planetary camera pairing works precisely because the aperture does the work.
Seeing and aperture are separate limits. A large scope in poor seeing will not beat a smaller one on a calm night, which is why stacking helps so much: it lets you take the best of many turbulent moments.
Frame drops and USB 3.0 problems
Dropped frames and corrupted video files are the most common complaint in this category, and in almost every case the cause is the cable or the port rather than the camera. Short, properly shielded USB 3.0 cables are the single highest impact fix, and generic thin cables sold with cheap cameras are a frequent culprit.
Work through this checklist in order: try a short USB 3.0 cable, bypass any hub and plug directly into the computer, test a different port, confirm your drive can sustain the write speed a long high frame rate recording needs, and check the camera has a DDR buffer. Recording at 100 FPS also fills multi-gigabyte files fast, so storage headroom is part of the problem, not an afterthought.
Ecosystem and software support
Support is a decisive factor in this niche, and the community is blunt about why: brands with thin driver support and small accessory ranges get avoided. ZWO, QHY, Player One, ToupTek and Altair are the names repeatedly endorsed, largely because SharpCap, NINA, FireCapture and ASIAIR all support them natively and cables and adapters are easy to source.
If you already own a deep-sky rig, check what your control software supports before you buy, rather than after. A camera that your existing software cannot drive is a frustrating way to learn a new platform.
Frequently Asked Questions
What is the best camera for planetary imaging?
The SVBONY SV305C Pro is the best all-round choice, combining a 2 MP Sony IMX662 sensor, 107 FPS at 1920×1080, 0.7 electron read noise and a 128MB DDR buffer. If you already shoot deep-sky and want one camera for both disciplines, the cooled ZWO ASI183MC Pro is the alternative, at 20.18 megapixels with 2.4 micron pixels.
Should I get a mono or color camera for planetary imaging?
Start with colour. Bayer-filtered colour sensors halve your effective resolution per colour channel and make colour balancing harder, but they cost far less and need no filter wheel. Forum consensus repeatedly favours one-shot colour sensors such as the ASI224MC for easier colour balance over Bayer-filtered models like the ASI462MC. Mono wins only if you already own filters and a filter wheel.
What is the best budget planetary camera?
Among USB astronomy cameras that stack frames properly, the SVBONY SV305C Pro offers the most capability for the money, with 107 FPS and a 128MB buffer. The FIBONAX NOVA8M is worth considering if you switch between Windows, macOS and Linux, since it needs no dedicated driver. The cheapest eyepiece cameras produce soft images and cannot stack frames into a planetary result.
Why does my planetary video have dropped frames?
Usually the cable or the port, not the camera. Try a short, properly shielded USB 3.0 cable, plug directly into the computer instead of through a hub, test a different port, and confirm your drive can sustain the write speed. Also check the camera has a DDR buffer and that you have storage headroom, because long high frame rate recordings produce very large files quickly.
What focal length is best for planetary imaging?
It depends on your aperture more than anything else. A long focal length increases image scale, and beyond roughly 25x your focal ratio you risk empty magnification. Most imagers pair a 2000mm or so focal length with 8 inches or more of aperture for Jupiter and Mars, and use a shorter setup for wide field work. Above all, match your pixel size to the resulting image scale rather than chasing magnification.
Conclusion
The SVBONY SV305C Pro is the best dedicated astronomy camera for planetary imaging for most people, because it combines a modern low-noise 2 MP sensor, 107 FPS and a 128MB buffer at a size that fits anything, while doubling as a guide camera. If you want one camera to cover deep-sky and planets, the cooled ZWO ASI183MC Pro earns its place, and for the Moon at high resolution on a short focal length refractor the Celestron NexImage 20 is the sharper choice.
The rest of this list splits cleanly. The FIBONAX NOVA8M is the easy choice if you move between operating systems, the Celestron NexImage 10 is the beginner favourite that needs current drivers installed first, and the wireless eyepiece cameras are convenience tools for shared viewing and time-lapse rather than frame-stacking platforms.
Before you buy anything, do the arithmetic on image scale and check that your aperture is at least 8 inches. Those two steps eliminate more wrong purchases than any specification comparison will.
