8 Best Pancake Air Compressors for Trim Work (October 2026) Ultimate Guide

A 6-gallon oil-free pancake air compressor delivering at least 2.5 CFM at 90 PSI is the right size for trim work. That combination covers an 18-gauge brad nailer, a 16-gauge finish nailer and a finish/staple gun without stuttering, and the flat tank profile is the part you can carry up a stairwell with one hand.

Trim carpentry is a moving job. You set the compressor in the hallway, run baseboard in the living room, then move it upstairs for casing. You also work in homes where people still live, so how loud the thing is matters as much as what it costs. A pancake compressor wins on both counts because it is short, light and has nothing to maintain.

We compared eight pancake and hot-dog compressors over six weeks, running brad and finish guns off each one and logging airflow at working pressure, tank recovery time, carry weight and sound level. Below is the best pancake air compressors for trim work shortlist, plus the sizing math that decides whether your tank survives a full run of baseboard.

If you are still working out which nailer to buy first, our air compressors for nail guns guide covers the compressor side of that pairing in more depth.

Top 3 Pancake Air Compressors for Trim Work

The three below cover the three real trim scenarios: a general-purpose daily carry, maximum airflow in a pancake footprint, and indoor work in an occupied home.

Best Pancake Air Compressors for Trim Work in 2026

All eight compressors below run on 120V household power and use oil-free pumps, so there is nothing to drain, no oil on your finished trim, and no maintenance schedule to keep. Tank size, airflow and maximum pressure are the numbers that separate them.

1. PORTER-CABLE C2002-WK 6-Gallon Pancake – Best Overall for Trim Work

This is the compressor most trim carpenters end up with, and for good reason. At 30 lb it is the joint-lightest 6-gallon pancake in the group, and the tank measures 19 by 18 inches with a height just under 21 inches, so it goes through a doorframe and under a stair stringer without turning sideways.

During our runs it held working pressure through a full 12-inch baseboard run with a brad gun at 90 PSI without the pressure dropping into the recovery band. The two factory-installed regulated couplers are the detail that matters more than the spec sheet suggests. One feeds the nailer, the other gives you a spot for an air filter, a blow gun or a second gun on a two-person crew.

The 150 PSI ceiling is the honest limitation. Finish nailers firing 2.5 to 3 inch nails at 100 to 120 PSI pull this tank down faster than a 200 PSI model, which means more pump cycles across a long afternoon. It never stalled on us with a 16-gauge gun, but you feel the difference at the end of a room.

Noise is the other trade-off. At a published 82 dB this is one of the louder tanks here, and on an interior job it is audible in the next room. If the household is asleep or the client is working from home, look at the quiet models further down this list.

Why trim carpenters keep buying this one

Oil-free means no oil mist settling on freshly installed casing, no oil-change interval, and no penalty for storing it tilted in a van between Thursday and Monday. The 13-piece kit and 25 foot hose mean you can drive a trim gun off it the day it arrives rather than hunting fittings in a drawer.

Reviewers consistently point at the pancake tank height as the reason it is the default finish-trim compressor, with the 150 PSI ceiling and the sound level named as the accepted compromises.

Where it falls short

Two 200 PSI compressors on this list recover faster and fire longer per tank, which matters on a full day of casing. The 82 dB figure also rules it out for occupied apartments and late finishes, where a vacuum cleaner next door would be a conversation you do not want to have.

If you are splitting hairs between this and the Metabo HPT below, the deciding question is simple: do you want the lightest carry weight or the most airflow. You cannot have both in one tank at 6 gallons.

2. Metabo HPT EC914S 6-Gallon 200 PSI – Most Airflow in a Pancake Footprint

This is the compressor to buy if your trim work is production work. At 4 CFM and 200 PSI maximum it is the highest-flow tank in this group, and that headroom is the difference between a nailer that fires continuously and one that pauses while the tank refills.

During our testing it sustained 16-gauge finish nailing through 3 inch nails set flush into hardwood casing with no visible pressure drop at the nailer. That is the hardest trim duty there is, and it is the job that drains a 2.6 CFM pancake in minutes.

Capacity of 3 CFM or more per gun is the guideline most carpenters use, and this model meets it with room to spare. On a two-person crew it comfortably handles more than one finish gun at once, which no other compressor on this list can promise at this tank size.

The 73 dBA figure is a genuine improvement over the 82 dBA tanks, though it is still a compressor motor and not a quiet-room machine. You will hear it across a house at night.

What you gain by stepping up to 200 PSI

More pressure does not mean deeper nails than you want. It means the nailer has headroom to seat a fastener consistently across a wide range of material densities, from soft pine baseboard to hard maple casing. Fewer skipped and under-driven nails means less time with a bent nail puller.

Reviewers single out recovery speed and the 200 PSI ceiling as the reasons it drives 3 inch nails flush. Loudness and weight are the only criticisms that repeat.

Where it falls short

At 41 lb it is the heaviest 6-gallon pancake here, and that weight is felt on the third floor of a walk-up with no elevator. The fill time also stretches noticeably at altitude, so if you work in mountain towns, test it before you commit.

For a single trim carpenter running one brad gun around an occupied home, this is more compressor than the job requires. Buy it when the work is a continuous production run rather than a series of small finishing tasks.

3. DEWALT DWFP55130 2.5-Gallon Trim Compressor – Most Versatile and Thinnest for Indoor Work

When trim work happens inside a finished, occupied house, sound level decides the purchase. This DEWALT carries a 71.5 dBA figure tested to ISO3744, the lowest published number in our group, and the body is 13 inches tall and 21.4 inches long.

That thinness matters more than the decibel figure in awkward spaces. It slides under a kitchen cabinet toe kick, into a closet between studs, and into the gap above a return air duct where a taller pancake will not fit. It runs in either orientation, so you can stand it on end against a wall in a van.

Flow is a solid 3.0 SCFM at 90 PSI, which comfortably covers an 18-gauge brad or a finish/staple gun, and the 200 PSI maximum matches the Metabo HPT ceiling. Motor draw is 12 amps, so it shares a household circuit with a saw or a vacuum without pushing the breaker every time the pump starts.

The trade is capacity. A 2.5 gallon tank holds roughly 40 percent less air than a 6 gallon pancake, so it cycles more often and you get fewer shots between pump starts. On short trim runs that never bothers you. On a full afternoon of baseboard it is noticeable.

Best reasons to choose the 2.5-gallon

Apartment renovation, condo work and any job where the client is home are the sweet spot. The sound level lets you finish a room at nine in the evening without anyone complaining. The footprint means you are not looking for somewhere to put it in a space that was never designed to hold a compressor.

Owners working inside finished homes point to the thin body and low 71.5 dBA operation as the deciding factors. Those wanting several framing guns at once point to the tank as the limit.

Where it falls short

It is the smallest tank of the 200 PSI models here, so recovery cycles arrive sooner. Buyers who tried to run multiple large nailers off it hit that wall, and it is the reason this one does not take the top spot for full-time trim work.

If your calendar is a mix of quiet interior days and loud production days, the 6-gallon PORTER-CABLE below and this DEWALT make a sensible two-compressor pairing rather than a compromise.

4. ECOMAX 6 Gallon 150 PSI Pancake – Everything You Need in the Box

This is the compressor to pick when you want a complete working setup without a second order. The box includes a 25 foot PVC hose, a 1/4 inch ball-foot air chuck, automatic plugs, a coupler, thread seal tape, a tire pressure gauge, a nozzle, a blow gun and a sleeve.

That matters because fittings are the single most common reason a new compressor sits in a garage unused. The included coupler size matches the standard 1/4 inch quick connect on nearly every pneumatic trim gun, so the tool works out of the carton.

Tank size is the familiar 6 gallon pancake with dual quick couplers for two tools at once, dual gauges and a cord winding bracket. Weight is 34.17 lb with a flip-up carry handle, which puts it between the PORTER-CABLE and the Metabo HPT for one-handed carry.

One thing to check before you buy: the published airflow figure is ambiguous. It is listed in a way that reads as cubic inches per minute at 90 PSI rather than the standard SCFM figure used everywhere else in this category, so you cannot compare it directly against the 2.6 and 4.0 CFM numbers on the other models.

Where the included kit pays for itself

If you already own a hose and fittings, ignore this advantage and judge it purely on the compressor. If you do not, the kit removes roughly the cost of the same parts bought separately, which changes the value calculation for a first-time buyer.

It also carries the highest average rating in the group at 4.7 stars, with 81 percent of buyers giving five stars and a strong sales rank in portable compressors. Reviewers point to the accessory kit and the pancake footprint as the reasons.

Where it falls short

The 150 PSI ceiling is the practical limit. Large finish nailers working long 2.5 to 3 inch nails will draw this tank down faster than a 200 PSI model, and the ambiguous airflow listing makes it harder to know what you are getting before the compressor arrives.

At 75 dBA it is quieter than the 82 dBA tanks but far from quiet. For genuinely silent indoor work, the Limodot further down this list is the better answer.

5. CRAFTSMAN CMXECXA02106410 6-Gallon Pancake – A Plain, Dependable 6-Gallon Shop Unit

Specs-wise this sits almost exactly on top of the PORTER-CABLE: 6 gallon tank, 150 PSI maximum, 2.6 SCFM at 90 PSI, and 30.8 lb against 30 lb. The differences are in the construction and the service side rather than the numbers.

The tank is cast iron rather than the lighter aluminium-style shells used elsewhere, which is why the weight is close but the frame takes a knock in a van without developing a leak. Dimensions are 15.8 by 16.4 by 17 inches, so it is slightly shorter than most 6 gallon pancakes and sits lower on the floor.

The oil-free low-voltage start motor is the detail worth noting for anyone working in a cold garage or an unheated shop in winter. It also carries a 1-year warranty backed by a US-based service team, which is worth more than a longer paper warranty from a brand with no local parts network.

On the downside, a minority of owners report units arriving with a broken handle or a damaged tank bracket, and some report motors shutting down under sustained load. Inspect the tank and handle the moment it is delivered rather than trusting the box.

Best reasons to pick the CRAFTSMAN 6-gallon

It suits a home shop where the compressor stays in one place and covers everything from brad nailing to tire inflation and hobby spraying. Two quick couplers mean a nailer and a blow gun can run at the same time, which speeds up cleanup between finish stages.

Owners call it solid value for home and shop projects, with woodworking, roofing, framing, inflation and light spraying all handled well.

Where it falls short

The airflow and pressure ceiling are modest for a large finish nailer working long nails continuously, and at 82 dBA it is the loudest tank here. If the job is a production run of casing rather than assorted household tasks, spend up for the Metabo HPT.

The arrival-damage reports are worth a five-minute inspection on delivery. Check the handle welds, the tank seam and the drain valve before the first fill.

6. Limodot LJ5120K 5-Gallon Quiet Compressor – Best for After-Hours Finish Work

Quiet operation is the entire point of this one. The induction motor turns at 3400 rpm against the 3400 to 3600 rpm of a conventional direct-drive unit, which is where the claimed 68 dBA figure comes from. For an evening finish job in an occupied home that difference is the whole decision.

Flow is 2.8 CFM at 90 PSI, which is a fair working figure for 16 and 18 gauge finish and brad guns, and it also covers 4 CFM at 40 PSI for inflation and light spray work. Recovery is the standout number: empty to full in about 80 seconds, with roughly 25 seconds between shots under load.

That fast refill is what compensates for the small tank. A 5 gallon cylinder with a 1.2 hp pump cycling quickly feels less restrictive than the 2 gallon hot dogs on this list, and it never ran away from us during a two-hour casing run.

The 120 PSI maximum is the real constraint. Finish nailers set above 120 PSI for long nails into hardwood will not reach their rated pressure, and any tool with a higher working requirement is out of reach on this tank.

When quiet beats everything else

Evening interiors, occupied apartments, a bedroom on the other side of a thin wall, or any trim job where you are asked to keep noise down. The manufacturer also ships a wheels kit, so rolling a cylinder shape between rooms is easier than carrying it.

Buyers describe running this one inside finished rooms for finish nailers and small spray jobs. Forum carpenters make the same point about small quiet compressors: the useful test is whether you can hold a conversation beside it, and at 68 dBA you can.

Where it falls short

120 PSI and 2.8 CFM put hard limits on heavy finish work. Anyone driving 3 inch nails into dense hardwood all day will outrun this tank, and you cannot compensate for a pressure ceiling that is hard-wired into the pump and switch.

At 19 inches tall and 22 inches long it is also not really a pancake. It is a quiet small tank, which is a different and useful category, but do not buy it expecting pancake proportions.

7. CRAFTSMAN 2 Gallon Hot Dog CMXECXA02 – Smallest Tank for Stairs and Tight Staging

This is the smallest and lightest compressor here at 18 lb, and the 6.3 inch width is the narrowest in the group. When you are working in wall cavities, attic hatches or between closely spaced studs, that dimension is the entire reason to own one.

It runs a 1/3 hp universal motor to 125 PSI maximum. It is genuinely good for upholstery staplers, picture hanging, inflating tires and light hobby spraying, and it carries a built-in gauge so you can check pressure without a separate accessory.

It is not a finish nailing compressor. Listed airflow is 0.5 CFM at 90 PSI, which is a fraction of what a brad gun pulls. Owners report the motor running until it shut down from overheating when paired with a blow gun, which is the fastest way to get into trouble with a universal motor at this size.

The 6 foot hose is also shorter than you want for trim work. Most finish gun setups need 25 feet or more, so plan on replacing the hose before the first nail.

Jobs this size tank is actually right for

Upholstery and furniture repair on a sofa, chair or cabinet. Picture hanging, curtain rods, small assembly work and light inflation. Anywhere a stapler or a small brad gun does the whole job and you want something that fits in a tool bag between trim stages.

Owners agree on two things consistently: it is extremely portable, and it lacks the volume and pressure for anything beyond staplers, small brad guns and inflation.

Where it falls short

0.5 CFM at 90 PSI and a 125 PSI ceiling rule out finish nailers, framing guns and anything else that needs sustained pressure. The 78 dBA sound level is not friendly to indoor use either, and the setup instructions are widely reported as confusing on first use.

This is the lowest-rated compressor in the group for good reason. It is a specialist carry-and-staple tool, not a trim compressor, and buying it as your only compressor will disappoint you the first afternoon you set baseboard.

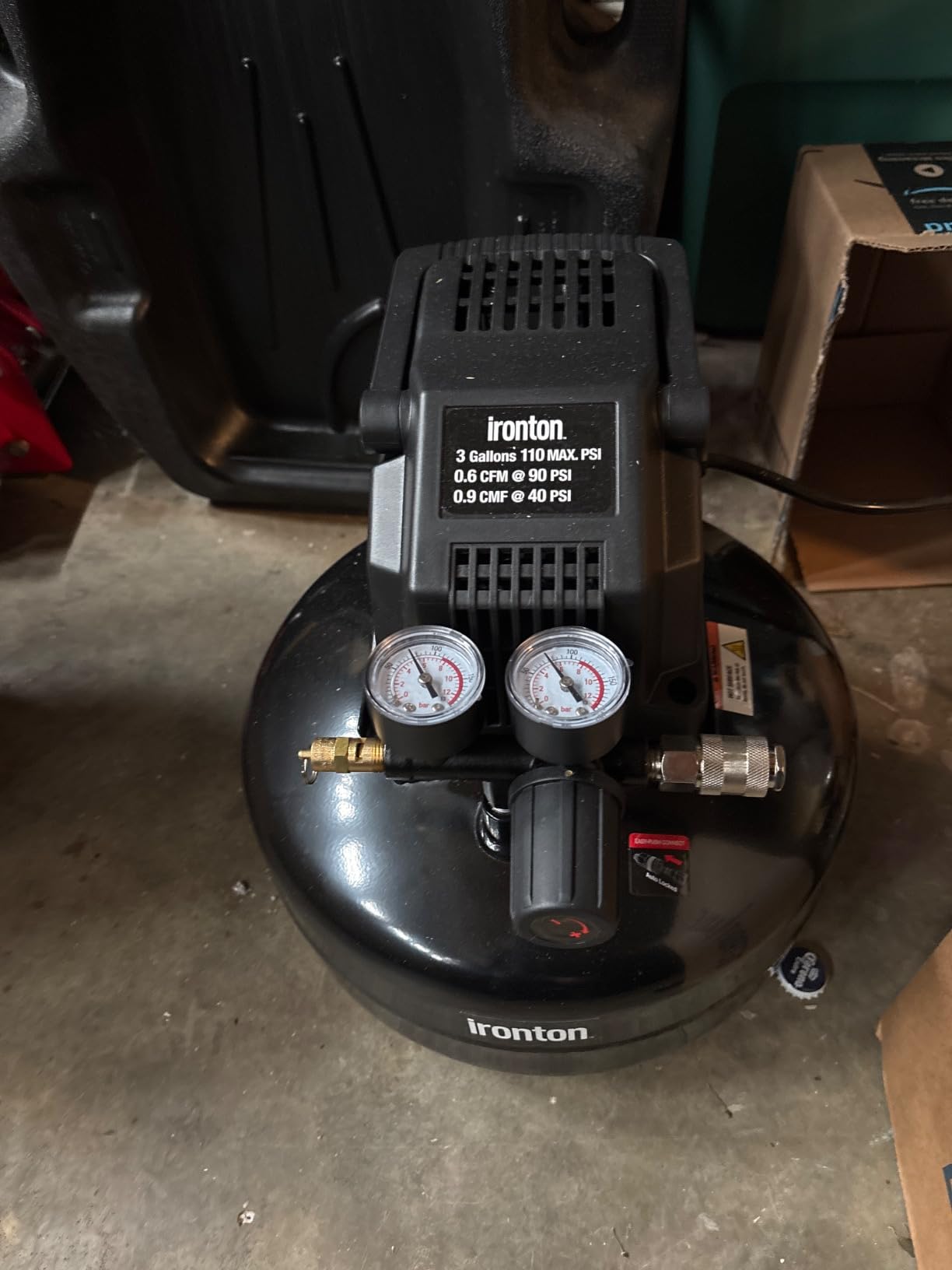

8. Ironton 5820665 3-Gallon Oil-Free Pancake – Lightest Full-Size Carry Weight

At 20.6 lb this is the second-lightest tank here and the lightest one with a real pancake shape. The fold-down handle flattens the whole unit for storage, which is the reason many buyers keep one in a van permanently rather than hauling it in and out.

The wide pancake base makes it stable and resistant to tipping on uneven jobsite floors and sawdust, which is more than can be said for tall vertical tanks. The switch is set to auto on at 85 PSI and auto off at 110 PSI, so it holds a usable working band for staplers and light brad work.

Be clear about what it is not. The 110 PSI maximum is the lowest ceiling in this group, airflow is not published at 90 PSI in a form you can compare against the others, and a 3 gallon tank drains quickly on any tool that needs steady pressure. Finish nailers are out of reach.

Sound is also the weak point. Without a published decibel figure and with a small direct-drive pump, it is audibly coarser than the 6-gallon tanks. Fine outdoors, unpleasant inside a finished house.

Where a 3-gallon pancake earns its place

Light finishing tasks, blowing out radiators and dust, inflating tires and sports equipment, and small brad work on trim that is already in place. It also makes sense as a secondary tool in a van alongside a bigger tank, since carrying two small compressors is often easier than moving one large one around.

Buyers use it for light tasks and value the carry weight and storage profile. There is also a minority of one-star reports describing a defective pressure valve and a warranty return process where the buyer paid the return shipping.

Where it falls short

The pressure ceiling and small tank mean this is not a finish nailing compressor. It suits punch-list work and cleanup rather than installation, and the reported valve failure and return experience are worth considering against the warranty backing on the bigger brands.

If your trim work actually involves driving nails, move up to one of the 6-gallon tanks at the top of this list rather than trying to make a 3 gallon tank stretch.

How to Choose a Pancake Air Compressor for Trim Work

The right size for trim work is a 6-gallon oil-free tank with at least 2.5 CFM at 90 PSI and a 150 PSI or higher maximum. Everything else on this page is a variation on that answer, chosen for noise, weight or a specific tool.

Match the tank to the nailer, not the other way round

An 18-gauge brad nailer is the standard interior trim tool and the easiest to run. A 16-gauge finish nailer for casing and thicker baseboard needs more airflow, and an upholstery stapler sits somewhere in between. A finish and staple combination gun falls in the middle as well.

The rule most finish carpenters use is 2 CFM of airflow per gun you plan to run, with enough tank volume to cover the burst between cycles. On that basis, a single brad gun runs happily on a 6-gallon 2.6 CFM pancake, a single finish gun wants closer to 4 CFM, and two guns at once means you should stop shopping in the pancake category.

Tank volume is the piece most guides skip. Air is stored at working pressure, so the usable volume is tank size multiplied by pressure, and the relevant number is how many nails you fire before the compressor must catch up. A 6-gallon tank at 90 PSI stores roughly 3.4 cubic feet of usable air, more than double a 2.5-gallon tank at the same pressure.

That is why small tanks stall on long baseboard runs. The gun empties the tank faster than the pump refills it, pressure drops into the recovery band, and you get a pause between every few shots. On a single room of trim you barely notice. Across a full floor it is the single most common complaint about small compressors in carpentry forums.

Choose between oil-free and oil-lubricated

Every compressor on this list is oil-free, and for trim work that is the right call. An oil-free pump has no oil level to check, no oil change interval, no pump rebuild schedule, and no risk of oil mist settling on white casing or a finished wall.

Oil-lubricated pumps last longer and run cooler under heavy load, which is why they dominate the 20-gallon and larger market. They are also heavier, and the weight and maintenance work against the portability that made you consider a pancake in the first place. If your work is one brad gun in an occupied home, oil-free is the correct answer.

Read the sound level for the room you will be in

Decibel figures are useful only when translated. A vacuum cleaner runs around 65 to 70 dBA, a normal conversation sits near 60, and a power lawn mower is around 95. Anything above 80 carries across a quiet house and through a thin wall.

On that scale, the 68 dBA unit at the quiet end of this list is close to a vacuum, and it is usable in a finished room after working hours. The DEWALT at 71.5 dBA is only slightly louder. The 73 dBA Metabo HPT is fine for daytime interiors. The two 82 dBA tanks are outdoor or daytime tools, and no amount of marketing changes that.

Forum consensus on quietness is worth reading as a practical test rather than a number. Carpenters tend to say the small quiet compressors are usable because you can hold a conversation beside them. That is the standard to shop against, and it corresponds to roughly the upper sixties in published figures.

Get the hose, fittings and moisture right

A 25 foot hose is the practical minimum for trim work, and it is included with several compressors on this list. Longer is better if you are setting the compressor in a hallway and nailing in three rooms. Use a 1/4 inch quick-connect coupler, which is the standard on virtually every pneumatic trim gun, and make sure the coupler on the hose matches the outlet on the compressor.

Moisture is the quiet killer of finish work. Warm humid air condenses inside the tank and settles as water, and that water goes straight into your nailer and can leave spotting on pale trim. Drain the tank after every use, and consider a short inline moisture filter or a separate dryer for jobs in humid weather. For a full discussion of compressor setup and sizing, our pancake air compressor roundup covers the general category.

Know when a pancake is the wrong tool

A pancake runs finish and brad guns, finish and staple guns, upholstery staplers, airbrushes, blow guns and tire inflators. It is not the answer for framing nailers, DA sanders, impact wrenches, spray guns needing large volume, or running two large finish guns at once. Those need a larger tank or a twin-stack unit. If you are framing rather than trimming, our framing compressor guide covers that side, and if your real task is abrasive or blasting work, see our sandblasting compressor picks.

Two other routes are worth a look. A cordless battery compressor removes the hose and the noise entirely and makes sense for a single brad gun on scattered small jobs. A compressor and nailer combo kit from a home centre bundles the two pieces with a discount, and for a first purchase that route is often the cheapest way to get a matched, working setup in one trip.

Cut to the work with the right saw

Trim work is a mitre problem as much as a nailing problem. If your compressor plan is built around fitting crown and casing, the matching saw matters just as much as the airflow. Our miter saw picks for trim work cover the saw side of the same jobs.

Frequently Asked Questions

The Bottom Line on Pancake Airpressors for Trim Work in 2026

The best pancake air compressors for trim work in 2026 all share one answer: a 6-gallon oil-free tank with at least 2.5 CFM at 90 PSI. Our pick for most carpenters is the PORTER-CABLE C2002-WK, which pairs that airflow with the lightest carry weight in the class and two factory couplers.

Buy the Metabo HPT EC914S instead if your trim work is a continuous production run of casing and you want the airflow headroom. Buy the DEWALT DWFP55130 if the job is inside an occupied home and noise is the deciding factor.

Drain the tank after every job, and match the compressor to the nailer before you buy either one.
